consisting of brake shoes, pressure springs, tension springs, cover plates, spread hinge lock, (scope of delivery - see illustration), casting number brake shoes 384294 or 1807779, for one axle (2 wheel brakes left + right).

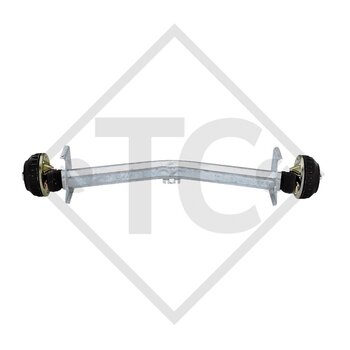

BC: dimension A 1760mm, OHF: dimension C 2280mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 15°, axle profile 97mm.
BC: dimension A 900mm, OHF: dimension C 1430mm, wheel connection 205x6, wheel brake type 3081 A, offset (ET) 0mm, swing arm position 20°, axle profile 120mm, wheel nuts M18x1.5 ball.
screw stroke (extended length) 300mm, maxi. static load 2500kg, dimension B 500mm, dimension C 380mm, dimension D 685mm, dimension E 225mm, dimension G 220mm, dimension H 276mm.
consisting of brake shoes, pressure springs, tension springs, cover plates, casting number brake shoes 387260, for one axle (2 wheel brakes left + right).
rim size 4.50x12, hole number 5, rim centre hole Ø 67mm, bolt circle 112mm, offset +30, colour silver RAL9006, R12 ball-head, load capacity 900kg at 140km/h.
build design radial, tyre size 155/80 R 13, TL (tubeless), load index 84, speed index N, tread AW-414, specification M+S, load capacity 500kg at 140km/h, inflation pressure 2.7 bar.
build design radial, tyre size 195/70 R 14, TL (tubeless), load index 96, speed index N, tread KargoMax ST-4000, specification M+S, load capacity 710kg at 140km/h, inflation pressure 3.1 bar.
build design radial, tyre size 165 R 13 C, TL (tubeless), load index 96, speed index N, tread KargoMax ST-6000, specification M+S, load capacity 710kg at 140km/h, inflation pressure 4.5 bar.
tyre size 6.50 R16, TL (tubeless), load index 108/107, speed index N, tread Super Traveler 668, load capacity 1000/975kg at 140km/h, inflation pressure 5,0 bar.
consisting of brake shoes, pressure springs, tension springs, cover plates, casting number brake shoes 384296 and 384481, for one axle (2 wheel brakes left + right).
rim size 7.00x12, hole number 5, rim centre hole Ø 67mm, bolt circle 112mm, offset +10, colour silver RAL9006, R12 ball-head, load capacity 900kg at 140km/h.
