WINTERHOFF Coupling heads for braked trailers with ball diam. ⌀50mm

Coupling head WW 13-N
drawbar ⌀45-46mm round, holes (screw connection) cross 12.5mm, hole distance 40mm, perm. gross weight 1500kg, nose load 100kg, material: steel.
Price 39,90 EUR Incl. tax Excl. Shipping costs
Coupling head WW 150-RB
drawbar ⌀50-51mm round, holes (screw connection) cross 12.5mm, hole distance 40mm, perm. gross weight 1500kg, nose load 100kg, material: steel.
Price 33,90 EUR Incl. tax Excl. Shipping costs
Coupling head WW 220 R-A
drawbar ⌀45-46mm round, holes (screw connection) cross 12.5mm, hole distance 40mm, perm. gross weight 2200kg, nose load 100kg, material: steel.
Price 49,90 EUR Incl. tax Excl. Shipping costs
Coupling head WW 220 R-B
drawbar ⌀50-51mm round, holes (screw connection) cross 12.5mm, hole distance 40mm, perm. gross weight 2200kg, nose load 100kg, material: steel.
Price 44,90 EUR Incl. tax Excl. Shipping costs

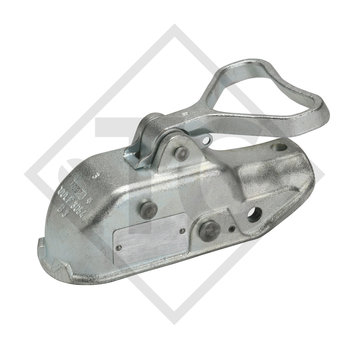

Coupling head WW 200-B3-H
drawbar ⌀45-46mm round, holes (screw connection) cross 12.5mm, hole distance 40mm, perm. gross weight 3000kg, nose load 150kg, material: malleable cast iron.
Price 114,80 EUR Incl. tax Excl. Shipping costs
Coupling head WW 200-B5-H
drawbar ⌀50-51mm round, holes (screw connection) cross 12.5mm, hole distance 40mm, perm. gross weight 3000kg, nose load 150kg, material: malleable cast iron.
Price 114,80 EUR Incl. tax Excl. Shipping costs

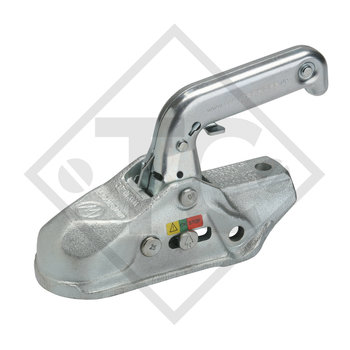

Coupling head WW 30-D2
drawbar ⌀45-46mm round, holes (screw connection) cross 12.5mm, hole distance 40mm, perm. gross weight 3000kg, nose load 150kg, material: malleable cast iron.
Price 69,90 EUR Incl. tax Excl. Shipping costs
Coupling head WW 30-D3
drawbar ⌀50-51mm round, holes (screw connection) cross 12.5mm, hole distance 40mm, perm. gross weight 3000kg, nose load 150kg, material: malleable cast iron.
Price 74,90 EUR Incl. tax Excl. Shipping costs
Coupling head WW 30-D3
drawbar ⌀50-51mm round, holes (screw connection) cross, horizontal 14.5mm, vertical 12.5mm, hole distance 40mm, perm. gross weight 3000kg, nose load 150kg, material: malleable cast iron.
Price 59,90 EUR Incl. tax Excl. Shipping costs
Coupling head WW 30-D3
drawbar ⌀50-51mm round, holes (screw connection) cross 14.5mm, hole distance 40mm, perm. gross weight 3000kg, nose load 150kg, material: malleable cast iron.
Price 79,90 EUR Incl. tax Excl. Shipping costs
Coupling head WW 30-D6
drawbar ⌀60mm round, holes (screw connection) cross 12.5mm, hole distance 40mm, perm. gross weight 3000kg, nose load 150kg, material: malleable cast iron.
Price 106,00 EUR Incl. tax Excl. Shipping costs
Universal coupling head WW 30-K
drawbar ⌀35/40/45/46/50/51mm round, holes (screw connection) cross 12.5mm, hole distance 40/54mm, perm. gross weight 3000kg, nose load 150kg, material: malleable cast iron.
Price 76,20 EUR Incl. tax Excl. Shipping costs
Coupling head WW 350-RB
drawbar ⌀50mm round, holes (screw connection) cross 12.5mm, hole distance 40mm, perm. gross weight 3500kg, nose load 200kg, material: malleable cast iron.
Price 82,00 EUR Incl. tax Excl. Shipping costs
Coupling head WW 350-RB
drawbar ⌀50mm round, holes (screw connection) cross, horizontal 14.5mm, vertical 12.5mm, hole distance 40mm, perm. gross weight 3500kg, nose load 200kg, material: malleable cast iron.
Price 82,00 EUR Incl. tax Excl. Shipping costs
Coupling head WW 350-RB
drawbar ⌀50mm round, holes (screw connection) cross 14.5mm, hole distance 40mm, perm. gross weight 3500kg, nose load 200kg, material: malleable cast iron.
Price 79,90 EUR Incl. tax Excl. Shipping costs
Coupling head WW 350 R-C
drawbar ⌀60mm round, holes (screw connection) cross 12.5mm, hole distance 40mm, perm. gross weight 3500kg, nose load 200kg, material: malleable cast iron.
Price 69,90 EUR Incl. tax Excl. Shipping costs
Coupling head WW 350 R-C
drawbar ⌀60mm round, holes (screw connection) cross 14.5mm, hole distance 40mm, perm. gross weight 3500kg, nose load 200kg, material: malleable cast iron.
Price 84,90 EUR Incl. tax Excl. Shipping costs

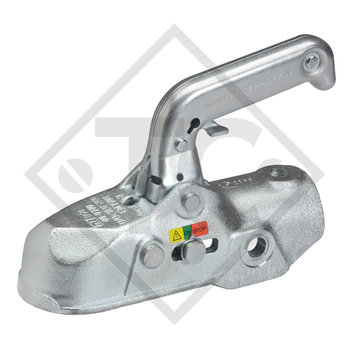

Coupling head WW 350-RD
drawbar ⌀65mm round, holes (screw connection) cross 12.5mm, hole distance 40mm, perm. gross weight 3500kg, nose load 200kg, material: malleable cast iron.
Price 89,90 EUR Incl. tax Excl. Shipping costs
Coupling head WW 350-RD
drawbar ⌀65mm round, holes (screw connection) cross, horizontal 14.5mm, vertical 12.5mm, hole distance 40mm, perm. gross weight 3500kg, nose load 200kg, material: malleable cast iron.
Price 74,90 EUR Incl. tax Excl. Shipping costs
Coupling head WW 350-RD
drawbar ⌀65mm round, holes (screw connection) cross 14.5mm, hole distance 40mm, perm. gross weight 3500kg, nose load 200kg, material: malleable cast iron.
Price 84,90 EUR Incl. tax Excl. Shipping costs
Coupling head WW 350-R CH
drawbar ⌀60mm round, holes (screw connection) horizontal 14.5mm, hole distance 54mm, perm. gross weight 3500kg, nose load 200kg, material: malleable cast iron.
Price 79,90 EUR Incl. tax Excl. Shipping costs
Coupling head WW 350-R CH
drawbar ⌀60mm round, holes (screw connection) horizontal 16.5mm, hole distance 54mm, perm. gross weight 3500kg, nose load 200kg, material: malleable cast iron.
Price 97,20 EUR Incl. tax Excl. Shipping costs
Special coupling head WW 300-H ø60mm balls
drawbar ⌀50mm round, holes (screw connection) cross 12.5mm, hole distance 40mm, perm. gross weight 3500kg, nose load 150kg, material: malleable cast iron.
Price 299,90 EUR Incl. tax Excl. Shipping costs
Special coupling head WW 300-H only suitable for ø60mm balls
drawbar ⌀50mm round, holes (screw connection) cross, horizontal 14.5mm, vertical 12.5mm, hole distance 40mm, perm. gross weight 3500kg, nose load 150kg, material: malleable cast iron.
Price 299,90 EUR Incl. tax Excl. Shipping costs
