Home / Brake shoe kit for wheel brake type 2051, brake size 200x50mm, for one axle
consisting of brake shoes, pressure springs, tension springs, cover plates, spread hinge lock, (scope of delivery - see illustration), casting number brake shoes 384294 or 1807779, for one axle (2 wheel brakes left + right). Read more...
Part no. 1213886
| Wheel brake type (1) |
2051 |
| Brake shoe diameter |
200mm |
| Brake shoe width | 50mm |

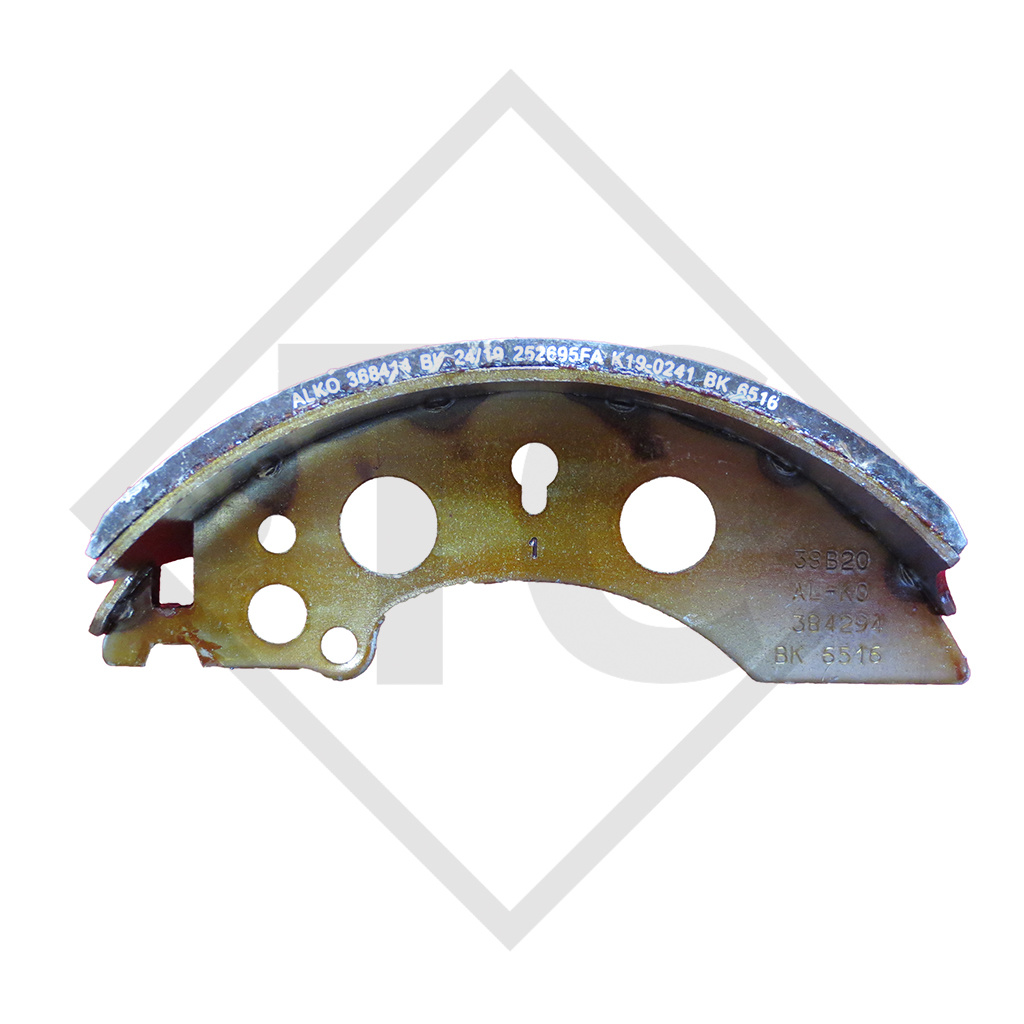

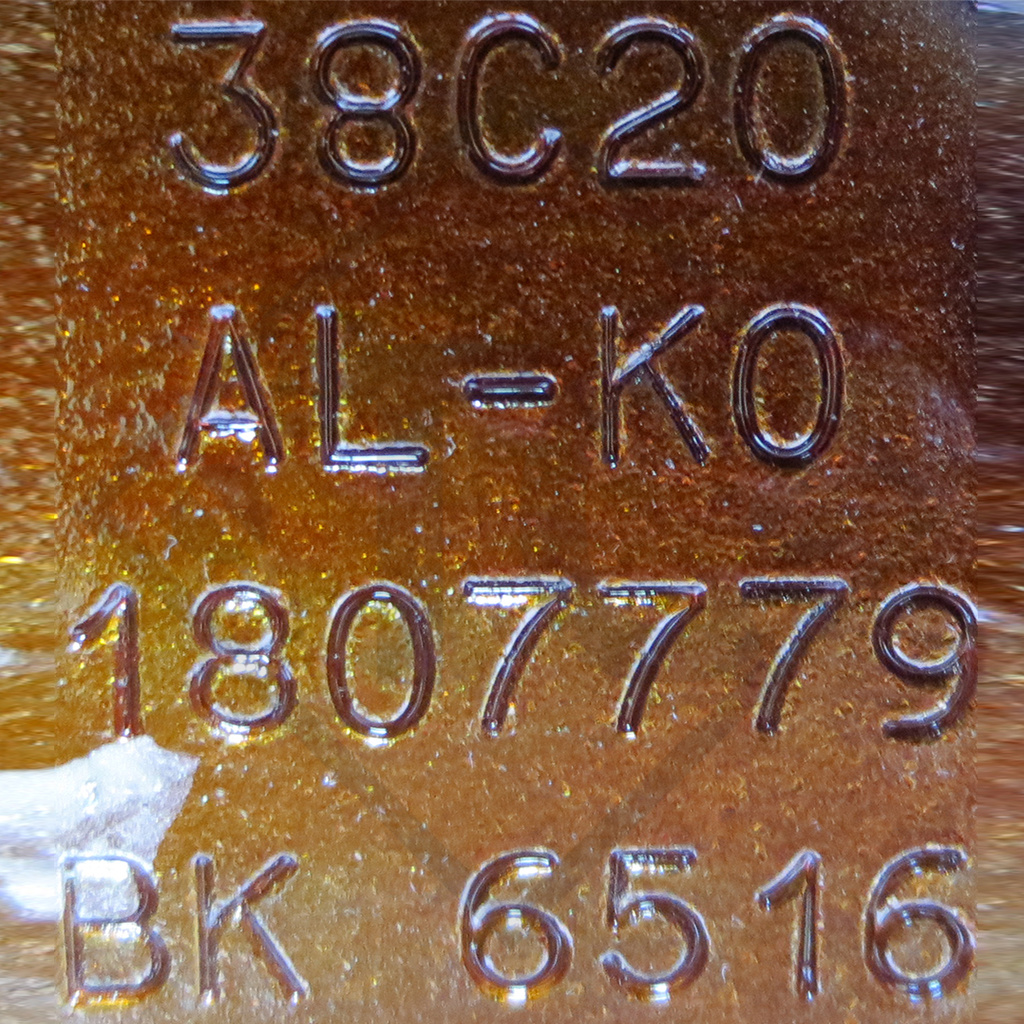

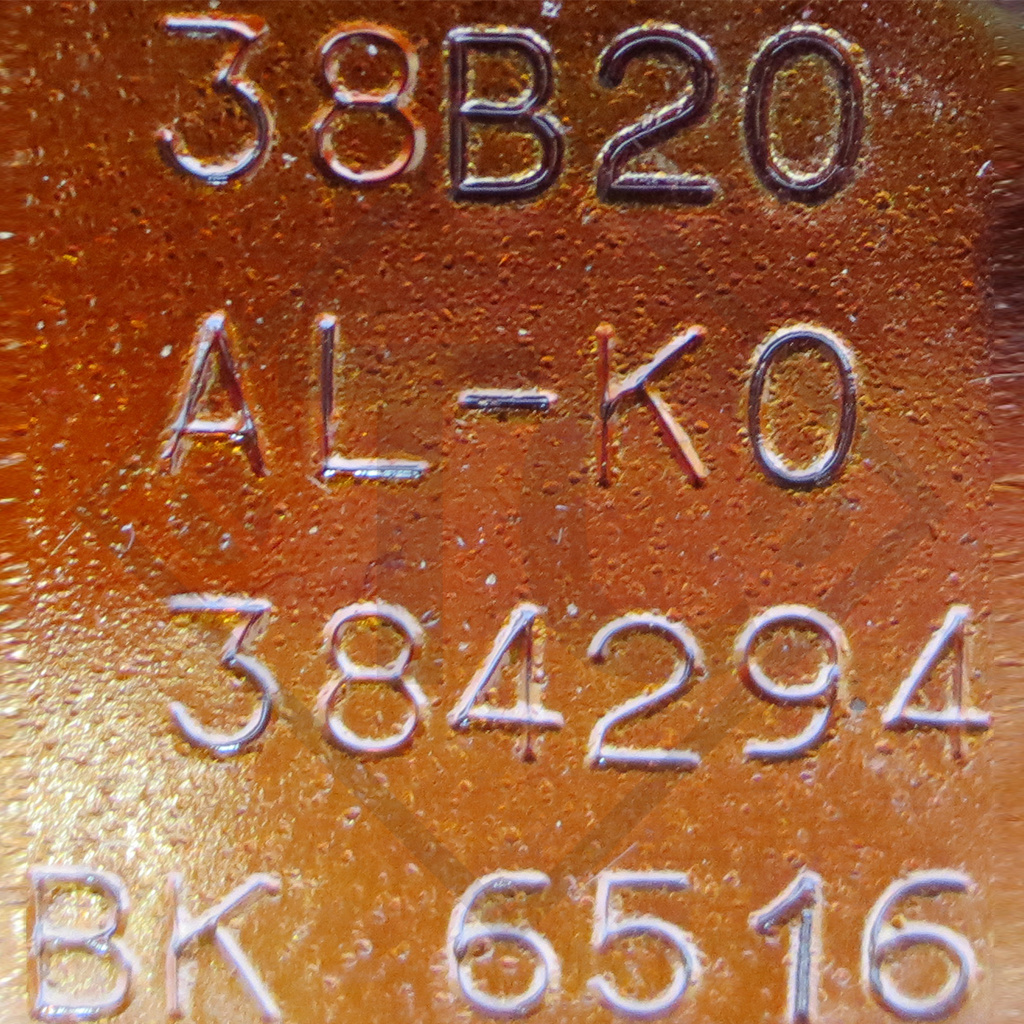

| Casting number brake shoes | 384294 (OLD) or 1807779 (NEW) |

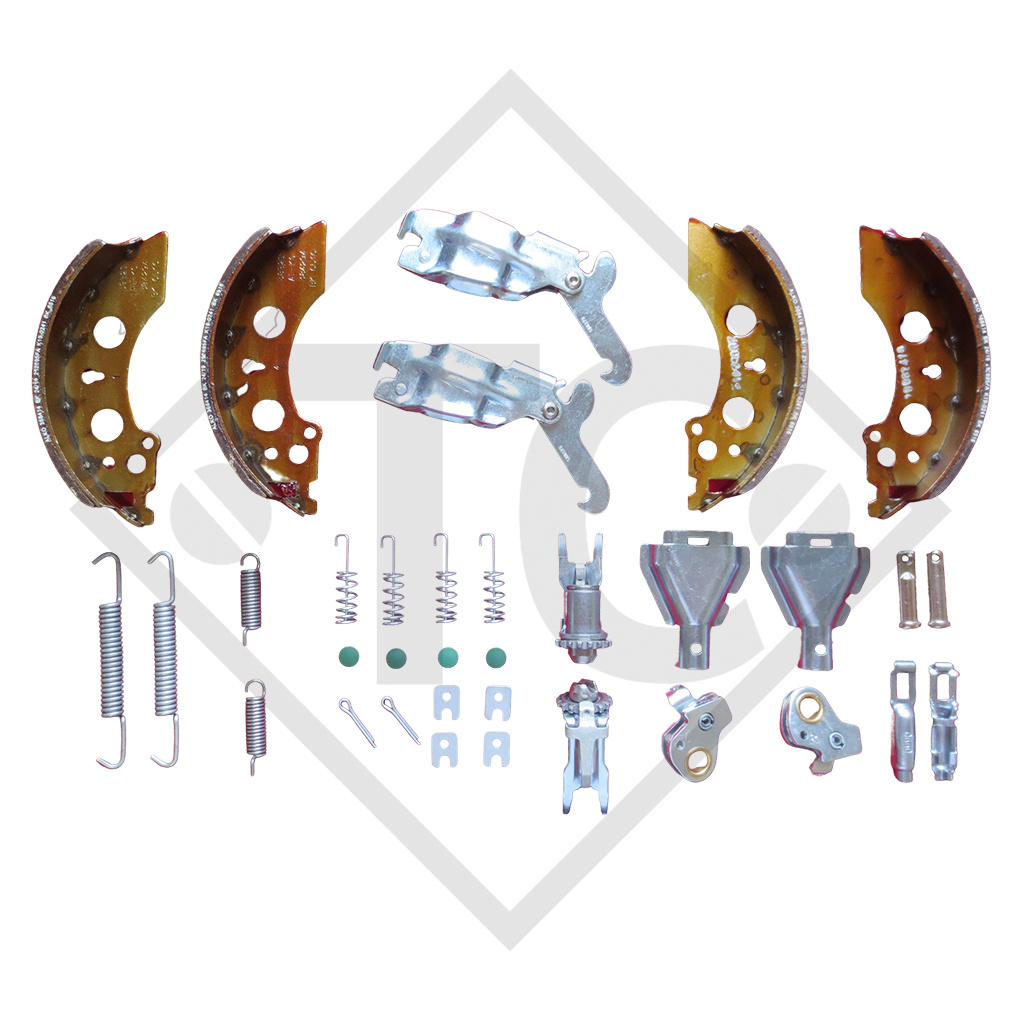

Scope of delivery for one axle (2 wheelbrakes) - see illustration
4x Brake shoes (2x secondary shoe, 2x primary jaw)
4x Cover plates
4x Stopper
4x Pressure spring (brake shoe holding spring)
2x Tension spring long
2x Tension spring short
2x Spread hinge lock (expanding joint lock)
2x Adjusting screw, adjusting nut and compression binder (tension clip)
2x Flat spring
2x Cup
2x Splint
2x Connection eye (hock-in eye)
2x Bearing bolt
1x Auto-reverse lever left (brake lever left)
1x Auto-reverse lever right (brake lever right)
For axle type (2)
B 850-10
B 1200-5
B 1200-6
B 1600-3
BS 1500
CB 1050
CB 1350
CB 1500
Suitable for replacement part identification number (3)
Service manual, installation / brake shoe replacement
Wheelbrake service guide
Installation instructions
Caution! Brake shoes are a safety element of the braking system. Following the replacement of the brake shoes, the entire braking system must be fine-tuned. The assembly and replacement of brake shoes may only be carried out by an authorized specialist workshop.
Use only parts and accessories from AL-KO. Original parts vs. replica.
