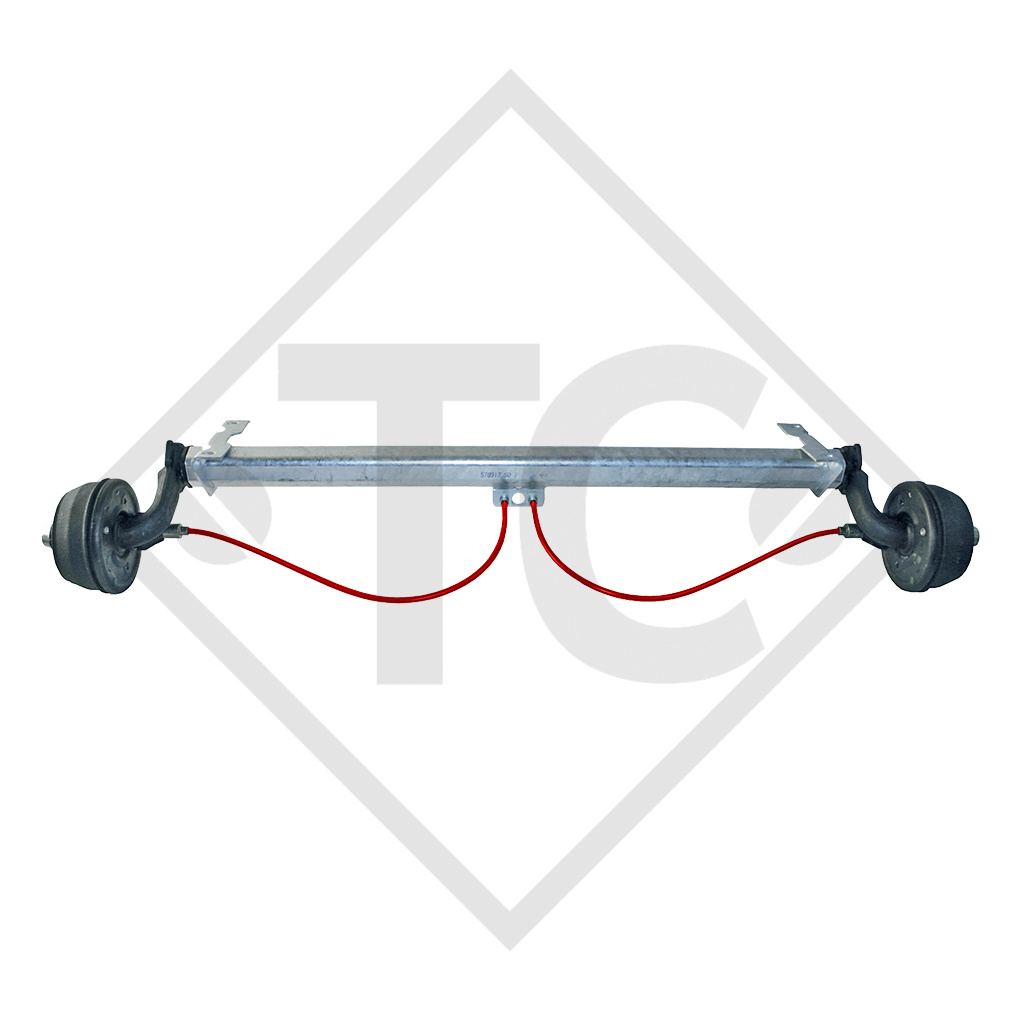

BC: dimension A 700mm, OHF: dimension C 1140mm, wheel connection 100x4, wheel brake type 1636G, offset (ET) 27-45mm, swing arm position 30°, axle profile 71mm, taper-head wheel bolts M12x1.5. Read more...
Original operating instructions
Replacement part identification number (ETI) 811285
TECHNOLOGY
Model: BASIC
Axle type: B 700-5
Axle load: SA 750kg
Wheel brake: 1636G
Suspension: Hexagonal rubber suspension
Swing arm: 145mm
Wheel connection: 100x4
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Single axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose
Wheel bolts loose
Without shock absorber brackets
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake black-primed
ACCESSORIES
Shock absorber
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

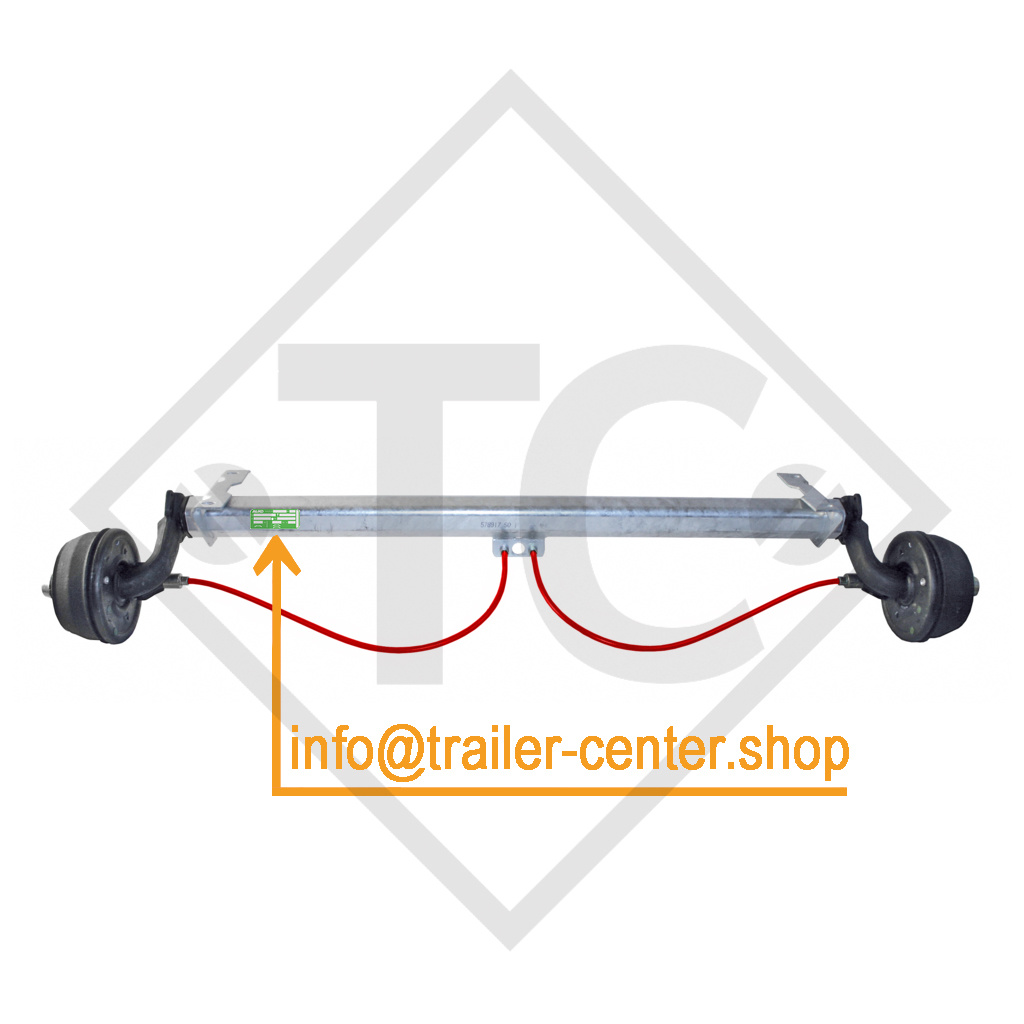

Simply send us a photo of your axle type plate, together with your address and telephone number to
