AL-KO Braked axle 900 - 2000kg DELTA, axle type SI-N - These axles must only be installed in caravans!

Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / AXLES / BRAKED AXLES & ACCESSORIES / BRAKED AXLE 900 - 2000KG DELTA, AXLE TYPE SI-N, AXLES FOR CARAVANS

JUST ORIGINAL PARTS

LIFE-TIME SUPPORT

SALE

POSITIVE REVIEWS

AL-KO SEMI-TRAILING ARM AXLES HAVE BEEN DEVELOPED AND APPROVED SPECIFICALLY FOR USE IN CARAVANS.
CARAVANS ARE ONLY OPERATED WITHIN THE NOMINAL LOAD RANGE, AND ARE VERY
DEMANDING IN TERMS OF DRIVING DYNAMICS DUE TO
THEIR DESIGN, PARTICULARLY AT HIGH SPEEDS.
THESE AXLES HAVE BEEN DEVELOPED AND APPROVED PRECISELY FOR THESE BOUNDARY CONDITIONS.
NO OTHER APPLICATION AREA IS PERMITTED.

Braked axle 850kg EURO1 axle type B 850-4, RAPIDO caravan - CLUB 31
AL-KO Braked axle 850kg EURO1 axle type B 850-4, RAPIDO caravan - CLUB 31
BC: dimension A 1100mm, OHF: dimension C 1580mm, wheel connection 130x4, wheel brake type 1637, offset (ET) 30mm, swing arm position 25°, axle profile 80mm.
Price 1.450,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1300kg EURO1 axle type DELTA SIN 12, TABBERT FFB-SPORTIV 485
AL-KO Braked axle 1300kg EURO1 axle type DELTA SIN 12, TABBERT FFB-SPORTIV 485
BC: dimension A 1510mm, OHF: dimension C 1990mm, wheel connection 112x5, wheel brake type 2051 A, offset (ET) 30mm, swing arm position 16°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.410,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1000kg EURO Plus axle type B 1000-3 - BURSTNER 460 D157
AL-KO Braked axle 1000kg EURO Plus axle type B 1000-3 - BURSTNER 460 D157
BC: dimension A 1380mm, OHF: dimension C 1860mm, wheel connection 100x4, wheel brake type 2051 vers. A, offset (ET) 27-33mm, swing arm position 25°, axle profile 97mm, taper-head wheel bolts M12x1.5.
Price 1.450,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg EURO Plus axle type B 1600-3
AL-KO Braked axle 1500kg EURO Plus axle type B 1600-3
BC: dimension A 1545mm, OHF: dimension C 2010mm, wheel connection 112x5, wheel brake type 2051 vers. Ab, offset (ET) 30mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.499,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1600kg EURO1 axle type B 1600-1
AL-KO Braked axle 1600kg EURO1 axle type B 1600-1
BC: dimension A 1575mm, OHF: dimension C 2090mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 25°, axle profile 97mm.
Price 1.900,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1000kg EURO1 axle type B 1000-3 - Bürstner 5001 TN
AL-KO Braked axle 1000kg EURO1 axle type B 1000-3 - Bürstner 5001 TN
BC: dimension A 1445mm, OHF: dimension C 1910mm, wheel connection 100x4, wheel brake type 2051 vers. A, offset (ET) 27-33mm, swing arm position 25°, axle profile 97mm, taper-head wheel bolts M12x1.5.
Price 1.495,00 EUR Incl. tax Excl. Shipping costs

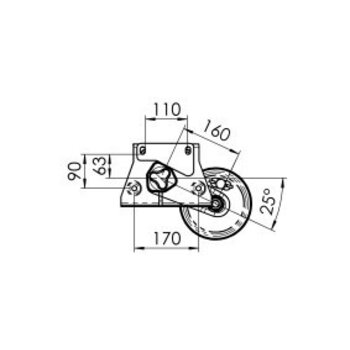

Braked axle 900kg EURO1 axle type B 850-5
AL-KO Braked axle 900kg EURO1 axle type B 850-5
BC: dimension A 1355mm, OHF: dimension C 1835mm, wheel connection 100x4, wheel brake type 1637, offset (ET) 27-33mm, swing arm position 25°, axle profile 80mm.
Price 1.315,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg EURO1 axle type B 1600-0
AL-KO Braked axle 1500kg EURO1 axle type B 1600-0
BC: dimension A 1530mm, OHF: dimension C 2060mm, wheel connection 112x5, wheel brake type 2051 Ab, offset (ET) 30mm, swing arm position 25°, axle profile 97mm.
Price 2.079,00 EUR Incl. tax Excl. Shipping costs

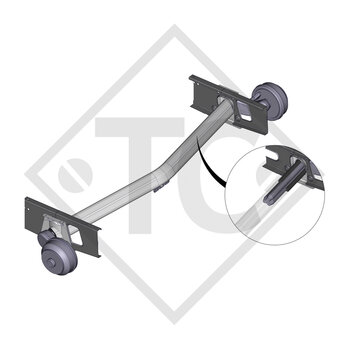

Braked axle 1800kg EURO PLUS axle type DELTA SI 18-1 - Burstner Averso 600 TK
AL-KO Braked axle 1800kg EURO PLUS axle type DELTA SI 18-1 - Burstner Averso 600 TK
BC: dimension A 1680mm, OHF: dimension C 2270mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 15°, axle profile 110mm, ball-head wheel bolts M12x1.5.
Price 2.195,00 EUR Incl. tax Excl. Shipping costs

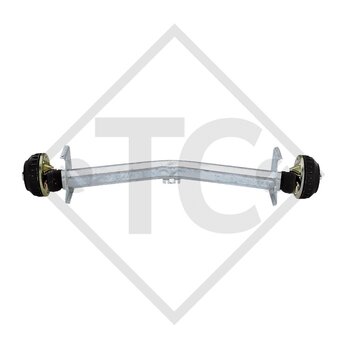

Braked axle 1000kg EURO1 axle type Delta SIN 10 - Dethleffs EG/CT 001 5DD
AL-KO Braked axle 1000kg EURO1 axle type Delta SIN 10 - Dethleffs EG/CT 001 5DD
BC: dimension A 1695mm, OHF: dimension C 2270mm, wheel connection 112x5, wheel brake type 2051 A, offset (ET) 30mm, swing arm position 10°, axle profile 97mm.
Price 1.485,00 EUR Incl. tax Excl. Shipping costs
Braked axle 900kg EURO1 axle type B 850-5 - CARAVAN
AL-KO Braked axle 900kg EURO1 axle type B 850-5 - CARAVAN
BC: dimension A 1510mm, OHF: dimension C 1980mm, wheel connection 98x4, wheel brake type 1637, offset (ET) 27-33mm, swing arm position 25°, axle profile 80mm.
Price 1.390,00 EUR Incl. tax Excl. Shipping costs
Braked axle 900kg EURO1 axle type B 850-5 - CARAVAN
AL-KO Braked axle 900kg EURO1 axle type B 850-5 - CARAVAN
BC: dimension A 1410mm, OHF: dimension C 1870mm, wheel connection 100x4, wheel brake type 1637, offset (ET) 27-33mm, swing arm position 25°, axle profile 80mm.
Price 1.400,00 EUR Incl. tax Excl. Shipping costs
Page 17 of 17
