AL-KO Braked axle 900 - 2000kg DELTA, axle type SI-N - These axles must only be installed in caravans!

Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / AXLES / BRAKED AXLES & ACCESSORIES / BRAKED AXLE 900 - 2000KG DELTA, AXLE TYPE SI-N, AXLES FOR CARAVANS

JUST ORIGINAL PARTS

LIFE-TIME SUPPORT

SALE

POSITIVE REVIEWS

AL-KO SEMI-TRAILING ARM AXLES HAVE BEEN DEVELOPED AND APPROVED SPECIFICALLY FOR USE IN CARAVANS.
CARAVANS ARE ONLY OPERATED WITHIN THE NOMINAL LOAD RANGE, AND ARE VERY
DEMANDING IN TERMS OF DRIVING DYNAMICS DUE TO
THEIR DESIGN, PARTICULARLY AT HIGH SPEEDS.
THESE AXLES HAVE BEEN DEVELOPED AND APPROVED PRECISELY FOR THESE BOUNDARY CONDITIONS.
NO OTHER APPLICATION AREA IS PERMITTED.

Braked axle 1300kg EURO1 axle type B 1200-5 - BURSTNER 5210
AL-KO Braked axle 1300kg EURO1 axle type B 1200-5 - BURSTNER 5210
BC: dimension A 1550mm, OHF: dimension C 2030mm, wheel connection 112x5, wheel brake type 2051 vers. Aa, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.395,00 EUR Incl. tax Excl. Shipping costs
Braked axle 650kg EURO1 axle type B 850-0
AL-KO Braked axle 650kg EURO1 axle type B 850-0
BC: dimension A 1000mm, OHF: dimension C 1598mm, wheel connection 100x4, wheel brake type 1637, offset (ET) 27-33mm, swing arm position 25°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 650,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1300kg EURO axle type B 1200-5 - Chateau
AL-KO Braked axle 1300kg EURO axle type B 1200-5 - Chateau
BC: dimension A 1455mm, OHF: dimension C 2010mm, wheel connection 112x5, wheel brake type 2051 vers. A, offset (ET) 30mm, swing arm position 25°, axle profile 97mm.
Price 1.399,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg EURO1 axle type DELTA SIN 14-1 - FENDT 470
AL-KO Braked axle 1500kg EURO1 axle type DELTA SIN 14-1 - FENDT 470
BC: dimension A 1600mm, OHF: dimension C 2080mm, wheel connection 112x5, wheel brake type 2051 vers. Ab, offset (ET) 30mm, swing arm position 16°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.495,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1300kg EURO COMPACT axle type B 1200-5
AL-KO Braked axle 1300kg EURO COMPACT axle type B 1200-5
BC: dimension A 1760mm, OHF: dimension C 2240mm, wheel connection 112x5, wheel brake type 2051 vers. A, offset (ET) 30mm, swing arm position 25°, axle profile 97mm.
Price 1.350,00 EUR Incl. tax Excl. Shipping costs
Braked axle 650kg axle type B 700-3 - HYMER PUCK
AL-KO Braked axle 650kg axle type B 700-3 - HYMER PUCK
BC: dimension A 960mm, OHF: dimension C 1395mm, wheel connection 100x4, wheel brake type 1637, offset (ET) 27-45mm, swing arm position 15°, axle profile 71mm, taper-head wheel bolts M12x1.5.
Price 750,00 EUR Incl. tax Excl. Shipping costs
KIP Braked axle 900kg EURO1 axle type DELTA SI 850-5
AL-KO KIP Braked axle 900kg EURO1 axle type DELTA SI 850-5
BC: dimension A 1310mm, OHF: dimension C 1854mm, wheel connection 100x4, wheel brake type 1637, offset (ET) 30mm, swing arm position 30°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 1.395,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1350kg BASIC axle type B 1200-6 - Weinsberg 390
AL-KO Braked axle 1350kg BASIC axle type B 1200-6 - Weinsberg 390
BC: dimension A 1450mm, OHF: dimension C 1960mm, wheel connection 100x4, wheel brake type 2051 A, offset (ET) 30-33mm, swing arm position 25°, axle profile 97mm, taper-head wheel bolts M12x1.5.
Price 1.395,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1100kg EURO1 axle type DELTA SIN 10-1
AL-KO Braked axle 1100kg EURO1 axle type DELTA SIN 10-1
BC: dimension A 1415mm, OHF: dimension C 1895mm, wheel connection 100x4, wheel brake type 2051 vers. A, offset (ET) 30mm, swing arm position 16°, axle profile 97mm.
Price 1.395,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1000kg EURO Compact axle type B 850-10
AL-KO Braked axle 1000kg EURO Compact axle type B 850-10
BC: dimension A 1495mm, OHF: dimension C 1990mm, wheel connection 98x4, wheel brake type 1637, offset (ET) 27-33mm, swing arm position 25°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 1.380,00 EUR Incl. tax Excl. Shipping costs

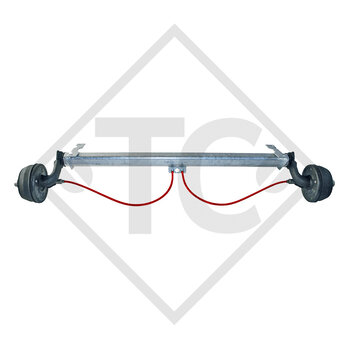

Braked axle 650kg axle type B 700-3, WILK CI SPORT 320
AL-KO Braked axle 650kg axle type B 700-3, WILK CI SPORT 320
BC: dimension A 1410mm, OHF: dimension C 1820mm, wheel connection 100x4, wheel brake type 1637, offset (ET) 27-45mm, swing arm position 30°, axle profile 71mm.
Price 925,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg EURO PLUS axle type DELTA SIN 14-1, BÜRSTNER 5521
AL-KO Braked axle 1500kg EURO PLUS axle type DELTA SIN 14-1, BÜRSTNER 5521
BC: dimension A 1700mm, OHF: dimension C 2180mm, wheel connection 112x5, wheel brake type 2051 vers. Ab, offset (ET) 30mm, swing arm position 16°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.590,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1000kg EURO Plus axle type B 850-10
AL-KO Braked axle 1000kg EURO Plus axle type B 850-10
BC: dimension A 1355mm, OHF: dimension C 1835mm, wheel connection 100x4, wheel brake type 1637, offset (ET) 27-33mm, swing arm position 25°, axle profile 80mm.
Price 1.315,00 EUR Incl. tax Excl. Shipping costs

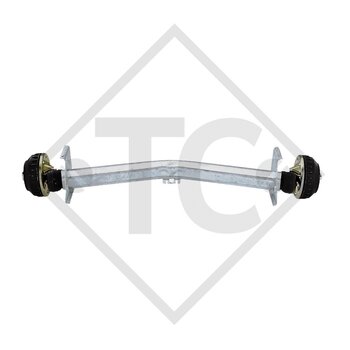

Braked axle 1600kg EURO PLUS axle type DELTA SIN 14-2 - Knaus 550 TL
AL-KO Braked axle 1600kg EURO PLUS axle type DELTA SIN 14-2 - Knaus 550 TL
BC: dimension A 1570mm, OHF: dimension C 2080mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 15°, axle profile 97mm, taper-head wheel bolts M12x1.5.
Price 1.950,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1800kg EURO1 axle type DELTA SI 18-1 - KNAUS TABBERT
AL-KO Braked axle 1800kg EURO1 axle type DELTA SI 18-1 - KNAUS TABBERT
BC: dimension A 1730mm, OHF: dimension C 2260mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 15°, axle profile 110mm, ball-head wheel bolts M12x1.5.
Price 2.050,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1300kg EURO PLUS axle type B 1200-5 LCM caravan
AL-KO Braked axle 1300kg EURO PLUS axle type B 1200-5 LCM caravan
BC: dimension A 1445mm, OHF: dimension C 1925mm, wheel connection 112x5, wheel brake type 2051 vers. A, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.450,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg EURO Plus axle type DELTA SIN 14-1, ADRIA
AL-KO Braked axle 1500kg EURO Plus axle type DELTA SIN 14-1, ADRIA
BC: dimension A 1710mm, OHF: dimension C 2198mm, wheel connection 112x5, wheel brake type 2051 vers. Ab, offset (ET) 30mm, swing arm position 16°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.415,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1600kg EURO axle type DELTA SI-N 14-2 - HYMER Eriba Nova 540
AL-KO Braked axle 1600kg EURO axle type DELTA SI-N 14-2 - HYMER Eriba Nova 540
BC: dimension A 1660mm, OHF: dimension C 2140mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 15°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.900,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1000kg EURO1 axle type B 1000-3
AL-KO Braked axle 1000kg EURO1 axle type B 1000-3
BC: dimension A 1320mm, OHF: dimension C 1800mm, wheel connection 100x4, wheel brake type 2051, offset (ET) 27-33mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.395,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1000kg EURO1 axle type B 1000-3, TABBERT caravan
AL-KO Braked axle 1000kg EURO1 axle type B 1000-3, TABBERT caravan
BC: dimension A 1756mm, OHF: dimension C 2269mm, wheel connection 100x4, wheel brake type 2051 vers. A, offset (ET) 27-33mm, swing arm position 25°, axle profile 97mm.
Price 1.425,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1800kg EURO1 axle type DELTA SI 18-1, FENDT Opal 560
AL-KO Braked axle 1800kg EURO1 axle type DELTA SI 18-1, FENDT Opal 560
BC: dimension A 1770mm, OHF: dimension C 2280mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 15°, axle profile 110mm.
Price 2.050,00 EUR Incl. tax Excl. Shipping costs
Page 16 of 16
