BC: dimension A 1455mm, OHF: dimension C 2010mm, wheel connection 112x5, wheel brake type 2051 vers. A, offset (ET) 30mm, swing arm position 25°, axle profile 97mm. Read more...
Part no. 1226776

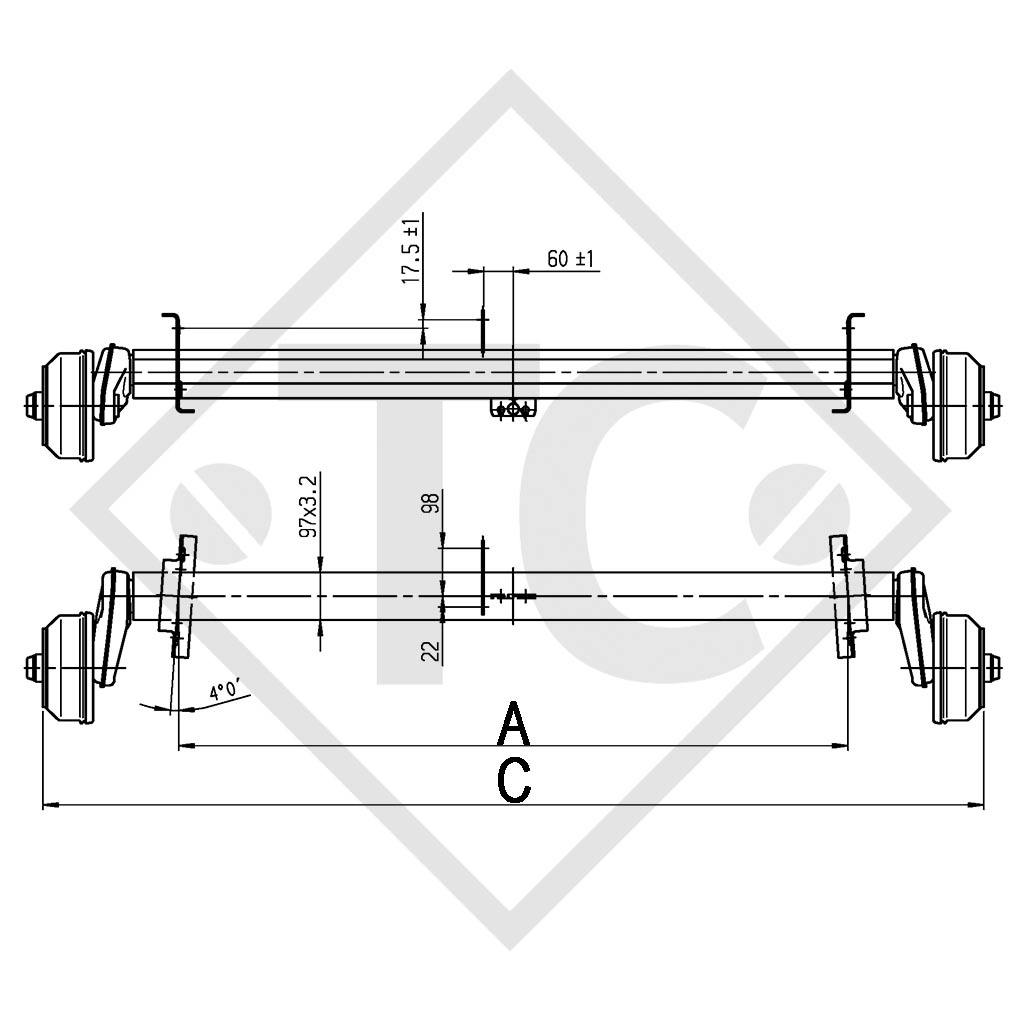

BC: dimension A 1455mm
OHF: dimension C 2010mm
Wheel connection 112x5
Offset (ET) 30mm

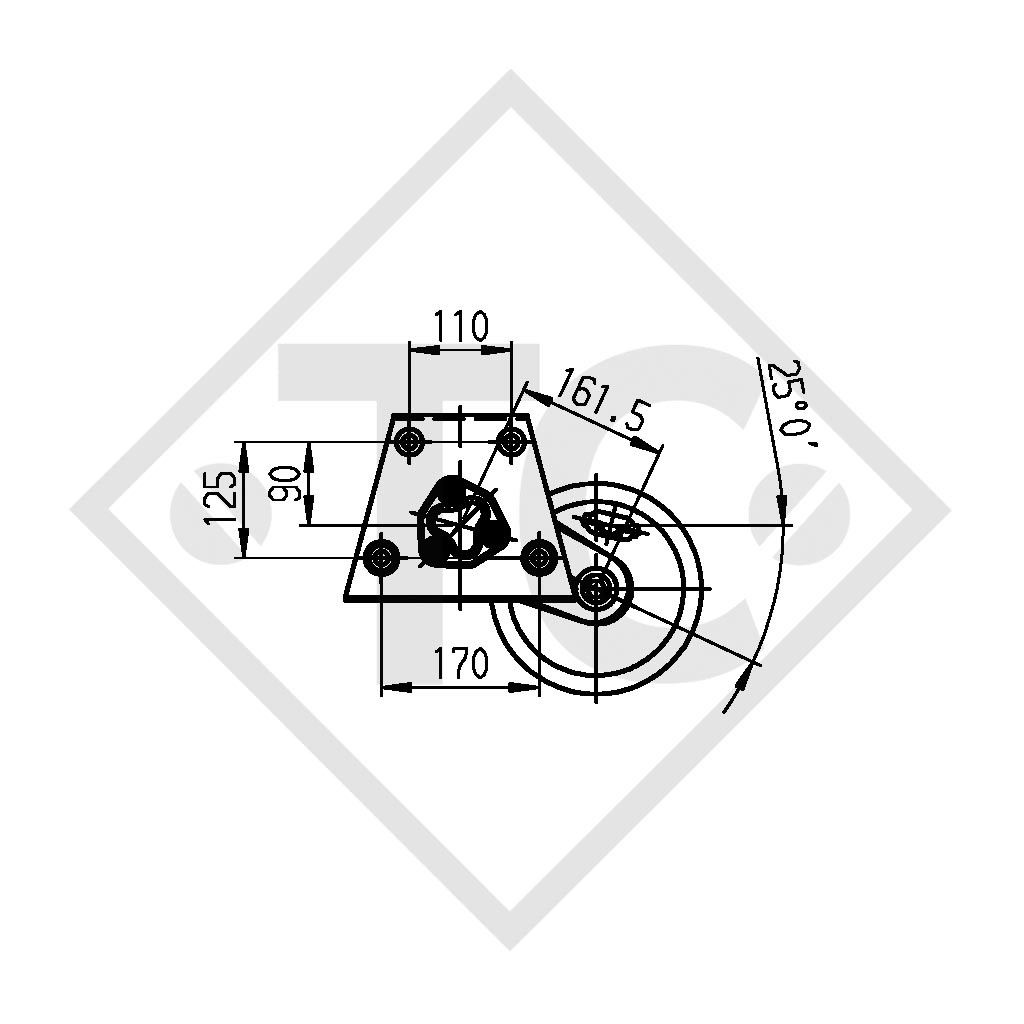

Swing arm position 25°
Axle profile 97mm
Original operating instructions
TECHNOLOGY
Model: EURO Plus
Axle type: B 1200-5
Axle load: Single axle 1300kg
Axle load: Tandem axle 2600kg
Wheel brake: 2051 vers. A
Suspension: Hexagonal rubber suspension
Wheel bearing: Compact bearing
Rim centre hole: Min. 63mm
SCOPE OF DELIVERY
Axle with brake
Axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
