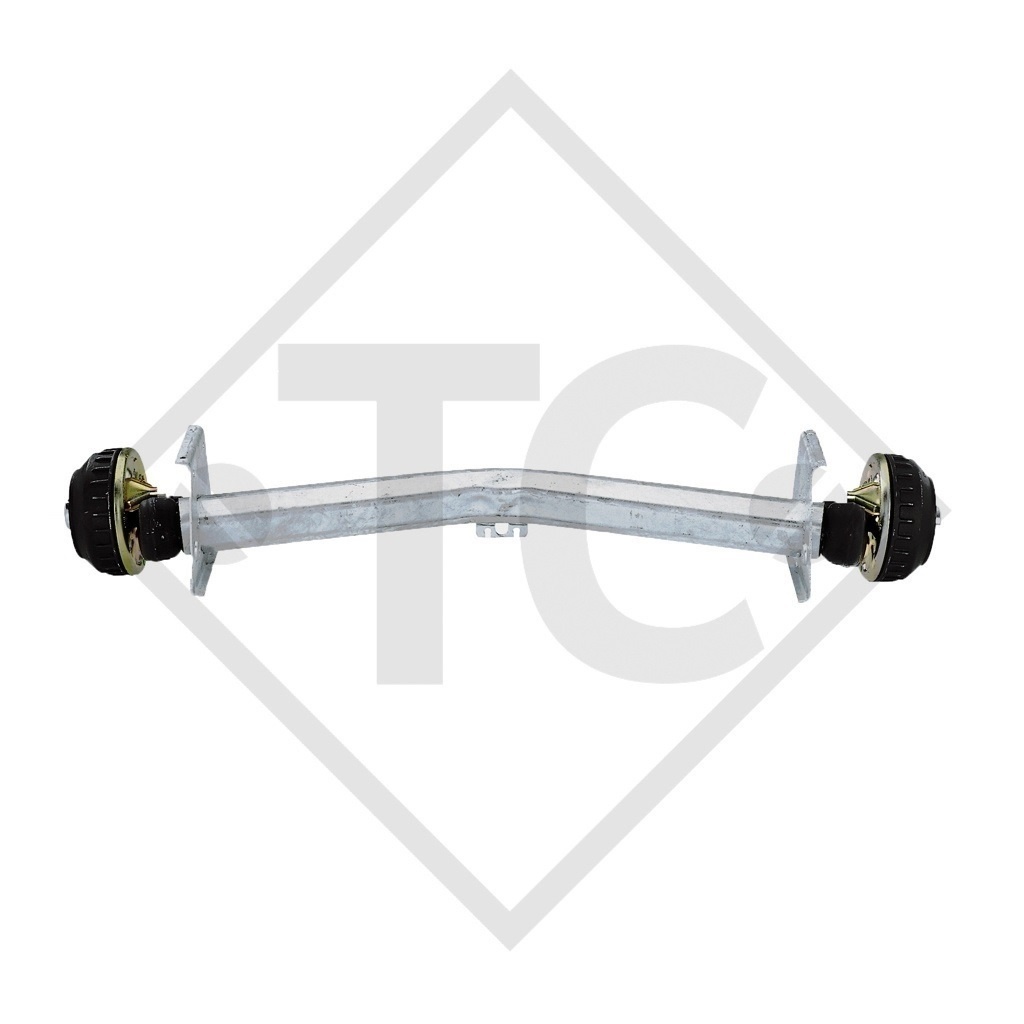

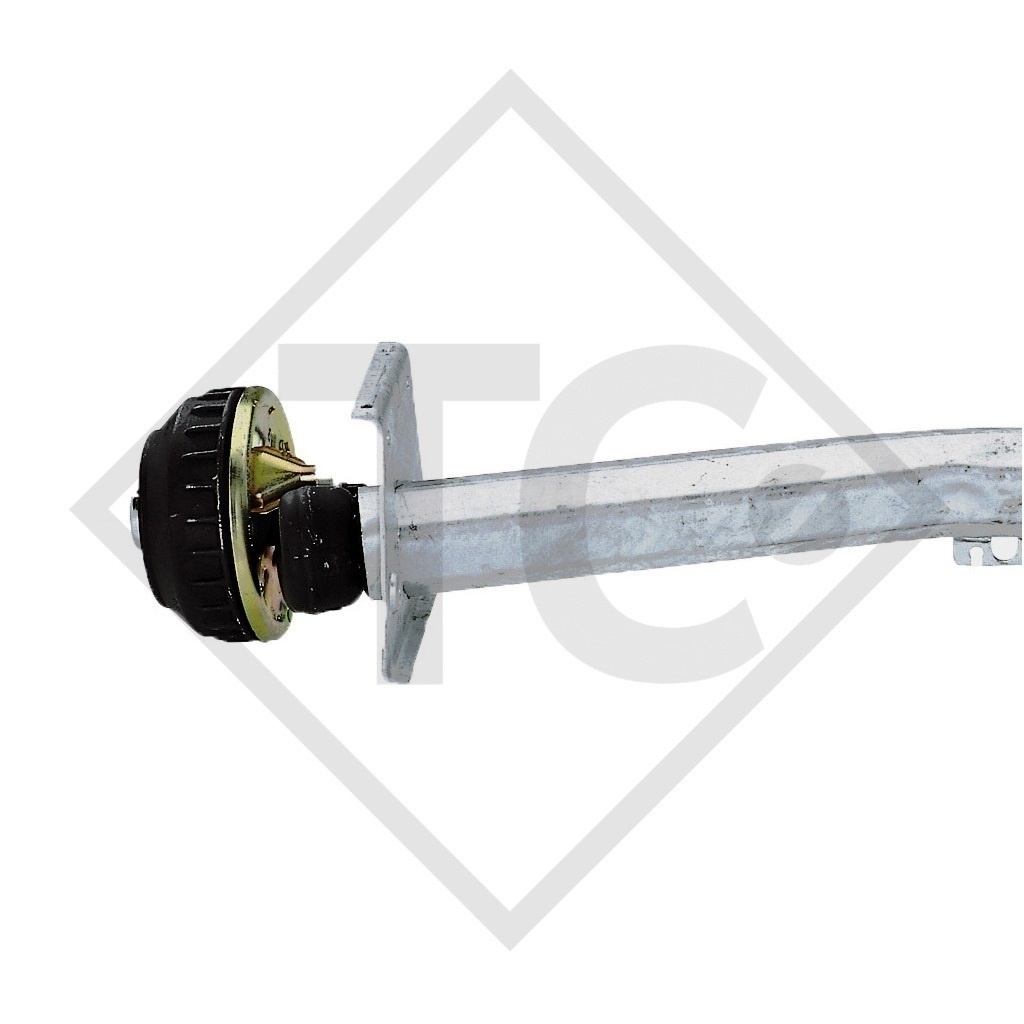

Braked axle 1000kg axle type Delta SIN 10 Dethleffs EG/CT 001 5DD

Braked axle 1000kg EURO1 axle type Delta SIN 10 - Dethleffs EG/CT 001 5DD

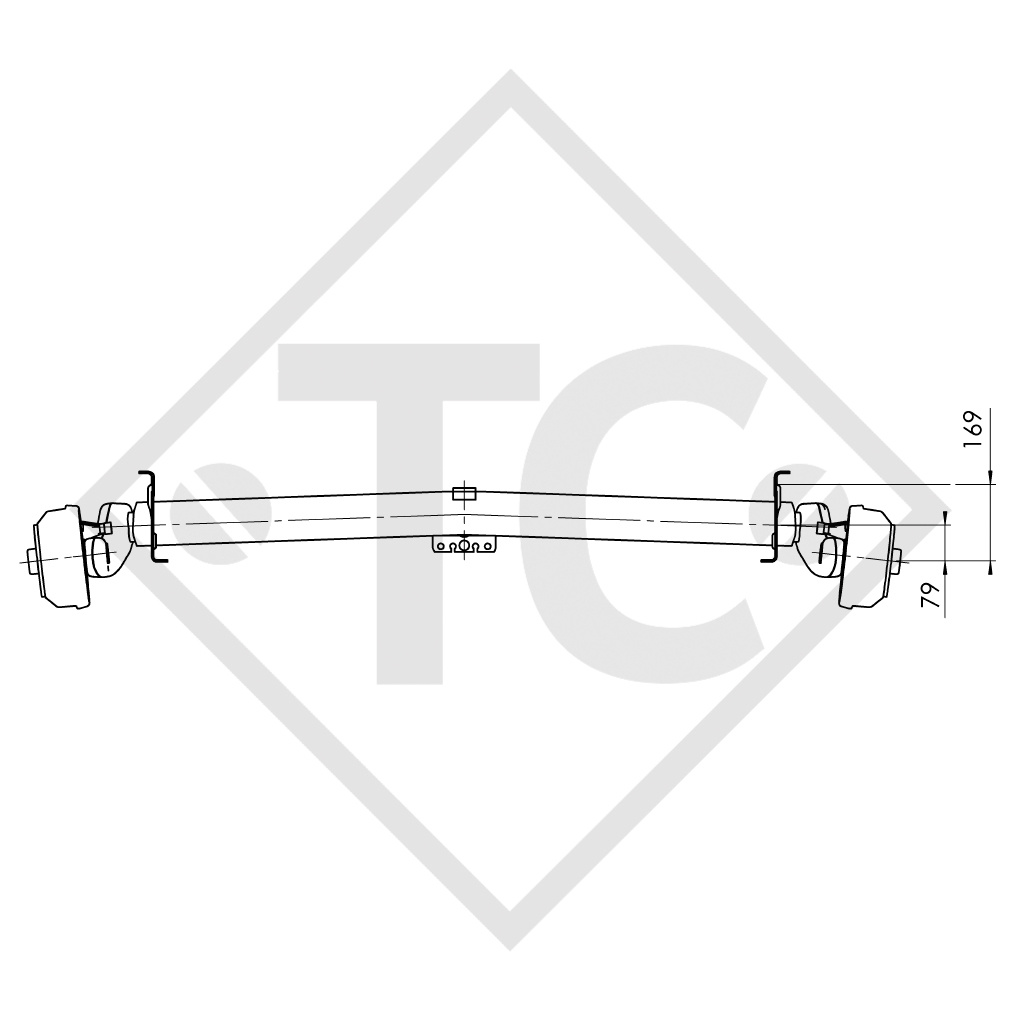

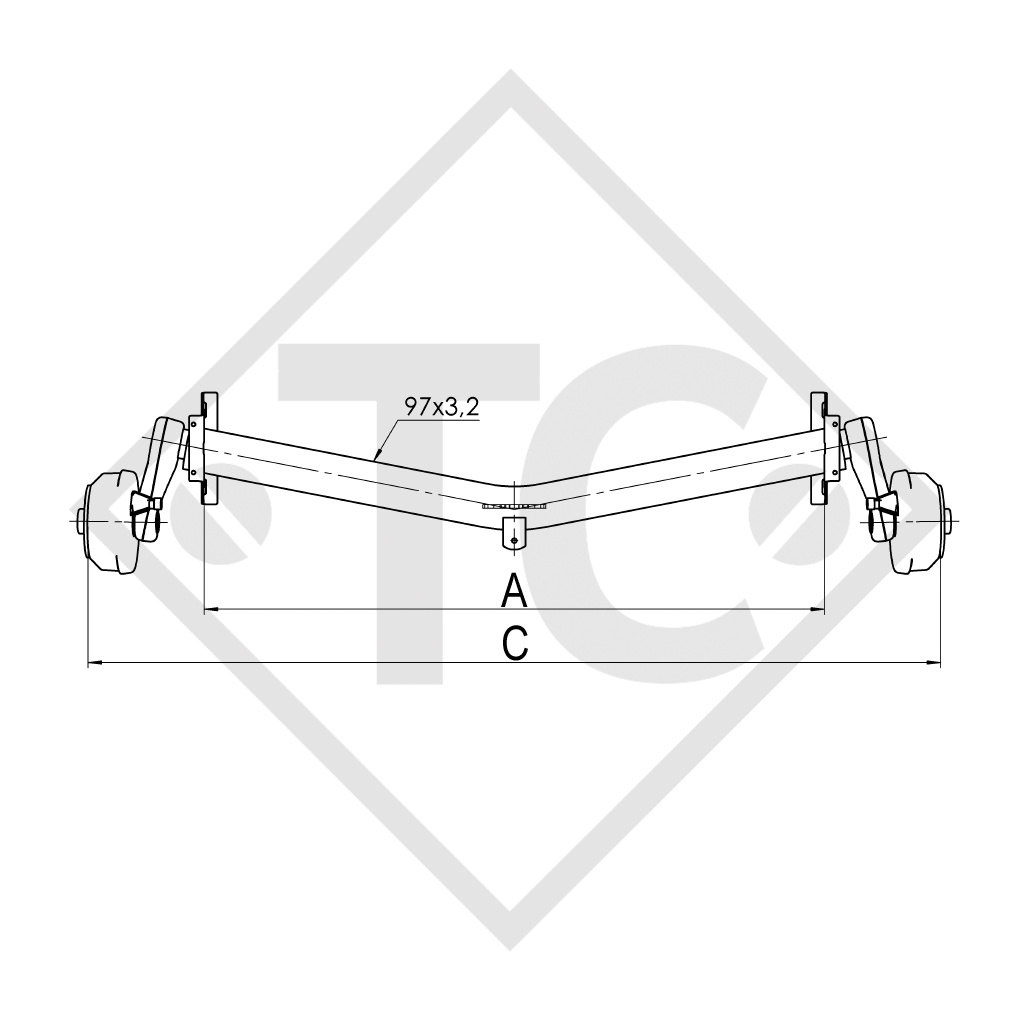

BC: dimension A 1695mm, OHF: dimension C 2270mm, wheel connection 112x5, wheel brake type 2051 A, offset (ET) 30mm, swing arm position 10°, axle profile 97mm. Read more...

Wishlist: Add to comparison:

Price 1.485,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20-25 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 1525087
BC: dimension A 1695mm
OHF: dimension C 2270mm
Wheel connection 112x5
Offset (ET) 30mm
Swing arm position 10°
Axle profile 97mm

Original operating instructions
Replacement part identification number (ETI) 811942

TECHNOLOGY
Model: EURO1
Axle type: Delta SIN 10
Axle load: Single axle 1000kg
Axle load: Tandem axle 2000kg
Wheel brake: 2051 A
Suspension: Hexagonal rubber suspension
Swing arm length: 185mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle with brake

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber

AL-KO Braked axle 1000kg EURO1 axle type Delta SIN 10 - Dethleffs EG/CT 001 5DD
