RUNNING WELL FOR YOU. BPW BERGISCHE AXLES

AL-KO Technology Paderborn GmbH specialises in the development and manufacture of complete running gear technology for car trailers and self-propelled vehicles. The location has developed from a labour-intensive wagon maker into an innovative, modern industrial company. Since 2017 the former BPW Fahrzeugtechnik has been part of the global technology company DexKo Global Inc., a worldwide market leader for trailer axles and chassis components in the lightweight segment. Read more...

Underpinning Your Progress.
The range of running gear for towable machinery, car and light truck trailers, caravans and cab & engine vehicles.

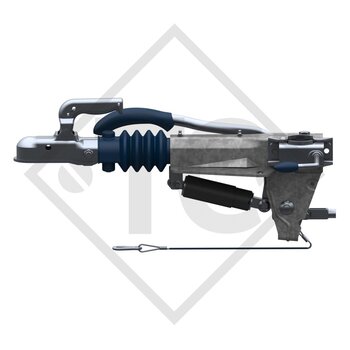

Overrun device V type ZAF 1.6-3, 750 to 1500kg, 48.27.581.047
BPW (AL-KO) Overrun device V type ZAF 1.6-3, 750 to 1500kg, 48.27.581.047
connection 166mm, nose load 150kg, drawbar installation version top + bottom, combined with BPW wheel brake S1704-7, S2005-7 and S2504-7 RASK, with coupling head WW150R-B.
Price 315,00 EUR Incl. tax Excl. Shipping costs
Bowden cable 05.089.03.09.0 with eyelet and thread M8
BPW (AL-KO) Bowden cable 05.089.03.09.0 with eyelet and thread M8
sheath length (L) 1525mm, cable length (L1) 1820mm, can be used with wheel brake R234-76.
Price 24,90 EUR Incl. tax Excl. Shipping costs
Yoke M8
BPW (AL-KO) Yoke M8
for BPW bowden cable.
Price 12,90 EUR Incl. tax Excl. Shipping costs
Bowden cable 05.089.33.48.0 hook in with thread M8
BPW (AL-KO) Bowden cable 05.089.33.48.0 hook in with thread M8
sheath length (L) 1630mm, cable length (L1) 1840mm, can be used with wheel brake S1635-5, S1635-6, S2003-5, S2005-5 and S2504-5, bell internal diam. 18.5mm, outside 21.2mm.
Price 89,90 EUR Incl. tax Excl. Shipping costs
Bowden cable 05.089.33.47.0 hook in with thread M8
BPW (AL-KO) Bowden cable 05.089.33.47.0 hook in with thread M8
sheath length (L) 1530mm, cable length (L1) 1740mm, can be used with wheel brake S1635-5, S1635-6, S2003-5, S2005-5 and S2504-5, bell internal diam. 18.5mm, outside 21.2mm.
Price 89,90 EUR Incl. tax Excl. Shipping costs
Bowden cable 05.089.80.50.0 hook in with thread M8, with grease nipple
BPW (AL-KO) Bowden cable 05.089.80.50.0 hook in with thread M8, with grease nipple
sheath length (L) 630mm, cable length (L1) 855mm, can be used with wheel brake S1704-7, S2005-7, S2035-7, S2304-7 and S2504-7, bell internal diam. 23.3mm, outside 26mm.
Price 119,00 EUR Incl. tax Excl. Shipping costs

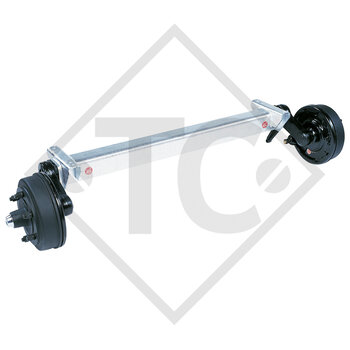

Braked axle 2100kg SWING axle type CS 2106, 46.37.373.058
BPW (AL-KO) Braked axle 2100kg SWING axle type CS 2106, 46.37.373.058
BC: dimension AM 1700mm, OHF: dimension SP 2200mm, wheel connection 205x6, wheel brake type S 3006-7 RASK, offset (ET) 0mm, swing arm position 20°, axle profile 110mm, ball-head wheel bolts M18x1.5.
Price 2.380,00 EUR Incl. tax Excl. Shipping costs

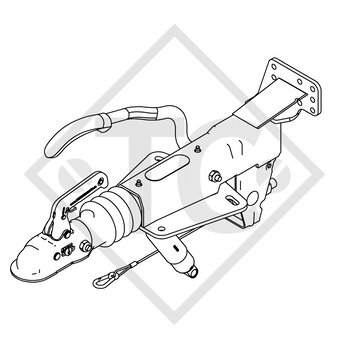

Overrun device V type ZAF 1.6-3, 750 to 1500kg, 48.27.581.057
BPW (AL-KO) Overrun device V type ZAF 1.6-3, 750 to 1500kg, 48.27.581.057
connection 166mm, nose load 100kg, drawbar installation version top + bottom, combined with AL-KO wheel brake S1704-7, S2005-7, S2504-7 and RB 2051, with coupling head WW150R-B.
Price 379,90 EUR Incl. tax Excl. Shipping costs

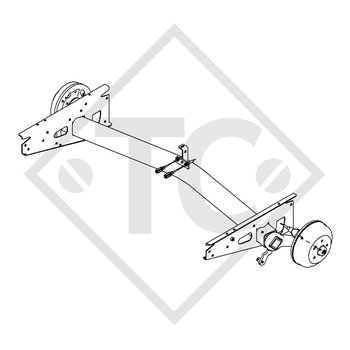

Braked axle 1700kg / 1800kg axle type SCB 1605, 46.29.368.919
BPW (AL-KO) Braked axle 1700kg / 1800kg axle type SCB 1605, 46.29.368.919
BC: dimension AM 1395mm, OHF: dimension FL 2070mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 30mm, swing arm position 15°, axle profile 95mm, ball-head wheel bolts M12x1.5.
Price 1.300,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1355, 46.24.316.612
BPW (AL-KO) Braked axle SWING 1350kg axle type CB 1355, 46.24.316.612
BC: dimension AM 1200mm, OHF: dimension FL 1650mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 615,00 EUR Incl. tax Excl. Shipping costs

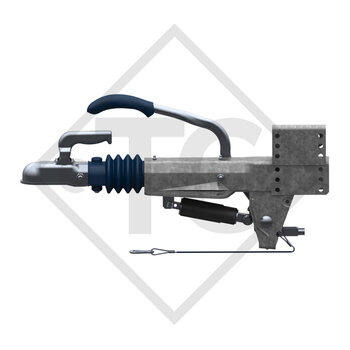

Overrun device V type ZAF 2.0-3, 1250 to 2000kg, 48.36.581.203
BPW (AL-KO) Overrun device V type ZAF 2.0-3, 1250 to 2000kg, 48.36.581.203
connection 166mm, nose load 150kg, drawbar installation version top + bottom, combined with BPW wheel brake S1704-7, S2005-7, S2504-7 and RB 2051, with coupling head WW 220R-B.
Price 399,90 EUR Incl. tax Excl. Shipping costs

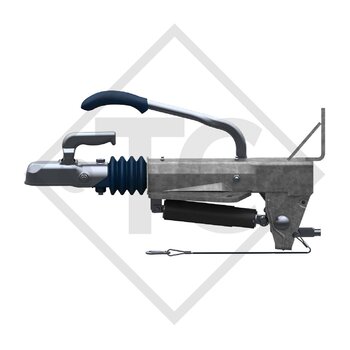

Overrun device V type ZAF 3.0-3, 1800 to 2800kg, 48.44.581.057
BPW (AL-KO) Overrun device V type ZAF 3.0-3, 1800 to 2800kg, 48.44.581.057
connection 166mm, nose load 150kg, drawbar installation version top + bottom, combined with BPW wheel brake S1704-7, S2005-7, S2504-7 and ALKO 2051, with coupling head WW 30-D3.
Price 899,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1000kg SWING axle type CB 1005, 46.20.382.024
BPW (AL-KO) Braked axle 1000kg SWING axle type CB 1005, 46.20.382.024
BC: dimension AM 1100mm, OHF: dimension FL 1560mm, wheel connection 112x5, wheel brake type S 1704-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 1.725,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1354, 46.25.362.003
BPW (AL-KO) Braked axle SWING 1350kg axle type CB 1354, 46.25.362.003
BC: dimension AM 1300mm, OHF: dimension FL 1750mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 610,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.624, 4013847
BPW (AL-KO) Braked axle SWING 1800kg axle type CB 1805, 46.32.368.624, 4013847
BC: dimension AM 1400mm, OHF: dimension FL 1920mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 925,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1054, 4002233
BPW (AL-KO) Braked axle 1050kg SWING axle type CB 1054, 4002233
BC: dimension AM 1380mm, OHF: dimension FL 1870mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 687,10 EUR Incl. tax Excl. Shipping costs
Drawbar eye Italy ø45mm 45.0-02, internal mounting, with fixing bolts
BPW (AL-KO) Drawbar eye Italy ø45mm 45.0-02, internal mounting, with fixing bolts
drawbar / shaft ⌀51.8mm, holes (screw connection) cross 12.5mm, hole distance 40mm, perm. gross weight 3500kg, nose load 150kg, material: cast iron, black painted.
Price 359,00 EUR Incl. tax Excl. Shipping costs
Drawbar eye DIN ø40mm 40.0 vers. A, external mounting, without fixing bolts
BPW (AL-KO) Drawbar eye DIN ø40mm 40.0 vers. A, external mounting, without fixing bolts
drawbar / shaft ⌀50.1mm, holes (screw connection) cross 12.5mm, hole distance 40mm, perm. gross weight 3000kg, nose load 300kg, material: cast iron, primed.
Price 235,20 EUR Incl. tax Excl. Shipping costs
(ALBE BERNDES) Coupling head EM 300 R-B, with integrated lock, without fixing bolts
BPW (AL-KO) (ALBE BERNDES) Coupling head EM 300 R-B, with integrated lock, without fixing bolts
drawbar ⌀50-51mm round, holes (screw connection) cross, horizontal 14.5mm, vertical 12.5mm, hole distance 40mm, perm. gross weight 3000kg, nose load 150kg, material: malleable cast iron.
Price 51,90 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg RONDO axle type DB 1505, 45.27.379.675
BPW (AL-KO) Braked axle 1500kg RONDO axle type DB 1505, 45.27.379.675
BC: dimension AM 950mm, OHF: dimension FL 1550mm, wheel drawbar ⌀112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 82mm, ball-head wheel bolts M12x1.5.
Price 2.024,40 EUR Incl. tax Excl. Shipping costs
Clamping mount bolt on, for tube square 80mm
BPW (AL-KO) Clamping mount bolt on, for tube square 80mm
for drawbar tube see diagram square 80mm, dimension H 55mm, dimension D 13mm, dimension A 160mm, dimension B 58mm, surface treatment hot-dip galvanised.
Price 105,20 EUR Incl. tax Excl. Shipping costs
Clamping mount bolt on, for tube ⌀70mm
BPW (AL-KO) Clamping mount bolt on, for tube ⌀70mm
for drawbar tube see diagram ⌀70mm, dimension H 49.5mm, dimension D 14mm, dimension A 160mm, dimension B 60mm, surface treatment hot-dip galvanised.
Price 249,80 EUR Incl. tax Excl. Shipping costs
Mounting part kit for tandem axle compensation incl. brake cables for rear axle, brake rod M10
BPW (AL-KO) Mounting part kit for tandem axle compensation incl. brake cables for rear axle, brake rod M10
axle spacing AA 850-1000mm, FL 1400-1500mm, to 3500kg, surface treatment hot-dip galvanised.
Price 73,20 EUR Incl. tax Excl. Shipping costs
Mounting part kit for tandem axle compensation incl. brake cables for rear axle, brake rod M10
BPW (AL-KO) Mounting part kit for tandem axle compensation incl. brake cables for rear axle, brake rod M10
axle spacing AA 700-850mm, FL 1500-1600mm, to 3500kg, surface treatment hot-dip galvanised.
Price 74,10 EUR Incl. tax Excl. Shipping costs
