BPW (AL-KO)

RUNNING WELL FOR YOU. BPW BERGISCHE AXLES

AL-KO Technology Paderborn GmbH specialises in the development and manufacture of complete running gear technology for car trailers and self-propelled vehicles. The location has developed from a labour-intensive wagon maker into an innovative, modern industrial company. Since 2017 the former BPW Fahrzeugtechnik has been part of the global technology company DexKo Global Inc., a worldwide market leader for trailer axles and chassis components in the lightweight segment. Read more...

BPW (AL-KO) Drawbar installation ZAV 1.6-5 with overrun device AE 2.7-1 D height-adjustable, with drawbar section 1200 to 1600kg, 47.29.470.064

drawbar length L 1900mm, measure B 0-520mm, FD at max. 1600kg: 3000mm, drawbar section K square 120mm, spacer V 600mm, perm. nose load 150kg, without hitch components, for wheel brake S 1704-7 and S 2005-7.

Price 2.240,10 EUR Incl. tax Excl. Shipping costs

BPW (AL-KO) Drawbar installation ZAV 1.6-5 with overrun device AE 2.7-1 D height-adjustable, with drawbar section 1200 to 1600kg, 47.29.470.067

drawbar length L 2500mm, measure B 0-693mm, FD at max. 1600kg: 3000mm, drawbar section K square 120mm, spacer V 800mm, perm. nose load 150kg, without hitch components, for wheel brake S 1704-7 and S 2005-7.

Price 2.428,80 EUR Incl. tax Excl. Shipping costs

BPW (AL-KO) Drawbar installation ZRV 20 B with overrun device AK 2008 height-adjustable, with drawbar section cranked 1300 to 2000kg, 47.36.473.072

drawbar length L 2800mm, FD at max. 2000kg: 2020mm, drawbar section K round 101.6x10mm, spacer V 415mm, perm. nose load 100kg, with drawbar eye DIN 40.0-01, for wheel brake S 1704-7, S 2005-7 and S 2504-7.

Price 2.921,70 EUR Incl. tax Excl. Shipping costs

BPW (AL-KO) Drawbar installation ZKV 35.1 B with overrun device AK 3510 A height-adjustable, with drawbar section 2500 to 3500kg, 47.51.473.036

drawbar length L 2800mm, FD at max. 3500kg: 3050mm, drawbar section K square 120x10mm, spacer V 550mm, perm. nose load 150kg, with drawbar eye DIN 40.0-02, for wheel brake S 2005-7, S 2504-7 and S 3006-7.

Price 3.055,00 EUR Incl. tax Excl. Shipping costs

BPW (AL-KO) Drawbar installation ZKV 13.1 A with overrun device AK 1308 height-adjustable, with drawbar section cranked 650 to 1300kg, 47.24.473.111

drawbar length L 1500mm, FD at max. 1300kg: 1664mm, drawbar section K round 88.9x8.8mm, spacer V 415mm, perm. nose load 100kg, with drawbar eye DIN 40.0-01, for wheel brake S 1704-7 and S 2005-7.

Price 2.060,00 EUR Incl. tax Excl. Shipping costs

BPW (AL-KO) Drawbar installation ZKV 13.1 B with overrun device AK 1308 height-adjustable, with drawbar section 650 to 1300kg, 47.24.473.116

drawbar length L 1500mm, FD at max. 1300kg: 2223mm, drawbar section K round 88.9x8.8mm, spacer V 415mm, perm. nose load 100kg, with drawbar eye DIN 40.0-01, for wheel brake S 1704-7 and S 2005-7.

Price 2.150,00 EUR Incl. tax Excl. Shipping costs

BPW (AL-KO) Drawbar installation ZAAR 2.0-3 with overrun device ZAAQ2.0-3 / ZDG8-3 drawbar section cranked 1250 to 2000kg, 48.36.381.088

drawbar length L 2500mm, FD at max. 2000kg: 1360mm, drawbar section K square 80x5.0mm, measure HA 55mm, thread G M10, perm. nose load 150kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.

Price 993,60 EUR Incl. tax Excl. Shipping costs

BPW (AL-KO) Drawbar installation ZAAR 2.0-3 with overrun device ZAAQ2.0-3 / ZDG8-3 drawbar section cranked 1250 to 2000kg, 48.36.381.087

drawbar length L 2300mm, FD at max. 2000kg: 1360mm, drawbar section K square 80x5.0mm, measure HA 55mm, thread G M10, perm. nose load 150kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.

Price 973,20 EUR Incl. tax Excl. Shipping costs

BPW (AL-KO) Drawbar installation ZAAR 1.6-3 with overrun device ZAAQ1.6-3 / ZDG7-3 drawbar section cranked 800 to 1600kg, 4021603

drawbar length L 2100mm, FD at max. 1600kg: 1200mm, drawbar section K square 70x5.0mm, measure HA 50mm, thread G M10, perm. nose load 100kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.

Price 904,10 EUR Incl. tax Excl. Shipping costs

BPW (AL-KO) Drawbar installation ZAAR 1.35-3 with overrun device ZAAQ1.35-3 / ZDG7-3 drawbar section cranked 750 to 1350kg, 48.25.381.059

drawbar length L 2100mm, FD at max. 1350kg: 1210mm, drawbar section K square 70x5.0mm, measure HA 50mm, thread G M10, perm. nose load 100kg, with coupling head EM 150 R-B, for wheel brake S 1704-7 and S 2005-7.

Price 699,00 EUR Incl. tax Excl. Shipping costs

BPW (AL-KO) Drawbar installation ZAR 2.0-1 A with overrun device PAV/SR 2.0 X drawbar section straight 1089 to 2000kg, 48.36.181.041

drawbar length L 2300mm, FD at max. 2000kg: 1385mm, drawbar section K round 88.9x6.3mm, measure HA 58mm, thread G M10, perm. nose load 100kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.

Price 677,90 EUR Incl. tax Excl. Shipping costs

BPW (AL-KO) Drawbar installation ZAAR 3.0-1 with overrun device ZAAQ3.0 / ZDG10-3 drawbar section straight 1800 to 2800kg, 48.46.181.004

drawbar length L 3000mm, FD at max. 2800kg: 1780mm, drawbar section K square 100x6.3mm, measure HA 65mm, thread G M10, perm. nose load 100kg, with coupling head EM 300 R-B-K1212, for wheel brake S 2005-7, S 2504-7 and S 3006-7.

Price 908,20 EUR Incl. tax Excl. Shipping costs

BPW (AL-KO) Drawbar installation ZAAR 2.0-1 with overrun device ZAAQ2.0 / ZDG8-3 drawbar section straight 1250 to 2000kg, 48.36.181.077

drawbar length L 3000mm, FD at max. 2000kg: 1360mm, drawbar section K square 80x5.0mm, measure HA 55mm, thread G M10, perm. nose load 100kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.

Price 802,60 EUR Incl. tax Excl. Shipping costs

BPW (AL-KO) Drawbar installation ZAAR 1.6-1 with overrun device ZAAQ1.6 / ZDG7-3 drawbar section straight 800 to 1600kg, 48.29.181.057

drawbar length L 3000mm, FD at max. 1600kg: 1200mm, drawbar section K square 70x5.0mm, measure HA 50mm, thread G M10, perm. nose load 100kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.

Price 697,00 EUR Incl. tax Excl. Shipping costs

BPW (AL-KO) Drawbar installation ZAAR 1.6-1 with overrun device ZAAQ1.6 / ZDG7-3 drawbar section straight 800 to 1600kg, 48.29.181.055

Price 637,50 EUR Incl. tax Excl. Shipping costs

BPW (AL-KO) Drawbar installation ZAA 1.3-1.1 with overrun device AK 1308 and removable drawbar section from 650 to 1300kg, 47.24.181.004

drawbar length L 2500mm, length A 1100mm, drawbar section K 88.9x5.6mm, thread G M10, perm. nose load 100kg, with coupling head EM 150 R-B, for wheel brake S 1704-7 and S 2005-7.

Price 1.601,90 EUR Incl. tax Excl. Shipping costs

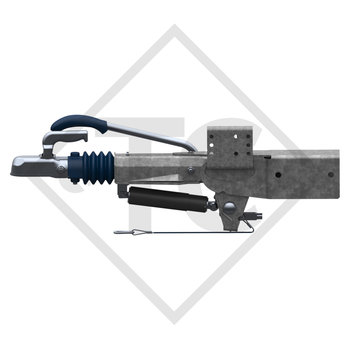

BPW (AL-KO) Overrun device square type ZAAQ 3.0-3, 1800 to 3000kg, 48.46.981.000

connection dimension B 100mm, nose load 100kg, combined with BPW wheel brake S2005-7, S2504-7 and S3006-7 RASK, with coupling head EM 300 R-B.

Price 675,00 EUR Incl. tax Excl. Shipping costs

BPW (AL-KO) Towbar connection ZOV 2.5-1.1 height-adjustable with drawbar section up to 2500kg, 47.41.403.013

drawbar length L 2090mm, drawbar section K 108/90mm, with DIN drawbar eye dimension A 568mm, height B 0-300mm, intermediate piece V 400mm, perm. nose load 150kg.

Price 1.444,10 EUR Incl. tax Excl. Shipping costs

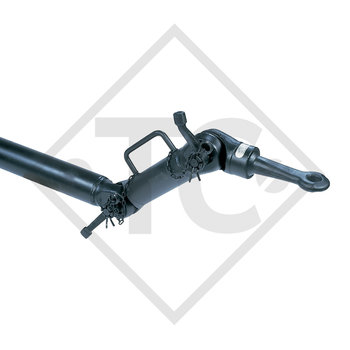

BPW (AL-KO) Towbar connection ZOV 2.5-1.1 height-adjustable with drawbar section up to 2500kg, 47.41.403.007

drawbar length L 1590mm, drawbar section K 108/90mm, with DIN drawbar eye dimension A 534mm, height B 0-263mm, intermediate piece V 350mm, perm. nose load 150kg.

Price 1.265,90 EUR Incl. tax Excl. Shipping costs

BPW (AL-KO) Towbar connection ZOV 2.5-1.1 height-adjustable with drawbar section up to 2500kg, 47.41.403.004

drawbar length L 1090mm, drawbar section K 108/90mm, with DIN drawbar eye dimension A 601mm, height B 0-338mm, intermediate piece V 450mm, perm. nose load 150kg.

Price 1.150,90 EUR Incl. tax Excl. Shipping costs

BPW (AL-KO) Towbar connection ZOV 2.5-1.1 height-adjustable with drawbar section up to 2500kg, 47.41.403.002

drawbar length L 1090mm, drawbar section K 108/90mm, with DIN drawbar eye dimension A 534mm, height B 0-263mm, intermediate piece V 350mm, perm. nose load 150kg.

Price 1.080,90 EUR Incl. tax Excl. Shipping costs

BPW (AL-KO) Drawbar ZOR 0,75-1 A round tube straight up to 750kg, 48.14.101.012

total length L 2400mm, drawbar section K dimension K 70x4mm, perm. nose load 75kg, coupling head EM 80 R-GK, including skid bracket, clamping bracket and plug holder.

Price 274,90 EUR Incl. tax Excl. Shipping costs

BPW (AL-KO) Braked axle 1100kg / 1400kg axle type SCB 1054, 46.21.379.925

BC: dimension AM 1495mm, OHF: dimension FL 2040mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.

Price 1.300,00 EUR Incl. tax Excl. Shipping costs

BPW (AL-KO) Braked axle SWING 1800kg axle type CB1805, 46.32.368.173, Moetefindt

BC: dimension AM 1420mm, OHF: dimension FL 1885mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 30mm, swing arm position 20°.

Price 1.250,00 EUR Incl. tax Excl. Shipping costs
