RUNNING WELL FOR YOU. BPW BERGISCHE AXLES

AL-KO Technology Paderborn GmbH specialises in the development and manufacture of complete running gear technology for car trailers and self-propelled vehicles. The location has developed from a labour-intensive wagon maker into an innovative, modern industrial company. Since 2017 the former BPW Fahrzeugtechnik has been part of the global technology company DexKo Global Inc., a worldwide market leader for trailer axles and chassis components in the lightweight segment. Read more...

Underpinning Your Progress.
The range of running gear for towable machinery, car and light truck trailers, caravans and cab & engine vehicles.



(ALBE BERNDES) Coupling head EM 300 R-A without fixing bolts
BPW (AL-KO) (ALBE BERNDES) Coupling head EM 300 R-A without fixing bolts
drawbar ⌀45-46mm round, holes (screw connection) cross 12.5mm, hole distance 40mm, perm. gross weight 3000kg, nose load 150kg, material: malleable cast iron.
Price 53,90 EUR Incl. tax Excl. Shipping costs
(ALBE BERNDES) Coupling head EM 220 R-B without fixing bolts
BPW (AL-KO) (ALBE BERNDES) Coupling head EM 220 R-B without fixing bolts
drawbar ⌀50-51mm round, holes (screw connection) cross 12.5mm, hole distance 40mm, perm. gross weight 2200kg, nose load 100kg, material: steel.
Price 37,90 EUR Incl. tax Excl. Shipping costs
(ALBE BERNDES) Coupling head EM 220 R-B without fixing bolts
BPW (AL-KO) (ALBE BERNDES) Coupling head EM 220 R-B without fixing bolts
drawbar ⌀50-51mm round, holes (screw connection) cross 12.5mm, hole distance 40mm, perm. gross weight 2200kg, nose load 100kg, material: steel.
Price 37,90 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1355, 46.24.379.192
BPW (AL-KO) Braked axle SWING 1350kg axle type CB 1355, 46.24.379.192
BC: dimension AM 1890mm, OHF: dimension FL 2335mm, wheel drawbar ⌀112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm.
Price 743,40 EUR Incl. tax Excl. Shipping costs
Clamping mount bolt on, for tube square 150mm
BPW (AL-KO) Clamping mount bolt on, for tube square 150mm
for drawbar tube see diagram square 150mm, dimension H 95mm, dimension D 18mm, dimension A 220mm, dimension B 82mm, surface treatment hot-dip galvanised.
Price 95,50 EUR Incl. tax Excl. Shipping costs
Mounting part kit for tandem axle compensation incl. brake cables for rear axle, brake rod M10
BPW (AL-KO) Mounting part kit for tandem axle compensation incl. brake cables for rear axle, brake rod M10
axle spacing AA 700-850mm, FL 1400-1500mm, to 3500kg, surface treatment hot-dip galvanised.
Price 72,50 EUR Incl. tax Excl. Shipping costs
Lowering axles down to 200mm, axle type RONDO DB 2/1805, tandem 3500kg, 49.32.368.506
BPW (AL-KO) Lowering axles down to 200mm, axle type RONDO DB 2/1805, tandem 3500kg, 49.32.368.506
BC: dimension AM 1800mm, OHF: dimension FL 2340mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, ball-head wheel bolts M12x1.5.
Price 4.274,40 EUR Incl. tax Excl. Shipping costs
Lowering axles down to 200mm, axle type RONDO DB 2/1805, tandem 3500kg, 49.32.368.505
BPW (AL-KO) Lowering axles down to 200mm, axle type RONDO DB 2/1805, tandem 3500kg, 49.32.368.505
BC: dimension AM 1700mm, OHF: dimension FL 2240mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, ball-head wheel bolts M12x1.5.
Price 4.274,40 EUR Incl. tax Excl. Shipping costs
Forked drawbar for turnable
BPW (AL-KO) Forked drawbar for turnable
dimensions 1545x860x60mm, connection ⌀50mm.
Price 639,30 EUR Incl. tax Excl. Shipping costs
Braked tandem axle unit 3000kg SWING axle type CB 2/1505, 4021495
BPW (AL-KO) Braked tandem axle unit 3000kg SWING axle type CB 2/1505, 4021495
BC: dimension AM 1200mm, OHF: dimension FL 1740mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 1.970,00 EUR Incl. tax Excl. Shipping costs

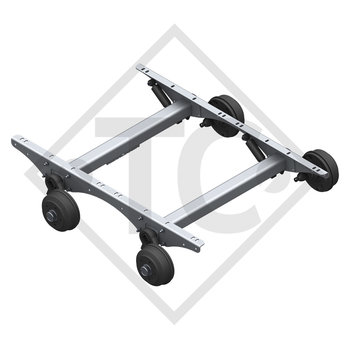

Braked tandem axle unit 2100kg SWING axle type CB 2/1054, 49.21.379.138
BPW (AL-KO) Braked tandem axle unit 2100kg SWING axle type CB 2/1054, 49.21.379.138
BC: dimension AM 1400mm, OHF: dimension FL 1850mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 1.490,00 EUR Incl. tax Excl. Shipping costs
Braked axle 3000kg RONDO axle type DS 3006, 45.46.373.227
BPW (AL-KO) Braked axle 3000kg RONDO axle type DS 3006, 45.46.373.227
BC: dimension AM 1700mm, OHF: dimension SP 2200mm, wheel connection 205x6, wheel brake type S 3006-7 RASK, offset (ET) 0mm, swing arm position 13°, axle profile 114mm, ball-head wheel bolts M18x1.5.
Price 3.290,90 EUR Incl. tax Excl. Shipping costs
Braked axle 3000kg RONDO axle type DS 3006, 45.46.373.222
BPW (AL-KO) Braked axle 3000kg RONDO axle type DS 3006, 45.46.373.222
BC: dimension AM 1200mm, OHF: dimension SP 1700mm, wheel connection 205x6, wheel brake type S 3006-7 RASK, offset (ET) 0mm, swing arm position 13°, axle profile 114mm, ball-head wheel bolts M18x1.5.
Price 3.243,50 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 1800kg RONDO axle type DB 1805, 45.32.368.636
BPW (AL-KO) Braked tandem front axle 1800kg RONDO axle type DB 1805, 45.32.368.636
BC: dimension AM 1800mm, OHF: dimension FL 2300mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 13°, axle profile 92mm, ball-head wheel bolts M12x1.5.
Price 2.030,50 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 1800kg RONDO axle type DB 1805, 45.32.368.632
BPW (AL-KO) Braked tandem front axle 1800kg RONDO axle type DB 1805, 45.32.368.632
BC: dimension AM 1600mm, OHF: dimension FL 2100mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 13°, axle profile 92mm, ball-head wheel bolts M12x1.5.
Price 2.002,10 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 1500kg RONDO axle type DB 1505, 45.27.379.576
BPW (AL-KO) Braked tandem front axle 1500kg RONDO axle type DB 1505, 45.27.379.576
BC: dimension AM 1900mm, OHF: dimension FL 2350mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 82mm, taper-head wheel bolts M12x1.5.
Price 1.157,70 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 1500kg RONDO axle type DB 1505, 45.27.379.571
BPW (AL-KO) Braked tandem front axle 1500kg RONDO axle type DB 1505, 45.27.379.571
BC: dimension AM 1650mm, OHF: dimension FL 2100mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 82mm, taper-head wheel bolts M12x1.5.
Price 1.199,90 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 1500kg RONDO axle type DB 1505, 45.27.379.543
BPW (AL-KO) Braked tandem front axle 1500kg RONDO axle type DB 1505, 45.27.379.543
BC: dimension AM 1250mm, OHF: dimension FL 1700mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 82mm, ball-head wheel bolts M12x1.5.
Price 1.113,90 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg RONDO axle type DB 1505, 45.27.379.512
BPW (AL-KO) Braked axle 1500kg RONDO axle type DB 1505, 45.27.379.512
BC: dimension AM 1700mm, OHF: dimension FL 2150mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 82mm, ball-head wheel bolts M12x1.5.
Price 1.142,10 EUR Incl. tax Excl. Shipping costs
Braked axle 1350kg RONDO axle type DB 1355, 45.25.379.610
BPW (AL-KO) Braked axle 1350kg RONDO axle type DB 1355, 45.25.379.610
BC: dimension AM 1500mm, OHF: dimension FL 1950mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 70mm, taper-head wheel bolts M12x1.5.
Price 1.260,50 EUR Incl. tax Excl. Shipping costs
Braked axle 1350kg RONDO axle type DB 1355, 45.25.379.582
BPW (AL-KO) Braked axle 1350kg RONDO axle type DB 1355, 45.25.379.582
BC: dimension AM 1100mm, OHF: dimension FL 1550mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 70mm, ball-head wheel bolts M12x1.5.
Price 1.237,20 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg RONDO axle type DB 1054, 45.21.379.510
BPW (AL-KO) Braked axle 1050kg RONDO axle type DB 1054, 45.21.379.510
BC: dimension AM 1000mm, OHF: dimension FL 1450mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 70mm, taper-head wheel bolts M12x1.5.
Price 1.216,40 EUR Incl. tax Excl. Shipping costs
Braked axle 2500kg SWING axle type CS 2506, 46.41.373.107
BPW (AL-KO) Braked axle 2500kg SWING axle type CS 2506, 46.41.373.107
BC: dimension AM 1700mm, OHF: dimension SP 2200mm, wheel connection 205x6, wheel brake type S 3006-7 RASK, offset (ET) 0mm, swing arm position 20°, axle profile 110mm, M18x1.5.
Price 2.370,00 EUR Incl. tax Excl. Shipping costs
Braked axle 2500kg SWING axle type CS 2506, 46.41.373.105
BPW (AL-KO) Braked axle 2500kg SWING axle type CS 2506, 46.41.373.105
BC: dimension AM 1500mm, OHF: dimension SP 2000mm, wheel connection 205x6, wheel brake type S 3006-7 RASK, offset (ET) 0mm, swing arm position 20°, axle profile 110mm, M18x1.5.
Price 2.340,00 EUR Incl. tax Excl. Shipping costs
Page 81 of 91
