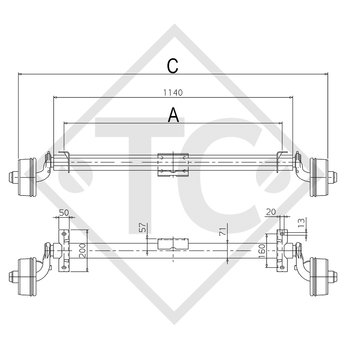

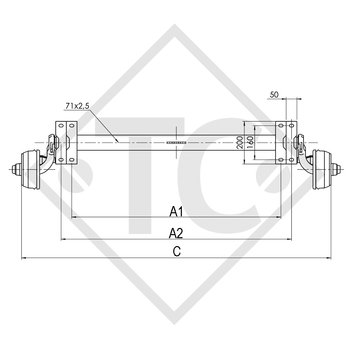

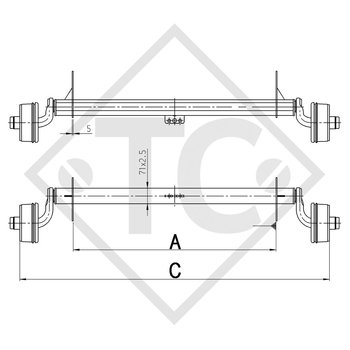

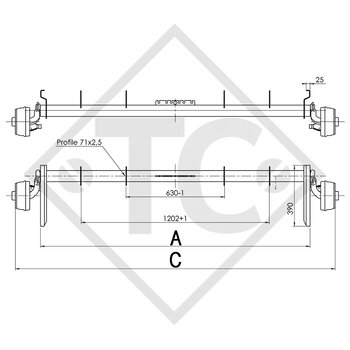

BC: dimension A 796mm, OHF: dimension C 1176mm, wheel connection 115x4, wheel brake type 1637, offset (ET) 27-45mm, swing arm position 25°, axle profile 71mm.
BC: dimension A 1237mm, OHF: dimension C 1715mm, wheel connection 100x4, wheel brake type 1637, offset (ET) 27-33mm, swing arm position 30°, axle profile 71mm.
BC: dimension A 900mm, OHF: dimension C 1330mm, wheel connection 100x4, wheel brake type 1637, offset (ET) 27-45mm, swing arm position 30°, axle profile 71mm.
