BC: dimension A 920mm, OHF: dimension C 1310mm, wheel connection 130x4, wheel brake type 1637, offset (ET) 27-45mm, swing arm position 20°, axle profile 71mm, ball-head wheel bolts M14x1.5. Read more...

Wishlist: Add to comparison:

Part no. 1271514
BC: dimension A 920mm
OHF: dimension C 1310mm
Wheel connection 130x4
Offset (ET) 27-45mm
Swing arm position 20°
Axle profile 71mm

Original operating instructions
Replacement part identification number (ETI) 811285

TECHNOLOGY
Model: GU LNGS GRM EA 750 CA
Axle type: B 700-5
Axle load: 750kg
Suspension: Hexagonal rubber suspension

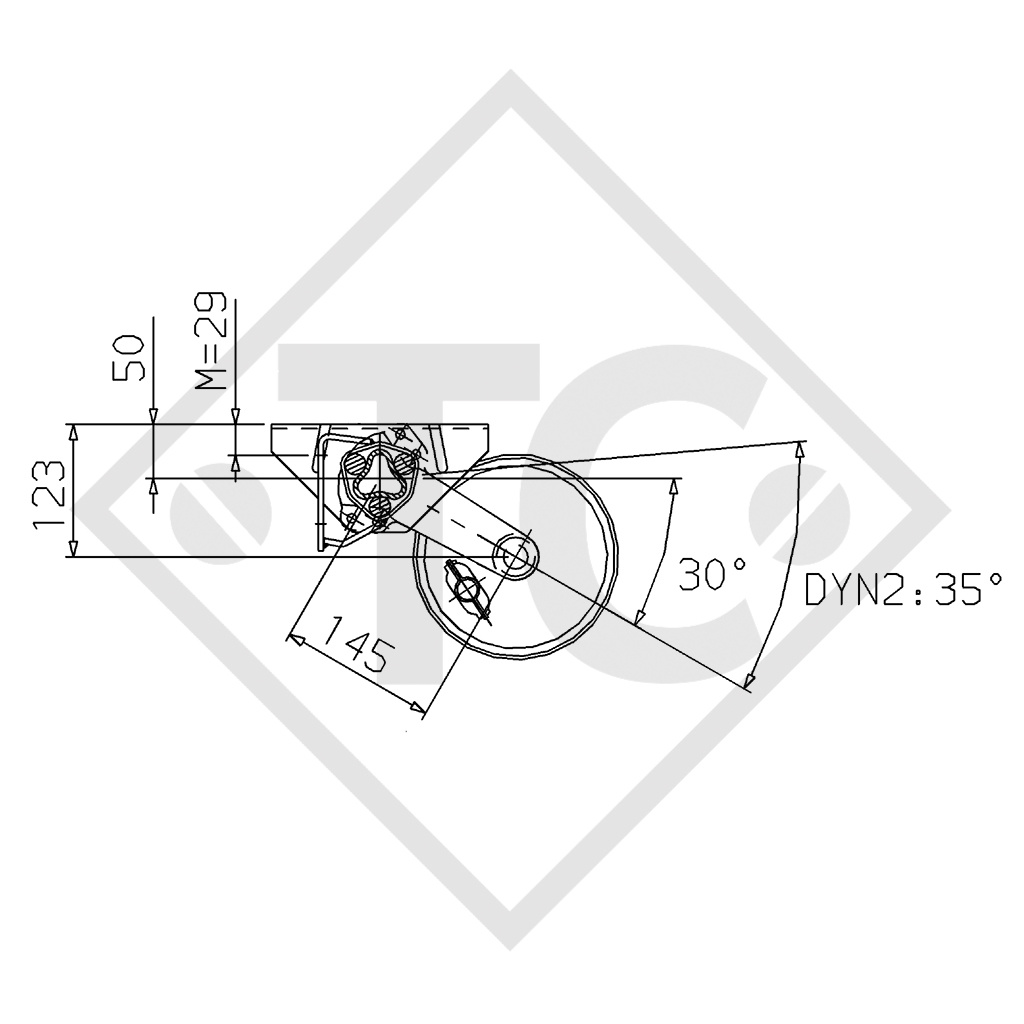

Swing arm length: 145mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M14x1.5 loose
Compensation profile for single axle supplied
Bowden cables loose
Without shock absorber brackets

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake black-primed
