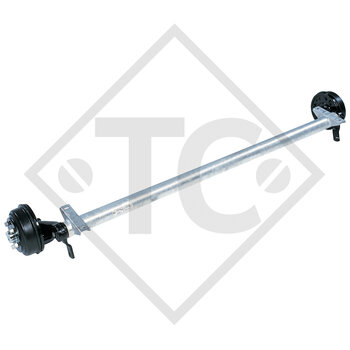

BC: dimension A 1550mm, OHF: dimension C 2060mm, wheel connection 100x4, wheel brake type 2051 A, offset (ET) 30mm, swing arm position 16°, axle profile 97mm, ball-head wheel bolts M12x1.5.
drawbar length L 2100mm, FD at max. 2000kg: 1385mm, drawbar section K round 88.9x6.3mm, measure HA 58mm, thread G M10, perm. nose load 100kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
consisting of brake shoes, pressure springs, tension springs, cover plates, casting number brake shoes 384296 and 384481, for one axle (2 wheel brakes left + right).
rim size 4.00x13, hole number 4, rim centre hole Ø 57mm, bolt circle 100mm, offset +30, colour silver RAL9006, C60 taper-head, load capacity 500kg at 140km/h.
build design radial, tyre size 165 R 13 C, TL (tubeless), load index 96, speed index N, (94/92 R), tread TR603, load capacity 710/670kg at 140/170km/h, inflation pressure 4.5 bar.
build design radial, tyre size 195/70 R 14, TL (tubeless), load index 96, speed index N, tread AW-414, specification M+S, load capacity 710kg at 140km/h, inflation pressure 2.7 bar.
total length K (at 0°) 2089mm, drawbar length E 1080mm, drawbar section 70x70x4mm, intermediate piece 750mm, perm. nose load 100kg, without hitch components.
