RUNNING WELL FOR YOU. BPW BERGISCHE AXLES

AL-KO Technology Paderborn GmbH specialises in the development and manufacture of complete running gear technology for car trailers and self-propelled vehicles. The location has developed from a labour-intensive wagon maker into an innovative, modern industrial company. Since 2017 the former BPW Fahrzeugtechnik has been part of the global technology company DexKo Global Inc., a worldwide market leader for trailer axles and chassis components in the lightweight segment. Read more...

Underpinning Your Progress.
The range of running gear for towable machinery, car and light truck trailers, caravans and cab & engine vehicles.



Drawbar installation ZAAR 1.35-3 with overrun device ZAAQ1.35-3 / ZDG7-3 drawbar section cranked 750 to 1350kg, 48.25.381.063
BPW (AL-KO) Drawbar installation ZAAR 1.35-3 with overrun device ZAAQ1.35-3 / ZDG7-3 drawbar section cranked 750 to 1350kg, 48.25.381.063
drawbar length L 3500mm, FD at max. 1350kg: 1210mm, drawbar section K square 70x5.0mm, measure HA 50mm, thread G M10, perm. nose load 100kg, with coupling head EM 150 R-B, for wheel brake S 1704-7 and S 2005-7.
Price 765,40 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAAR 1.35-3 with overrun device ZAAQ1.35-3 / ZDG7-3 drawbar section cranked 750 to 1350kg, 48.25.381.060
BPW (AL-KO) Drawbar installation ZAAR 1.35-3 with overrun device ZAAQ1.35-3 / ZDG7-3 drawbar section cranked 750 to 1350kg, 48.25.381.060
drawbar length L 2300mm, FD at max. 1350kg: 1210mm, drawbar section K square 70x5.0mm, measure HA 50mm, thread G M10, perm. nose load 100kg, with coupling head EM 150 R-B, for wheel brake S 1704-7 and S 2005-7.
Price 676,10 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAR 2.0-1 A with overrun device PAV/SR 2.0 X drawbar section straight 1089 to 2000kg, 48.36.181.043
BPW (AL-KO) Drawbar installation ZAR 2.0-1 A with overrun device PAV/SR 2.0 X drawbar section straight 1089 to 2000kg, 48.36.181.043
drawbar length L 3000mm, FD at max. 2000kg: 1385mm, drawbar section K round 88.9x6.3mm, measure HA 58mm, thread G M10, perm. nose load 100kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 801,90 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAAR 3.0-1 with overrun device ZAAQ3.0 / ZDG10-3 drawbar section straight 1800 to 2800kg, 48.46.181.005
BPW (AL-KO) Drawbar installation ZAAR 3.0-1 with overrun device ZAAQ3.0 / ZDG10-3 drawbar section straight 1800 to 2800kg, 48.46.181.005
drawbar length L 3500mm, FD at max. 2800kg: 1780mm, drawbar section K square 100x6.3mm, measure HA 65mm, thread G M10, perm. nose load 100kg, with coupling head EM 300 R-B-K1212, for wheel brake S 2005-7, S 2504-7 and S 3006-7.
Price 933,70 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAAR 3.0-1 with overrun device ZAAQ3.0 / ZDG10-3 drawbar section straight 1800 to 2800kg, 48.46.181.003
BPW (AL-KO) Drawbar installation ZAAR 3.0-1 with overrun device ZAAQ3.0 / ZDG10-3 drawbar section straight 1800 to 2800kg, 48.46.181.003
drawbar length L 2500mm, FD at max. 2800kg: 1780mm, drawbar section K square 100x6.3mm, measure HA 65mm, thread G M10, perm. nose load 100kg, with coupling head EM 300 R-B-K1212, for wheel brake S 2005-7, S 2504-7 and S 3006-7.
Price 882,70 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAAR 3.0-1 with overrun device ZAAQ3.0 / ZDG10-3 drawbar section straight 1800 to 2800kg, 48.46.181.001
BPW (AL-KO) Drawbar installation ZAAR 3.0-1 with overrun device ZAAQ3.0 / ZDG10-3 drawbar section straight 1800 to 2800kg, 48.46.181.001
drawbar length L 2100mm, FD at max. 2800kg: 1780mm, drawbar section K square 100x6.3mm, measure HA 65mm, thread G M10, perm. nose load 100kg, with coupling head EM 300 R-B-K1212, for wheel brake S 2005-7, S 2504-7 and S 3006-7.
Price 862,30 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAAR 2.0-1 with overrun device ZAAQ2.0 / ZDG8-3 drawbar section straight 1250 to 2000kg, 48.36.181.075
BPW (AL-KO) Drawbar installation ZAAR 2.0-1 with overrun device ZAAQ2.0 / ZDG8-3 drawbar section straight 1250 to 2000kg, 48.36.181.075
drawbar length L 2500mm, FD at max. 2000kg: 1360mm, drawbar section K square 80x5.0mm, measure HA 55mm, thread G M10, perm. nose load 100kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 773,30 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAA 2.0-1.1 with overrun device AK 2008 and removable drawbar section from 1300 to 2000kg, 47.36.181.001
BPW (AL-KO) Drawbar installation ZAA 2.0-1.1 with overrun device AK 2008 and removable drawbar section from 1300 to 2000kg, 47.36.181.001
drawbar length L 1500mm, length A 1100mm, drawbar section K 88.9x8.8mm, thread G M10, perm. nose load 100kg, with coupling head EM 220 R-B, for wheel brake S 2005-7 and S 2504-7.
Price 1.303,30 EUR Incl. tax Excl. Shipping costs
Drawbar eye Italy 45.0-02
BPW (AL-KO) Drawbar eye Italy 45.0-02
dimension K 51.8mm, dimension S 45mm, dimension L 115mm, EG e1 1149 94/20, nose load 150kg, perm. gross weight 3500kg, suitable for types ZAA 3.5-1, ZKV 25/35 and ZAV 3.5-1.
Price 386,90 EUR Incl. tax Excl. Shipping costs

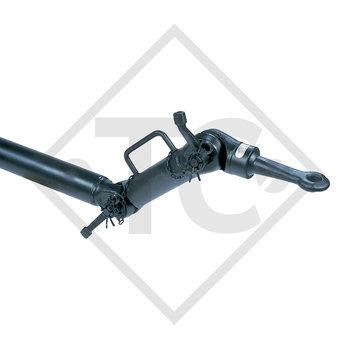

Towbar connection ZOV 2.5-1.1 height-adjustable with drawbar section up to 2500kg, 47.41.403.012
BPW (AL-KO) Towbar connection ZOV 2.5-1.1 height-adjustable with drawbar section up to 2500kg, 47.41.403.012
drawbar length L 2090mm, drawbar section K 108/90mm, with DIN drawbar eye dimension A 534mm, height B 0-263mm, intermediate piece V 350mm, perm. nose load 150kg.
Price 1.450,90 EUR Incl. tax Excl. Shipping costs
Braked axle 1350kg / 1400kg axle type DB 1355, 45.25.379.548
BPW (AL-KO) Braked axle 1350kg / 1400kg axle type DB 1355, 45.25.379.548
BC: dimension AM 1540mm, OHF: dimension FL 2009mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 70mm, ball-head wheel bolts M12x1.5.
Price 1.300,00 EUR Incl. tax Excl. Shipping costs
Bowden cable 05.089.52.76.0 hook in with thread M10
BPW (AL-KO) Bowden cable 05.089.52.76.0 hook in with thread M10
sheath length (L) 1100mm, cable length (L1) 1385mm, can be used with wheel brake S3006-5, bell internal diam. 22.5mm, outside 27mm.
Price 86,90 EUR Incl. tax Excl. Shipping costs
Bowden cable 05.089.52.70.0 hook in with thread M10
BPW (AL-KO) Bowden cable 05.089.52.70.0 hook in with thread M10
sheath length (L) 780mm, cable length (L1) 1060mm, can be used with wheel brake S3006-5, bell internal diam. 22.5mm, outside 27mm.
Price 119,00 EUR Incl. tax Excl. Shipping costs
Bowden cable 05.089.33.44.0 hook in with thread M8
BPW (AL-KO) Bowden cable 05.089.33.44.0 hook in with thread M8
sheath length (L) 1230mm, cable length (L1) 1440mm, can be used with wheel brake S1635-5, S1635-6, S2003-5, S2005-5 and S2504-5, bell internal diam. 18.5mm, outside 21.2mm.
Price 82,90 EUR Incl. tax Excl. Shipping costs
Bowden cable 05.089.33.43.0 hook in with thread M8
BPW (AL-KO) Bowden cable 05.089.33.43.0 hook in with thread M8
sheath length (L) 1130mm, cable length (L1) 1340mm, can be used with wheel brake S1635-5, S1635-6, S2003-5, S2005-5 and S2504-5, bell internal diam. 18.5mm, outside 21.2mm.
Price 85,00 EUR Incl. tax Excl. Shipping costs
Bowden cable 05.089.51.43.0 hook in with thread M10
BPW (AL-KO) Bowden cable 05.089.51.43.0 hook in with thread M10
sheath length (L) 900mm, cable length (L1) 1160mm, can be used with wheel brake S3006-7, bell internal diam. 25.5mm, outside 30mm.
Price 111,90 EUR Incl. tax Excl. Shipping costs

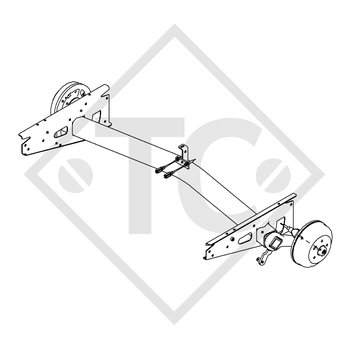

Braked axle 1500kg / 1800kg axle type SCB 1505, 46.27.379.926, 4013642, 4026600
BPW (AL-KO) Braked axle 1500kg / 1800kg axle type SCB 1505, 46.27.379.926, 4013642, 4026600
BC: dimension AM 1395mm, OHF: dimension FL 2070mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 15°, axle profile 82mm, ball-head wheel bolts M12x1.5.
Price 1.350,00 EUR Incl. tax Excl. Shipping costs

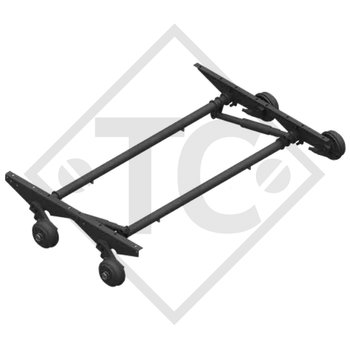

Lowering axles down to 281mm, axle type RONDO DB 2/1805, tandem 3600kg, 49.32.368.454
BPW (AL-KO) Lowering axles down to 281mm, axle type RONDO DB 2/1805, tandem 3600kg, 49.32.368.454
BC: dimension AM 1600mm, OHF: dimension FL 2125mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, ball-head wheel bolts M12x1.5.
Price 3.450,00 EUR Incl. tax Excl. Shipping costs
Lowering axles down to 281mm, axle type RONDO DB 2/1805, tandem 3600kg, 49.32.368.452
BPW (AL-KO) Lowering axles down to 281mm, axle type RONDO DB 2/1805, tandem 3600kg, 49.32.368.452
BC: dimension AM 1500mm, OHF: dimension FL 2025mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, ball-head wheel bolts M12x1.5.
Price 3.430,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg axle type CS 1505, 46.27.358.260
BPW (AL-KO) Braked axle 1500kg axle type CS 1505, 46.27.358.260
BC: dimension AM 1400mm, OHF: dimension FL 1885mm, wheel drawbar ⌀112x5, wheel brake type S 2005-7 RASK, offset (ET) 0mm, swing arm position 20°, axle profile 95mm.
Price 1.490,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1500kg axle type SCB 1505, 46.27.379.916, 4013636
BPW (AL-KO) Braked axle SWING 1500kg axle type SCB 1505, 46.27.379.916, 4013636
BC: dimension AM 1563mm, OHF: dimension FL 2085mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm.
Price 1.799,00 EUR Incl. tax Excl. Shipping costs
Coupling head ZSK-750 vers. A with integrated lock
BPW (AL-KO) Coupling head ZSK-750 vers. A with integrated lock
drawbar ⌀36mm round, holes (screw connection) horizontal 12.5x15.5mm, hole distance 54-57mm, perm. gross weight 750kg, nose load 75kg, material: steel.
Price 178,50 EUR Incl. tax Excl. Shipping costs
Drawbar eye DIN ø40mm 40-04, internal mounting, without fixing bolts
BPW (AL-KO) Drawbar eye DIN ø40mm 40-04, internal mounting, without fixing bolts
drawbar / shaft ⌀45.8mm, holes (screw connection) cross 12.5mm, hole distance 40mm, perm. gross weight 2900kg, nose load 150kg, material: cast iron, primed.
Price 358,30 EUR Incl. tax Excl. Shipping costs
(ALBE BERNDES) Coupling head EM 350 R-D without fixing bolts
BPW (AL-KO) (ALBE BERNDES) Coupling head EM 350 R-D without fixing bolts
drawbar ⌀65mm round, holes (screw connection) cross 14.5mm, hole distance 40mm, perm. gross weight 3500kg, nose load 200kg, material: malleable cast iron.
Price 59,90 EUR Incl. tax Excl. Shipping costs
