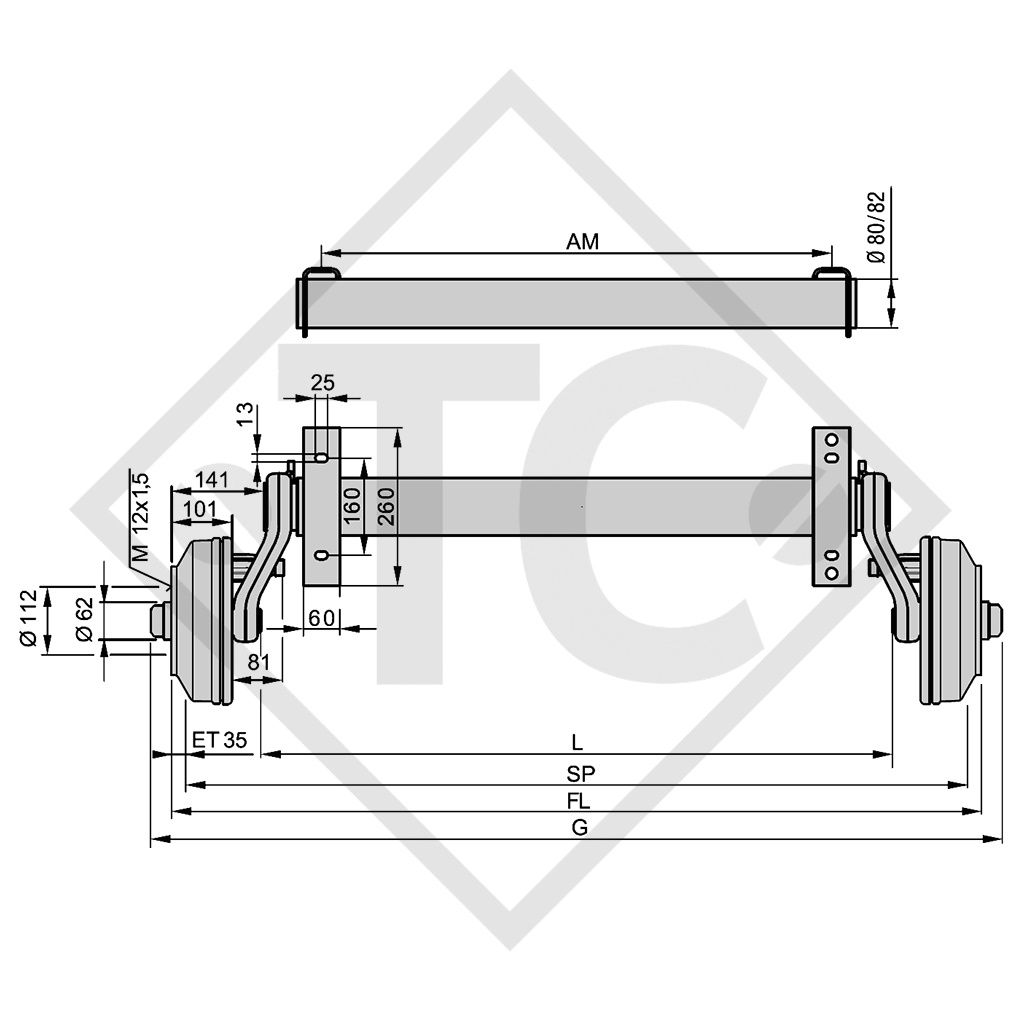

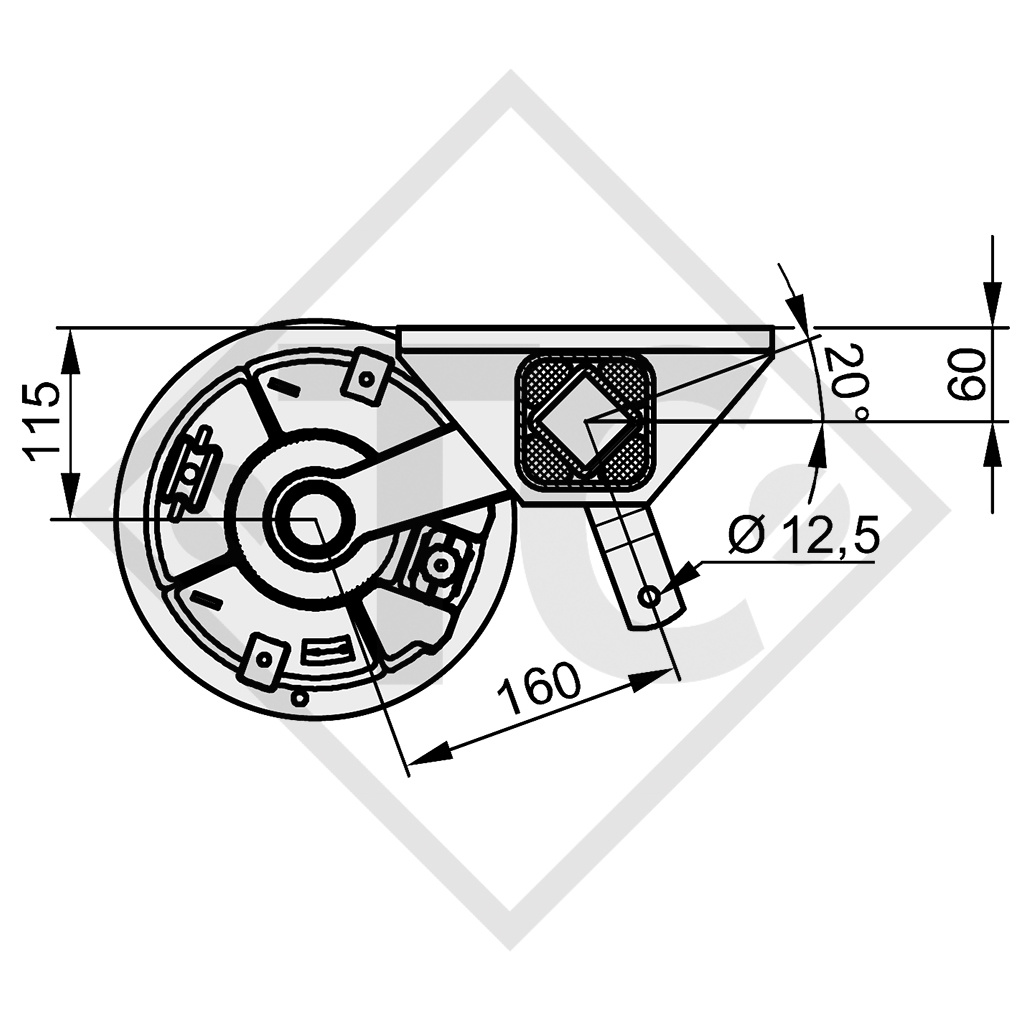

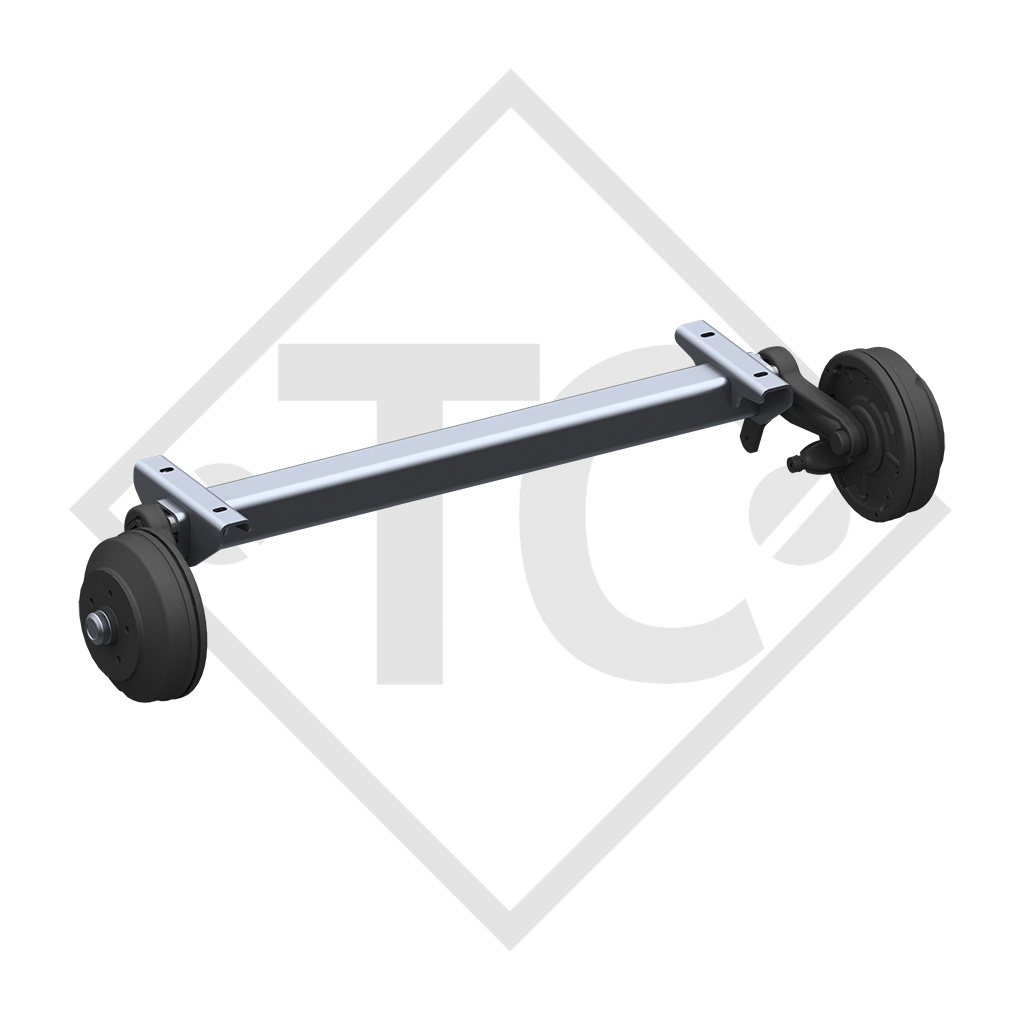

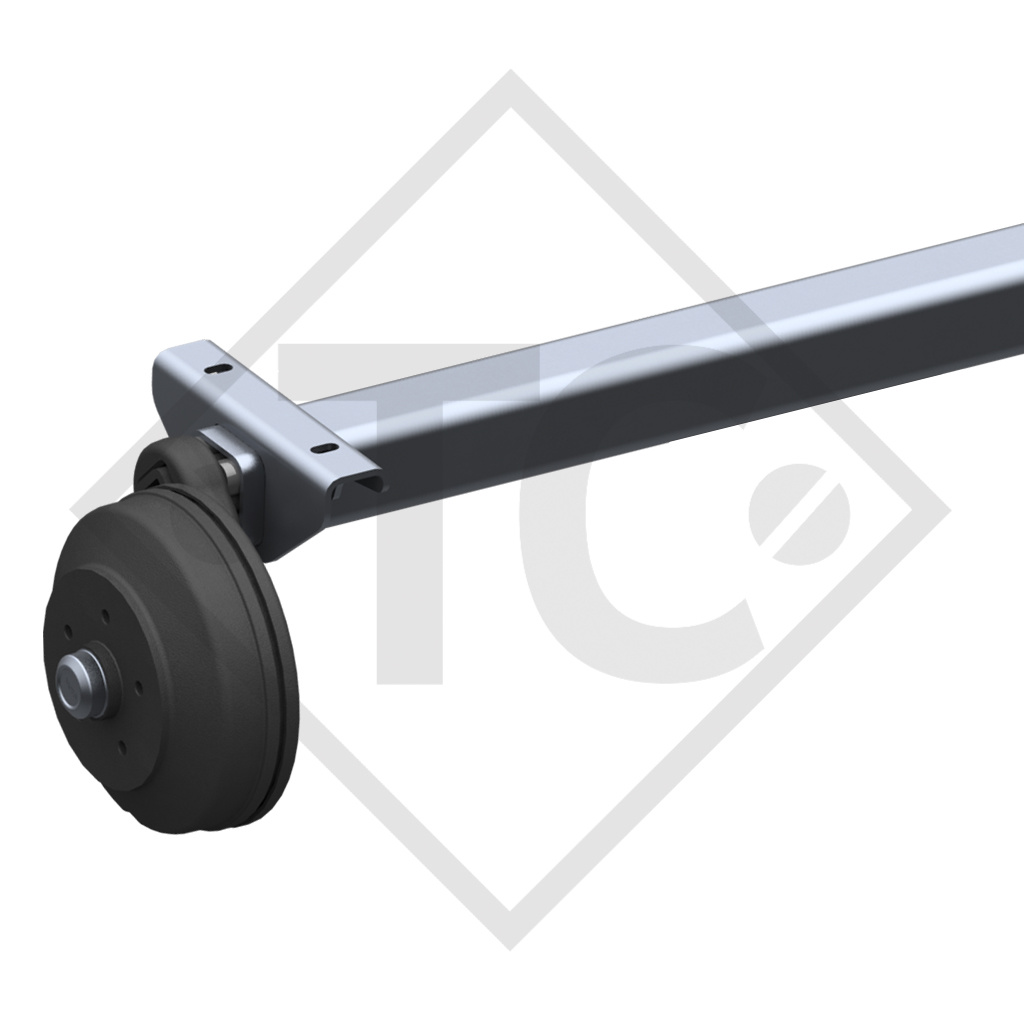

BPW Braked axle SWING 1800kg axle type CB 1805, 4013890, Wörmann Gala

Part no. 46.32.368.747 / 4013890

Original operating instructions
Replacement part identification number (ETI) 827038

SCOPE OF DELIVERY
Axle without bowden cables
Welded-on shock absorber brackets
Ball-head wheel bolts M12x1.5 loose
Without tandem axle adapter bracket welded onto top hat profile

DETAILS

• Speed up to 140 km/h
• Drawbar connection: Clamping shells see Accessories
• Axle shock absorber see Accessories
• Wheel connections: 140x5 on demand
• Special axle mounts and drawbar connections on demand
• Also available with watertight bearings
• Axle body fully hop-dip galvanised: Permanent surface protection
• Independent wheel suspension: Optimum compensation of uneven road surfaces
• Maintenance-free suspension: Lower maintenance costs
• Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
• Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
• Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease
• Incl. shock absorber bracket
