BPW (AL-KO)

Home / Brands / BPW (AL-KO)

JUST ORIGINAL PARTS

LIFE-TIME SUPPORT

SALE

POSITIVE REVIEWS

RUNNING WELL FOR YOU. BPW BERGISCHE AXLES

AL-KO Technology Paderborn GmbH specialises in the development and manufacture of complete running gear technology for car trailers and self-propelled vehicles. The location has developed from a labour-intensive wagon maker into an innovative, modern industrial company. Since 2017 the former BPW Fahrzeugtechnik has been part of the global technology company DexKo Global Inc., a worldwide market leader for trailer axles and chassis components in the lightweight segment. Read more...

Underpinning Your Progress.
The range of running gear for towable machinery, car and light truck trailers, caravans and cab & engine vehicles.



Braked axle 850kg SWING axle type CB 854, 46.16.382.015
BPW (AL-KO) Braked axle 850kg SWING axle type CB 854, 46.16.382.015
BC: dimension AM 1250mm, OHF: dimension FL 1680mm, wheel connection 100x4, wheel brake type S 1704-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 64mm, taper-head wheel bolts M12x1.5.
Price 501,90 EUR Incl. tax Excl. Shipping costs
Braked axle 850kg SWING axle type CB 854, 46.16.382.014
BPW (AL-KO) Braked axle 850kg SWING axle type CB 854, 46.16.382.014
BC: dimension AM 1200mm, OHF: dimension FL 1630mm, wheel connection 100x4, wheel brake type S 1704-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 64mm, taper-head wheel bolts M12x1.5.
Price 492,00 EUR Incl. tax Excl. Shipping costs
Braked axle 850kg SWING axle type CB 854, 46.16.382.013
BPW (AL-KO) Braked axle 850kg SWING axle type CB 854, 46.16.382.013
BC: dimension AM 1150mm, OHF: dimension FL 1580mm, wheel connection 100x4, wheel brake type S 1704-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 64mm, taper-head wheel bolts M12x1.5.
Price 492,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.860, HUMBAUR
BPW (AL-KO) Braked axle SWING 1800kg axle type CB 1805, 46.32.368.860, HUMBAUR
BC: dimension AM 1350mm, OHF: dimension FL 1810mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5..
Price 959,00 EUR Incl. tax Excl. Shipping costs

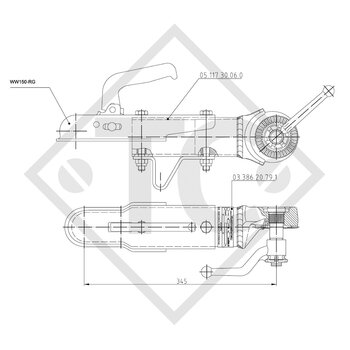

Coupling head up to 1200kg
BPW (AL-KO) Coupling head up to 1200kg
suitable for overrun devices ZOV 1.2-1.1 B.
Price 349,90 EUR Incl. tax Excl. Shipping costs
Drawbar connection profile bolt-on
BPW (AL-KO) Drawbar connection profile bolt-on
for axle CS 2106, CS 2506 and CS 3006 permitted gross weight of the trailer 6000kg, axle profile dimension K 110mm square, for drawbar section square 120x120mm, 150x132mm and 150x150mm.
Price 223,60 EUR Incl. tax Excl. Shipping costs
Drawbar connection profile bolt-on
BPW (AL-KO) Drawbar connection profile bolt-on
for axle CB 1805, permitted gross weight of the trailer 3500kg, axle profile dimension K 95mm square, for drawbar section square 120x120mm, 150x132mm and 150x150mm.
Price 184,60 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAV 2.0-5 with overrun device AE 2.7-1 C height-adjustable, with drawbar section 1500 to 2000kg, 47.36.470.079
BPW (AL-KO) Drawbar installation ZAV 2.0-5 with overrun device AE 2.7-1 C height-adjustable, with drawbar section 1500 to 2000kg, 47.36.470.079
drawbar length L 2500mm, measure B 0-693mm, FD at max. 2000kg: 3000mm, drawbar section K square 120mm, spacer V 800mm, perm. nose load 150kg, without hitch components, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 2.150,00 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAV 2.0-5 with overrun device AE 2.7-1 C height-adjustable, with drawbar section 1500 to 2000kg, 47.36.470.109
BPW (AL-KO) Drawbar installation ZAV 2.0-5 with overrun device AE 2.7-1 C height-adjustable, with drawbar section 1500 to 2000kg, 47.36.470.109
drawbar length L 2300mm, measure B 0-520mm, FD at max. 2000kg: 3000mm, drawbar section K square 120mm, spacer V 600mm, perm. nose load 150kg, without hitch components, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 2.319,00 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAV 2.0-5 with overrun device AE 2.7-1 C height-adjustable, with drawbar section 1500 to 2000kg, 47.36.470.115
BPW (AL-KO) Drawbar installation ZAV 2.0-5 with overrun device AE 2.7-1 C height-adjustable, with drawbar section 1500 to 2000kg, 47.36.470.115
drawbar length L 1900mm, measure B 0-693mm, FD at max. 2000kg: 3000mm, drawbar section K square 120mm, spacer V 800mm, perm. nose load 150kg, without hitch components, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 2.310,50 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAV 1.6-5 with overrun device AE 2.7-1 D height-adjustable, with drawbar section 1200 to 1600kg, 47.29.470.065
BPW (AL-KO) Drawbar installation ZAV 1.6-5 with overrun device AE 2.7-1 D height-adjustable, with drawbar section 1200 to 1600kg, 47.29.470.065
drawbar length L 1900mm, measure B 0-693mm, FD at max. 1600kg: 3000mm, drawbar section K square 120mm, spacer V 800mm, perm. nose load 150kg, without hitch components, for wheel brake S 1704-7 and S 2005-7.
Price 2.310,50 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZRV 20 B with overrun device AK 2008 height-adjustable, with drawbar section cranked 1300 to 2000kg, 47.36.473.072
BPW (AL-KO) Drawbar installation ZRV 20 B with overrun device AK 2008 height-adjustable, with drawbar section cranked 1300 to 2000kg, 47.36.473.072
drawbar length L 2800mm, FD at max. 2000kg: 2020mm, drawbar section K round 101.6x10mm, spacer V 415mm, perm. nose load 100kg, with drawbar eye DIN 40.0-01, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 2.921,70 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZKV 25.1 B with overrun device AK 3510 B height-adjustable, with drawbar section 1910 to 2700kg, 47.43.473.002
BPW (AL-KO) Drawbar installation ZKV 25.1 B with overrun device AK 3510 B height-adjustable, with drawbar section 1910 to 2700kg, 47.43.473.002
drawbar length L 2500mm, FD at max. 2700kg: 2820mm, drawbar section K square 120x6.3mm, spacer V 500mm, perm. nose load 150kg, with drawbar eye DIN 40.0-02, for wheel brake S 2005-7 and S 2504-7.
Price 4.199,00 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZKV 20.1 A with overrun device AK 2008 height-adjustable, with drawbar section 1300 to 2000kg, 47.36.473.043
BPW (AL-KO) Drawbar installation ZKV 20.1 A with overrun device AK 2008 height-adjustable, with drawbar section 1300 to 2000kg, 47.36.473.043
drawbar length L 2800mm, FD at max. 2000kg: 1853mm, drawbar section K round 101.6x10mm, spacer V 415mm, perm. nose load 100kg, with drawbar eye DIN 40.0-01, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 2.763,20 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZKV 20.1 A with overrun device AK 2008 height-adjustable, with drawbar section 1300 to 2000kg, 47.36.471.032
BPW (AL-KO) Drawbar installation ZKV 20.1 A with overrun device AK 2008 height-adjustable, with drawbar section 1300 to 2000kg, 47.36.471.032
drawbar length L 2500mm, FD at max. 2000kg: 1853mm, drawbar section K round 101.6x10mm, spacer V 415mm, perm. nose load 100kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 2.611,60 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAAR 2.0-3 with overrun device ZAAQ2.0-3 / ZDG8-3 drawbar section cranked 1250 to 2000kg, 48.36.381.086
BPW (AL-KO) Drawbar installation ZAAR 2.0-3 with overrun device ZAAQ2.0-3 / ZDG8-3 drawbar section cranked 1250 to 2000kg, 48.36.381.086
drawbar length L 2100mm, FD at max. 2000kg: 1360mm, drawbar section K square 80x5.0mm, measure HA 55mm, thread G M10, perm. nose load 150kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 952,70 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAAR 1.6-3 with overrun device ZAAQ1.6-3 / ZDG7-3 drawbar section cranked 800 to 1600kg, 4021606
BPW (AL-KO) Drawbar installation ZAAR 1.6-3 with overrun device ZAAQ1.6-3 / ZDG7-3 drawbar section cranked 800 to 1600kg, 4021606
drawbar length L 3000mm, FD at max. 1600kg: 1200mm, drawbar section K square 70x5.0mm, measure HA 50mm, thread G M10, perm. nose load 100kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 995,90 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAAR 1.35-3 with overrun device ZAAQ1.35-3 / ZDG7-3 drawbar section cranked 750 to 1350kg, 48.25.381.063
BPW (AL-KO) Drawbar installation ZAAR 1.35-3 with overrun device ZAAQ1.35-3 / ZDG7-3 drawbar section cranked 750 to 1350kg, 48.25.381.063
drawbar length L 3500mm, FD at max. 1350kg: 1210mm, drawbar section K square 70x5.0mm, measure HA 50mm, thread G M10, perm. nose load 100kg, with coupling head EM 150 R-B, for wheel brake S 1704-7 and S 2005-7.
Price 765,40 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAAR 3.0-1 with overrun device ZAAQ3.0 / ZDG10-3 drawbar section straight 1800 to 2800kg, 48.46.181.001
BPW (AL-KO) Drawbar installation ZAAR 3.0-1 with overrun device ZAAQ3.0 / ZDG10-3 drawbar section straight 1800 to 2800kg, 48.46.181.001
drawbar length L 2100mm, FD at max. 2800kg: 1780mm, drawbar section K square 100x6.3mm, measure HA 65mm, thread G M10, perm. nose load 100kg, with coupling head EM 300 R-B-K1212, for wheel brake S 2005-7, S 2504-7 and S 3006-7.
Price 862,30 EUR Incl. tax Excl. Shipping costs
Overrun device square type ZAAQ 3.0-3, 1800 to 3000kg, 48.46.981.000
BPW (AL-KO) Overrun device square type ZAAQ 3.0-3, 1800 to 3000kg, 48.46.981.000
connection dimension B 100mm, nose load 100kg, combined with BPW wheel brake S2005-7, S2504-7 and S3006-7 RASK, with coupling head EM 300 R-B.
Price 675,00 EUR Incl. tax Excl. Shipping costs
Towbar connection ZOV 2.5-1.1 height-adjustable with drawbar section up to 2500kg, 47.41.403.011
BPW (AL-KO) Towbar connection ZOV 2.5-1.1 height-adjustable with drawbar section up to 2500kg, 47.41.403.011
drawbar length L 2090mm, drawbar section K 108/90mm, with DIN drawbar eye dimension A 501mm, height B 0-225mm, intermediate piece V 300mm, perm. nose load 150kg.
Price 1.421,60 EUR Incl. tax Excl. Shipping costs
Cup
BPW (AL-KO) Cup
can be used with wheel brake S 1635-6 RASK, S 2003-5 RASK, S 2005-5 RASK and S 2504-5 RASK.
Price 13,70 EUR Incl. tax Excl. Shipping costs
Spread hinge lock, bowden cable outlet 90°
BPW (AL-KO) Spread hinge lock, bowden cable outlet 90°
can be used with wheel brake S 2005-7 RASK and S 2005-7 SK.
Price 31,50 EUR Incl. tax Excl. Shipping costs
Spread hinge lock
BPW (AL-KO) Spread hinge lock
can be used with wheel brake S 2005-7 RASK, S 2005-7 SK, S 2504-7 RASK and S 2504-7 SK.
Price 16,70 EUR Incl. tax Excl. Shipping costs
Page 83 of 91
