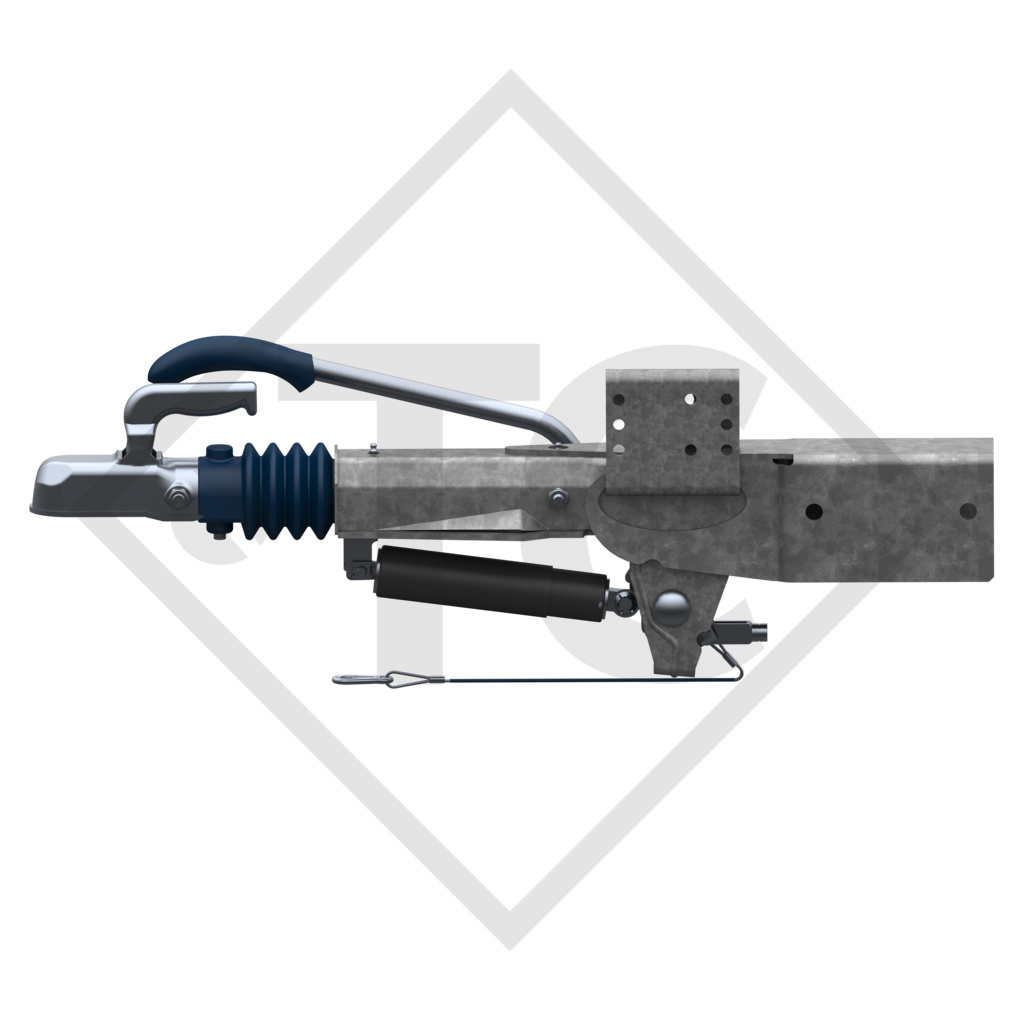

Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / OVERRUN DEVICES / HEIGHT-ADJUSTABLE OVERRUN DEVICES / OVERRUN DEVICES HEIGHT-ADJUSTABLE PRODUCT LINE 101 VB COMPACT / Overrun device square type ZAAQ 3.0-3, 1800 to 3000kg, 48.46.981.000
connection dimension B 100mm, nose load 100kg, combined with BPW wheel brake S2005-7, S2504-7 and S3006-7 RASK, with coupling head EM 300 R-B. Read more...
| Permitted gross weight (kg) | 1800-3000 |
| Sales designation (type) | ZAAQ 3.0-3 |
| Order No. | 4014460 |
| Reference No. | 48.46.981.000 |

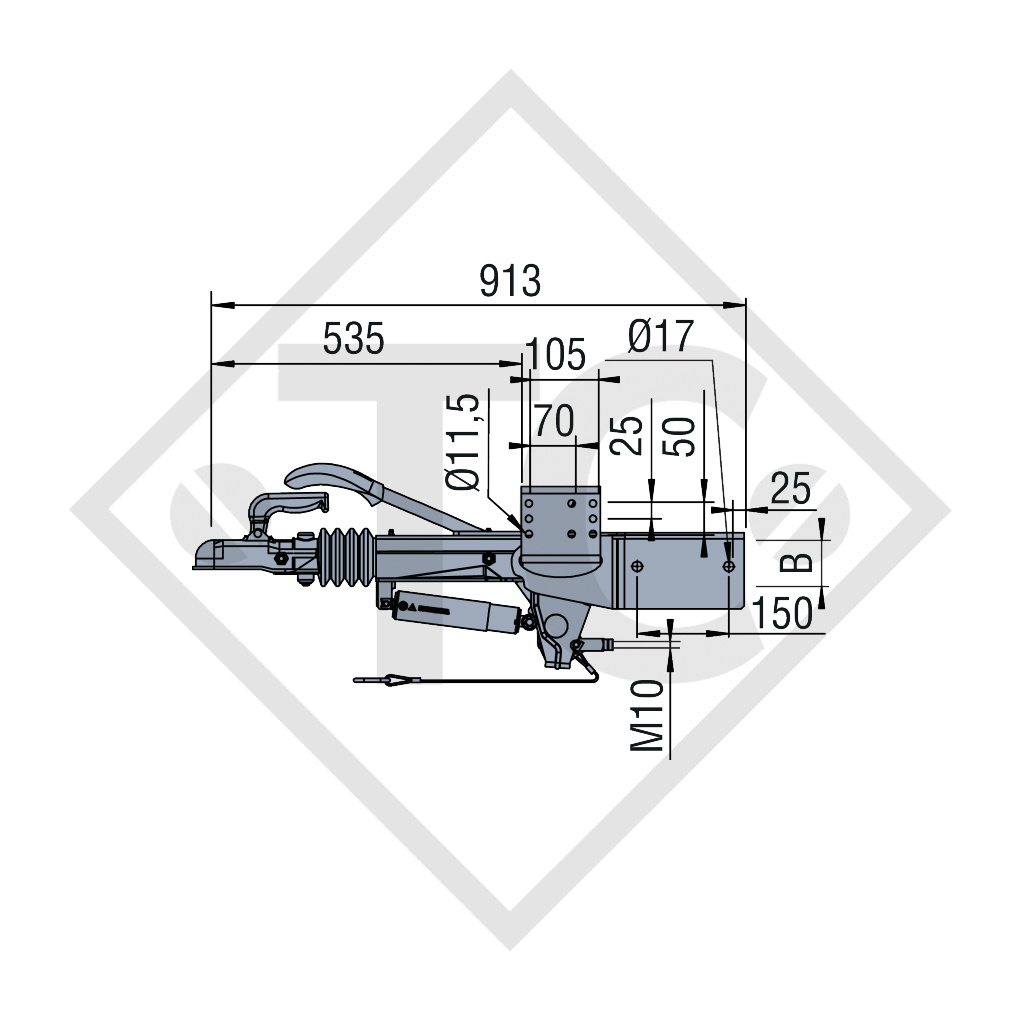

| Push-on fit on square tube dimension B |
100mm |
| Perm. nose load (kg) |
100 |
| Combined wheel brakes (RASK) | S2005-7, S2504-7 and S3006-7 |
| ECE test code | E1 55R-012235 |
| Replacement part identification number (ETI) NEW | 827009 |
| Replacement part identification number (ETI) OLD |
Original operating instructions
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
