RUNNING WELL FOR YOU. BPW BERGISCHE AXLES

AL-KO Technology Paderborn GmbH specialises in the development and manufacture of complete running gear technology for car trailers and self-propelled vehicles. The location has developed from a labour-intensive wagon maker into an innovative, modern industrial company. Since 2017 the former BPW Fahrzeugtechnik has been part of the global technology company DexKo Global Inc., a worldwide market leader for trailer axles and chassis components in the lightweight segment. Read more...

Underpinning Your Progress.
The range of running gear for towable machinery, car and light truck trailers, caravans and cab & engine vehicles.



Braked axle 1500kg axle type CS 1505, 46.27.358.224
BPW (AL-KO) Braked axle 1500kg axle type CS 1505, 46.27.358.224
BC: dimension AM 1420mm, OHF: dimension FL 1870mm, wheel drawbar ⌀112x5, wheel brake type S 2005-7 RASK, offset (ET) 0mm, swing arm position 20°, axle profile 95mm.
Price 1.850,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1400kg axle type CB 1355 - 46.25.379.286
BPW (AL-KO) Braked axle 1400kg axle type CB 1355 - 46.25.379.286
BC: dimension AM 1450mm, OHF: dimension FL 1830mm, wheel connection 112x5, wheel brake type RB520, offset (ET) 30mm, swing arm position 20°.
Price 850,00 EUR Incl. tax Excl. Shipping costs

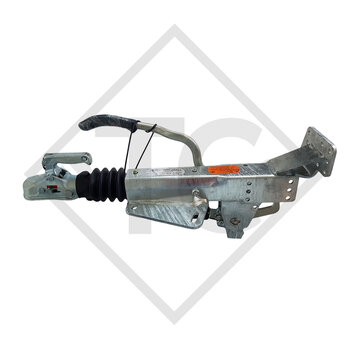

Overrun device V type ZAF 1.6-3, 750 to 1500kg, 48.27.581.029
BPW (AL-KO) Overrun device V type ZAF 1.6-3, 750 to 1500kg, 48.27.581.029
connection 166mm, nose load 100kg, drawbar installation version top, combined with BPW wheel brake S1704-7, S2005-7 and S2504-7 RASK, with coupling head WW150R-B.
Price 345,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1500kg axle type CB 1505, 46.27.379.198
BPW (AL-KO) Braked axle SWING 1500kg axle type CB 1505, 46.27.379.198
BC: dimension AM 730mm, OHF: dimension FL 1180mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm.
Price 770,00 EUR Incl. tax Excl. Shipping costs

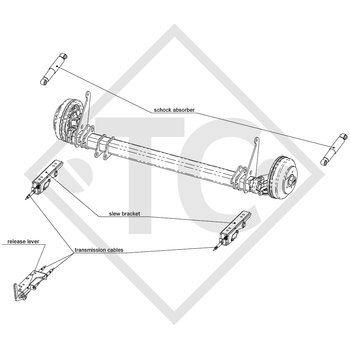

Lowering braked axle SWING 1800kg axle type CB 1805, 46.31.368.063
BPW (AL-KO) Lowering braked axle SWING 1800kg axle type CB 1805, 46.31.368.063
BC: dimension AM 1700mm, OHF: dimension FL 2265mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5 R12.
Price 2.490,00 EUR Incl. tax Excl. Shipping costs
Lowering axles down to 281mm, axle type RONDO DB 2/1805, tandem 3600kg, 49.32.368.457
BPW (AL-KO) Lowering axles down to 281mm, axle type RONDO DB 2/1805, tandem 3600kg, 49.32.368.457
BC: dimension AM 1750mm, OHF: dimension FL 2275mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, ball-head wheel bolts M12x1.5.
Price 3.480,00 EUR Incl. tax Excl. Shipping costs

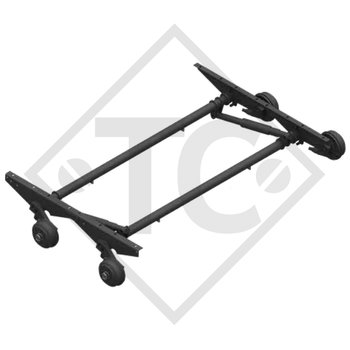

Lowering axles down to 281mm, axle type RONDO DB 2/1805, tandem 3600kg, 49.32.368.456
BPW (AL-KO) Lowering axles down to 281mm, axle type RONDO DB 2/1805, tandem 3600kg, 49.32.368.456
BC: dimension AM 1700mm, OHF: dimension FL 2225mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, ball-head wheel bolts M12x1.5.
Price 3.470,00 EUR Incl. tax Excl. Shipping costs
Lowering axles down to 281mm, axle type RONDO DB 2/1805, tandem 3600kg, 49.32.368.453
BPW (AL-KO) Lowering axles down to 281mm, axle type RONDO DB 2/1805, tandem 3600kg, 49.32.368.453
BC: dimension AM 1550mm, OHF: dimension FL 2075mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, ball-head wheel bolts M12x1.5.
Price 3.440,00 EUR Incl. tax Excl. Shipping costs

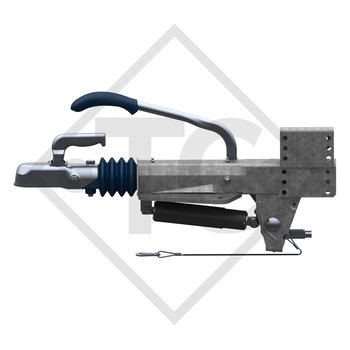

Overrun device V type ZAF 3.0-3, 1800 to 3000kg, 48.46.581.009
BPW (AL-KO) Overrun device V type ZAF 3.0-3, 1800 to 3000kg, 48.46.581.009
connection 166mm, nose load 150kg, drawbar installation version top + bottom, combined with BPW wheel brake S2005-7, S2504-7, S3006-7 e ALKO 2051, with WW 30-D3.
Price 550,00 EUR Incl. tax Excl. Shipping costs
Towbar rear
BPW (AL-KO) Towbar rear
dimension A 160mm, dimension B 220mm.
Price 13,90 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.020
BPW (AL-KO) Braked axle SWING 1800kg axle type CB 1805, 46.32.368.020
BC: dimension AM 1000mm, OHF: dimension FL 1535mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 95mm, taper-head wheel bolts M12x1.5 R12.
Price 1.065,00 EUR Incl. tax Excl. Shipping costs

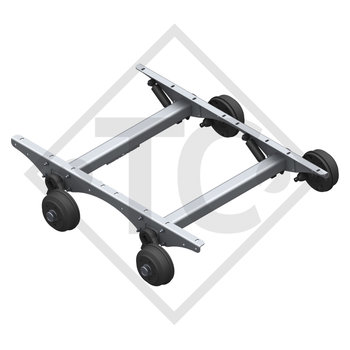

Braked tandem axle unit 2700kg SWING axle type CB 2/1355, 4000624
BPW (AL-KO) Braked tandem axle unit 2700kg SWING axle type CB 2/1355, 4000624
BC: dimension AM 1000mm, OHF: dimension FL 1450mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 511,70 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1054, 46.21.379.599
BPW (AL-KO) Braked axle 1050kg SWING axle type CB 1054, 46.21.379.599
BC: dimension AM 1450mm, OHF: dimension FL 1960mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 25°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 1.595,00 EUR Incl. tax Excl. Shipping costs
Drawbar eye DIN ø40mm 40-05, internal mounting, without fixing bolts
BPW (AL-KO) Drawbar eye DIN ø40mm 40-05, internal mounting, without fixing bolts
drawbar / shaft ⌀40.8mm, holes (screw connection) cross 12.5mm, hole distance 40mm, perm. gross weight 2200kg, nose load 100kg, material: cast iron, primed.
Price 458,10 EUR Incl. tax Excl. Shipping costs
Drawbar eye DIN ø40mm 40.0-02, internal mounting, without fixing bolts
BPW (AL-KO) Drawbar eye DIN ø40mm 40.0-02, internal mounting, without fixing bolts
drawbar / shaft ⌀51.8mm, holes (screw connection) cross 12.5mm, hole distance 40mm, perm. gross weight 3500kg, nose load 150kg, material: cast iron, primed.
Price 397,20 EUR Incl. tax Excl. Shipping costs
(ALBE BERNDES) Coupling head EM 220 R-B without fixing bolts
BPW (AL-KO) (ALBE BERNDES) Coupling head EM 220 R-B without fixing bolts
drawbar ⌀50-51mm round, holes (screw connection) cross 12.5mm, hole distance 40mm, perm. gross weight 2200kg, nose load 100kg, material: steel.
Price 37,90 EUR Incl. tax Excl. Shipping costs
Clamping shell, single axle, vers. 2
BPW (AL-KO) Clamping shell, single axle, vers. 2
drawbar tube ⌀90mm, axle profile square 80mm, for braked trailers.
Price 81,90 EUR Incl. tax Excl. Shipping costs
Mounting part kit for tandem axle compensation incl. brake cables for rear axle, brake rod M10
BPW (AL-KO) Mounting part kit for tandem axle compensation incl. brake cables for rear axle, brake rod M10
axle spacing AA 700-850mm, FL 2000-2100mm, to 3500kg, surface treatment hot-dip galvanised.
Price 83,80 EUR Incl. tax Excl. Shipping costs
Pull bar thread with fixing bolts M12
BPW (AL-KO) Pull bar thread with fixing bolts M12
length (LG) 1600mm, thread length 130/300mm.
Price 55,00 EUR Incl. tax Excl. Shipping costs

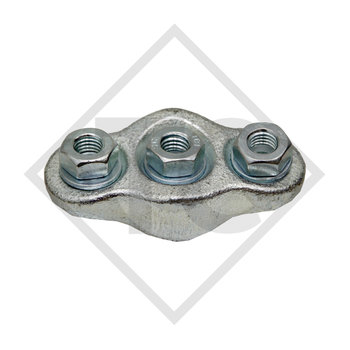

Mounting part kit for single-axle
BPW (AL-KO) Mounting part kit for single-axle
for brake rod M12.
Price 38,30 EUR Incl. tax Excl. Shipping costs
Lowering axles down to 200mm, axle type RONDO DB 2/1505, tandem 3000kg, 49.27.379.501
BPW (AL-KO) Lowering axles down to 200mm, axle type RONDO DB 2/1505, tandem 3000kg, 49.27.379.501
BC: dimension AM 1300mm, OHF: dimension FL 1785mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, ball-head wheel bolts M12x1.5.
Price 3.861,70 EUR Incl. tax Excl. Shipping costs
Lowering axles down to 200mm, axle type RONDO DB 2/1355, tandem 2700kg, 49.25.379.507
BPW (AL-KO) Lowering axles down to 200mm, axle type RONDO DB 2/1355, tandem 2700kg, 49.25.379.507
BC: dimension AM 1900mm, OHF: dimension FL 2370mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, ball-head wheel bolts M12x1.5.
Price 3.758,80 EUR Incl. tax Excl. Shipping costs
Lowering axle down to 180mm, axle type CB 1505, single axle 1500kg, 4021401
BPW (AL-KO) Lowering axle down to 180mm, axle type CB 1505, single axle 1500kg, 4021401
BC: dimension AM 1000mm, OHF: dimension FL 1550mm, wheel connection 112x5, wheel brake type S2005-7 RASK, offset (ET) 30mm, swing arm position 20°, ball-head wheel bolts M12x1.5.
Price 1.701,90 EUR Incl. tax Excl. Shipping costs

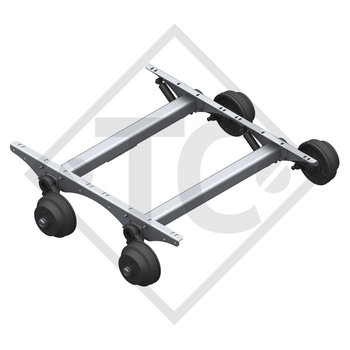

Braked tandem axle unit 3500kg SWING axle type CB 2/1805, 4021533
BPW (AL-KO) Braked tandem axle unit 3500kg SWING axle type CB 2/1805, 4021533
BC: dimension AM 1400mm, OHF: dimension FL 1840mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 2.140,00 EUR Incl. tax Excl. Shipping costs
