RUNNING WELL FOR YOU. BPW BERGISCHE AXLES

AL-KO Technology Paderborn GmbH specialises in the development and manufacture of complete running gear technology for car trailers and self-propelled vehicles. The location has developed from a labour-intensive wagon maker into an innovative, modern industrial company. Since 2017 the former BPW Fahrzeugtechnik has been part of the global technology company DexKo Global Inc., a worldwide market leader for trailer axles and chassis components in the lightweight segment. Read more...

Underpinning Your Progress.
The range of running gear for towable machinery, car and light truck trailers, caravans and cab & engine vehicles.



Drawbar installation ZAV 1.6-5 with overrun device AE 2.7-1 D height-adjustable, with drawbar section 1200 to 1600kg, 47.29.470.066
BPW (AL-KO) Drawbar installation ZAV 1.6-5 with overrun device AE 2.7-1 D height-adjustable, with drawbar section 1200 to 1600kg, 47.29.470.066
drawbar length L 2300mm, measure B 0-693mm, FD at max. 1600kg: 3000mm, drawbar section K square 120mm, spacer V 800mm, perm. nose load 150kg, without hitch components, for wheel brake S 1704-7 and S 2005-7.
Price 2.389,40 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZKV 20.1 B with overrun device AK 2008 height-adjustable, with drawbar section cranked 1300 to 2000kg, 47.36.473.031
BPW (AL-KO) Drawbar installation ZKV 20.1 B with overrun device AK 2008 height-adjustable, with drawbar section cranked 1300 to 2000kg, 47.36.473.031
drawbar length L 1900mm, FD at max. 2000kg: 1526mm, drawbar section K round 101.6x10mm, spacer V 415mm, perm. nose load 100kg, with drawbar eye DIN 40.0-01, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 2.810,80 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZKV 13.1 B with overrun device AK 1308 height-adjustable, with drawbar section 650 to 1300kg, 47.24.473.117
BPW (AL-KO) Drawbar installation ZKV 13.1 B with overrun device AK 1308 height-adjustable, with drawbar section 650 to 1300kg, 47.24.473.117
drawbar length L 1700mm, FD at max. 1300kg: 2223mm, drawbar section K round 88.9x8.8mm, spacer V 415mm, perm. nose load 100kg, with drawbar eye DIN 40.0-01, for wheel brake S 1704-7 and S 2005-7.
Price 2.020,00 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZKV 25.1 D with overrun device AK 3510 B height-adjustable, with drawbar section 1910 to 2700kg, 47.43.471.013
BPW (AL-KO) Drawbar installation ZKV 25.1 D with overrun device AK 3510 B height-adjustable, with drawbar section 1910 to 2700kg, 47.43.471.013
drawbar length L 2800mm, FD at max. 2700kg: 2453mm, drawbar section K square 120x6.3mm, spacer V 680mm, perm. nose load 150kg, with coupling head EM 350 R-D-K1212, for wheel brake S 2005-7 and S 2504-7.
Price 4.116,90 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZKV 20.1 B with overrun device AK 2008 height-adjustable, with drawbar section cranked 1300 to 2000kg, 47.36.471.021
BPW (AL-KO) Drawbar installation ZKV 20.1 B with overrun device AK 2008 height-adjustable, with drawbar section cranked 1300 to 2000kg, 47.36.471.021
drawbar length L 1900mm, FD at max. 2000kg: 1526mm, drawbar section K round 101.6x10mm, spacer V 415mm, perm. nose load 100kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 2.683,80 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAAR 1.35-3 with overrun device ZAAQ1.35-3 / ZDG7-3 drawbar section cranked 750 to 1350kg, 48.25.381.061
BPW (AL-KO) Drawbar installation ZAAR 1.35-3 with overrun device ZAAQ1.35-3 / ZDG7-3 drawbar section cranked 750 to 1350kg, 48.25.381.061
drawbar length L 2500mm, FD at max. 1350kg: 1210mm, drawbar section K square 70x5.0mm, measure HA 50mm, thread G M10, perm. nose load 100kg, with coupling head EM 150 R-B, for wheel brake S 1704-7 and S 2005-7.
Price 691,00 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAR 2.0-1 A with overrun device PAV/SR 2.0 X drawbar section straight 1089 to 2000kg, 48.36.181.044
BPW (AL-KO) Drawbar installation ZAR 2.0-1 A with overrun device PAV/SR 2.0 X drawbar section straight 1089 to 2000kg, 48.36.181.044
drawbar length L 3500mm, FD at max. 2000kg: 1385mm, drawbar section K round 88.9x6.3mm, measure HA 58mm, thread G M10, perm. nose load 100kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 887,90 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAAR 1.6-1 with overrun device ZAAQ1.6 / ZDG7-3 drawbar section straight 800 to 1600kg, 48.29.181.058
BPW (AL-KO) Drawbar installation ZAAR 1.6-1 with overrun device ZAAQ1.6 / ZDG7-3 drawbar section straight 800 to 1600kg, 48.29.181.058
drawbar length L 3500mm, FD at max. 1600kg: 1200mm, drawbar section K square 70x5.0mm, measure HA 50mm, thread G M10, perm. nose load 100kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 730,00 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAAR 1.6-1 with overrun device ZAAQ1.6 / ZDG7-3 drawbar section straight 800 to 1600kg, 48.29.181.043
BPW (AL-KO) Drawbar installation ZAAR 1.6-1 with overrun device ZAAQ1.6 / ZDG7-3 drawbar section straight 800 to 1600kg, 48.29.181.043
drawbar length L 2500mm, FD at max. 1600kg: 1200mm, drawbar section K square 70x5.0mm, measure HA 50mm, thread G M10, perm. nose load 100kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 695,00 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAAR 1.6-1 with overrun device ZAAQ1.6 / ZDG7-3 drawbar section straight 800 to 1600kg, 48.29.181.056
BPW (AL-KO) Drawbar installation ZAAR 1.6-1 with overrun device ZAAQ1.6 / ZDG7-3 drawbar section straight 800 to 1600kg, 48.29.181.056
drawbar length L 2300mm, FD at max. 1600kg: 1200mm, drawbar section K square 70x5.0mm, measure HA 50mm, thread G M10, perm. nose load 100kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 650,70 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAA 1.3-1.1 with overrun device AK 1308 and removable drawbar section from 650 to 1300kg, 47.24.181.002
BPW (AL-KO) Drawbar installation ZAA 1.3-1.1 with overrun device AK 1308 and removable drawbar section from 650 to 1300kg, 47.24.181.002
drawbar length L 1700mm, length A 1100mm, drawbar section K 88.9x5.6mm, thread G M10, perm. nose load 100kg, with coupling head EM 150 R-B, for wheel brake S 1704-7 and S 2005-7.
Price 1.457,60 EUR Incl. tax Excl. Shipping costs
Overrun device square type ZAAQ 1.0-3, 540 to 1000kg, 48.20.981.002
BPW (AL-KO) Overrun device square type ZAAQ 1.0-3, 540 to 1000kg, 48.20.981.002
connection dimension B 70mm, nose load 100kg, combined with BPW wheel brake S1704-7 and S2005-7 RASK, with coupling head WW 13-N.
Price 517,50 EUR Incl. tax Excl. Shipping costs
Towbar rear
BPW (AL-KO) Towbar rear
dimension A 160mm, dimension B 220mm.
Price 11,50 EUR Incl. tax Excl. Shipping costs
Drawbar eye NATO 76.0
BPW (AL-KO) Drawbar eye NATO 76.0
suitable for overrun devices ZAF 3.5-3.
Price 233,70 EUR Incl. tax Excl. Shipping costs

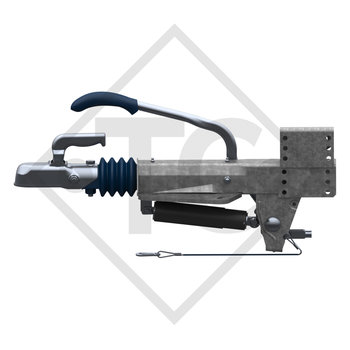

Overrun device V type ZAF 3.0-3, 1800 to 2800kg, 48.44.581.200
BPW (AL-KO) Overrun device V type ZAF 3.0-3, 1800 to 2800kg, 48.44.581.200
connection 166mm, nose load 150kg, drawbar installation version top + bottom, combined with BPW wheel brake S2005-7, S2504-7 and S3006-7 RASK, with coupling head EM 300 R-B.
Price 464,20 EUR Incl. tax Excl. Shipping costs

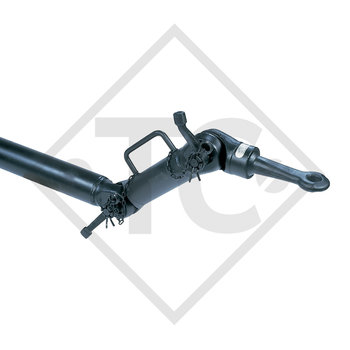

Towbar connection ZOV 5.0-1.1 height-adjustable with drawbar section up to 5000kg, 47.62.403.002
BPW (AL-KO) Towbar connection ZOV 5.0-1.1 height-adjustable with drawbar section up to 5000kg, 47.62.403.002
drawbar length L 2500mm, drawbar section K 127mm, with DIN drawbar eye dimension A 716mm, height B 0-413mm, intermediate piece V 550mm, perm. nose load 400kg.
Price 2.052,60 EUR Incl. tax Excl. Shipping costs
Drawbar ZOR 0,75-1 A round tube cranked up to 750kg, 48.14.301.011
BPW (AL-KO) Drawbar ZOR 0,75-1 A round tube cranked up to 750kg, 48.14.301.011
total length L 2200mm, drawbar section K dimension K 70x4mm, perm. nose load 75kg, coupling head EM 80 R-GK, including skid bracket, clamping bracket and plug holder.
Price 278,90 EUR Incl. tax Excl. Shipping costs
Shock absorber 05.323.50.07.0
BPW (AL-KO) Shock absorber 05.323.50.07.0
suitable for overrun device types AVE 2000.
Price 135,90 EUR Incl. tax Excl. Shipping costs
Braked axle 1400kg axle type SB14 - 46.21.379.017
BPW (AL-KO) Braked axle 1400kg axle type SB14 - 46.21.379.017
BC: dimension AM 750mm, OHF: dimension FL 1190mm, wheel connection 100x4, wheel brake type RB520, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 575,00 EUR Incl. tax Excl. Shipping costs
Bowden cable 05.089.52.75.0 hook in with thread M10
BPW (AL-KO) Bowden cable 05.089.52.75.0 hook in with thread M10
sheath length (L) 1000mm, cable length (L1) 1285mm, can be used with wheel brake S3006-5, bell internal diam. 22.5mm, outside 27mm.
Price 139,90 EUR Incl. tax Excl. Shipping costs
Bowden cable 05.089.33.46.0 hook in with thread M8
BPW (AL-KO) Bowden cable 05.089.33.46.0 hook in with thread M8
sheath length (L) 1430mm, cable length (L1) 1640mm, can be used with wheel brake S1635-5, S1635-6, S2003-5, S2005-5 and S2504-5, bell internal diam. 18.5mm, outside 21.2mm.
Price 89,90 EUR Incl. tax Excl. Shipping costs
Bowden cable 05.089.33.33.0 hook in with thread M8
BPW (AL-KO) Bowden cable 05.089.33.33.0 hook in with thread M8
sheath length (L) 630mm, cable length (L1) 840mm, can be used with wheel brake S1635-5, S1635-6, S2003-5, S2005-5 and S2504-5, bell internal diam. 18.5mm, outside 21.2mm.
Price 199,90 EUR Incl. tax Excl. Shipping costs
Bowden cable 05.089.51.45.0 hook in with thread M10
BPW (AL-KO) Bowden cable 05.089.51.45.0 hook in with thread M10
sheath length (L) 1000mm, cable length (L1) 1260mm, can be used with wheel brake S3006-7, bell internal diam. 25.5mm, outside 30mm.
Price 79,90 EUR Incl. tax Excl. Shipping costs
Bowden cable 05.089.51.44.0 hook in with thread M10
BPW (AL-KO) Bowden cable 05.089.51.44.0 hook in with thread M10
sheath length (L) 955mm, cable length (L1) 1215mm, can be used with wheel brake S3006-7, bell internal diam. 25.5mm, outside 30mm.
Price 189,90 EUR Incl. tax Excl. Shipping costs
