BC: dimension A 1460mm, OHF: dimension C 1941mm, wheel connection 100x4, wheel brake type 2051 vers. A, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm.

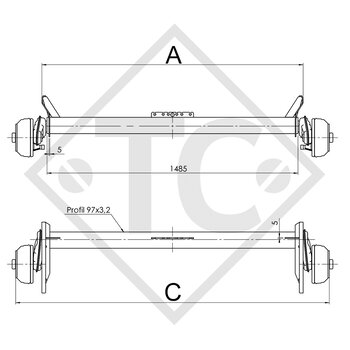

BC: dimension A 1485mm, OHF: dimension C 1905mm, wheel connection 100x4, wheel brake type 2051 A, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm, taper-head wheel bolts M12x1.5.
BC: dimension A 1460mm, OHF: dimension C 1941mm, wheel connection 100x4, wheel brake type 2051 vers. A, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm.
BC: dimension A 930mm, OHF: dimension C 1330mm, wheel connection 112x5, wheel brake type 2051 A, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm.
BC: dimension A 1640mm, OHF: dimension C 2000mm, wheel connection 112x5, wheel brake type 2051, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm.
BC: dimension A 1425mm, OHF: dimension C 1852mm, wheel connection 112x5, wheel brake type 2051 A, offset (ET) 26-30mm, swing arm position 5°, axle profile 97mm.
BC: dimension A 1500mm, OHF: dimension C 1940mm, wheel connection 130x4, wheel brake type 2051 vers. A, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm, M14x1,5.
