BC: dimension A 1850mm, OHF: dimension C 2300mm, wheel connection 112x5, wheel brake type 2051, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm, taper-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Part no. 20001502
BC: dimension A 1850mm
OHF: dimension C 2300mm
Wheel connection 112x5

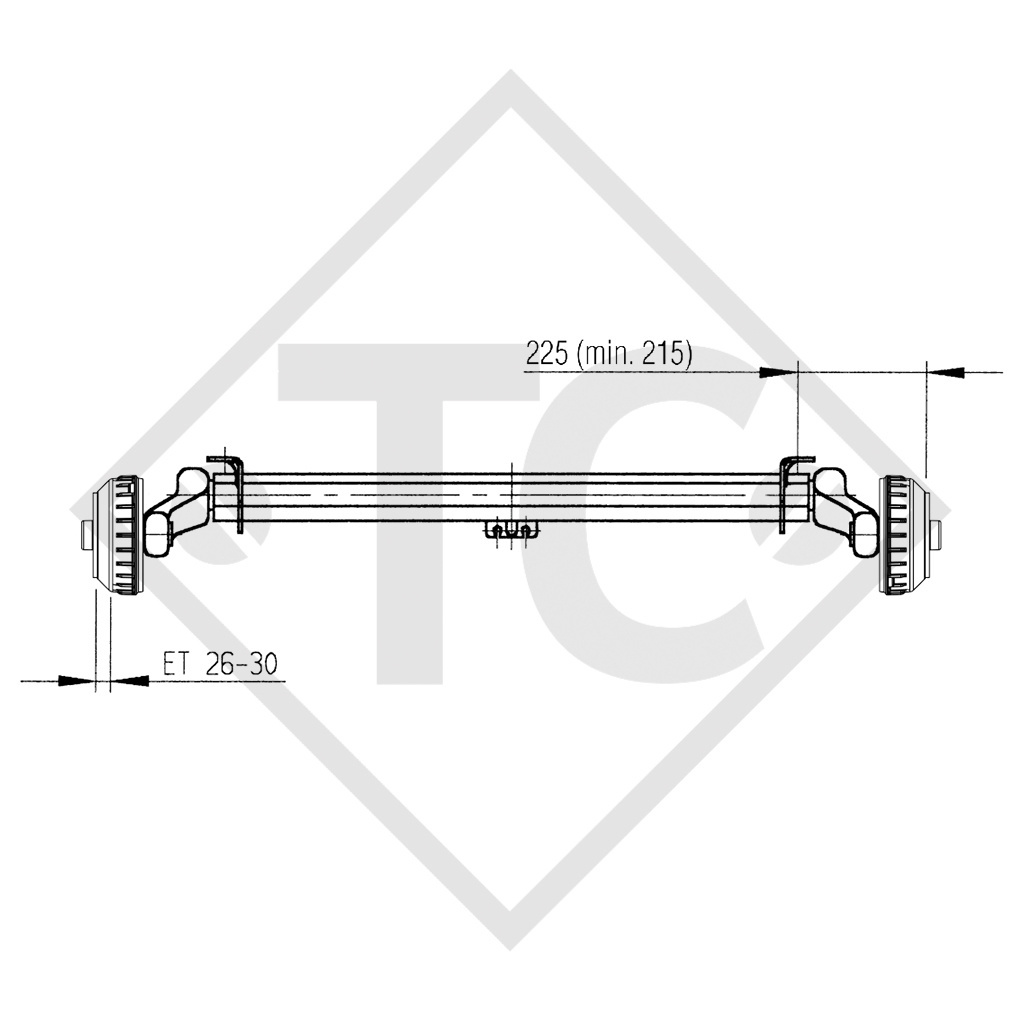

Offset (ET) 26-30mm

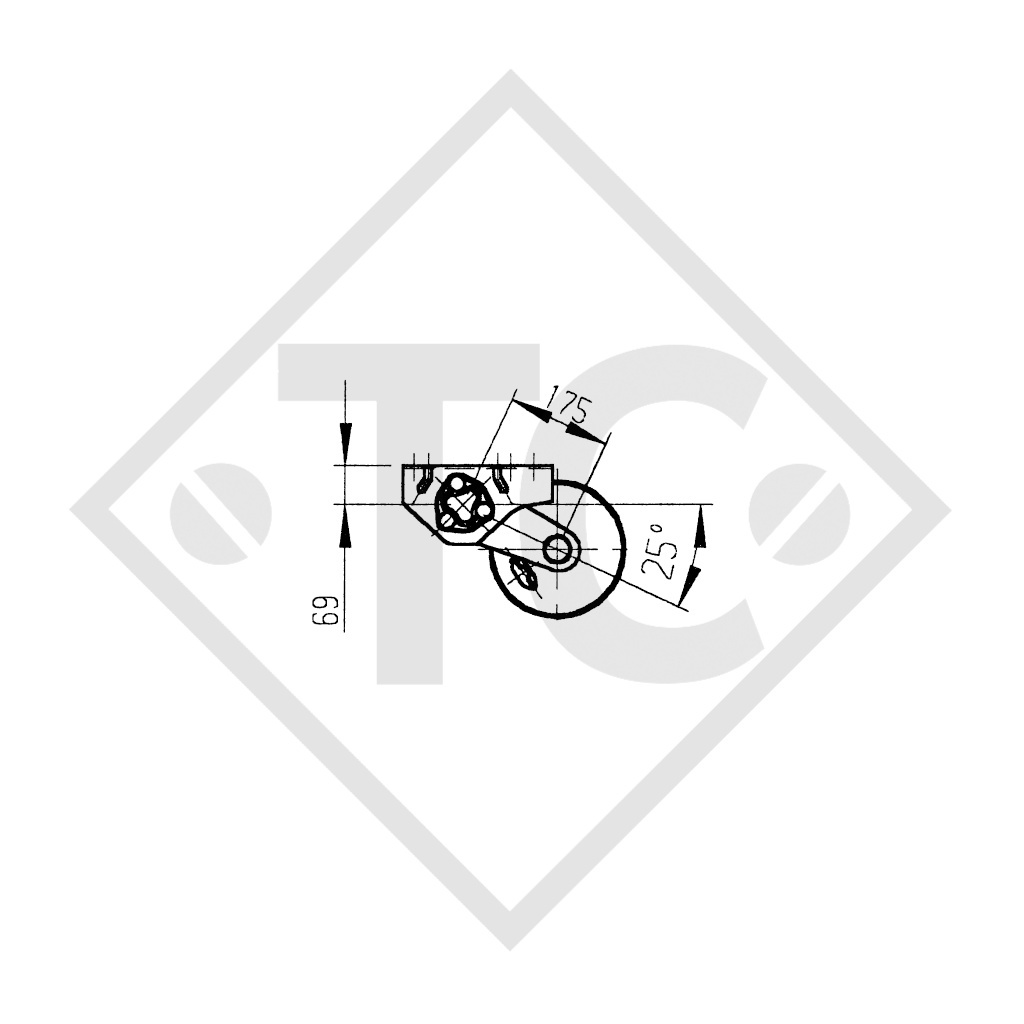

Swing arm position 25°
Axle profile 97mm

Original operating instructions
Replacement part identification number (ETI) OLD 811294
Replacement part identification number (ETI) NEW 811947

TECHNOLOGY
Model: PLUS
Axle type: B 1200-5
Axle load: Single axle 1350kg
Axle load: Tandem axle 2700kg
Wheel brake: 2051
Suspension: Hexagonal rubber suspension
Swing arm length: 175mm
Wheel bearing: Reinforced compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose
Single axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber

... ...
