AL-KO Braked axle 750 - 1800kg DELTA, axle type SI-N - These axles must only be installed in caravans!

Home / CHASSIS PARTS / CHASSIS PARTS BPW / AXLES / BRAKED AXLE 750 - 1800KG DELTA, AXLE TYPE SI-N, AXLES FOR CARAVANS

JUST ORIGINAL PARTS

LIFE-TIME SUPPORT

SALE

POSITIVE REVIEWS

BPW SEMI-TRAILING ARM AXLES HAVE BEEN DEVELOPED AND APPROVED SPECIFICALLY FOR USE IN CARAVANS.
CARAVANS ARE ONLY OPERATED WITHIN THE NOMINAL LOAD RANGE, AND ARE VERY
DEMANDING IN TERMS OF DRIVING DYNAMICS DUE TO
THEIR DESIGN, PARTICULARLY AT HIGH SPEEDS.
THESE AXLES HAVE BEEN DEVELOPED AND APPROVED PRECISELY FOR THESE BOUNDARY CONDITIONS.
NO OTHER APPLICATION AREA IS PERMITTED.

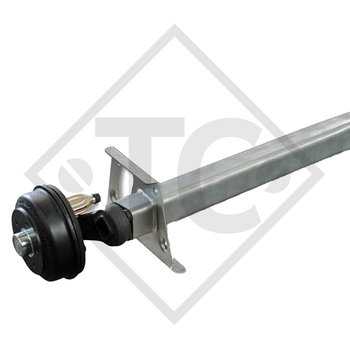

Braked axle SWING 1500kg axle type SCB 1505, 46.27.379.932, 4013644
BPW Braked axle SWING 1500kg axle type SCB 1505, 46.27.379.932, 4013644
BC: dimension AM 1513mm, OHF: dimension FL 2035mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 1.250,00 EUR Incl. tax Excl. Shipping costs

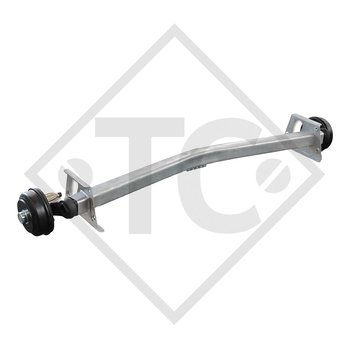

Braked axle SWING 1500kg axle type SCB 1505, 46.24.316.935, 4013632
BPW Braked axle SWING 1500kg axle type SCB 1505, 46.24.316.935, 4013632
BC: dimension AM 1505mm, OHF: dimension FL 1995mm, wheel connection 112x5, wheel brake type S 2005-5 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 95mm, ball-head wheel bolts M12x1.5.
Price 1.230,00 EUR Incl. tax Excl. Shipping costs
Braked axle RONDO 1600kg axle type DB 1605, 45.29.368.400, 4025690
BPW Braked axle RONDO 1600kg axle type DB 1605, 45.29.368.400, 4025690
BC: dimension AM 1485mm, OHF: dimension FL 1962mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 27-40mm, swing arm position 10°, axle profile 82mm, ball-head wheel bolts M12x1.5.
Price 1.695,00 EUR Incl. tax Excl. Shipping costs
Braked axle RONDO 1600kg axle type DB 1605, 45.29.368.444, 4012359
BPW Braked axle RONDO 1600kg axle type DB 1605, 45.29.368.444, 4012359
BC: dimension AM 1605mm, OHF: dimension FL 2090mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 27-40mm, swing arm position 10°, axle profile 82mm, ball-head wheel bolts M12x1.5.
Price 1.365,00 EUR Incl. tax Excl. Shipping costs
Braked axle RONDO 1600kg axle type DB 1605, 45.29.368.445, 4012360
BPW Braked axle RONDO 1600kg axle type DB 1605, 45.29.368.445, 4012360
BC: dimension AM 1805mm, OHF: dimension FL 2290mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 27-40mm, swing arm position 10°, axle profile 82mm, ball-head wheel bolts M12x1.5.
Price 1.446,20 EUR Incl. tax Excl. Shipping costs
Braked axle 1700kg axle type DB 1605, 45.29.368.448
BPW Braked axle 1700kg axle type DB 1605, 45.29.368.448
BC: dimension AM 1420mm, OHF: dimension FL 1965mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 27-40mm, swing arm position 35°, axle profile 82mm.
Price 2.250,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1700kg axle type SCB 1605, 46.29.368.911, 4013664
BPW Braked axle SWING 1700kg axle type SCB 1605, 46.29.368.911, 4013664
BC: dimension AM 1420mm, OHF: dimension FL 2070mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 27-40mm, swing arm position 25°, axle profile 95mm.
Price 1.395,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1700kg axle type SCB 1605, 46.29.368.913, 4013665
BPW Braked axle SWING 1700kg axle type SCB 1605, 46.29.368.913, 4013665
BC: dimension AM 1420mm, OHF: dimension FL 2070mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 30mm, swing arm position 25°, axle profile 95mm, ball-head wheel bolts M12x1.5.
Price 1.440,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1900kg axle type DB 1905, 45.34.368.002
BPW Braked axle 1900kg axle type DB 1905, 45.34.368.002
BC: dimension AM 1806mm, OHF: dimension FL 2310mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 30mm, swing arm position 0°, axle profile 92mm, ball-head wheel bolts M12x1.5.
Price 1.440,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1350kg axle type SCB 1355, 46.25.379.943
BPW Braked axle 1350kg axle type SCB 1355, 46.25.379.943
BC: dimension AM 1420mm, OHF: dimension FL 2040mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30-35mm, swing arm position 20°, axle profile 80mm, wheel bolts M12x1.5.
Price 1.400,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1350kg / 1400kg axle type SCB 1055, 46.25.379.959, 4013364
BPW Braked axle 1350kg / 1400kg axle type SCB 1055, 46.25.379.959, 4013364
BC: dimension AM 1480mm, OHF: dimension FL 2070mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm.
Price 1.350,00 EUR Incl. tax Excl. Shipping costs

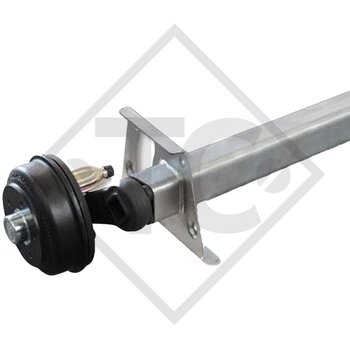

Braked axle 1500kg axle type SCB 1505, 46.27.379.920
BPW Braked axle 1500kg axle type SCB 1505, 46.27.379.920
BC: dimension AM 1420mm, OHF: dimension FL 2070mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm.
Price 1.250,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg / 1800kg axle type RB520 - 46.27.379.919
BPW Braked axle 1500kg / 1800kg axle type RB520 - 46.27.379.919
BC: dimension AM 1435mm, OHF: dimension FL 1940mm, wheel connection 112x5, wheel brake type RB520, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 1.450,00 EUR Incl. tax Excl. Shipping costs
