Braked axle RONDO 1600kg axle type DB 1605, 45.29.368.444, 4012359 Braked axle RONDO 1600kg axle type DB 1605, 45.29.368.444, 4012359 Braked axle RONDO 1600kg axle type DB 1605, 45.29.368.444, 4012359 Braked axle RONDO 1600kg axle type DB 1605, 45.29.368.444, 4012359
Braked axle RONDO 1600kg axle type DB 1605, 45.29.368.444, 4012359
Braked axle RONDO 1600kg axle type DB 1605, 45.29.368.444, 4012359
Braked axle RONDO 1600kg axle type DB 1605, 45.29.368.444, 4012359
Braked axle RONDO 1600kg axle type DB 1605, 45.29.368.444, 4012359

BPW Braked axle RONDO 1600kg axle type DB 1605, 45.29.368.444, 4012359

Home / CHASSIS PARTS / CHASSIS PARTS BPW / TOWBAR CONNECTIONS / TOWBAR CONNECTIONS V 2000KG TO 3500KG / Braked axle RONDO 1600kg axle type DB 1605, 45.29.368.444, 4012359

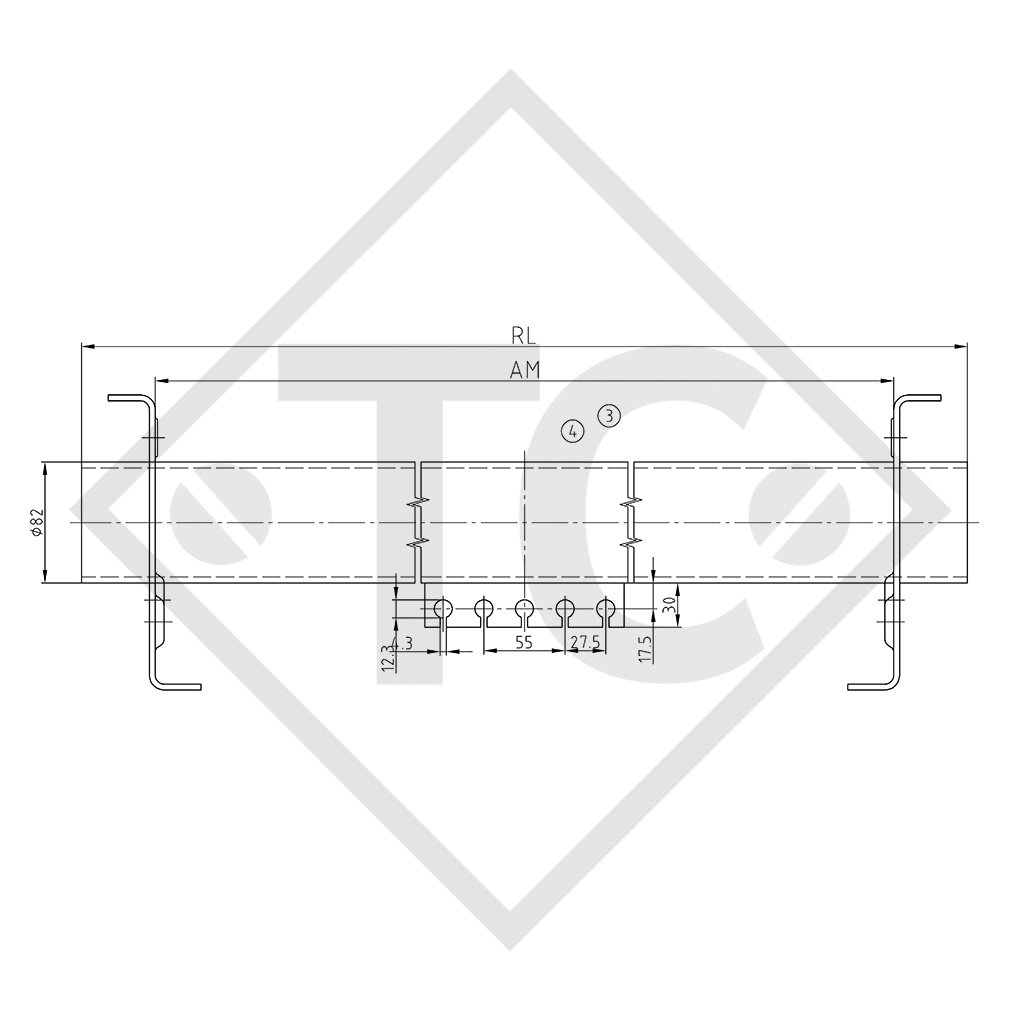

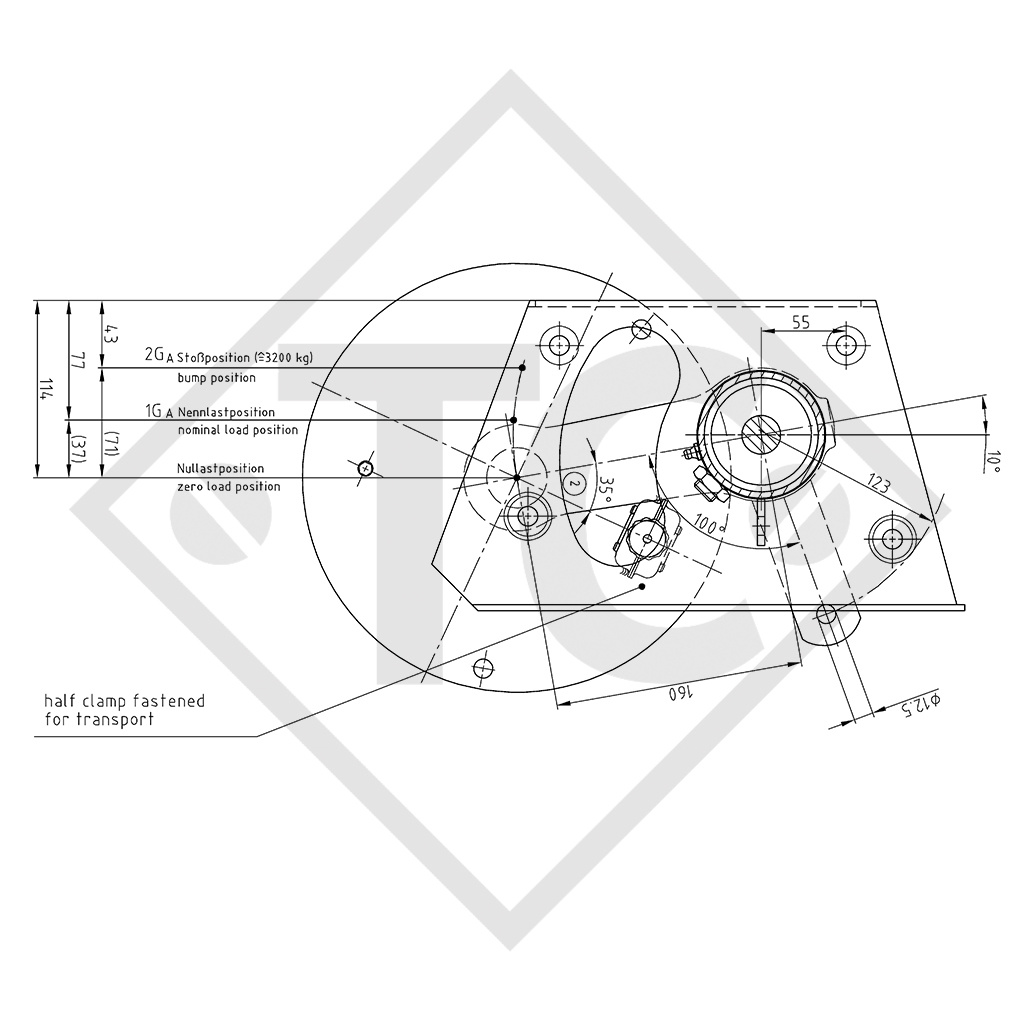

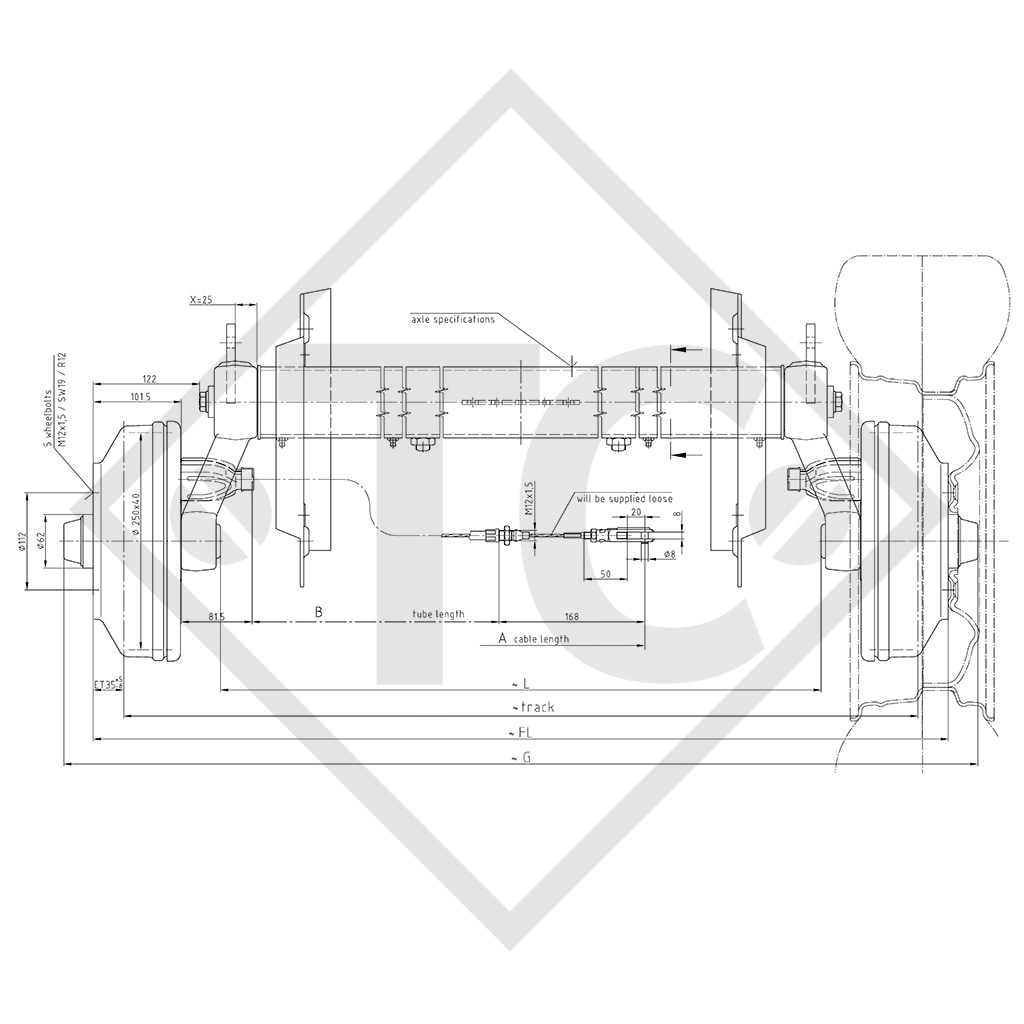

BC: dimension AM 1605mm, OHF: dimension FL 2090mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 27-40mm, swing arm position 10°, axle profile 82mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Product description

Part no. OLD 45.29.368.444
Part no. NEW 4012359

Dimension FL
 2090mm
Dimension SP
 2020mm
Dimension AM
 1605mm
Dimension L
 1797mm
Dimension G 2158mm
Model RONDO
Axle type DB 1605
Axle load single axle 1600kg
Axle load: Tandem axel 3200kg
Wheel brake S 2504-7 RASK
Suspension Square rubber suspension
Swing arm 160mm
Wheel connection 112x5
Wheel bearing Compact bearings
Centre hole rim min. 62mm



Original operating instructions
Replacement part identification number (ETI) OLD XX.XX.379.XXX
Replacement part identification number (ETI) NEW 827030

SCOPE OF DELIVERY
Axle incl. bowden cables loose
Welded-on shock absorber brackets
Ball-head wheel bolts M12x1.5 loose

DETAILS

  • Speed up to 140 km/h
  • Drawbar connection: Clamping shells see Accessories
  • Axle shock absorber see Accessories
  • Wheel connections: 120x5, 140x5 on demand
  • Special axle mounts and drawbar connections on demand
  • Also available with watertight bearings
  • Axle body fully hop-dip galvanised: Permanent surface protection
  • Independent wheel suspension: Optimum compensation of uneven road surfaces
  • Maintenance-free suspension: Lower maintenance costs
  • Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
  • Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
  • Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease
  • Incl. shock absorber bracket
