BPW Braked axle 1800kg SWING, axle type CB 1805, axle tube square 80/82mm for braked trailers

Home / CHASSIS PARTS / CHASSIS PARTS BPW / AXLES / BRAKED AXLE 1800KG SWING, AXLE TYPE CB 1805, AXLE TUBE SQUARE 80/82MM

JUST ORIGINAL PARTS

LIFE-TIME SUPPORT

SALE

POSITIVE REVIEWS

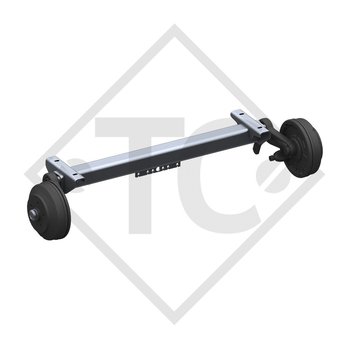

BPW Braked axle 1800kg SWING, axle type CB 1805 axle tube square 80/82mm

DETAILS

  • Speed up to 140 km/h
  • Drawbar connection: Clamping shells see Accessories
  • Axle shock absorber see Accessories
  • Wheel connections: 140x5 on demand
  • Special axle mounts and drawbar connections on demand
  • Axle body fully hop-dip galvanised: Permanent surface protection
  • Independent wheel suspension: Optimum compensation of uneven road surfaces
  • Maintenance-free suspension: Lower maintenance costs
  • Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
  • Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
  • Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease
  • Incl. shock absorber bracket

How do I find the right axle?

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

Braked axle SWING 1800kg axle type CB 1805, 46.32.368.657
BPW Braked axle SWING 1800kg axle type CB 1805, 46.32.368.657
BC: dimension AM 700mm, OHF: dimension FL 1190mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 850,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.658
BPW Braked axle SWING 1800kg axle type CB 1805, 46.32.368.658
BC: dimension AM 800mm, OHF: dimension FL 1290mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 1.068,70 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.659
BPW Braked axle SWING 1800kg axle type CB 1805, 46.32.368.659
BC: dimension AM 900mm, OHF: dimension FL 1390mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 993,20 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.660
BPW Braked axle SWING 1800kg axle type CB 1805, 46.32.368.660
BC: dimension AM 1000mm, OHF: dimension FL 1490mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 863,90 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.661
BPW Braked axle SWING 1800kg axle type CB 1805, 46.32.368.661
BC: dimension AM 1100mm, OHF: dimension FL 1590mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 992,70 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.662
BPW Braked axle SWING 1800kg axle type CB 1805, 46.32.368.662
BC: dimension AM 1200mm, OHF: dimension FL 1690mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 880,90 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.663
BPW Braked axle SWING 1800kg axle type CB 1805, 46.32.368.663
BC: dimension AM 1300mm, OHF: dimension FL 1790mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 876,30 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.31.368.034
BPW Braked axle SWING 1800kg axle type CB 1805, 46.31.368.034
BC: dimension AM 1350mm, OHF: dimension FL 1840mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 915,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.664
BPW Braked axle SWING 1800kg axle type CB 1805, 46.32.368.664
BC: dimension AM 1400mm, OHF: dimension FL 1890mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 1.038,20 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.665
BPW Braked axle SWING 1800kg axle type CB 1805, 46.32.368.665
BC: dimension AM 1500mm, OHF: dimension FL 1990mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 950,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.666
BPW Braked axle SWING 1800kg axle type CB 1805, 46.32.368.666
BC: dimension AM 1600mm, OHF: dimension FL 2090mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 932,40 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.667
BPW Braked axle SWING 1800kg axle type CB 1805, 46.32.368.667
BC: dimension AM 1700mm, OHF: dimension FL 2190mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 940,40 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.668
BPW Braked axle SWING 1800kg axle type CB 1805, 46.32.368.668
BC: dimension AM 1800mm, OHF: dimension FL 2290mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 942,90 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.669
BPW Braked axle SWING 1800kg axle type CB 1805, 46.32.368.669
BC: dimension AM 1850mm, OHF: dimension FL 2340mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 951,90 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.670
BPW Braked axle SWING 1800kg axle type CB 1805, 46.32.368.670
BC: dimension AM 1900mm, OHF: dimension FL 2390mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 953,70 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.31.368.043
BPW Braked axle SWING 1800kg axle type CB 1805, 46.31.368.043
BC: dimension AM 1400mm, OHF: dimension FL 1890mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 995,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 4013918
BPW Braked axle SWING 1800kg axle type CB 1805, 4013918
BC: dimension AM 1690mm, OHF: dimension FL 2160mm, wheel connection 165x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80mm, wheel bolts M16x1.5.
Price 799,90 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 4013919
BPW Braked axle SWING 1800kg axle type CB 1805, 4013919
BC: dimension AM 1855mm, OHF: dimension FL 2325mm, wheel connection 165x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80mm, wheel bolts M16x1.5.
Price 951,10 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 4021144
BPW Braked axle SWING 1800kg axle type CB 1805, 4021144
BC: dimension AM 1000mm, OHF: dimension FL 1490mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 884,20 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 4021145
BPW Braked axle SWING 1800kg axle type CB 1805, 4021145
BC: dimension AM 1100mm, OHF: dimension FL 1590mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 892,20 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 4021146
BPW Braked axle SWING 1800kg axle type CB 1805, 4021146
BC: dimension AM 1200mm, OHF: dimension FL 1690mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 900,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 4021147
BPW Braked axle SWING 1800kg axle type CB 1805, 4021147
BC: dimension AM 1300mm, OHF: dimension FL 1790mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 905,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 4021148
BPW Braked axle SWING 1800kg axle type CB 1805, 4021148
BC: dimension AM 1400mm, OHF: dimension FL 1890mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 915,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 4021149
BPW Braked axle SWING 1800kg axle type CB 1805, 4021149
BC: dimension AM 1500mm, OHF: dimension FL 1990mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 925,00 EUR Incl. tax Excl. Shipping costs
Page 1 of 2
... ...
