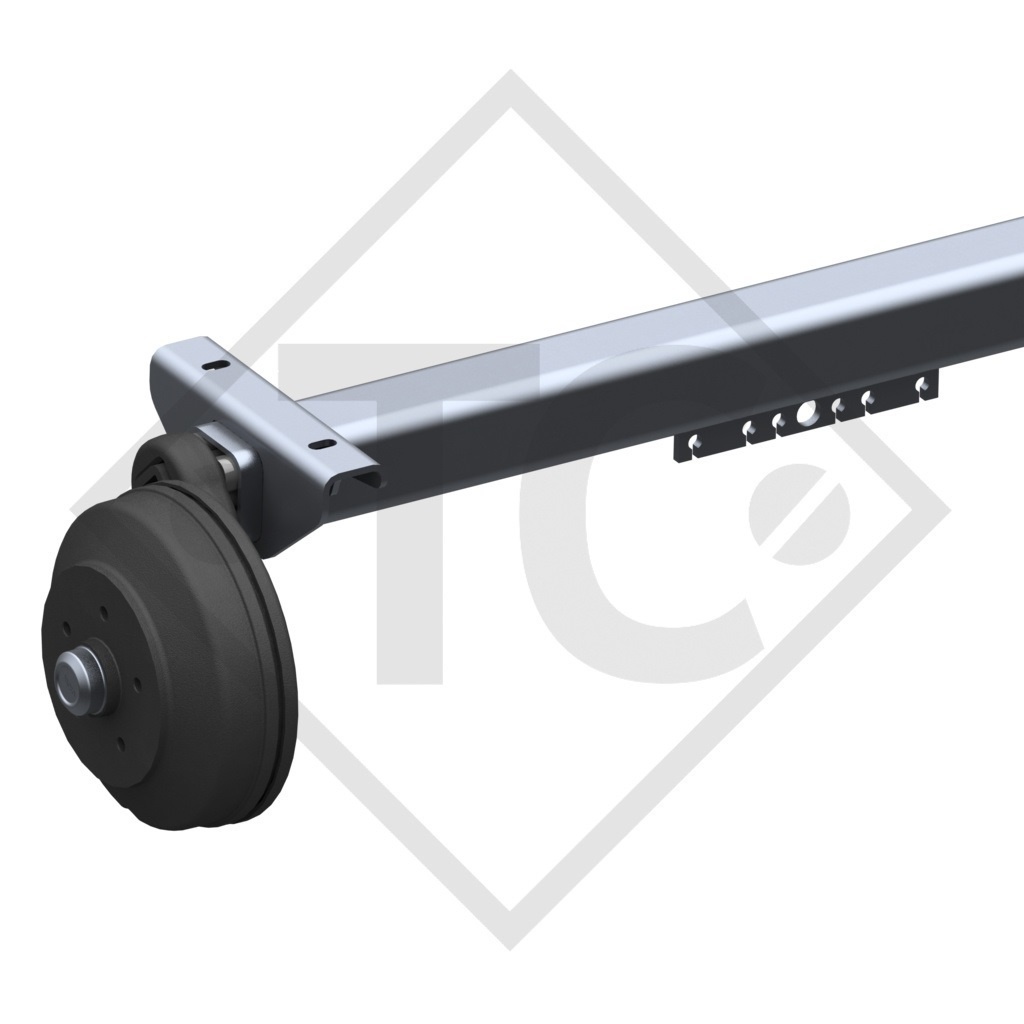

Braked axle SWING 1800kg axle type CB 1805, 46.32.368.661

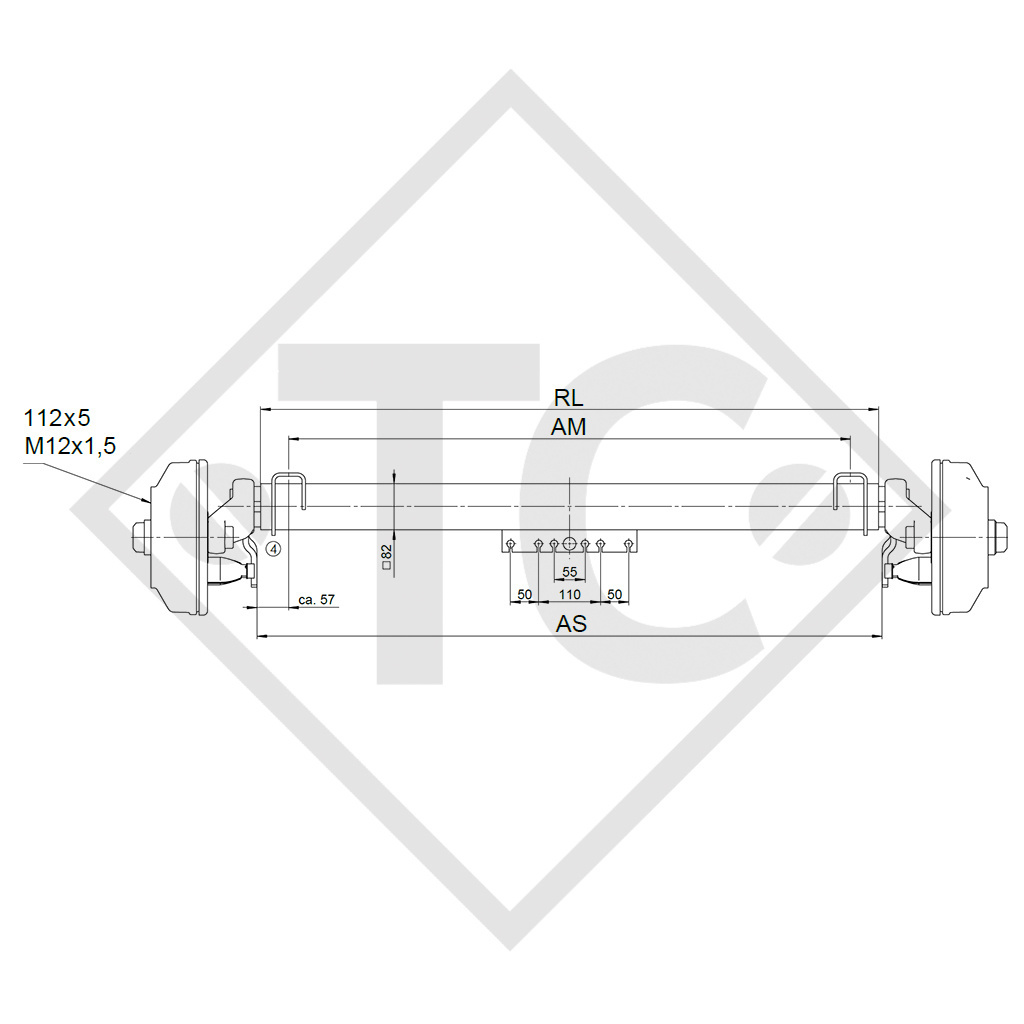

BC: dimension AM 1100mm, OHF: dimension FL 1590mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Price 992,70 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 1-3 working days (Mon-Fri)

- +

Add to cart

Part no. OLD 46.32.368.661
Part no. NEW 4013855

Dimension FL

1590mm

Dimension SP

1520mm

Dimension AM

1100mm

Dimension L

1297mm

Dimension G

1654mm

Model

SWING

Axle type

CB1805

Axle load single axle

1800kg

Axle load: Tandem axel

3500kg

Wheel brake

S 2504-7 RASK

Suspension

Square rubber suspension

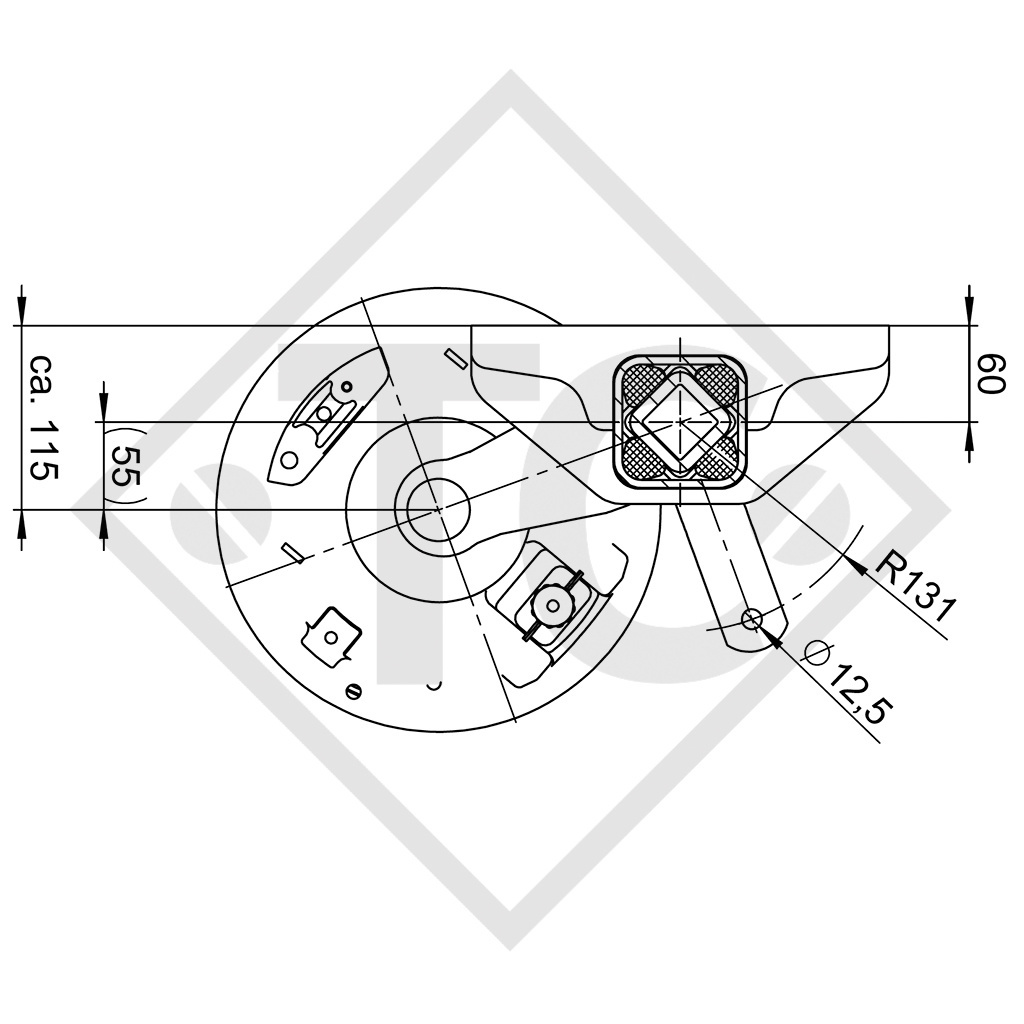

Swing arm

160mm

Wheel connection

112x5

Wheel bearing

Tapered roller bearing

Centre hole rim

min. 66mm

Original operating instructions
Replacement part identification number (ETI) OLD XX.XX.368.XXX
Replacement part identification number (ETI) NEW 827080

SCOPE OF DELIVERY
Axle without bowden cables
Welded-on shock absorber brackets
Without ball-head wheel bolts M12x1.5

DETAILS

Speed up to 140 km/h
Drawbar connection: Clamping shells see Accessories
Axle shock absorber see Accessories
Wheel connections: 140x5 on demand
Special axle mounts and drawbar connections on demand
Also available with watertight bearings
Axle body fully hop-dip galvanised: Permanent surface protection
Independent wheel suspension: Optimum compensation of uneven road surfaces
Maintenance-free suspension: Lower maintenance costs
Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
Incl. shock absorber bracket
Tapered roller bearing
