Please feel free to avail of our service and request a non-binding offer by email today!
You can naturally also measure your axle yourself, and place your order via our online shop.

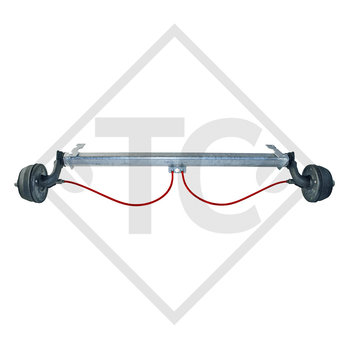

This axle type B 700-5 for braked trailers up to 750kg belongs to the BASIC model series and differs in our shop only due to the BC (dimension A) and the distance between OHF (dimension C). Also installed here is the small AL-KO wheel brake type 1636 G. In addition to the complete axle type B 700-5, Trailer Center also offers original spare parts such as the brake drum, brake pads and taper roller bearings of the manufacturers, replacement part identification number (ETI) 811285. This axle has the well-known and maintenance-free AL-KO hexagonal rubber suspension as standard. The forged rocker arm has a length of 145mm and a 30° position. The hot-dip galvanized axle tube is of very high quality, as are the black primed wheel brakes. The axle is therefore protected against corrosion (rust) and the service life is hugely extended. In our shop, this axle has a wheel connection of 100x4 and is also available with other wheel connections such as 112x5 on request. The high-quality taper roller bearing is pressed into the brake drum in the factory. This type of wheel bearing requires regular maintenance (please observe the maintenance instructions of the manufacturer in this regard). The original brake linings from AL-KO are asbestos-free, corrosion-resistant and do not contain iron. The scope of delivery includes the thrust bearing, which is welded to the centre of the axle tube, a compensation profile for single axle, Bowden cables and wheel bolts supplied loose. Trailer Center offers the complete AL-KO product range in its online shop for trailer parts. If you have any questions, please feel free to contact our sales team or send an email to [email protected]
