RUNNING WELL FOR YOU. BPW BERGISCHE AXLES

AL-KO Technology Paderborn GmbH specialises in the development and manufacture of complete running gear technology for car trailers and self-propelled vehicles. The location has developed from a labour-intensive wagon maker into an innovative, modern industrial company. Since 2017 the former BPW Fahrzeugtechnik has been part of the global technology company DexKo Global Inc., a worldwide market leader for trailer axles and chassis components in the lightweight segment. Read more...

Underpinning Your Progress.
The range of running gear for towable machinery, car and light truck trailers, caravans and cab & engine vehicles.



Braked tandem front axle 1350kg RONDO axle type DB 1355, 45.25.379.653
BPW (AL-KO) Braked tandem front axle 1350kg RONDO axle type DB 1355, 45.25.379.653
BC: dimension AM 1650mm, OHF: dimension FL 2100mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 70mm, ball-head wheel bolts M12x1.5.
Price 1.102,90 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 1350kg RONDO axle type DB 1355, 45.25.379.649
BPW (AL-KO) Braked tandem front axle 1350kg RONDO axle type DB 1355, 45.25.379.649
BC: dimension AM 1450mm, OHF: dimension FL 1900mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 70mm, ball-head wheel bolts M12x1.5.
Price 1.087,90 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 1350kg RONDO axle type DB 1355, 45.25.379.645
BPW (AL-KO) Braked tandem front axle 1350kg RONDO axle type DB 1355, 45.25.379.645
BC: dimension AM 1250mm, OHF: dimension FL 1700mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 70mm, ball-head wheel bolts M12x1.5.
Price 1.073,90 EUR Incl. tax Excl. Shipping costs
Braked axle 1350kg RONDO axle type DB 1354, 45.25.379.573
BPW (AL-KO) Braked axle 1350kg RONDO axle type DB 1354, 45.25.379.573
BC: dimension AM 1650mm, OHF: dimension FL 2100mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 70mm, taper-head wheel bolts M12x1.5.
Price 1.102,90 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 1050kg RONDO axle type DB 1055, 45.21.379.620
BPW (AL-KO) Braked tandem front axle 1050kg RONDO axle type DB 1055, 45.21.379.620
BC: dimension AM 1500mm, OHF: dimension FL 1950mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 70mm, taper-head wheel bolts M12x1.5.
Price 1.245,50 EUR Incl. tax Excl. Shipping costs
Unbraked axle 750kg SWING axle type CB 755, 46.14.000.224
BPW (AL-KO) Unbraked axle 750kg SWING axle type CB 755, 46.14.000.224
BC: dimension AM 1050mm, OHF: dimension FL 1440mm, wheel connection 100x4, offset (ET) 30mm, ball-head wheel bolts M12x1.5.
Price 455,90 EUR Incl. tax Excl. Shipping costs
Unbraked axle 750kg SWING axle type CB 754, 46.14.000.216
BPW (AL-KO) Unbraked axle 750kg SWING axle type CB 754, 46.14.000.216
BC: dimension AM 1650mm, OHF: dimension FL 2040mm, wheel connection 100x4, offset (ET) 30mm, taper-head wheel bolts M12x1.5.
Price 499,90 EUR Incl. tax Excl. Shipping costs
Unbraked axle 750kg SWING axle type CB 754, 46.14.000.210
BPW (AL-KO) Unbraked axle 750kg SWING axle type CB 754, 46.14.000.210
BC: dimension AM 1350mm, OHF: dimension FL 1740mm, wheel connection 100x4, offset (ET) 30mm, taper-head wheel bolts M12x1.5.
Price 476,90 EUR Incl. tax Excl. Shipping costs
Unbraked axle 750kg SWING axle type CB 754, 46.14.000.201
BPW (AL-KO) Unbraked axle 750kg SWING axle type CB 754, 46.14.000.201
BC: dimension AM 900mm, OHF: dimension FL 1290mm, wheel connection 100x4, offset (ET) 30mm, taper-head wheel bolts M12x1.5.
Price 447,90 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAV 2.7-4 with overrun device AE 2.7-1 A height-adjustable, with drawbar section 1860 to 2700kg, 47.43.470.047
BPW (AL-KO) Drawbar installation ZAV 2.7-4 with overrun device AE 2.7-1 A height-adjustable, with drawbar section 1860 to 2700kg, 47.43.470.047
drawbar length L 1900mm, measure B 0-520mm, FD at max. 2700kg: 3500mm, drawbar section K square 150x132mm, spacer V 600mm, perm. nose load 150kg, without hitch components, for wheel brake S 2005-7, S 2504-7 and S 3006-5.
Price 2.750,00 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAV 2.7-4 with overrun device AE 2.7-1 A height-adjustable, with drawbar section 1860 to 2700kg, 47.43.470.035
BPW (AL-KO) Drawbar installation ZAV 2.7-4 with overrun device AE 2.7-1 A height-adjustable, with drawbar section 1860 to 2700kg, 47.43.470.035
drawbar length L 1900mm, measure B 0-693mm, FD at max. 2700kg: 3500mm, drawbar section K square 150x132mm, spacer V 800mm, perm. nose load 150kg, without hitch components, for wheel brake S 2005-7, S 2504-7 and S 3006-5.
Price 2.500,00 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAV 2.0-5 with overrun device AE 2.7-1 C height-adjustable, with drawbar section 1500 to 2000kg, 47.36.470.077
BPW (AL-KO) Drawbar installation ZAV 2.0-5 with overrun device AE 2.7-1 C height-adjustable, with drawbar section 1500 to 2000kg, 47.36.470.077
drawbar length L 1900mm, measure B 0-693mm, FD at max. 2000kg: 3000mm, drawbar section K square 120mm, spacer V 800mm, perm. nose load 150kg, without hitch components, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 2.050,00 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZKV 13.1 A with overrun device AK 1308 height-adjustable, with drawbar section cranked 650 to 1300kg, 47.24.473.113
BPW (AL-KO) Drawbar installation ZKV 13.1 A with overrun device AK 1308 height-adjustable, with drawbar section cranked 650 to 1300kg, 47.24.473.113
drawbar length L 2100mm, FD at max. 1300kg: 1664mm, drawbar section K round 88.9x8.8mm, spacer V 415mm, perm. nose load 100kg, with drawbar eye DIN 40.0-01, for wheel brake S 1704-7 and S 2005-7.
Price 2.149,90 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZKV 20.1 A with overrun device AK 2008 height-adjustable, with drawbar section 1300 to 2000kg, 47.36.471.031
BPW (AL-KO) Drawbar installation ZKV 20.1 A with overrun device AK 2008 height-adjustable, with drawbar section 1300 to 2000kg, 47.36.471.031
drawbar length L 1900mm, FD at max. 2000kg: 1853mm, drawbar section K round 101.6x10mm, spacer V 415mm, perm. nose load 100kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 2.537,70 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAAR 2.0-3 with overrun device ZAAQ2.0-3 / ZDG8-3 drawbar section cranked 1250 to 2000kg, 48.36.381.090
BPW (AL-KO) Drawbar installation ZAAR 2.0-3 with overrun device ZAAQ2.0-3 / ZDG8-3 drawbar section cranked 1250 to 2000kg, 48.36.381.090
drawbar length L 3500mm, FD at max. 2000kg: 1360mm, drawbar section K square 80x5.0mm, measure HA 55mm, thread G M10, perm. nose load 150kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 1.095,60 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAR 2.0-1 A with overrun device PAV/SR 2.0 X drawbar section straight 1089 to 2000kg, 48.36.181.040
BPW (AL-KO) Drawbar installation ZAR 2.0-1 A with overrun device PAV/SR 2.0 X drawbar section straight 1089 to 2000kg, 48.36.181.040
drawbar length L 2100mm, FD at max. 2000kg: 1385mm, drawbar section K round 88.9x6.3mm, measure HA 58mm, thread G M10, perm. nose load 100kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 749,90 EUR Incl. tax Excl. Shipping costs
Drawbar ZOR 0,75-1 A round tube cranked up to 750kg, 48.14.301.012
BPW (AL-KO) Drawbar ZOR 0,75-1 A round tube cranked up to 750kg, 48.14.301.012
total length L 2400mm, drawbar section K dimension K 70x4mm, perm. nose load 75kg, coupling head EM 80 R-GK, including skid bracket, clamping bracket and plug holder.
Price 289,90 EUR Incl. tax Excl. Shipping costs
Drawbar ZOR 0,75-1 A round tube straight up to 750kg, 48.14.101.011
BPW (AL-KO) Drawbar ZOR 0,75-1 A round tube straight up to 750kg, 48.14.101.011
total length L 2200mm, drawbar section K dimension K 70x4mm, perm. nose load 75kg, coupling head EM 80 R-GK, including skid bracket, clamping bracket and plug holder.
Price 263,90 EUR Incl. tax Excl. Shipping costs
Unbraked axle 750kg axle type CB 755, 46.14.000.047
BPW (AL-KO) Unbraked axle 750kg axle type CB 755, 46.14.000.047
BC: dimension AM 1200mm, OHF: dimension FL 1590mm, wheel connection 112x5, offset (ET) 35mm, ball-head wheel bolts M12x1.5.
Price 299,90 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg RONDO axle type DB 1055, 45.21.379.494
BPW (AL-KO) Braked axle 1050kg RONDO axle type DB 1055, 45.21.379.494
BC: dimension AM 1550mm, OHF: dimension FL 2000mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 70mm, ball-head wheel bolts M12x1.5.
Price 1.250,00 EUR Incl. tax Excl. Shipping costs
Drawbar eye UK ø50.8mm 50.8-03, external mounting, without fixing bolts
BPW (AL-KO) Drawbar eye UK ø50.8mm 50.8-03, external mounting, without fixing bolts
drawbar / shaft ⌀50.1mm, holes (screw connection) cross 12.5mm, hole distance 40mm, perm. gross weight 1500kg, nose load 100kg, material: cast iron, galvanised.
Price 544,70 EUR Incl. tax Excl. Shipping costs
Mounting part kit for cylinders
BPW (AL-KO) Mounting part kit for cylinders
mounting kit.
Price 145,30 EUR Incl. tax Excl. Shipping costs

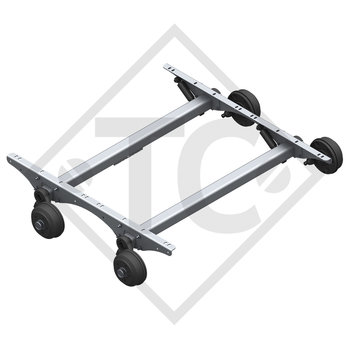

Braked tandem axle unit 2700kg SWING axle type CB 2/1355, 49.25.379.163
BPW (AL-KO) Braked tandem axle unit 2700kg SWING axle type CB 2/1355, 49.25.379.163
BC: dimension AM 1150mm, OHF: dimension FL 1600mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 1.500,00 EUR Incl. tax Excl. Shipping costs
Braked tandem axle unit 2700kg SWING axle type CB 2/1355, 49.25.379.157
BPW (AL-KO) Braked tandem axle unit 2700kg SWING axle type CB 2/1355, 49.25.379.157
BC: dimension AM 1850mm, OHF: dimension FL 2300mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 1.570,00 EUR Incl. tax Excl. Shipping costs
Page 89 of 90
