RUNNING WELL FOR YOU. BPW BERGISCHE AXLES

AL-KO Technology Paderborn GmbH specialises in the development and manufacture of complete running gear technology for car trailers and self-propelled vehicles. The location has developed from a labour-intensive wagon maker into an innovative, modern industrial company. Since 2017 the former BPW Fahrzeugtechnik has been part of the global technology company DexKo Global Inc., a worldwide market leader for trailer axles and chassis components in the lightweight segment. Read more...

Underpinning Your Progress.
The range of running gear for towable machinery, car and light truck trailers, caravans and cab & engine vehicles.



Drawbar connection profile bolt-on
BPW (AL-KO) Drawbar connection profile bolt-on
for axle CB 854 and CB 855, permitted gross weight of the trailer 1700kg, axle profile dimension K 64mm square, for drawbar section square 120x120mm, 150x132mm and 150x150mm.
Price 169,90 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAV 2.7-4 with overrun device AE 2.7-1 A height-adjustable, with drawbar section 1860 to 2700kg, 47.43.470.053
BPW (AL-KO) Drawbar installation ZAV 2.7-4 with overrun device AE 2.7-1 A height-adjustable, with drawbar section 1860 to 2700kg, 47.43.470.053
drawbar length L 2280mm, measure B 0-520mm, FD at max. 2700kg: 3500mm, drawbar section K square 150x132mm, spacer V 600mm, perm. nose load 150kg, without hitch components, for wheel brake S 2005-7, S 2504-7 and S 3006-5.
Price 2.775,00 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAV 2.7-4 with overrun device AE 2.7-1 A height-adjustable, with drawbar section 1860 to 2700kg, 47.43.470.041
BPW (AL-KO) Drawbar installation ZAV 2.7-4 with overrun device AE 2.7-1 A height-adjustable, with drawbar section 1860 to 2700kg, 47.43.470.041
drawbar length L 2280mm, measure B 0-693mm, FD at max. 2700kg: 3500mm, drawbar section K square 150x132mm, spacer V 800mm, perm. nose load 150kg, without hitch components, for wheel brake S 2005-7, S 2504-7 and S 3006-5.
Price 2.525,00 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAV 2.0-5 with overrun device AE 2.7-1 C height-adjustable, with drawbar section 1500 to 2000kg, 47.36.470.084
BPW (AL-KO) Drawbar installation ZAV 2.0-5 with overrun device AE 2.7-1 C height-adjustable, with drawbar section 1500 to 2000kg, 47.36.470.084
drawbar length L 2800mm, measure B 0-520mm, FD at max. 2000kg: 3000mm, drawbar section K square 120mm, spacer V 600mm, perm. nose load 150kg, without hitch components, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 2.150,00 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAV 1.6-5 with overrun device AE 2.7-1 D height-adjustable, with drawbar section 1200 to 1600kg, 47.29.470.052
BPW (AL-KO) Drawbar installation ZAV 1.6-5 with overrun device AE 2.7-1 D height-adjustable, with drawbar section 1200 to 1600kg, 47.29.470.052
drawbar length L 1900mm, measure B 0-520mm, FD at max. 1600kg: 3000mm, drawbar section K square 120mm, spacer V 600mm, perm. nose load 150kg, without hitch components, for wheel brake S 1704-7 and S 2005-7.
Price 1.969,00 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAV 1.6-5 with overrun device AE 2.7-1 D height-adjustable, with drawbar section 1200 to 1600kg, 47.29.470.050
BPW (AL-KO) Drawbar installation ZAV 1.6-5 with overrun device AE 2.7-1 D height-adjustable, with drawbar section 1200 to 1600kg, 47.29.470.050
drawbar length L 2500mm, measure B 0-693mm, FD at max. 1600kg: 3000mm, drawbar section K square 120mm, spacer V 800mm, perm. nose load 150kg, without hitch components, for wheel brake S 1704-7 and S 2005-7.
Price 2.150,00 EUR Incl. tax Excl. Shipping costs

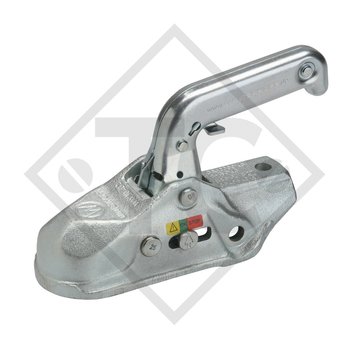

Coupling head WW 30-D6
BPW (AL-KO) Coupling head WW 30-D6
for drawbar connection 60mm round, screw connection cross 12.5mm, hole distance 40mm, perm. gross weight 3000kg, nose load 150kg, material: malleable cast iron.
Price 272,00 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAV 2.7-4 with overrun device AE 2.7-1 A height-adjustable, with drawbar section 1860 to 2700kg, 47.43.470.087
BPW (AL-KO) Drawbar installation ZAV 2.7-4 with overrun device AE 2.7-1 A height-adjustable, with drawbar section 1860 to 2700kg, 47.43.470.087
drawbar length L 2500mm, measure B 0-693mm, FD at max. 2700kg: 3500mm, drawbar section K square 150x132mm, spacer V 800mm, perm. nose load 150kg, without hitch components, for wheel brake S 2005-7, S 2504-7 and S 3006-5.
Price 2.962,80 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAV 2.7-4 with overrun device AE 2.7-1 A height-adjustable, with drawbar section 1860 to 2700kg, 47.43.470.086
BPW (AL-KO) Drawbar installation ZAV 2.7-4 with overrun device AE 2.7-1 A height-adjustable, with drawbar section 1860 to 2700kg, 47.43.470.086
drawbar length L 2280mm, measure B 0-693mm, FD at max. 2700kg: 3500mm, drawbar section K square 150x132mm, spacer V 800mm, perm. nose load 150kg, without hitch components, for wheel brake S 2005-7, S 2504-7 and S 3006-5.
Price 2.550,00 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZKV 25.1 B with overrun device AK 3510 B height-adjustable, with drawbar section 1910 to 2700kg, 47.43.473.002
BPW (AL-KO) Drawbar installation ZKV 25.1 B with overrun device AK 3510 B height-adjustable, with drawbar section 1910 to 2700kg, 47.43.473.002
drawbar length L 2500mm, FD at max. 2700kg: 2820mm, drawbar section K square 120x6.3mm, spacer V 500mm, perm. nose load 150kg, with drawbar eye DIN 40.0-02, for wheel brake S 2005-7 and S 2504-7.
Price 4.199,00 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZKV 20.1 B with overrun device AK 2008 height-adjustable, with drawbar section cranked 1300 to 2000kg, 47.36.473.032
BPW (AL-KO) Drawbar installation ZKV 20.1 B with overrun device AK 2008 height-adjustable, with drawbar section cranked 1300 to 2000kg, 47.36.473.032
drawbar length L 2500mm, FD at max. 2000kg: 1526mm, drawbar section K round 101.6x10mm, spacer V 415mm, perm. nose load 100kg, with drawbar eye DIN 40.0-01, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 2.499,00 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZKV 13.1 A with overrun device AK 1308 height-adjustable, with drawbar section cranked 650 to 1300kg, 47.24.471.082
BPW (AL-KO) Drawbar installation ZKV 13.1 A with overrun device AK 1308 height-adjustable, with drawbar section cranked 650 to 1300kg, 47.24.471.082
drawbar length L 1700mm, FD at max. 1300kg: 1664mm, drawbar section K round 88.9x8.8mm, spacer V 415mm, perm. nose load 100kg, with coupling head EM 150 R-B, for wheel brake S 1704-7 and S 2005-7.
Price 2.505,20 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAAR 1.6-3 with overrun device ZAAQ1.6-3 / ZDG7-3 drawbar section cranked 800 to 1600kg, 4021605
BPW (AL-KO) Drawbar installation ZAAR 1.6-3 with overrun device ZAAQ1.6-3 / ZDG7-3 drawbar section cranked 800 to 1600kg, 4021605
drawbar length L 2500mm, FD at max. 1600kg: 1200mm, drawbar section K square 70x5.0mm, measure HA 50mm, thread G M10, perm. nose load 100kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 944,90 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAR 2.0-1 A with overrun device PAV/SR 2.0 X drawbar section straight 1089 to 2000kg, 48.36.181.042
BPW (AL-KO) Drawbar installation ZAR 2.0-1 A with overrun device PAV/SR 2.0 X drawbar section straight 1089 to 2000kg, 48.36.181.042
drawbar length L 2500mm, FD at max. 2000kg: 1385mm, drawbar section K round 88.9x6.3mm, measure HA 58mm, thread G M10, perm. nose load 100kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 710,90 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAR 1.35-1 A with overrun device PAV/SR 1.3 X drawbar section straight 700 to 1350kg, 48.25.181.040
BPW (AL-KO) Drawbar installation ZAR 1.35-1 A with overrun device PAV/SR 1.3 X drawbar section straight 700 to 1350kg, 48.25.181.040
drawbar length L 2100mm, FD at max. 1350kg: 1065mm, drawbar section K round 70x4mm, measure HA 50mm, thread G M10, perm. nose load 100kg, with coupling head EM 150 R-B, for wheel brake S 1704-7 and S 2005-7.
Price 600,00 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAAR 3.0-1 with overrun device ZAAQ3.0 / ZDG10-3 drawbar section straight 1800 to 2800kg, 48.46.181.002
BPW (AL-KO) Drawbar installation ZAAR 3.0-1 with overrun device ZAAQ3.0 / ZDG10-3 drawbar section straight 1800 to 2800kg, 48.46.181.002
drawbar length L 2300mm, FD at max. 2800kg: 1780mm, drawbar section K square 100x6.3mm, measure HA 65mm, thread G M10, perm. nose load 100kg, with coupling head EM 300 R-B-K1212, for wheel brake S 2005-7, S 2504-7 and S 3006-7.
Price 776,90 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAAR 2.0-1 with overrun device ZAAQ2.0 / ZDG8-3 drawbar section straight 1250 to 2000kg, 48.36.181.073
BPW (AL-KO) Drawbar installation ZAAR 2.0-1 with overrun device ZAAQ2.0 / ZDG8-3 drawbar section straight 1250 to 2000kg, 48.36.181.073
drawbar length L 2100mm, FD at max. 2000kg: 1360mm, drawbar section K square 80x5.0mm, measure HA 55mm, thread G M10, perm. nose load 100kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 666,60 EUR Incl. tax Excl. Shipping costs
Drawbar ZOR 0,75-1 A round tube cranked up to 750kg, 48.14.301.010
BPW (AL-KO) Drawbar ZOR 0,75-1 A round tube cranked up to 750kg, 48.14.301.010
total length L 2000mm, drawbar section K dimension K 70x4mm, perm. nose load 75kg, coupling head EM 80 R-GK, including skid bracket, clamping bracket and plug holder.
Price 287,90 EUR Incl. tax Excl. Shipping costs

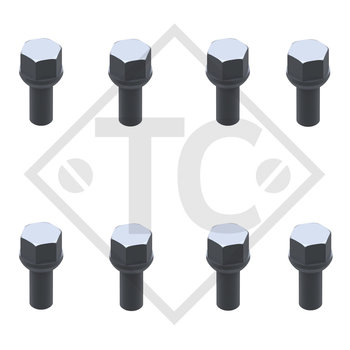

Original ball-head wheel bolt M12x1.5, set of 8 pieces
BPW (AL-KO) Original ball-head wheel bolt M12x1.5, set of 8 pieces
thread 25mm, wrench size AF 19, bolt quality 8.8, maximum permitted tightening torque 90 Nm.
Price 16,90 EUR Incl. tax Excl. Shipping costs
Was replaced by 05.089.52.78.0
BPW (AL-KO) Was replaced by 05.089.52.78.0
Price 195,00 EUR Incl. tax Excl. Shipping costs
Bowden cable 05.089.52.71.0 hook in with thread M10
BPW (AL-KO) Bowden cable 05.089.52.71.0 hook in with thread M10
sheath length (L) 800mm, cable length (L1) 1085mm, can be used with wheel brake S3006-5, bell internal diam. 22.5mm, outside 27mm.
Price 105,00 EUR Incl. tax Excl. Shipping costs
Bowden cable 05.089.33.45.0 hook in with thread M8
BPW (AL-KO) Bowden cable 05.089.33.45.0 hook in with thread M8
sheath length (L) 1330mm, cable length (L1) 1540mm, can be used with wheel brake S1635-5, S1635-6, S2003-5, S2005-5 and S2504-5, bell internal diam. 18.5mm, outside 21.2mm.
Price 86,90 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1355, 46.24.379.046
BPW (AL-KO) Braked axle SWING 1350kg axle type CB 1355, 46.24.379.046
BC: dimension AM 1800mm, OHF: dimension FL 2250mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 695,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg axle type CS 1505, 46.27.358.262
BPW (AL-KO) Braked axle 1500kg axle type CS 1505, 46.27.358.262
BC: dimension AM 1700mm, OHF: dimension FL 2185mm, wheel drawbar ⌀112x5, wheel brake type S 2005-7 RASK, offset (ET) 0mm, swing arm position 20°, axle profile 95mm.
Price 1.495,00 EUR Incl. tax Excl. Shipping costs
