RUNNING WELL FOR YOU. BPW BERGISCHE AXLES

AL-KO Technology Paderborn GmbH specialises in the development and manufacture of complete running gear technology for car trailers and self-propelled vehicles. The location has developed from a labour-intensive wagon maker into an innovative, modern industrial company. Since 2017 the former BPW Fahrzeugtechnik has been part of the global technology company DexKo Global Inc., a worldwide market leader for trailer axles and chassis components in the lightweight segment. Read more...

Underpinning Your Progress.
The range of running gear for towable machinery, car and light truck trailers, caravans and cab & engine vehicles.



Braked axle 1700kg axle type DB 1605, 45.29.368.448
BPW (AL-KO) Braked axle 1700kg axle type DB 1605, 45.29.368.448
BC: dimension AM 1420mm, OHF: dimension FL 1965mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 27-40mm, swing arm position 35°, axle profile 82mm.
Price 2.250,00 EUR Incl. tax Excl. Shipping costs
Unbraked axle 750kg axle type CB 754 ECO, 46.12.000.453
BPW (AL-KO) Unbraked axle 750kg axle type CB 754 ECO, 46.12.000.453
BC: dimension AM 1000mm, OHF: dimension FL 1430mm, wheel connection 100x4, offset (ET) 35mm.
Price 530,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg axle type SCB 1505, 46.27.379.915, 4013635
BPW (AL-KO) Braked axle 1500kg axle type SCB 1505, 46.27.379.915, 4013635
BC: dimension AM 1435mm, OHF: dimension FL 1940mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30-35mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 1.450,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.663
BPW (AL-KO) Braked axle SWING 1800kg axle type CB 1805, 46.32.368.663
BC: dimension AM 1300mm, OHF: dimension FL 1790mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm.
Price 949,00 EUR Incl. tax Excl. Shipping costs
Coupling head ZKB 1.7.-1-B without fixing bolts
BPW (AL-KO) Coupling head ZKB 1.7.-1-B without fixing bolts
drawbar ⌀50-51mm round, holes (screw connection) cross 12.5mm, hole distance 40mm, perm. gross weight 1700kg, nose load 170kg, material: steel.
Price 76,10 EUR Incl. tax Excl. Shipping costs
Forked drawbar for turnable
BPW (AL-KO) Forked drawbar for turnable
dimensions 1545x860x60mm, connection ⌀50mm.
Price 639,30 EUR Incl. tax Excl. Shipping costs

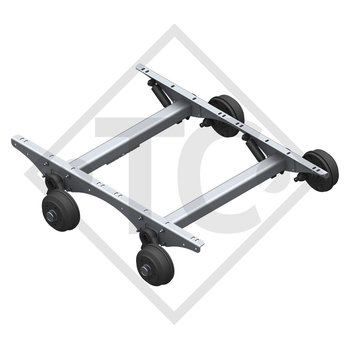

Braked tandem axle unit 2100kg SWING axle type CB 2/1055, 49.21.379.154
BPW (AL-KO) Braked tandem axle unit 2100kg SWING axle type CB 2/1055, 49.21.379.154
BC: dimension AM 1200mm, OHF: dimension FL 1650mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 1.470,00 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 1350kg RONDO axle type DB 1354, 45.25.379.633
BPW (AL-KO) Braked tandem front axle 1350kg RONDO axle type DB 1354, 45.25.379.633
BC: dimension AM 1650mm, OHF: dimension FL 2100mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 70mm, taper-head wheel bolts M12x1.5.
Price 1.102,90 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1500kg axle type CB 1505, 46.27.379.551
BPW (AL-KO) Braked tandem front axle SWING 1500kg axle type CB 1505, 46.27.379.551
BC: dimension AM 1550mm, OHF: dimension FL 2000mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 674,00 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 850kg SWING axle type CB 854, 46.16.382.067
BPW (AL-KO) Braked tandem front axle 850kg SWING axle type CB 854, 46.16.382.067
BC: dimension AM 1850mm, OHF: dimension FL 2280mm, wheel connection 100x4, wheel brake type S 1704-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 64mm, taper-head wheel bolts M12x1.5.
Price 474,90 EUR Incl. tax Excl. Shipping costs
Unbraked axle 750kg SWING axle type CB 754, 46.14.000.215
BPW (AL-KO) Unbraked axle 750kg SWING axle type CB 754, 46.14.000.215
BC: dimension AM 1600mm, OHF: dimension FL 1990mm, wheel connection 100x4, offset (ET) 30mm, taper-head wheel bolts M12x1.5.
Price 495,90 EUR Incl. tax Excl. Shipping costs
Drawbar connection profile bolt-on
BPW (AL-KO) Drawbar connection profile bolt-on
for axle CB 854 and CB 855, permitted gross weight of the trailer 1700kg, axle profile dimension K 64mm square, for drawbar section square 120x120mm, 150x132mm and 150x150mm.
Price 169,90 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAV 2.7-4 with overrun device AE 2.7-1 A height-adjustable, with drawbar section 1860 to 2700kg, 47.43.470.041
BPW (AL-KO) Drawbar installation ZAV 2.7-4 with overrun device AE 2.7-1 A height-adjustable, with drawbar section 1860 to 2700kg, 47.43.470.041
drawbar length L 2280mm, measure B 0-693mm, FD at max. 2700kg: 3500mm, drawbar section K square 150x132mm, spacer V 800mm, perm. nose load 150kg, without hitch components, for wheel brake S 2005-7, S 2504-7 and S 3006-5.
Price 2.525,00 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAV 2.7-4 with overrun device AE 2.7-1 A height-adjustable, with drawbar section 1860 to 2700kg, 47.43.470.035
BPW (AL-KO) Drawbar installation ZAV 2.7-4 with overrun device AE 2.7-1 A height-adjustable, with drawbar section 1860 to 2700kg, 47.43.470.035
drawbar length L 1900mm, measure B 0-693mm, FD at max. 2700kg: 3500mm, drawbar section K square 150x132mm, spacer V 800mm, perm. nose load 150kg, without hitch components, for wheel brake S 2005-7, S 2504-7 and S 3006-5.
Price 2.500,00 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAV 2.0-5 with overrun device AE 2.7-1 C height-adjustable, with drawbar section 1500 to 2000kg, 47.36.470.078
BPW (AL-KO) Drawbar installation ZAV 2.0-5 with overrun device AE 2.7-1 C height-adjustable, with drawbar section 1500 to 2000kg, 47.36.470.078
drawbar length L 2300mm, measure B 0-693mm, FD at max. 2000kg: 3000mm, drawbar section K square 120mm, spacer V 800mm, perm. nose load 150kg, without hitch components, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 2.100,00 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZRV 20 B with overrun device AK 2008 height-adjustable, with drawbar section cranked 1300 to 2000kg, 47.36.473.072
BPW (AL-KO) Drawbar installation ZRV 20 B with overrun device AK 2008 height-adjustable, with drawbar section cranked 1300 to 2000kg, 47.36.473.072
drawbar length L 2800mm, FD at max. 2000kg: 2020mm, drawbar section K round 101.6x10mm, spacer V 415mm, perm. nose load 100kg, with drawbar eye DIN 40.0-01, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 2.921,70 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAAR 1.35-3 with overrun device ZAAQ1.35-3 / ZDG7-3 drawbar section cranked 750 to 1350kg, 48.25.381.063
BPW (AL-KO) Drawbar installation ZAAR 1.35-3 with overrun device ZAAQ1.35-3 / ZDG7-3 drawbar section cranked 750 to 1350kg, 48.25.381.063
drawbar length L 3500mm, FD at max. 1350kg: 1210mm, drawbar section K square 70x5.0mm, measure HA 50mm, thread G M10, perm. nose load 100kg, with coupling head EM 150 R-B, for wheel brake S 1704-7 and S 2005-7.
Price 765,40 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAAR 1.6-1 with overrun device ZAAQ1.6 / ZDG7-3 drawbar section straight 800 to 1600kg, 48.29.181.056
BPW (AL-KO) Drawbar installation ZAAR 1.6-1 with overrun device ZAAQ1.6 / ZDG7-3 drawbar section straight 800 to 1600kg, 48.29.181.056
drawbar length L 2300mm, FD at max. 1600kg: 1200mm, drawbar section K square 70x5.0mm, measure HA 50mm, thread G M10, perm. nose load 100kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 650,70 EUR Incl. tax Excl. Shipping costs
Overrun device V type ZAF 3.5-3, 2500 to 3500kg, 48.51.581.006
BPW (AL-KO) Overrun device V type ZAF 3.5-3, 2500 to 3500kg, 48.51.581.006
connection 166mm, nose load 150kg, drawbar installation version top, combined with BPW wheel brake S2005-7, S2504-7 and S3006-7 RASK, with coupling head EM 350 R-D.
Price 795,00 EUR Incl. tax Excl. Shipping costs
Overrun device V type ZAF 3.0-3, 1800 to 2800kg, 48.44.581.200
BPW (AL-KO) Overrun device V type ZAF 3.0-3, 1800 to 2800kg, 48.44.581.200
connection 166mm, nose load 150kg, drawbar installation version top + bottom, combined with BPW wheel brake S2005-7, S2504-7 and S3006-7 RASK, with coupling head EM 300 R-B.
Price 464,20 EUR Incl. tax Excl. Shipping costs
Towbar connection ZOV 2.5-1.1 height-adjustable with drawbar section up to 2500kg, 47.41.403.012
BPW (AL-KO) Towbar connection ZOV 2.5-1.1 height-adjustable with drawbar section up to 2500kg, 47.41.403.012
drawbar length L 2090mm, drawbar section K 108/90mm, with DIN drawbar eye dimension A 534mm, height B 0-263mm, intermediate piece V 350mm, perm. nose load 150kg.
Price 1.450,90 EUR Incl. tax Excl. Shipping costs
Drawbar ZOR 0,75-1 A round tube straight up to 750kg, 48.14.101.011
BPW (AL-KO) Drawbar ZOR 0,75-1 A round tube straight up to 750kg, 48.14.101.011
total length L 2200mm, drawbar section K dimension K 70x4mm, perm. nose load 75kg, coupling head EM 80 R-GK, including skid bracket, clamping bracket and plug holder.
Price 263,90 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg axle type SCB 1505, 46.27.379.908 - Dethleffs
BPW (AL-KO) Braked axle 1500kg axle type SCB 1505, 46.27.379.908 - Dethleffs
BC: dimension AM 1420mm, OHF: dimension FL 2070mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 1.450,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1355, 46.24.379.047
BPW (AL-KO) Braked axle SWING 1350kg axle type CB 1355, 46.24.379.047
BC: dimension AM 1900mm, OHF: dimension FL 2350mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 745,00 EUR Incl. tax Excl. Shipping costs
