RUNNING WELL FOR YOU. BPW BERGISCHE AXLES

AL-KO Technology Paderborn GmbH specialises in the development and manufacture of complete running gear technology for car trailers and self-propelled vehicles. The location has developed from a labour-intensive wagon maker into an innovative, modern industrial company. Since 2017 the former BPW Fahrzeugtechnik has been part of the global technology company DexKo Global Inc., a worldwide market leader for trailer axles and chassis components in the lightweight segment. Read more...

Underpinning Your Progress.
The range of running gear for towable machinery, car and light truck trailers, caravans and cab & engine vehicles.



Braked axle 1050kg SWING axle type CB 1055, 46.21.379.625
BPW (AL-KO) Braked axle 1050kg SWING axle type CB 1055, 46.21.379.625
BC: dimension AM 1250mm, OHF: dimension FL 1700mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 568,80 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1055, 46.21.379.623
BPW (AL-KO) Braked axle 1050kg SWING axle type CB 1055, 46.21.379.623
BC: dimension AM 1150mm, OHF: dimension FL 1600mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 563,30 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 850kg SWING axle type CB 854, 46.16.382.052
BPW (AL-KO) Braked tandem front axle 850kg SWING axle type CB 854, 46.16.382.052
BC: dimension AM 1100mm, OHF: dimension FL 1530mm, wheel connection 100x4, wheel brake type S 1704-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 64mm, taper-head wheel bolts M12x1.5.
Price 487,10 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 850kg SWING axle type CB 854, 46.16.382.050
BPW (AL-KO) Braked tandem front axle 850kg SWING axle type CB 854, 46.16.382.050
BC: dimension AM 1000mm, OHF: dimension FL 1430mm, wheel connection 100x4, wheel brake type S 1704-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 64mm, taper-head wheel bolts M12x1.5.
Price 482,10 EUR Incl. tax Excl. Shipping costs
Braked axle 850kg SWING axle type CB 855, 46.16.382.039
BPW (AL-KO) Braked axle 850kg SWING axle type CB 855, 46.16.382.039
BC: dimension AM 1450mm, OHF: dimension FL 1880mm, wheel connection 112x5, wheel brake type S 1704-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 64mm, ball-head wheel bolts M12x1.5.
Price 445,90 EUR Incl. tax Excl. Shipping costs
Braked axle 850kg SWING axle type CB 854, 46.16.382.021
BPW (AL-KO) Braked axle 850kg SWING axle type CB 854, 46.16.382.021
BC: dimension AM 1550mm, OHF: dimension FL 1980mm, wheel connection 100x4, wheel brake type S 1704-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 64mm, taper-head wheel bolts M12x1.5.
Price 453,90 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.487, HUMBAUR
BPW (AL-KO) Braked axle SWING 1800kg axle type CB 1805, 46.32.368.487, HUMBAUR
BC: dimension AM 1800mm, OHF: dimension FL 2335mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 95mm, ball-head wheel bolts M12x1.5.
Price 1.250,00 EUR Incl. tax Excl. Shipping costs
Unbraked axle 750kg ECO axle type CB 754, 46.14.000.002, HUMBAUR
BPW (AL-KO) Unbraked axle 750kg ECO axle type CB 754, 46.14.000.002, HUMBAUR
BC: dimension AM 1365mm, OHF: dimension FL 1655mm, wheel connection 100x4, offset (ET) 0-35mm, swing arm position 28°, axle profile 60mm, taper-head wheel bolts M12x1.5.
Price 850,00 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAV 3.5-1 with overrun device AE 3.5-1 A height-adjustable, with drawbar section 2500 to 3500kg, 47.51.470.040
BPW (AL-KO) Drawbar installation ZAV 3.5-1 with overrun device AE 3.5-1 A height-adjustable, with drawbar section 2500 to 3500kg, 47.51.470.040
drawbar length L 2300mm, measure B 0-767mm, FD at max. 3500kg: 3500mm, drawbar section K square 150mm, spacer V 875mm, perm. nose load 150kg, without hitch components, for wheel brake S 2005-7, S 2504-7 and S 3006-5.
Price 3.196,00 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZKV 25.1 D with overrun device AK 3510 B height-adjustable, with drawbar section 1910 to 2700kg, 47.43.473.013
BPW (AL-KO) Drawbar installation ZKV 25.1 D with overrun device AK 3510 B height-adjustable, with drawbar section 1910 to 2700kg, 47.43.473.013
drawbar length L 2800mm, FD at max. 2700kg: 2453mm, drawbar section K square 120x6.3mm, spacer V 680mm, perm. nose load 150kg, with drawbar eye DIN 40.0-02, for wheel brake S 2005-7 and S 2504-7.
Price 4.299,00 EUR Incl. tax Excl. Shipping costs
Drawbar eye DIN 40.0-01
BPW (AL-KO) Drawbar eye DIN 40.0-01
dimension K 40.8mm, dimension S 40mm, dimension L 200mm, EG e1 0347 94/20, nose load 100kg, perm. gross weight 2000kg, suitable for types ZAA 1.3-1, 2.0-1, ZKV 13/20 and ZRV 13/20.
Price 233,80 EUR Incl. tax Excl. Shipping costs
Towbar connection ZOV 1.2-1.1 B height-adjustable with drawbar section up to 1200kg, 47.23.403.015
BPW (AL-KO) Towbar connection ZOV 1.2-1.1 B height-adjustable with drawbar section up to 1200kg, 47.23.403.015
drawbar length L 1570mm, drawbar section K 82.5mm, with DIN drawbar eye dimension A 523mm, height B 0-225mm, intermediate piece V 300mm, perm. nose load 100kg.
Price 879,90 EUR Incl. tax Excl. Shipping costs
Spread hinge lock, bowden cable outlet 90°
BPW (AL-KO) Spread hinge lock, bowden cable outlet 90°
can be used with wheel brake S 2005-7 RASK and S 2005-7 SK.
Price 31,50 EUR Incl. tax Excl. Shipping costs
Brake shoes, wheel brake S 2005-5 RASK, brake size 200x50mm
BPW (AL-KO) Brake shoes, wheel brake S 2005-5 RASK, brake size 200x50mm
consisting of brake shoes, pressure springs, tension springs, spring support, clamping screw, adjustment wedges, for one axle (2 wheel brakes left + right).
Price 427,10 EUR Incl. tax Excl. Shipping costs
Braked axle 1350kg / 1400kg axle type SCB 1355, 46.25.379.942, 4013357
BPW (AL-KO) Braked axle 1350kg / 1400kg axle type SCB 1355, 46.25.379.942, 4013357
BC: dimension AM 1495mm, OHF: dimension FL 2040mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm.
Price 1.395,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg axle type CB 1505, 44.27.379.607 - Weinsberg 550 QDK
BPW (AL-KO) Braked axle 1500kg axle type CB 1505, 44.27.379.607 - Weinsberg 550 QDK
BC: dimension AM 1676mm, OHF: dimension FL 2260mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm.
Price 1.480,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1500kg axle type CB 1505, 46.27.379.468
BPW (AL-KO) Braked axle SWING 1500kg axle type CB 1505, 46.27.379.468
BC: dimension AM 990mm, OHF: dimension FL 1470mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm.
Price 2.330,00 EUR Incl. tax Excl. Shipping costs

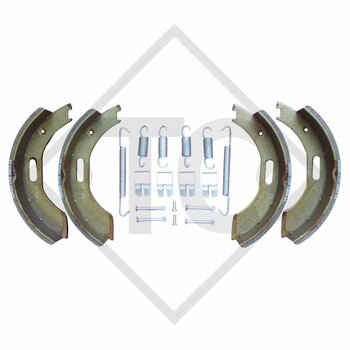

Brake shoes, wheel brake S 2035-7 RASK, brake size 200x35mm
BPW (AL-KO) Brake shoes, wheel brake S 2035-7 RASK, brake size 200x35mm
consisting of brake shoes, tension springs, clamping pin, clamping spring, bolt, for one axle (2 wheel brakes left + right).
Price 164,90 EUR Incl. tax Excl. Shipping costs
Braked axle 1350kg axle type SCB 1355, 46.25.379.943
BPW (AL-KO) Braked axle 1350kg axle type SCB 1355, 46.25.379.943
BC: dimension AM 1420mm, OHF: dimension FL 2040mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30-35mm, swing arm position 20°, axle profile 80mm, wheel bolts M12x1.5.
Price 1.400,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg axle type CB 1505
BPW (AL-KO) Braked axle 1500kg axle type CB 1505
BC: dimension AM 1823mm, OHF: dimension FL 2310mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm.
Price 850,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1500kg axle type CB 1505, 46.27.379.144
BPW (AL-KO) Braked axle SWING 1500kg axle type CB 1505, 46.27.379.144
BC: dimension AM 1370mm, OHF: dimension FL 1840mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 680,00 EUR Incl. tax Excl. Shipping costs

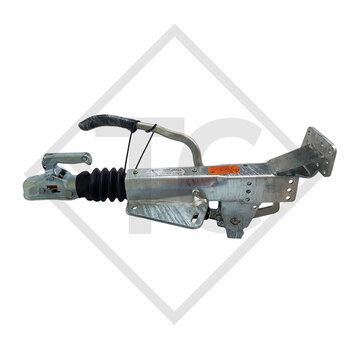

Overrun device V type ZAF 1.6-3, 800 to 1600kg, 48.29.581.075 Humbaur
BPW (AL-KO) Overrun device V type ZAF 1.6-3, 800 to 1600kg, 48.29.581.075 Humbaur
connection 166mm, nose load 100kg, drawbar installation version top, combined with BPW wheel brake S1704-7, S2005-7 and S2504-7 RASK, with coupling head WW220R-B.
Price 380,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1355, 46.25.379.158
BPW (AL-KO) Braked axle SWING 1350kg axle type CB 1355, 46.25.379.158
BC: dimension AM 1800mm, OHF: dimension FL 2250mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 650,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1300kg axle type WM 1300, 2250425, WM MEYER
BPW (AL-KO) Braked axle SWING 1300kg axle type WM 1300, 2250425, WM MEYER
BC: dimension AM 1000mm, OHF: dimension FL 1425mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 0°.
Price 1.050,00 EUR Incl. tax Excl. Shipping costs
