AL-KO

Front axle BT1400 bis 1400kg without brakes - BT 16250
EAB 1316mm, width 1684mm, without brakes. Scope of delivery corresponds to the technical drawing.
Price 3.950,00 EUR Incl. tax Excl. Shipping costs
Lowering half axles down to 270mm, axle type ASB 1800-9, single axle 1800kg, tandem 3500kg
BC: dimension A 449mm, OHF: dimension C 785mm, wheel connection 112x5, wheel brake 2361, offset (ET) 30mm, ball-head wheel bolts M12x1.5, see technical drawing.
Price 3.650,00 EUR Incl. tax Excl. Shipping costs

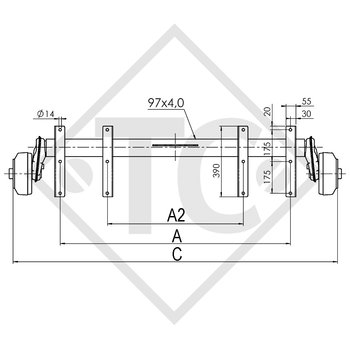

Braked axle 1500kg EURO COMPACT axle type B 1600-3 with tandem adapter bracket from top, Anssems MSX 3000
BC: dimension A 1270mm, BC: dimension A2 750mm, OHF: dimension C 1790mm, wheel connection 112x5, wheel brake type 2051 Ab, offset (ET) 30mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.050,00 EUR Incl. tax Excl. Shipping costs
Overrun device V type 200V, 1300 to 2000kg, WITHOUT stabiliser AKS 3004
connection 166mm, nose load 100kg, installation top, can be combined with AL-KO wheel brake 1636G/1637/2051, without hitch components.
Price 760,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1300kg EURO1 axle type DELTA SIN 12, WILK CARAVAN
BC: dimension A 1575mm, OHF: dimension C 2090mm, wheel connection 112x5, wheel brake type 2051 A, offset (ET) 30mm, swing arm position 16°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.395,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg EURO COMPACT axle type B 1600-3
BC: dimension A 1202mm, OHF: dimension C 1670mm, wheel connection 140x5, wheel brake type 2051 Ab, offset (ET) 30mm, swing arm position 5°, axle profile 97mm.
Price 600,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1000kg EURO1 axle type B 1000-3, Knaus
BC: dimension A 1340mm, OHF: dimension C 1835mm, wheel connection 112x5, wheel brake type 2051 vers. A, offset (ET) 27-33mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.395,00 EUR Incl. tax Excl. Shipping costs
Axle BTR 1800 bis 2120kg without brakes
EAB 1360mm, LG Corps 1424mm, width 1684mm, suitable for FIAT with chassis number ZFA23000005XXXXXX, without brakes. Scope of delivery corresponds to the technical drawing.
Price 4.100,00 EUR Incl. tax Excl. Shipping costs
Safety Premium coupling head security device AK 300 and AKS 1300 with drawbar 50mm
suitable for coupling heads AK 300 and for stabiliser couplings type AKS 1300 with drawbar 50mm.
Price 248,00 EUR Incl. tax Excl. Shipping costs
Safety Plus coupling head security device AK 160, AK 300, AKS 1300, AKS 2004 and AKS 3004, simultaneous locking
suitable for coupling heads type AK 160, AK 300 and suitable for stabiliser type AKS 1300, AKS 2004 and AKS 3004.
Price 223,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1800kg PLUS axle type B 2000-0
BC: dimension A 1750mm, OHF: dimension C 2250mm, wheel connection 140x5, wheel brake type 2361, offset (ET) 0mm, swing arm position 20°, axle profile 120mm, ball-head wheel bolts M14x1.5.
Price 1.175,00 EUR Incl. tax Excl. Shipping costs
Chute support 60.3mm round for supporting chutes on concrete mixer vehicles
stationary nose load max. 400kg, length 601mm, stroke (extended length) 400mm, black primed, powder-coated, long version, top crank.
Price 179,00 EUR Incl. tax Excl. Shipping costs
Jockey wheel ø60mm round with support shoe fully automatic, without flong, 1654777
stationary nose load max. 500kg, nose load when manoeuvring max.300kg, rim steel, wheel 200x50mm solid rubber, extended length 245mm.
Price 103,00 EUR Incl. tax Excl. Shipping costs
Jockey wheel ø60mm round with support shoe semi-automatic, 242061
stationary nose load max. 500kg, nose load when manoeuvring max.300kg, rim steel, wheel 200x50mm solid rubber, extended length 245mm.
Price 213,00 EUR Incl. tax Excl. Shipping costs
Drawbar eye N76/E NATO ø76mm vers. E, external mounting, with fixing bolts
drawbar / shaft ⌀50mm, holes (screw connection) horizontal 12.5mm, hole distance 50mm, perm. gross weight 2700kg, nose load 150kg, material: cast iron, galvanised.
Price 199,00 EUR Incl. tax Excl. Shipping costs
Drawbar eye N76/E NATO ø76mm vers. E, external mounting, with fixing bolts and spacers 40mm
drawbar / shaft ⌀50mm, holes (screw connection) horizontal 12.5mm, hole distance 50mm, perm. gross weight 1000kg, nose load 100kg, material: cast iron, galvanised.
Price 239,90 EUR Incl. tax Excl. Shipping costs
Safety three-pack AKS 3004 with Safety-Ball, Safety Compact and fixing bolts
drawbar ⌀50mm round, holes (screw connection) cross 12.1mm, hole distance horizontal 47-54mm, cross 40mm, perm. gross weight 3000kg, nose load 150kg, material: cast iron.
Price 479,90 EUR Incl. tax Excl. Shipping costs
Unbraked axle 750kg BASIC axle type 700-5 with shackle and high axle bracket
BC: dimension A 700mm, OHF: dimension C 1130mm, wheel connection 100x4, offset (ET) 27-45mm, taper-head wheel bolts M12x1.5.
Price 267,00 EUR Incl. tax Excl. Shipping costs
Storage box for car trailer, cover hinges on the side
max. load 20kg suspended, external dimensions LxWxH 515x226x272mm, height inc. turning handle 305mm, internal dimensions LxWxH 445x145x220mm.
Price 171,00 EUR Incl. tax Excl. Shipping costs
Wheel brake flushing system single axle
can be used for AL-KO wheel brakes 1637, 2051, 2361 and 3062.
Price 76,90 EUR Incl. tax Excl. Shipping costs
Drawbar connection profile
single axle 850-10, B 850 and B 1000, axle profile 80mm, drawbar tube round 70mm and 88.9mm, drawbar tube square 60x60mm, 70x60mm and 100x100mm.
Price 80,90 EUR Incl. tax Excl. Shipping costs
Axle with pneumatic brakes tandem 6000kg axle type BL 3000 with top hat profilee 130mm and shock absorber bracket
BC: dimension A 1865mm, OHF: dimension C 2335mm, wheel connection 205x6, wheel brake type 3062 AR, offset (ET) 0mm, swing arm position 25°, wheel nut ball M18x1.5.
Price 6.586,00 EUR Incl. tax Excl. Shipping costs
Axle with pneumatic brakes tandem 5000kg axle type BL 2700 with shock absorber bracket
BC: dimension A 1830mm, OHF: dimension C 2300mm, wheel connection 205x6, wheel brake type 3062 AR, offset (ET) 0mm, swing arm position 25°, wheel nut ball M18x1.5.
Price 6.304,00 EUR Incl. tax Excl. Shipping costs
Axle with pneumatic brakes tandem 6000kg axle type BL 3000 with top hat profilee 130mm and shock absorber bracket
BC: dimension A 1330mm, OHF: dimension C 1800mm, wheel connection 205x6, wheel brake type 3062 AR, offset (ET) 0mm, swing arm position 25°, axle profile 120mm, wheel nut ball M18x1.5.
Price 6.425,00 EUR Incl. tax Excl. Shipping costs
