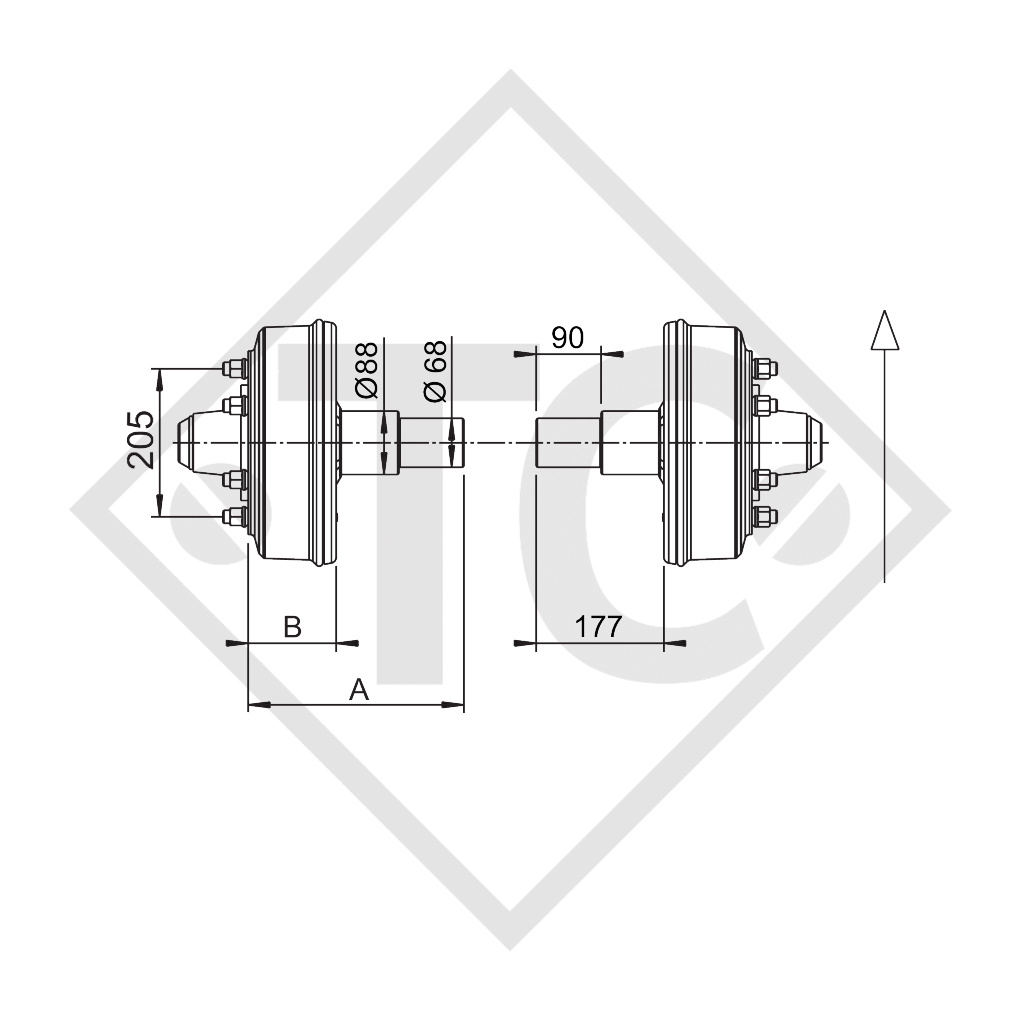

wheel load per hub 2000kg, wheel connection (G) 205x6, thread M18x1.5, offset (ET) 0mm, dimension A 299mm, dimension B 122mm, bearing type taper, axle stub 170mm, ø68 / ø88mm. Read more...
Part no. 1210552.98
| Wheel load per hub |
2000kg |
| Wheel connection |
205x6 |
| Wheel connection, thread | M18x1.5 |
| Offset | 0mm |
| Dimension A | 299mm |
| Dimension B | 122mm |
| Bearing type | taper |

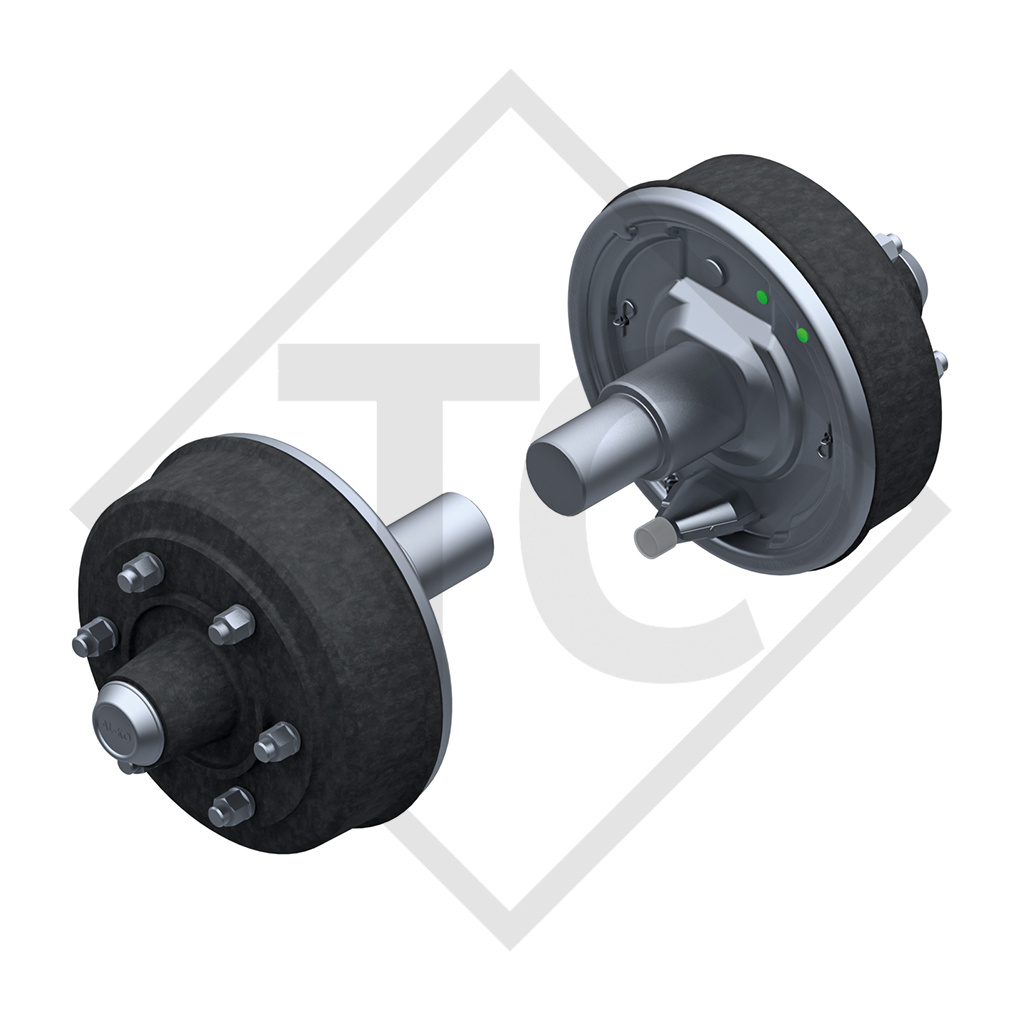

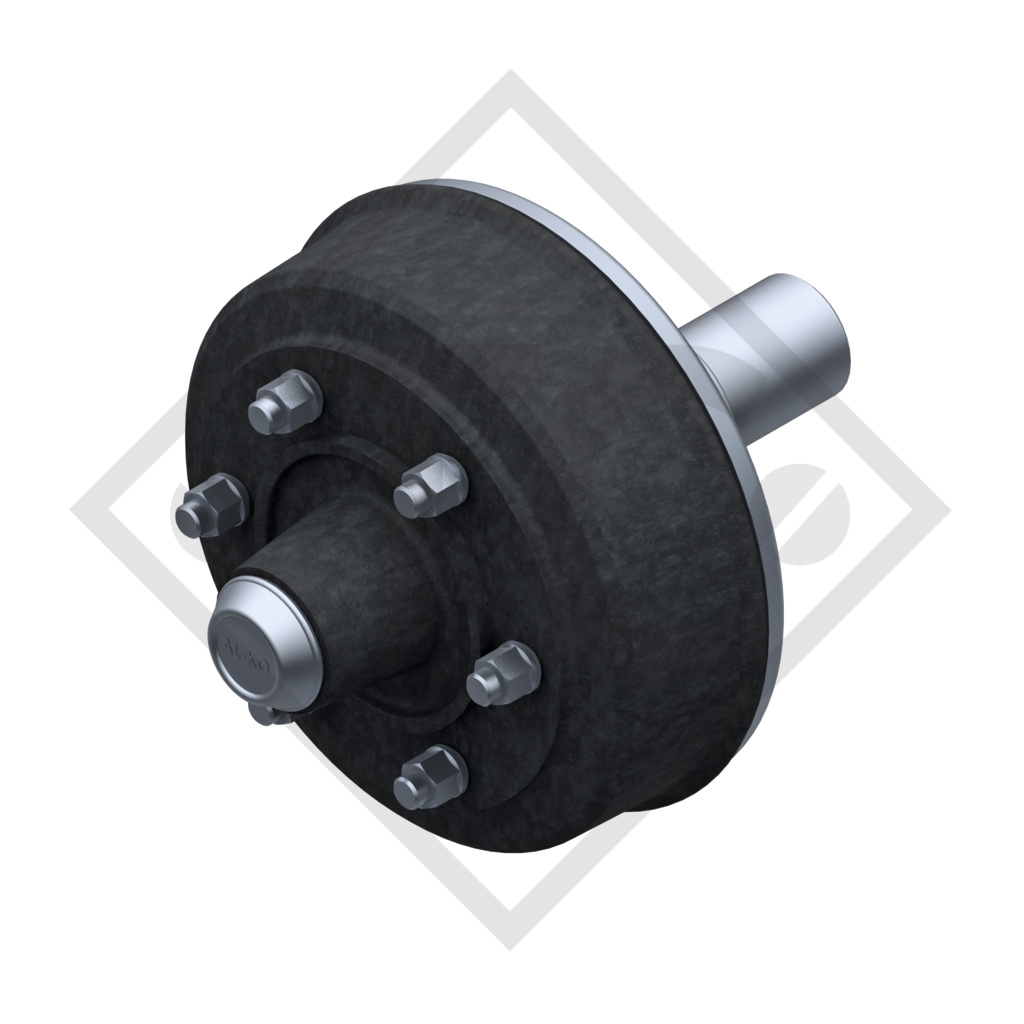

WHEEL BRAKE 1637
1,000 kg
TECHNOLOGY
All AL-KO wheel brakes are ECE-tested and can be connected to the corresponding AL-KO overrun devices (allocation calculation).
Install wheel brakes with the correct direction of rotation!
The brake pads used are free of asbestos!
Comply with installation guidelines!
SCOPE OF SUPPLY
Wheel bolts and axle Bowden cables not included in delivery!
Please order separately
SURFACE TREATMENT
Galvanised
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
