weight range single axle 2500kg, tandem 3500kg, axle profile 120mm, swing arm special degrees: 5°, drawbar section round 88.9mm, rectangular width 100mm and 120mm, dimension A 160mm, dimension B 190mm, dimension C 80mm, dimension D 16.5mm, dimension E 16. Read more...

Wishlist: Add to comparison:

Part no. 242724

AL-KO hexagonal rubber suspension axle version
Weight range
Single axle
2500kg
Tandem
3500kg
Axle profile 120mm
N: Swing arm
Special degrees

Drawbar section

Round Ø

Rectangular



88.9mm

100mm and 120mm

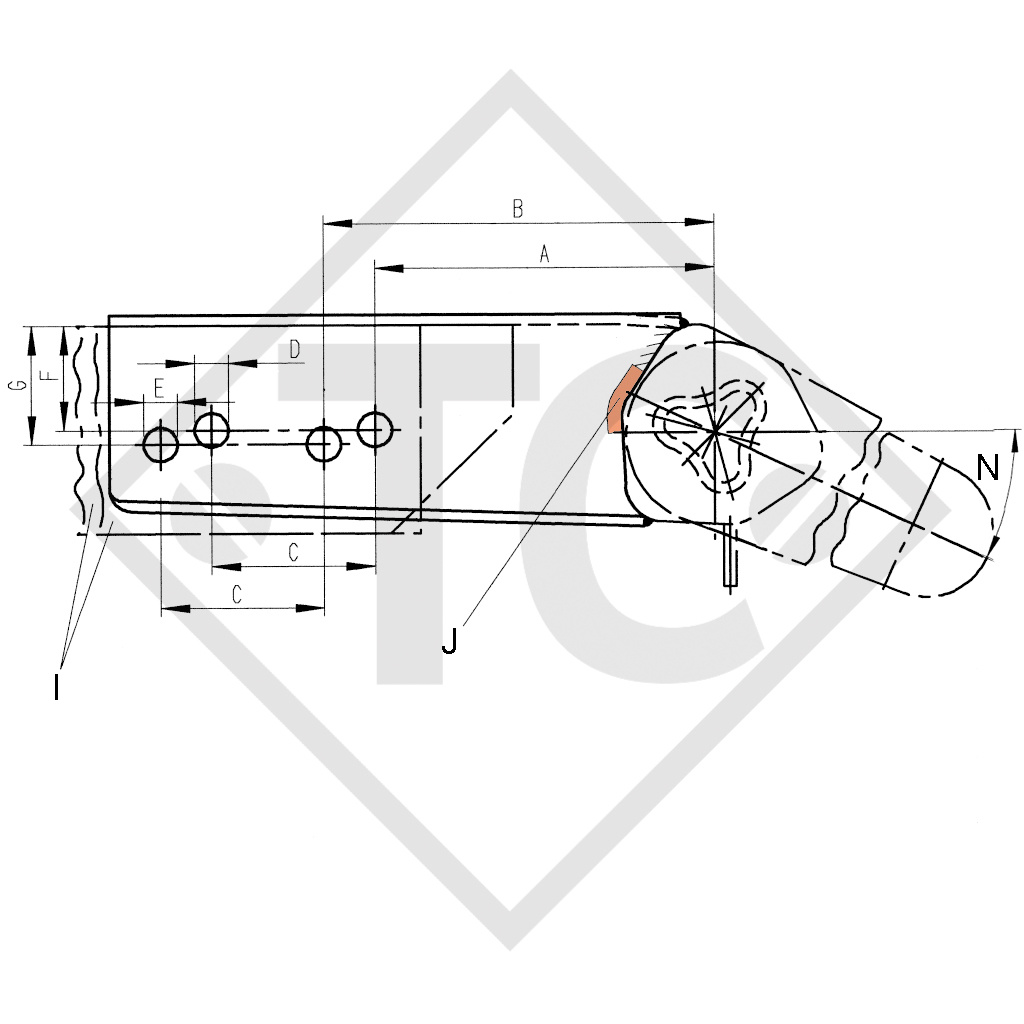

Dimension A
160mm
Dimension B
190mm
Dimension C
80mm
Dimension D
16.5mm
Dimension E
16.5mm
Dimension F
45mm
Dimension G
58mm
Dimension H
130mm
I:
Drawbar tubes
J:

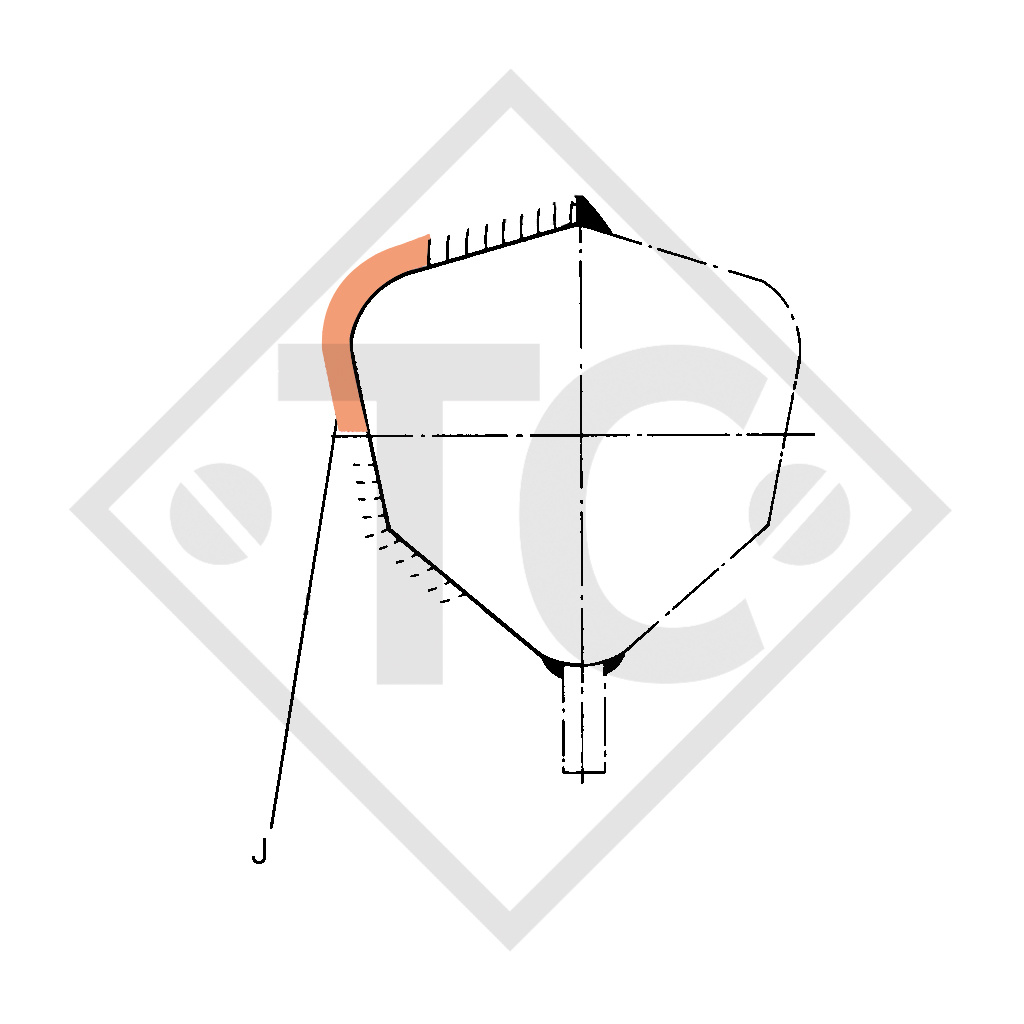

Important: Welding is not permitted in the area marked in red (change in track and camber)
K:
Hex bolt + self-locking nut M12/M16
L:
Axle tube
M:
Spacer tube



WELDED/BOLTED CONNECTIONS for axles

TECHNOLOGY
Assembly:
1. The top hat profile can be welded on at the manufacturing plant if requested.
2. Cut off the drawbar section (as required).
3. Drill two holes in the drawbar section.
AL-KO drawbar tubes come with a hole with a spacer tube as standard.
If using welded/bolted connections, it is additionally necessary to drill a hole with a spacer tube.
With Ø tube drawbars s drill through centre horizontally for spacer tube 365472 Ø 22, for 372879 Ø 25.5.
4. Weld on spacer tubes in the middle.
5. Bolt on spacer tubes with hex bolt and self-locking nut,
tightening torque 75 Nm with M12;
tightening torque 195 Nm with M16

SCOPE OF DELIVERY
(see technical drawing) including:
Fixing bolts
With drawbar sections (height-adjustable), the spacer tubes are supplied with the drawbar sections
Welding instructions part no. 604038

SURFACE TREATMENT
Synthetic resin dip-coating black
