Home / CHASSIS PARTS / CHASSIS PARTS BPW / OVERRUN DEVICES / HEIGHT-ADJUSTABLE OVERRUN DEVICES / OVERRUN DEVICES HEIGHT-ADJUSTABLE PRODUCT LINE ZKV WITH COUPLING HEAD / HEIGHT-ADJUSTABLE OVERRUN DEVICES TYPE ZKV 20.1 A AK 2008 WITH DRAWBAR SECTION 1300 TO 2000KG / Unbraked axle 750kg ECO axle type CB 754, 46.14.000.002, HUMBAUR

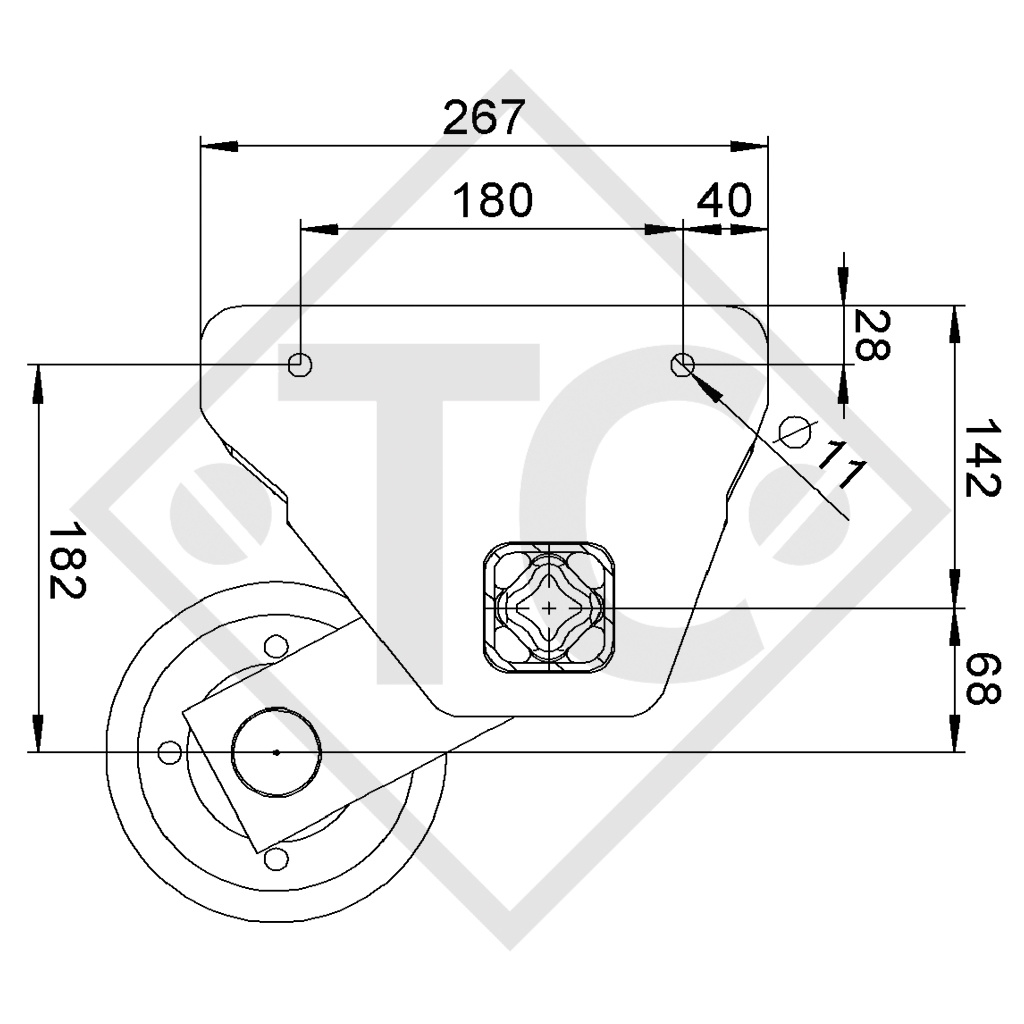

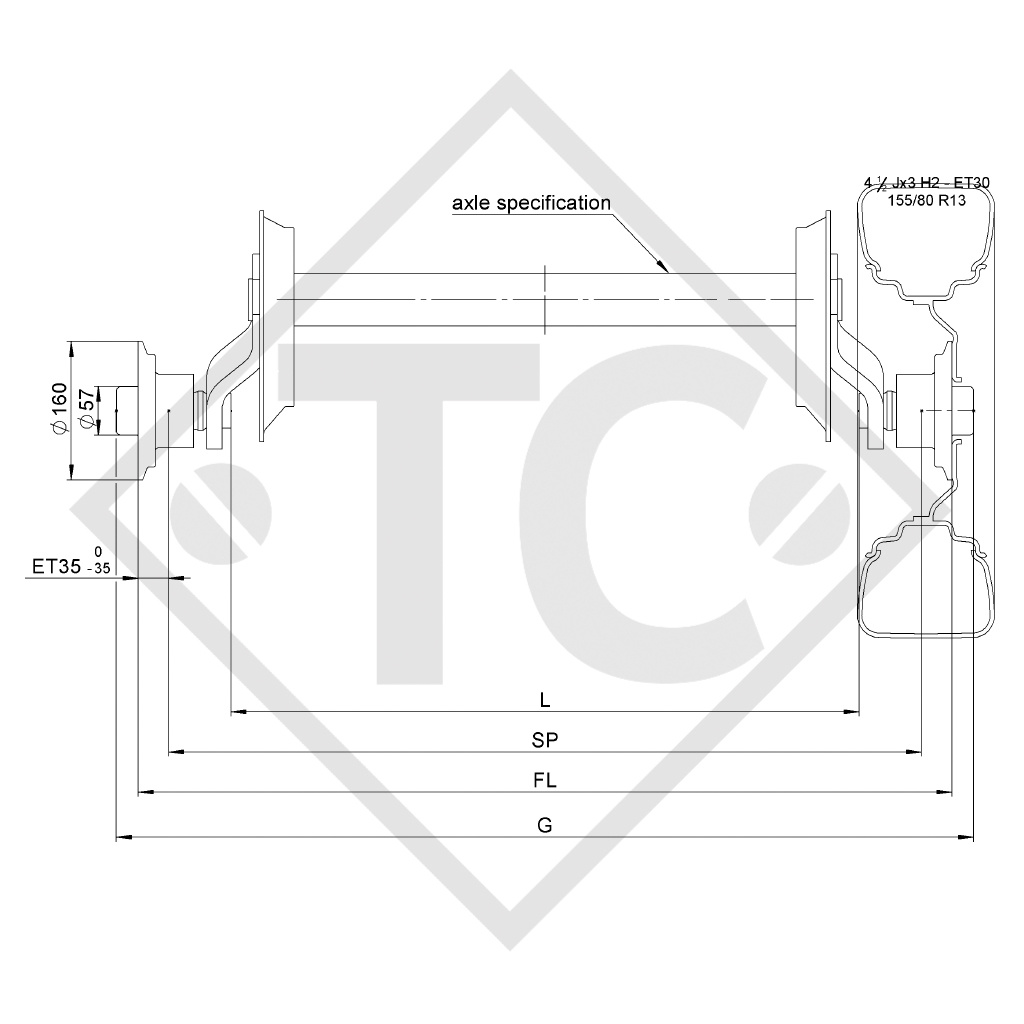

BC: dimension AM 1365mm, OHF: dimension FL 1655mm, wheel connection 100x4, offset (ET) 0-35mm, swing arm position 28°, axle profile 60mm, taper-head wheel bolts M12x1.5.
