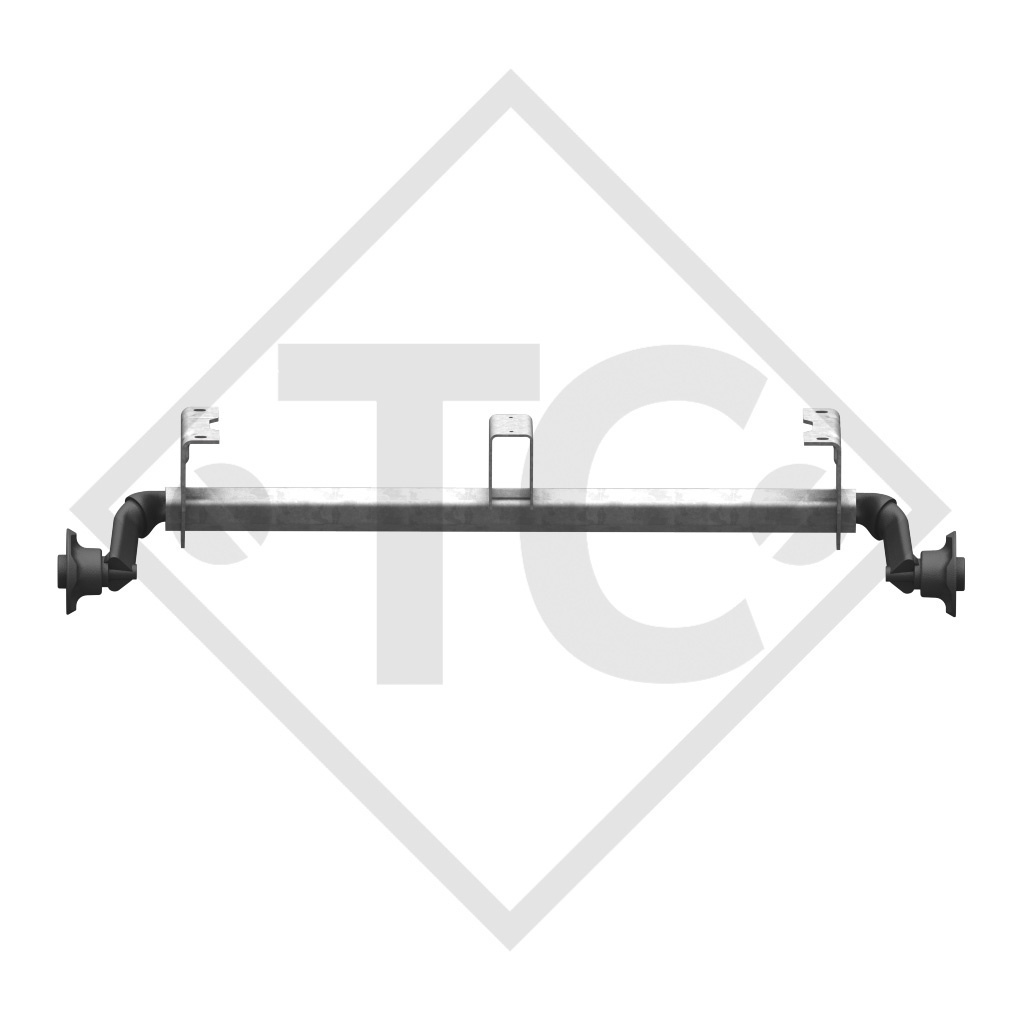

Home / Unbraked axle 750kg BASIC axle type 700-5 with shackle and high axle bracket

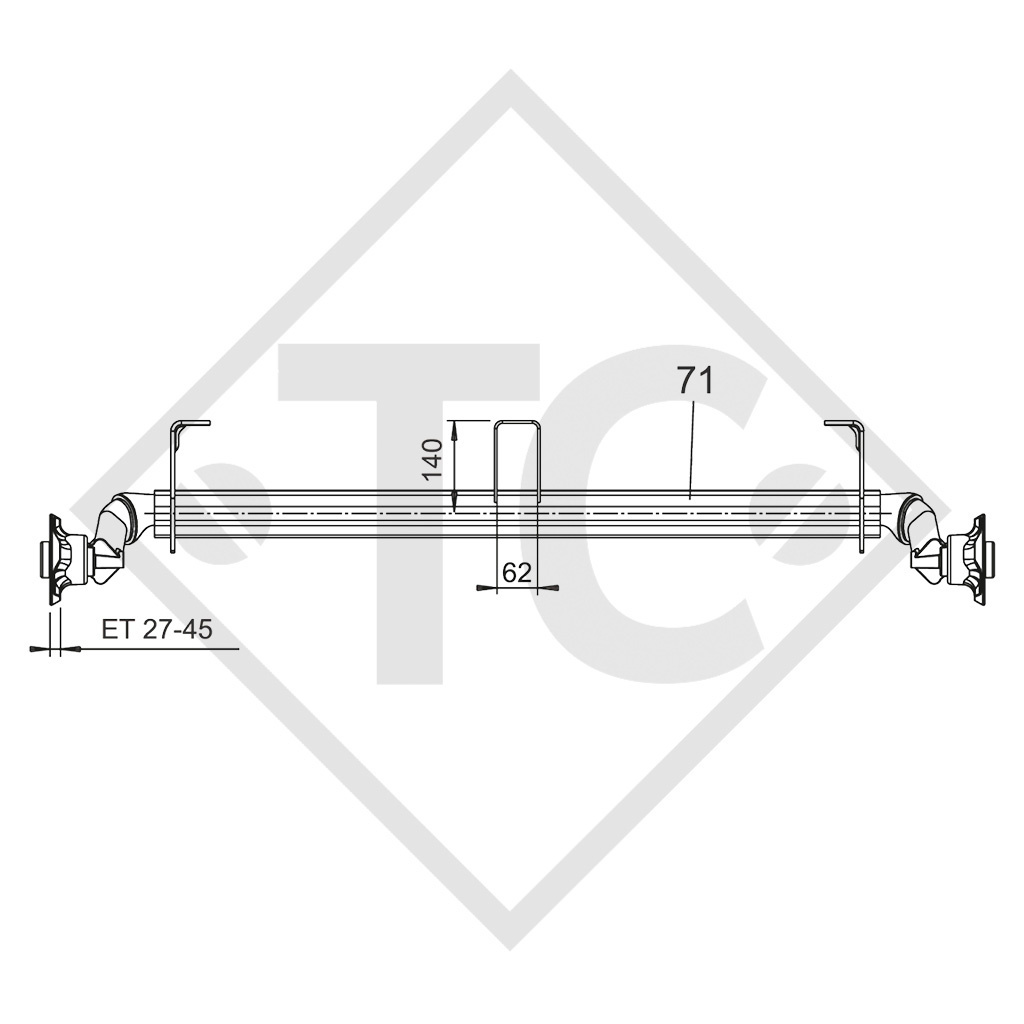

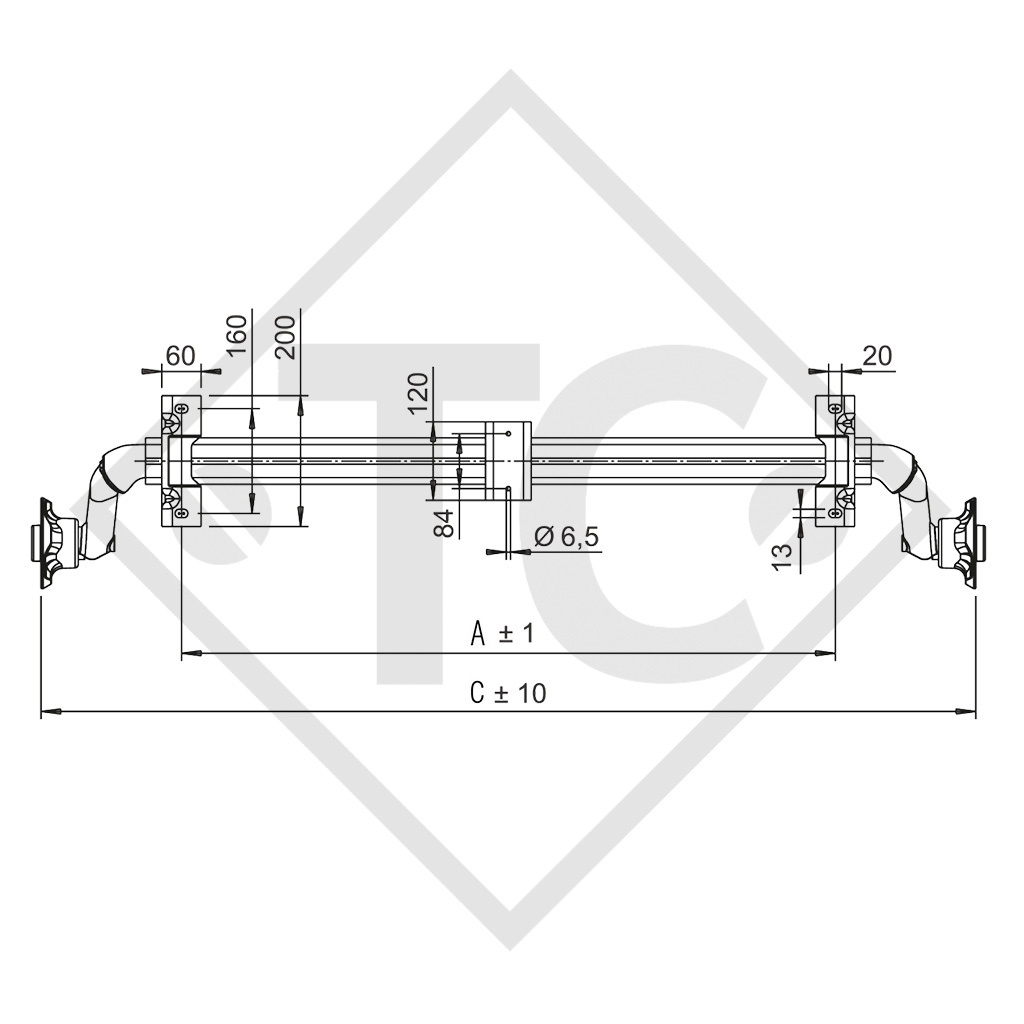

BC: dimension A 700mm, OHF: dimension C 1130mm, wheel connection 112x5, offset (ET) 27-45mm, ball-head wheel bolts M12x1.5. Read more...
Original operating instructions
Replacement part identification number (ETI) 811676
Replacement part identification number watertight (ETI) 811726
TECHNOLOGY
Model: BASIC
Axle type: 700-5
Axle load: 750kg
Suspension: Hexagonal rubber suspension

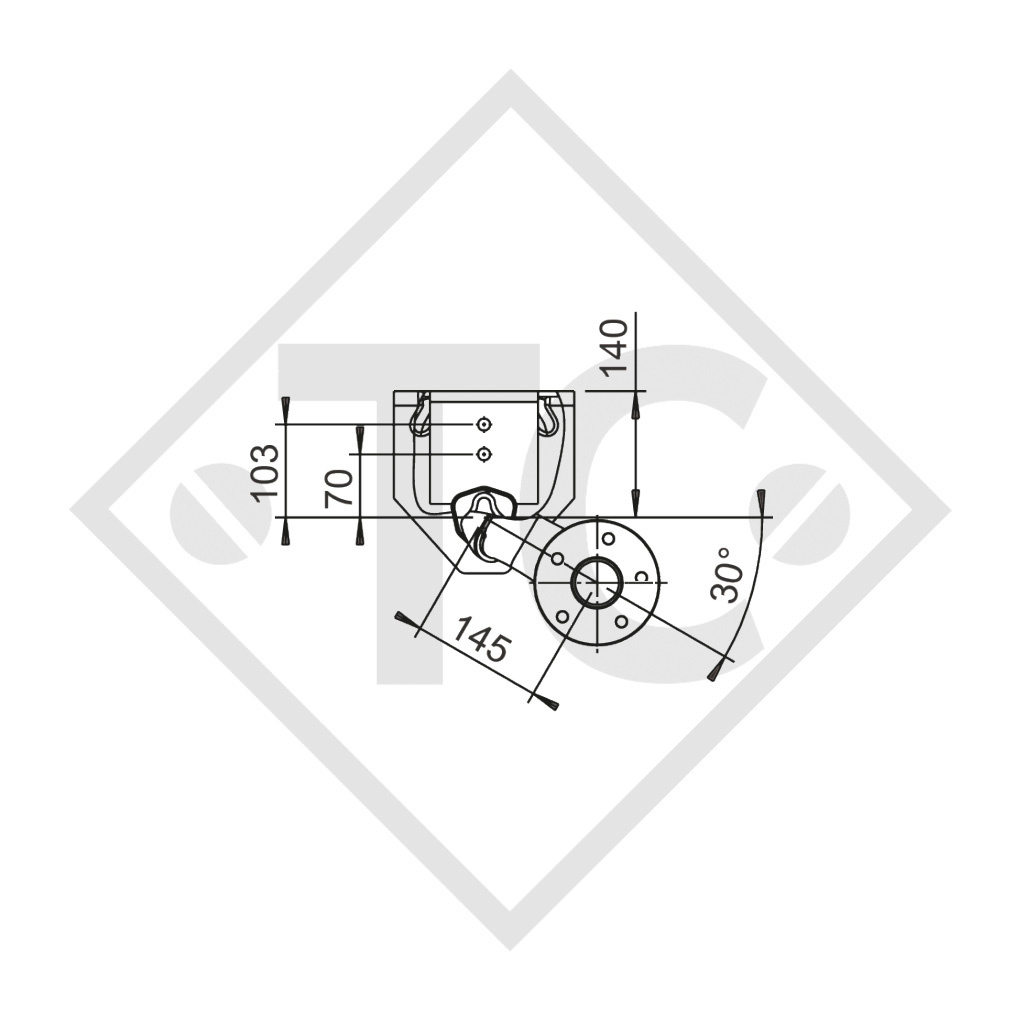

Swing arm length: 145mm
Wheel connection: 100x4 or 112x5
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
IMPORTANT!
These axles cannot be combined with 8" complete wheels!
SCOPE OF DELIVERY
Axle
Wheel bolts loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Unbraked axle 750 KG BASIC
Modern, maintenance-free axle technology "Made in Germany"
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
SIMPLY SEND US A PHOTO OF YOUR AXLE TYPE PLATE, TOGETHER WITH YOUR ADDRESS AND TELEPHONE NUMBER TO [email protected]
Please feel free to avail of our service and request a non-binding offer by email today!
