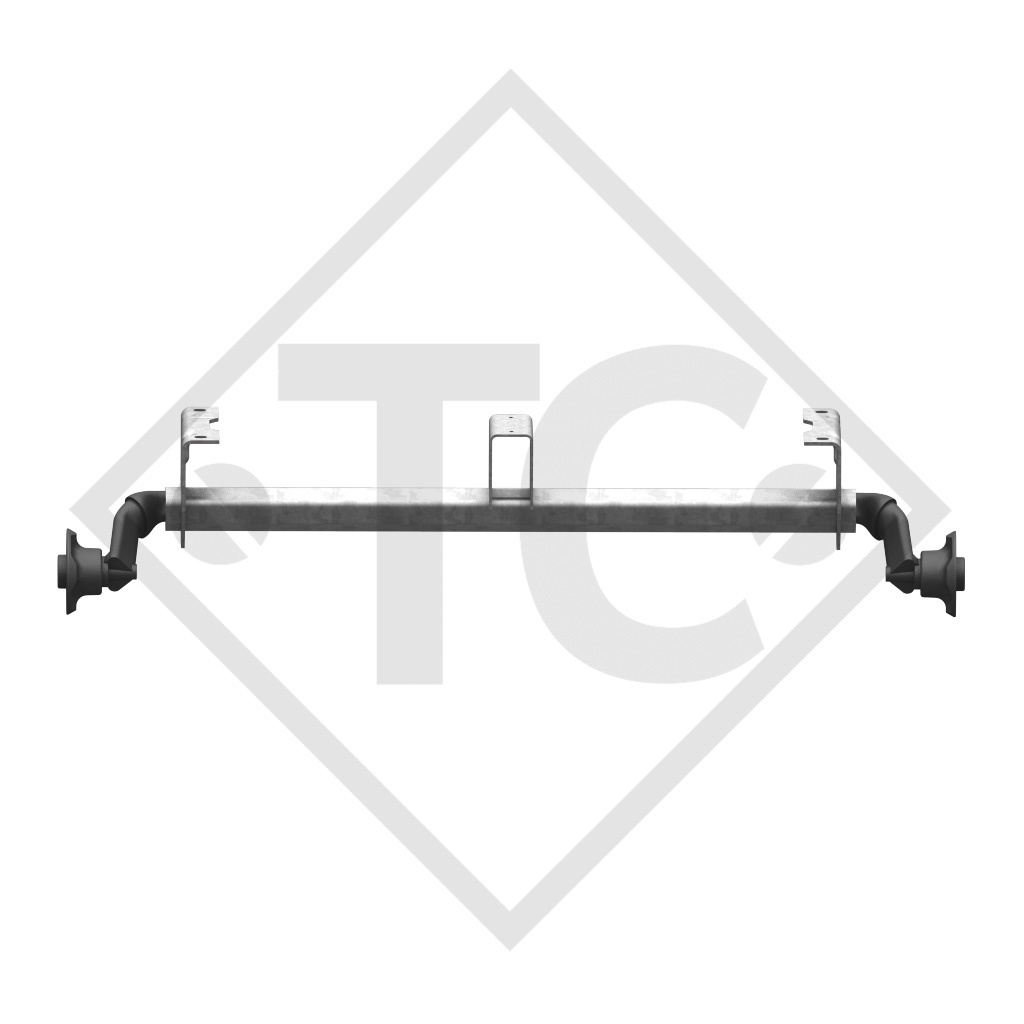

AL-KO Unbraked axle 600kg OPTIMA axle type 700-2 with shackle and high axle bracket

Part no. WBA23011702

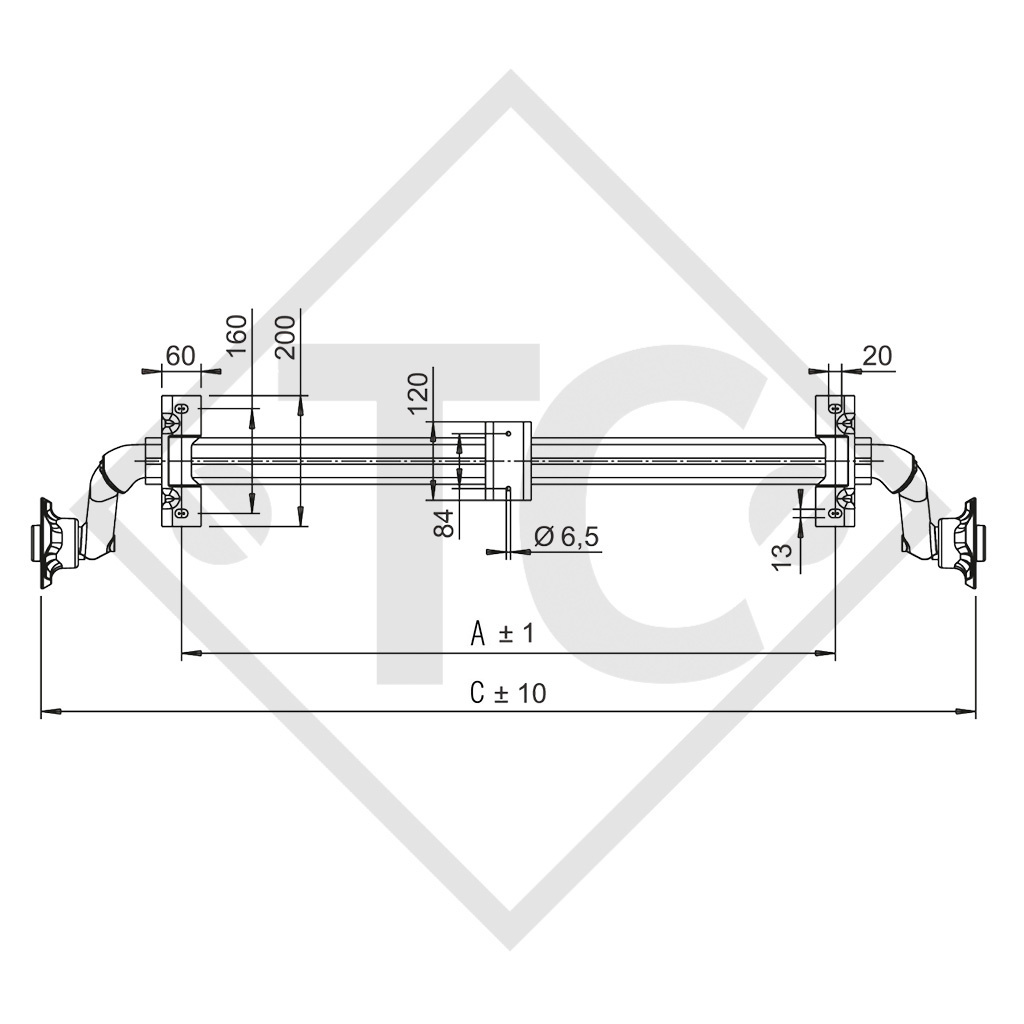

BC: dimension A 1000mm
OHF: dimension C 1430mm
Wheel connection 100x4

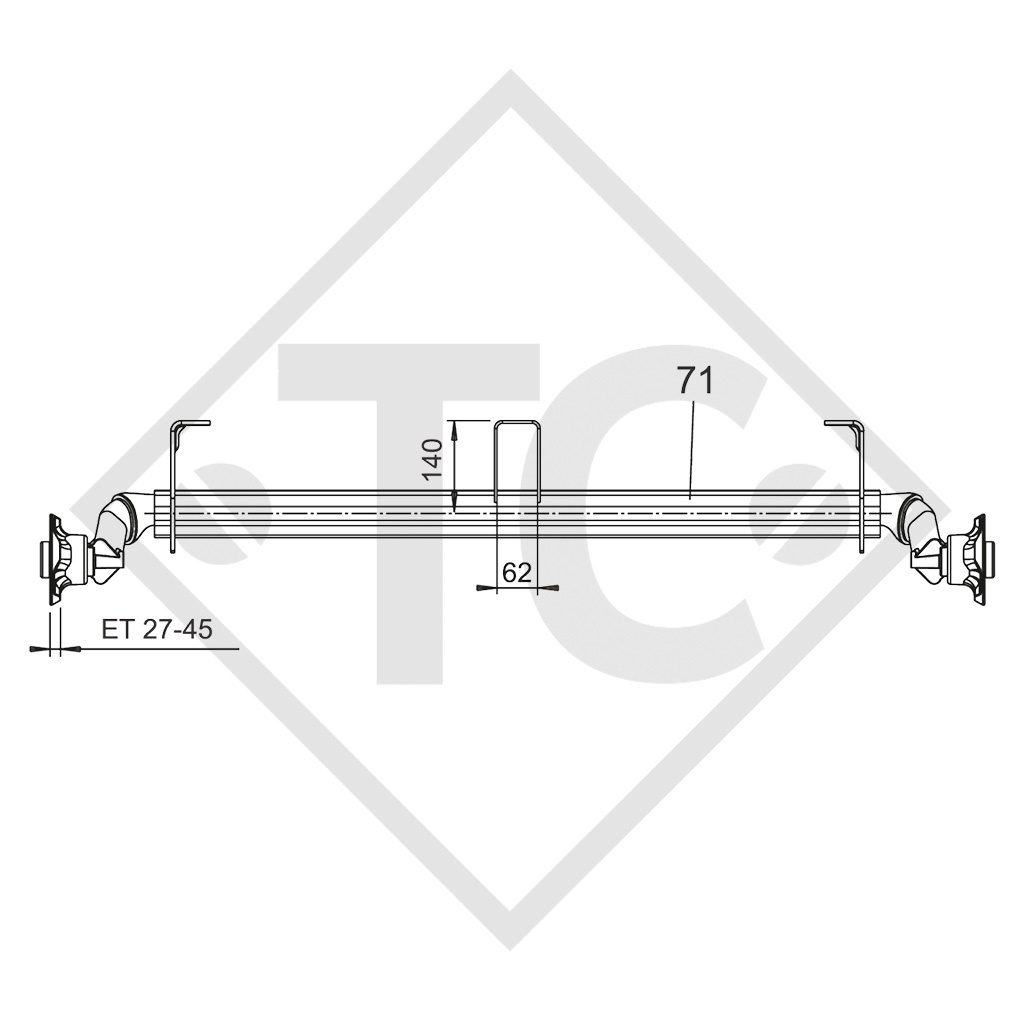

Offset (ET) 27-45mm
Swing arm position 30°
Axle profile 71mm

Original operating instructions
Replacement part identification number (ETI) 811676

TECHNOLOGY
Model: OPTIMA
Axle type: 700-2
Axle load: 600kg
Suspension: Hexagonal rubber suspension
Swing arm length: 145mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

IMPORTANT! These axles cannot be combined with 8" complete wheels!

SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
