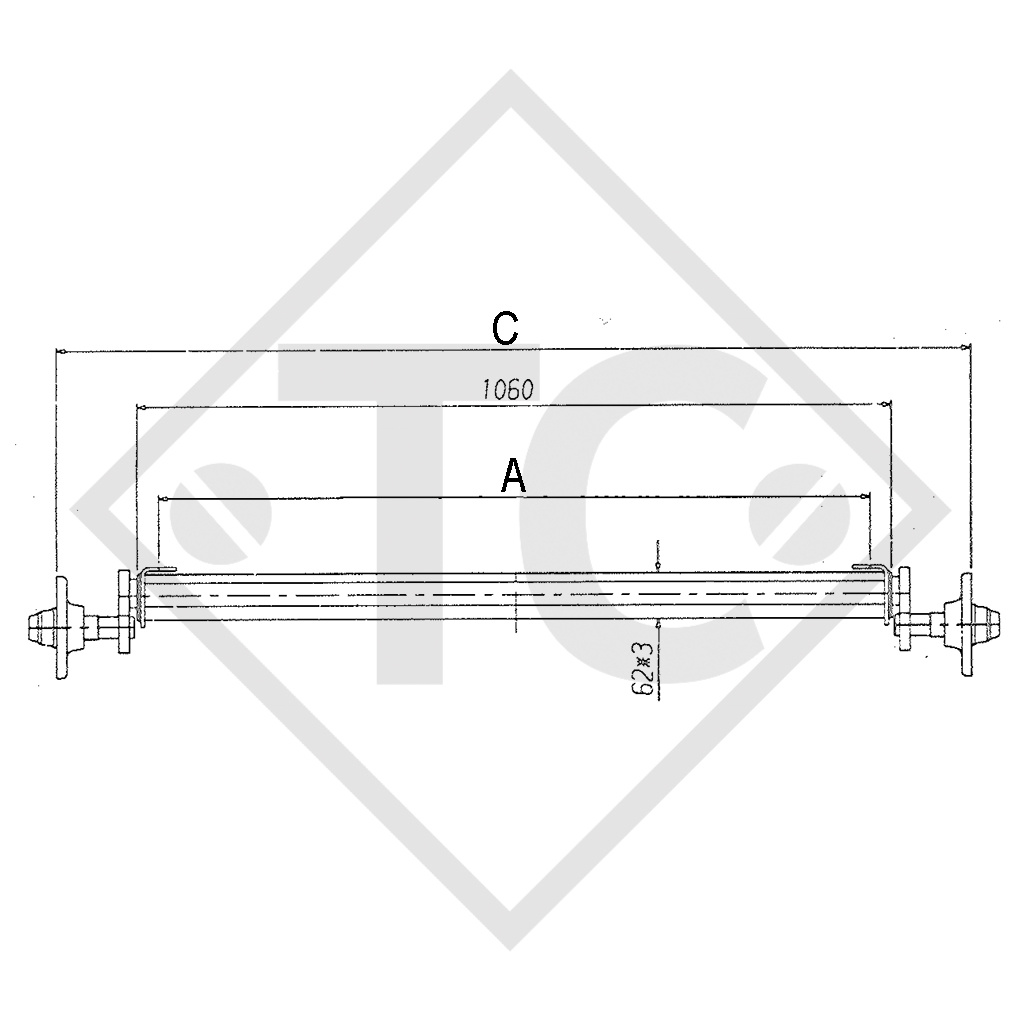

BC: dimension A 1285mm, OHF: dimension C 1285mm, wheel connection 100x4, offset (ET) 0mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 273160
BC: dimension A 1000mm
OHF: dimension C 1285mm
Wheel connection 100x4
Offset (ET) 0mm

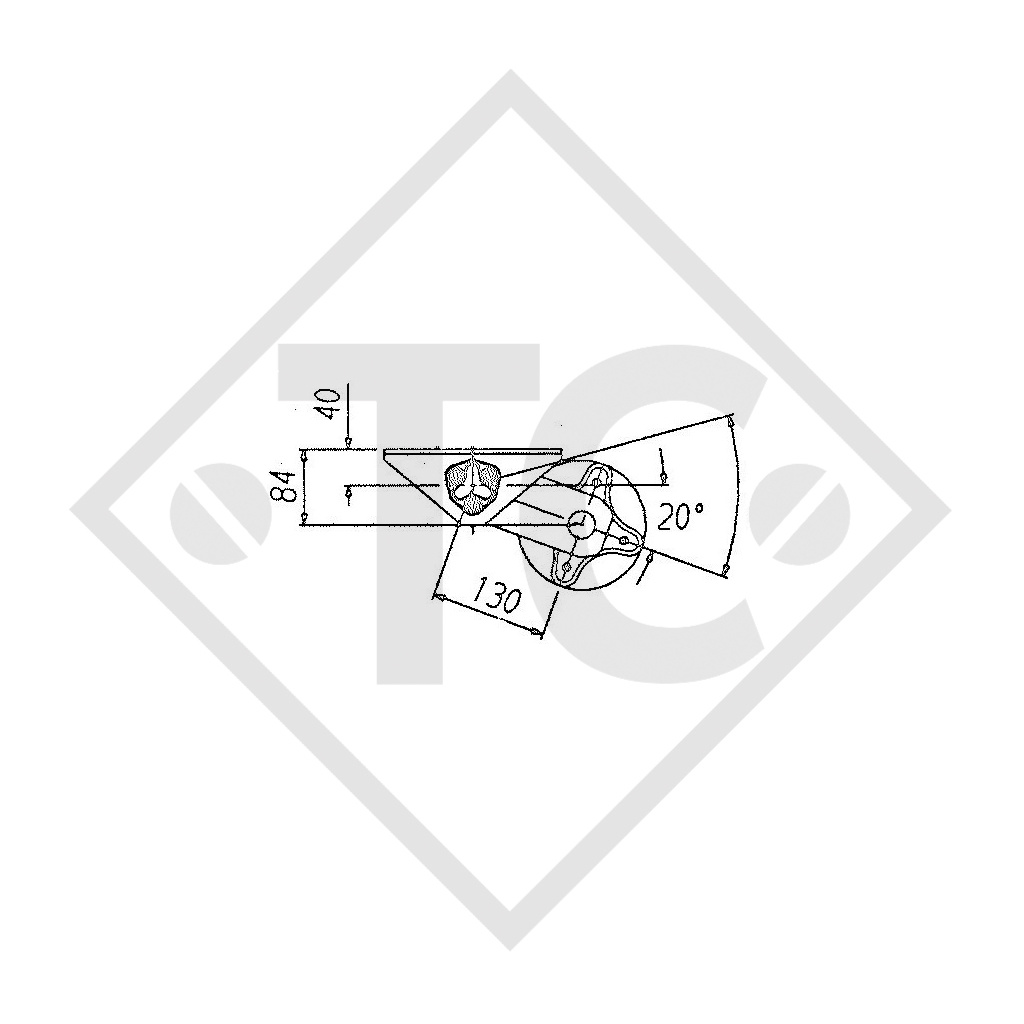

Swing arm position 20°
Axle profile 62mm
Original operating instructions
Replacement part identification number (ETI) 811676
TECHNOLOGY
Model: BASIC
Axle type: 400-5
Axle load: 500kg
Suspension: Hexagonal rubber suspension
Swing arm length: 130mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
IMPORTANT! These axles cannot be combined with 8" complete wheels!
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
