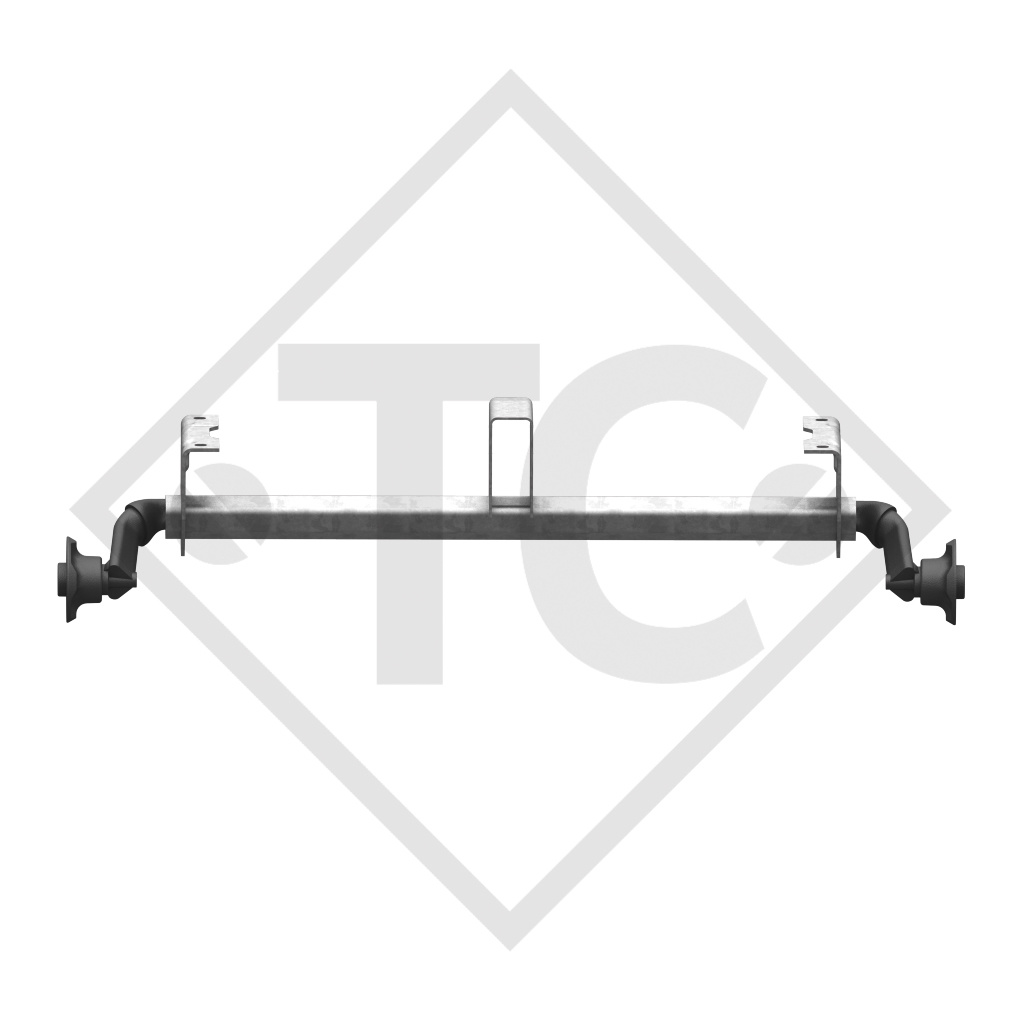

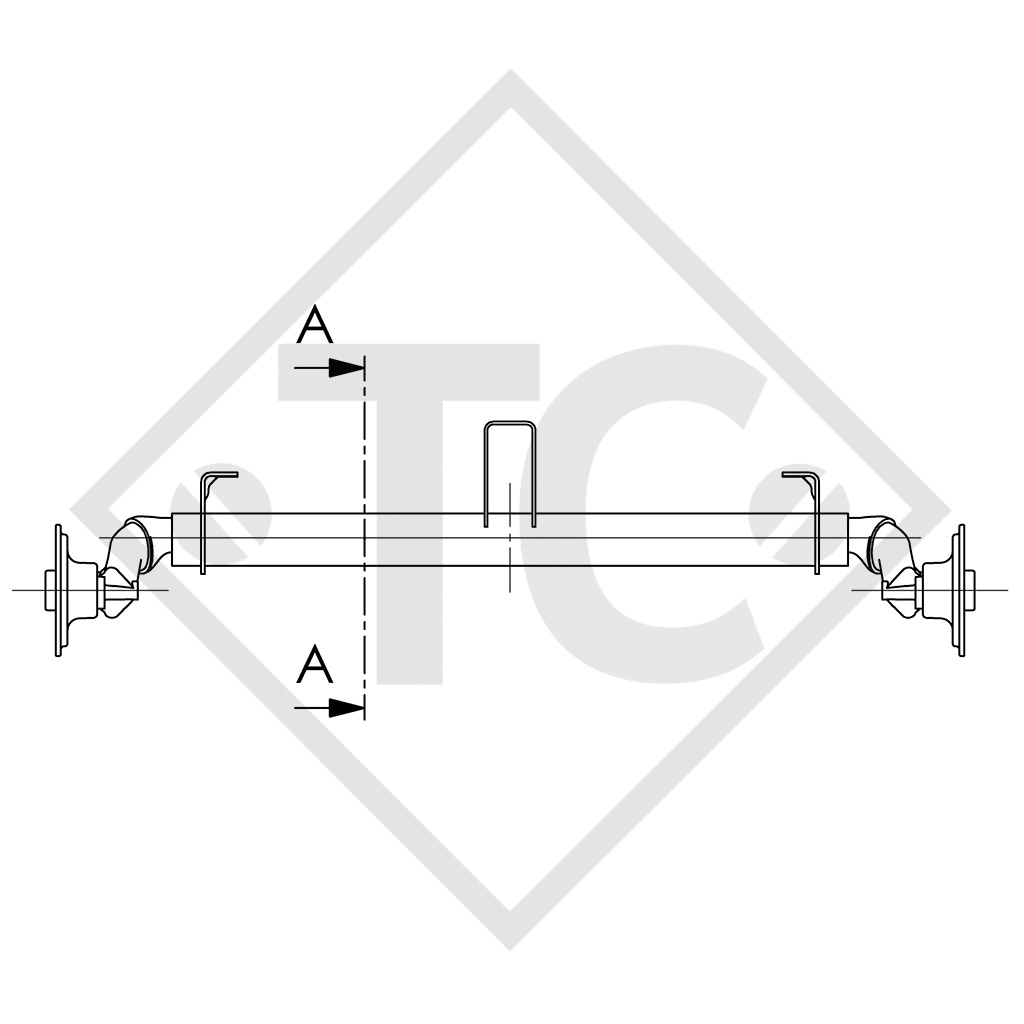

Home / Unbraked axle 750kg BASIC axle type 700-5 with shackle and high axle bracket
dimension A 800mm, dimension C 1250mm, wheel connection 112x5, offset (ET) 27-45mm, taper-head wheel bolts M12x1.5. Read more...
Part no. 1705097

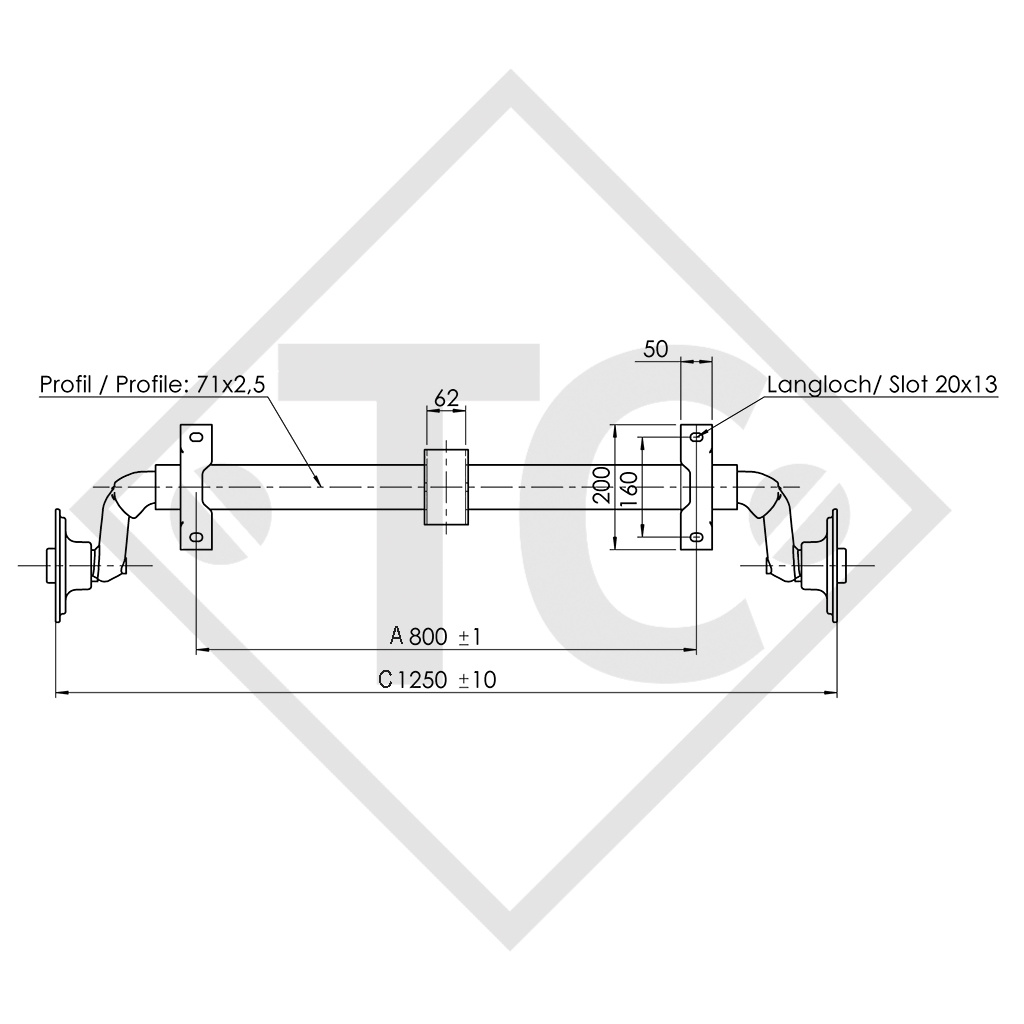

BC: dimension A 800mm
OHF: dimension C 1250mm
Wheel connection 112x5
Offset (ET) 27-45mm
Swing arm position 30°
Axle profile 71mm
Original operating instructions
Replacement part identification number (ETI) 811241
TECHNOLOGY
Model: PLUS OPTIMA
Axle type: 700-5
Axle load: 750kg
Suspension: Hexagonal rubber suspension
Swing arm length: 145mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm
IMPORTANT! These axles cannot be combined with 8" complete wheels!
SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
