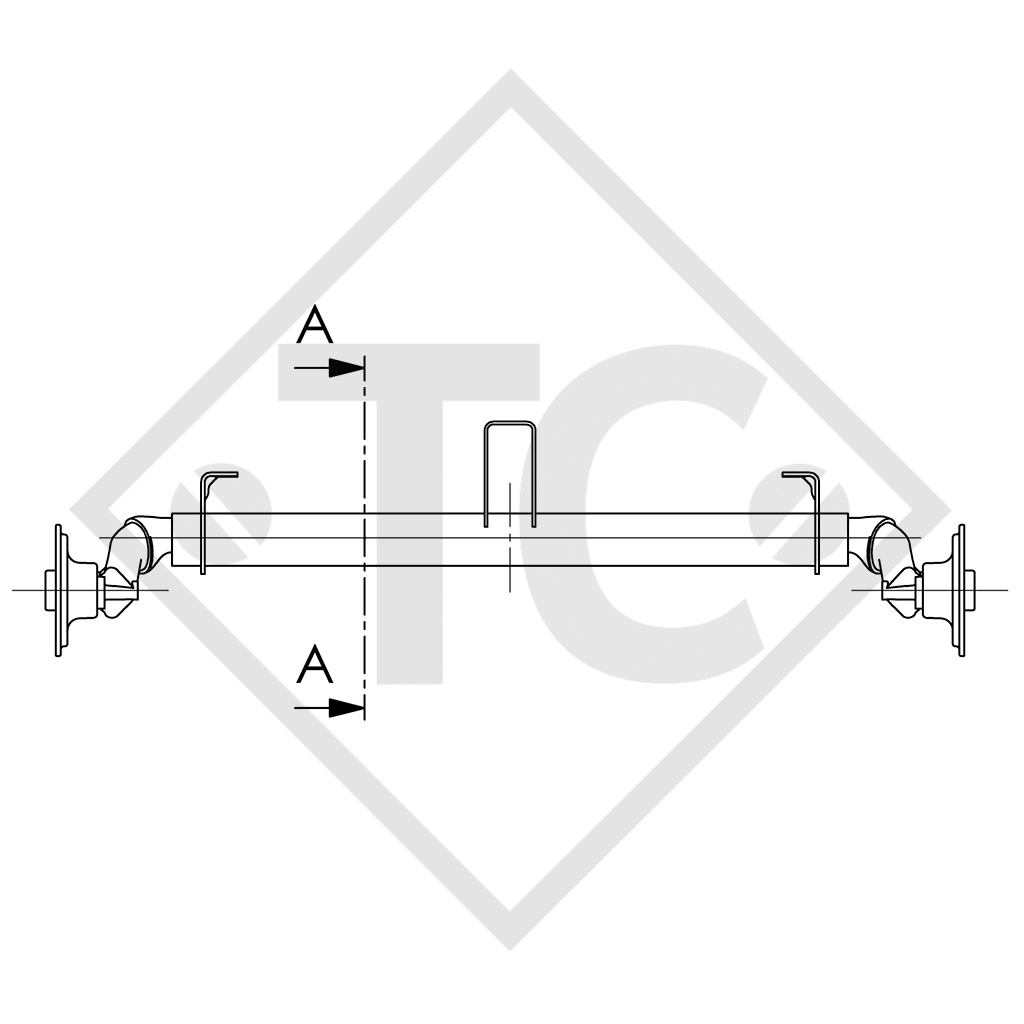

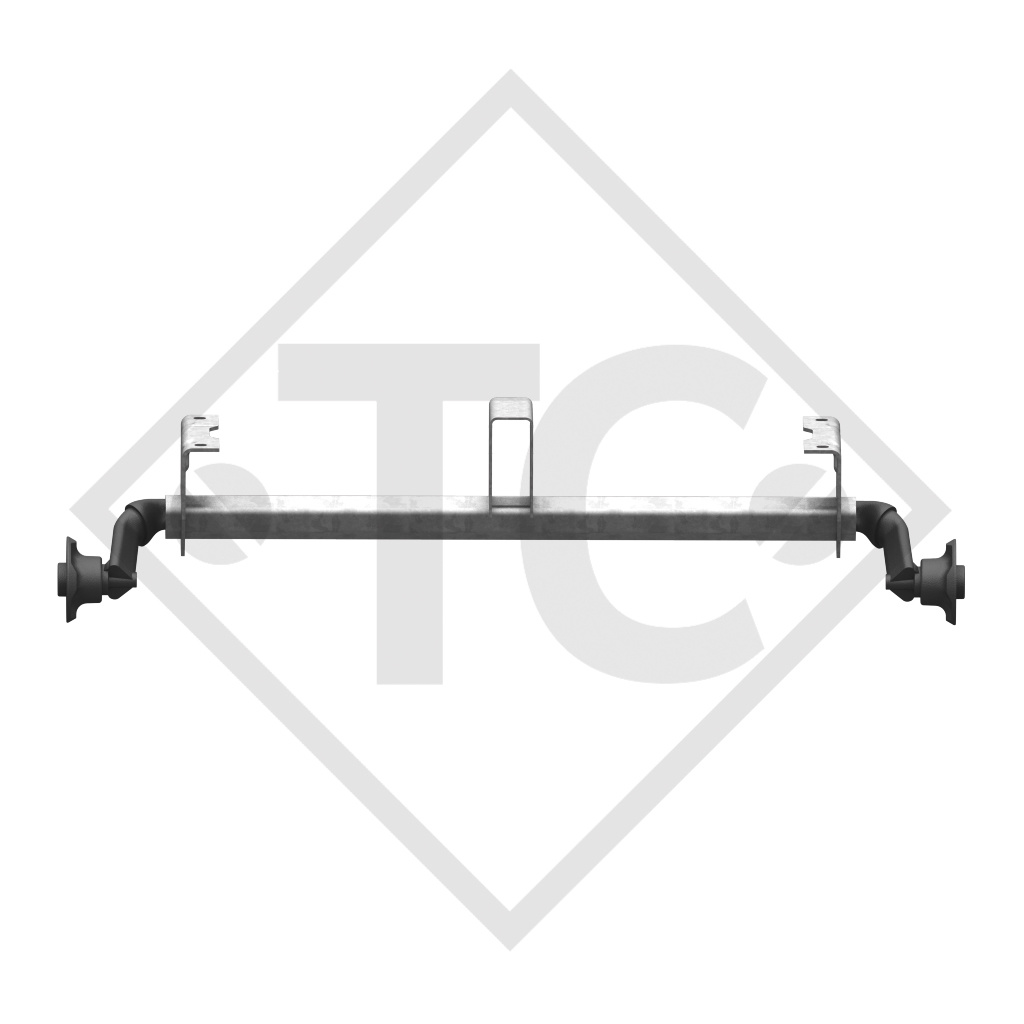

AL-KO Unbraked axle 750kg axle type 700-5 with high axle bracket

Part no. 1708067

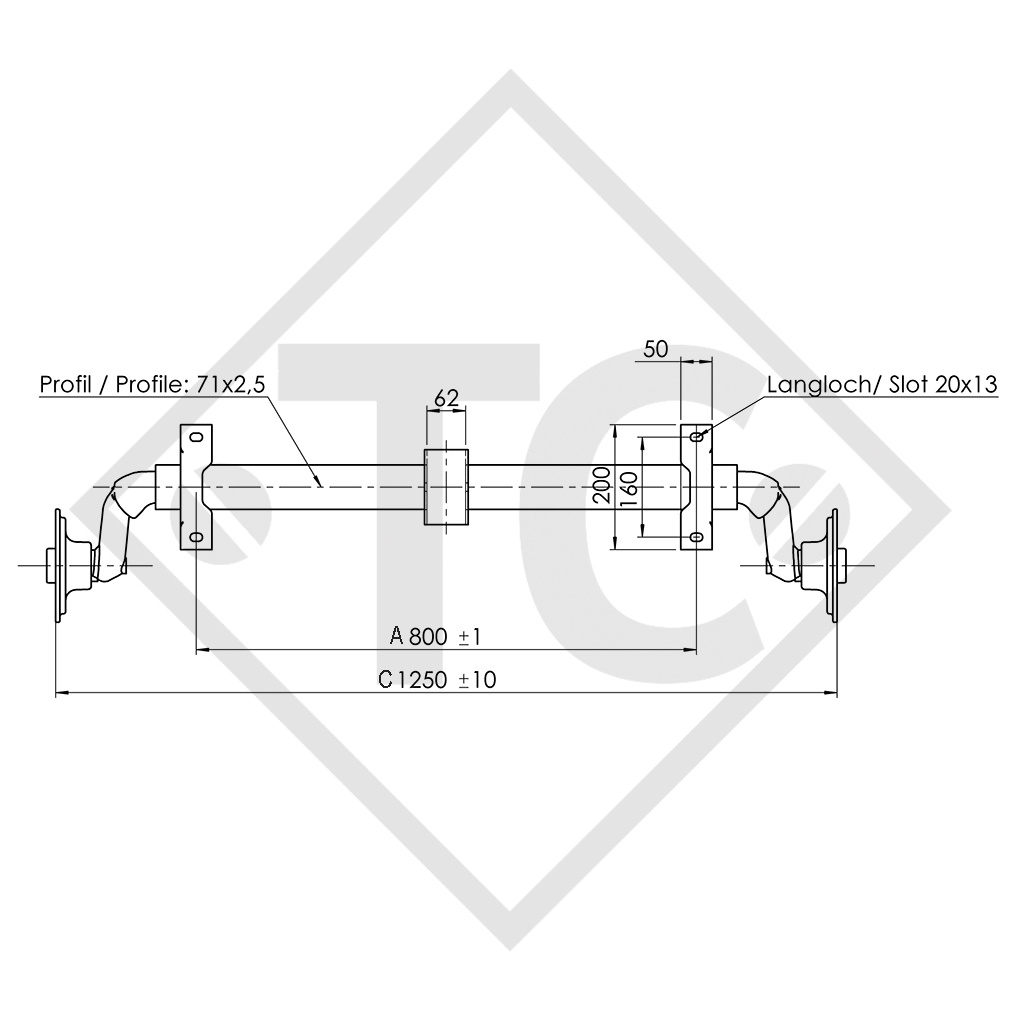

BC: dimension A 800mm
OHF: dimension C 1230mm
Wheel connection 112x5
Offset (ET) 27-45mm

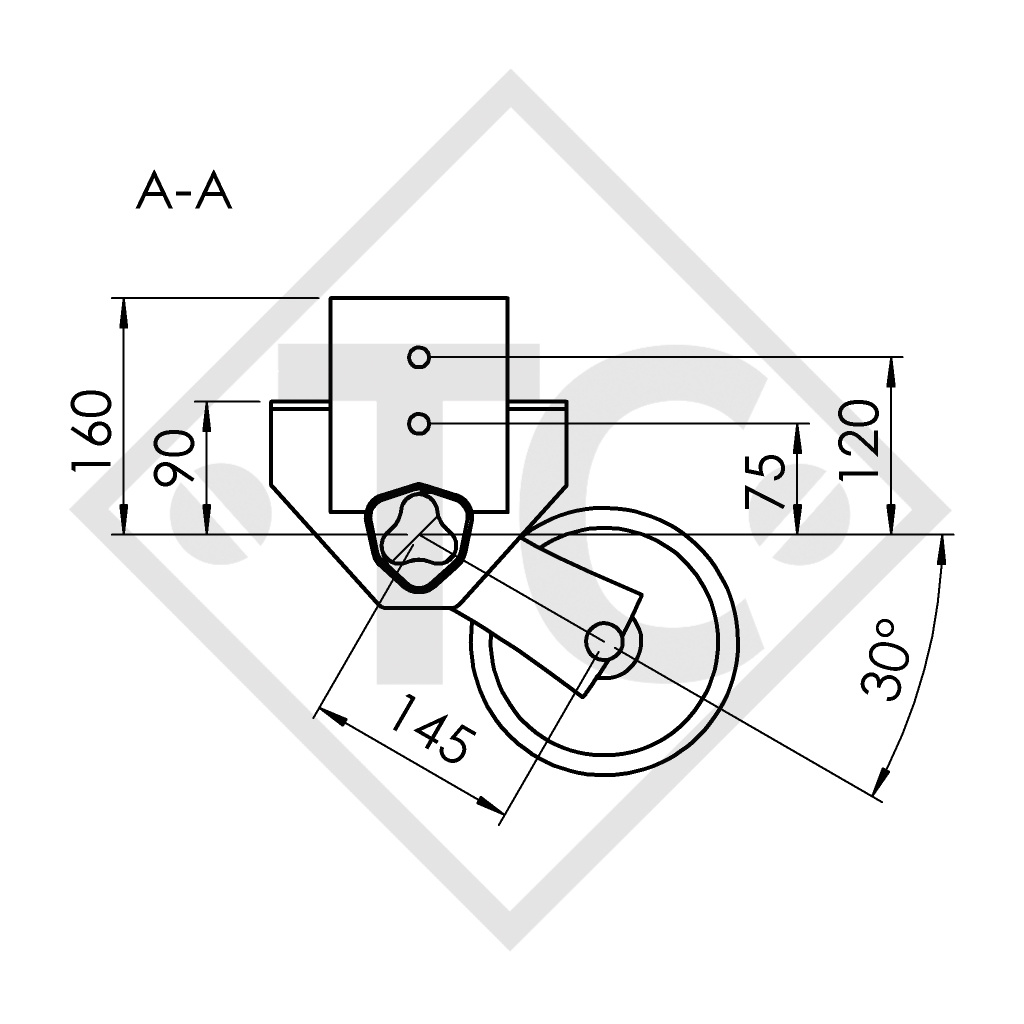

Swing arm position 30°
Axle profile 71mm

TECHNOLOGY
Model: GU UBR EA 750
Axle type: 700-5
Axle load: 750kg
Suspension: Hexagonal rubber suspension
Swing arm length: 145mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm

IMPORTANT! These axles cannot be combined with 8" complete wheels!

SCOPE OF DELIVERY
Axle

SURFACE TREATMENT
Axle profile hot-dip galvanised
