BC: dimension A 1750mm, OHF: dimension C 2250mm, wheel connection 112x5, offset (ET) 27-33mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Part no. 20057022

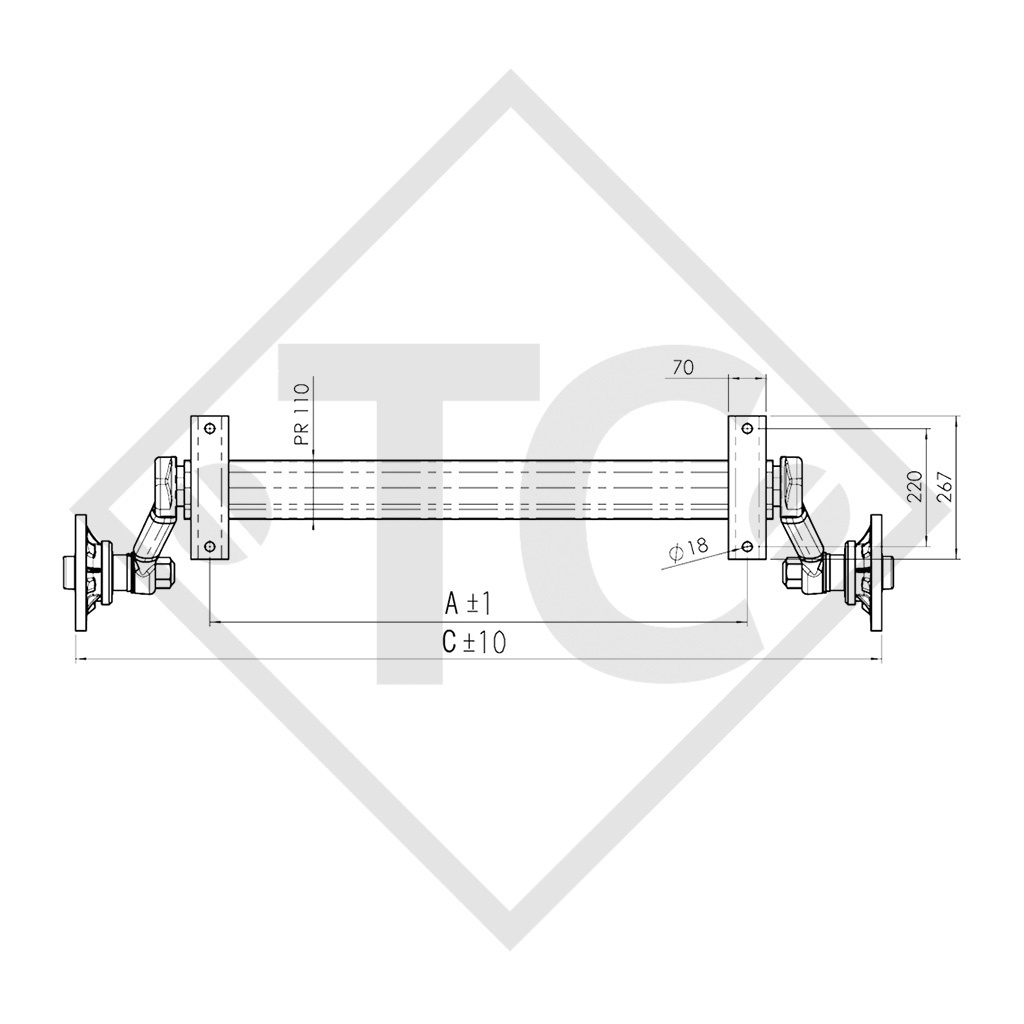

BC: dimension A 1750mm
OHF: dimension C 2250mm
Wheel connection 112x5

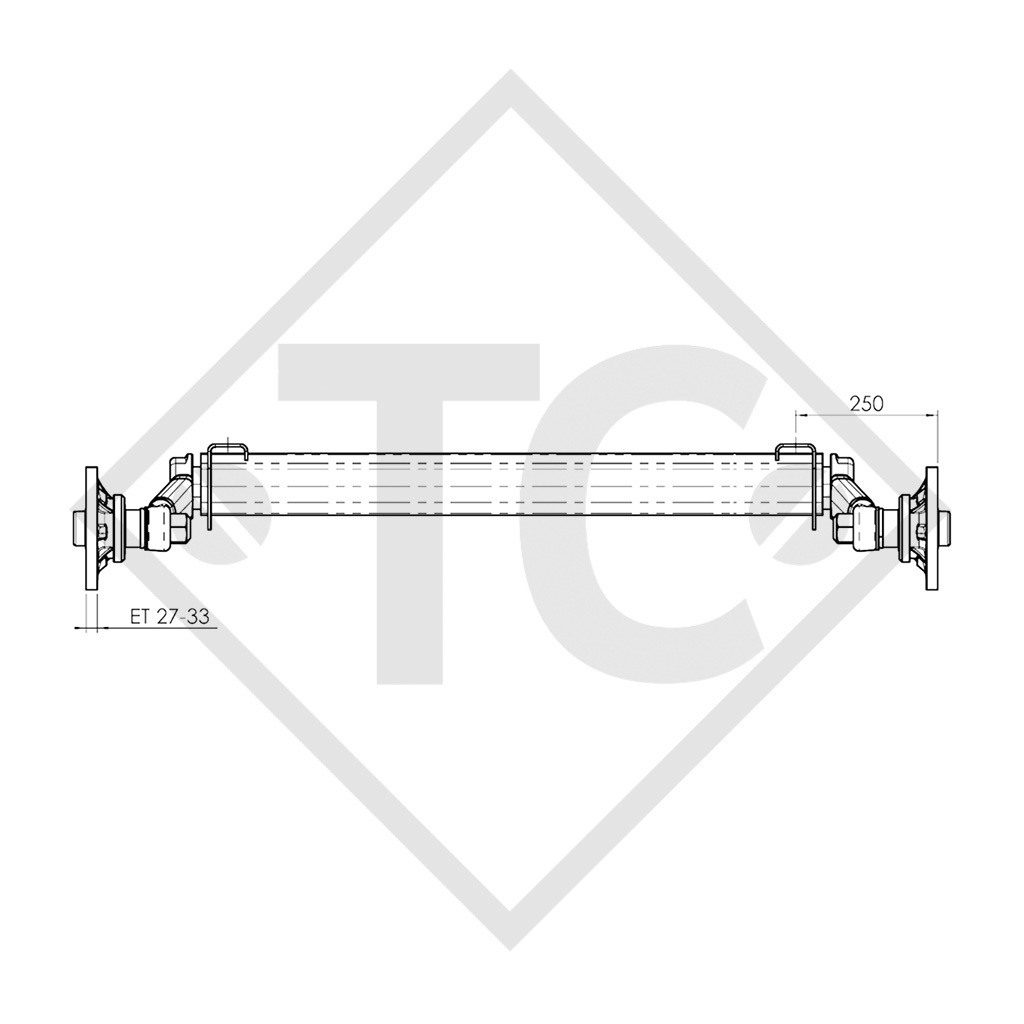

Offset (ET) 27-33mm

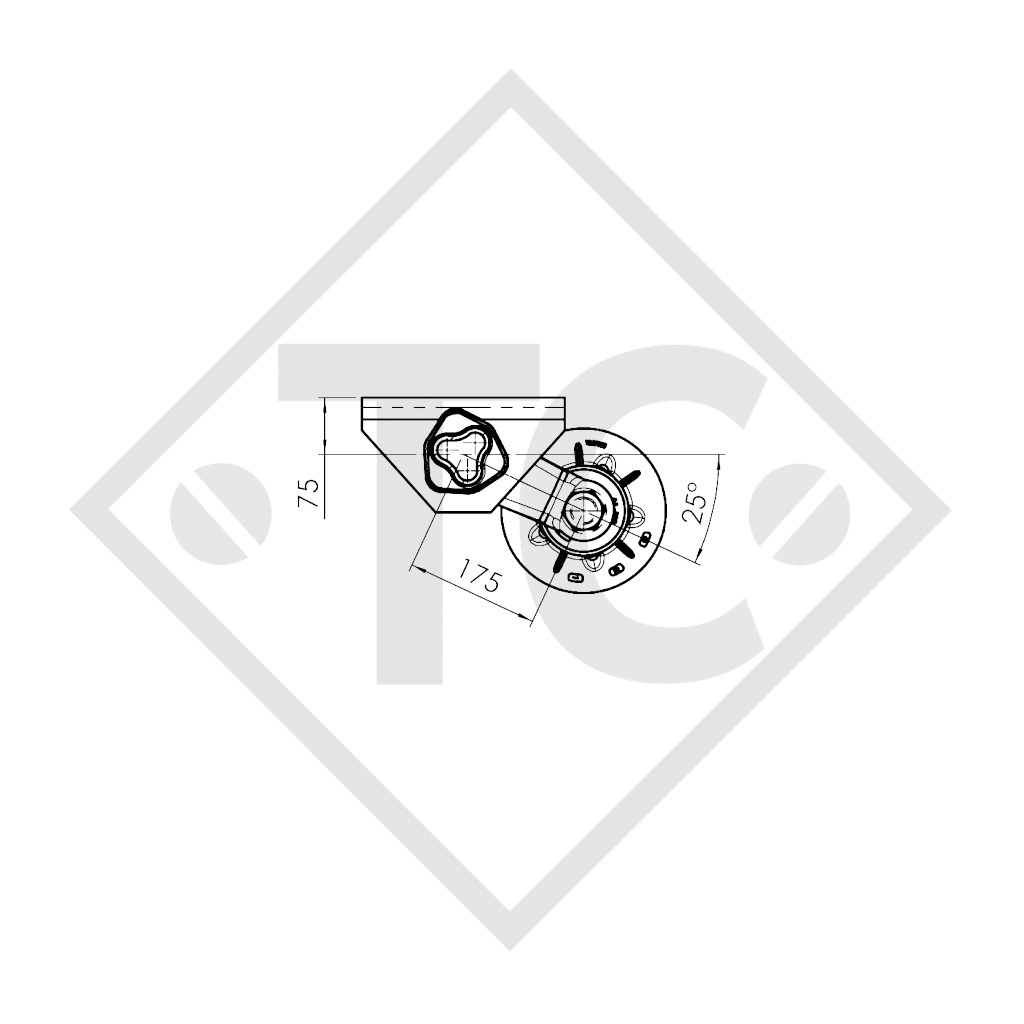

Swing arm position 25°
Axle profile 110mm

Original operating instructions
Replacement part identification number (ETI) 811628

TECHNOLOGY
Model: PLUS
Axle type: 1800-9
Axle load: 1800kg
Suspension: Hexagonal rubber suspension
Swing arm length: 175mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 66,5mm

SCOPE OF DELIVERY

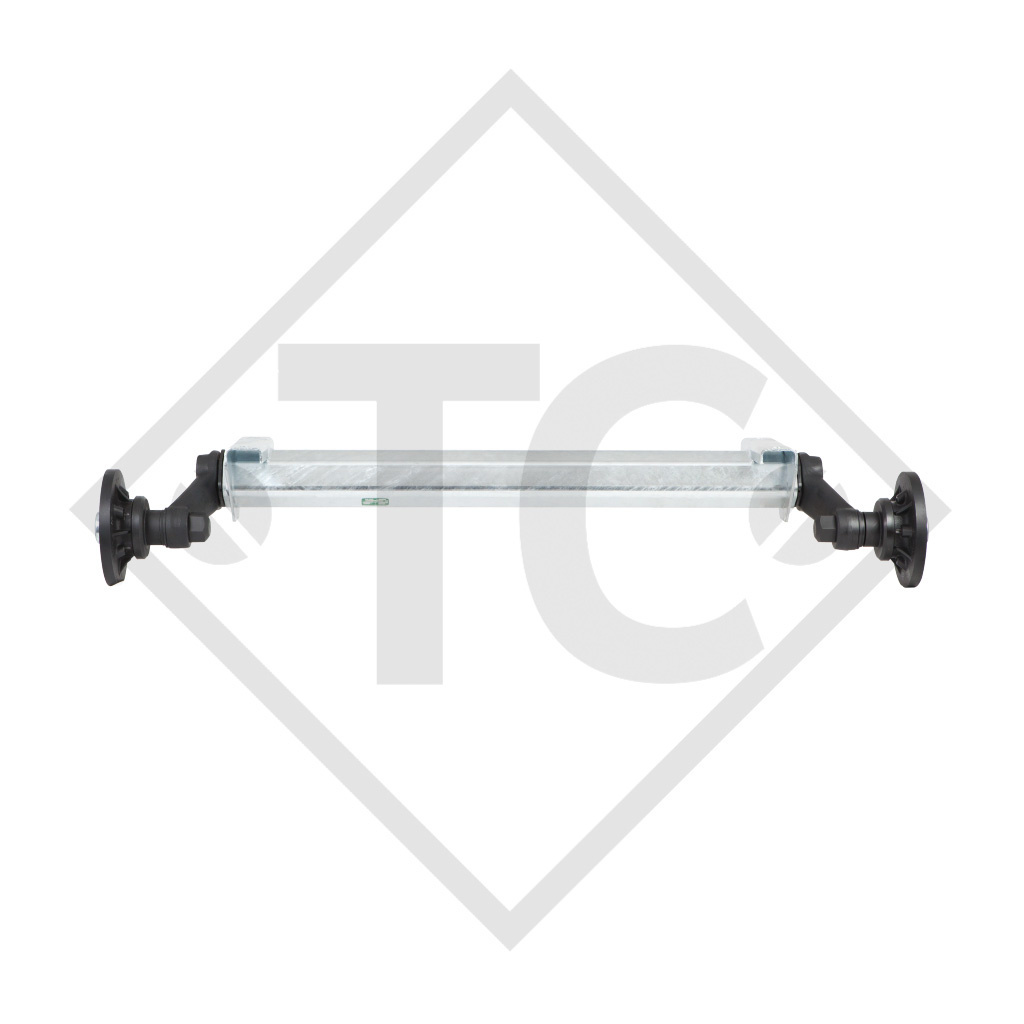

Axle
Ball-head wheel bolts M12x1.5 loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
