BC: dimension A 1850mm, OHF: dimension C 2300mm, wheel connection 112x5, offset (ET) 27-33mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Part no. 20056926

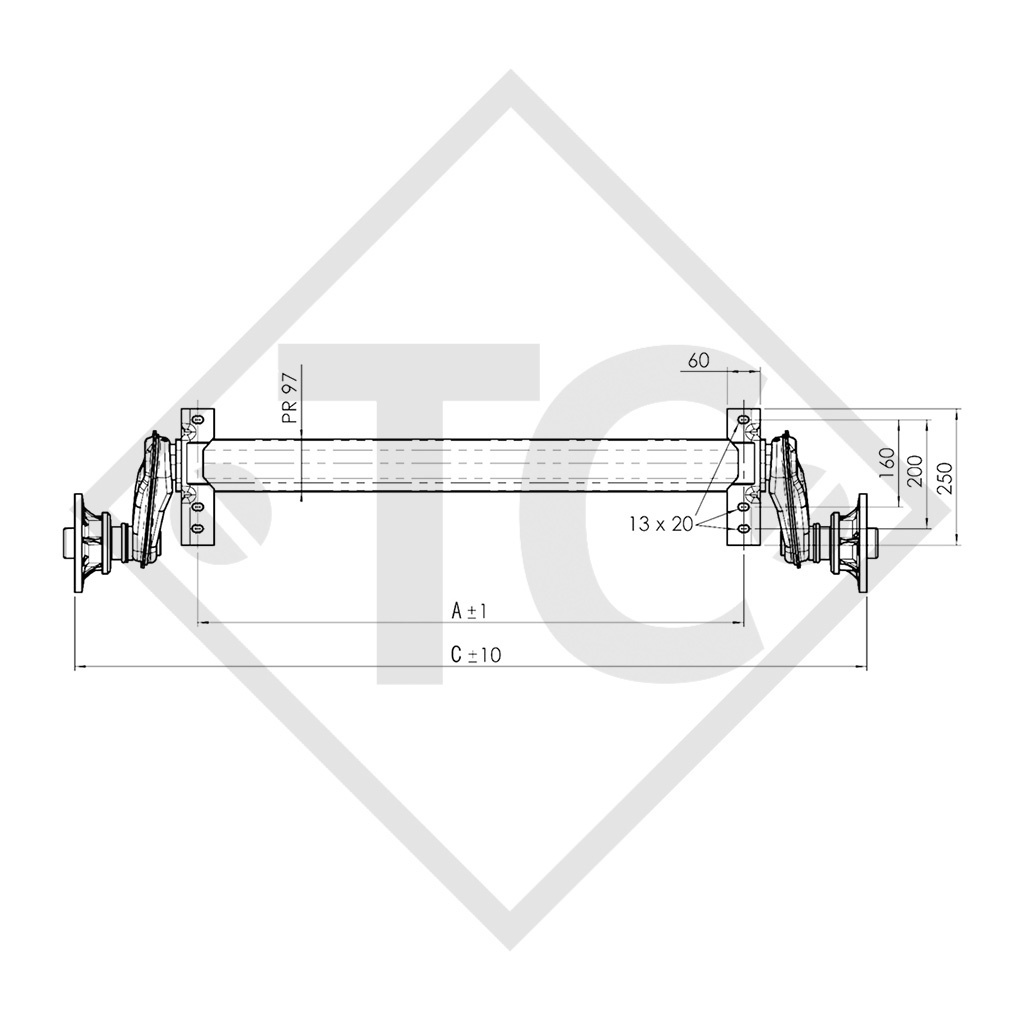

BC: dimension A 1850mm
OHF: dimension C 2300mm
Wheel connection 112x5

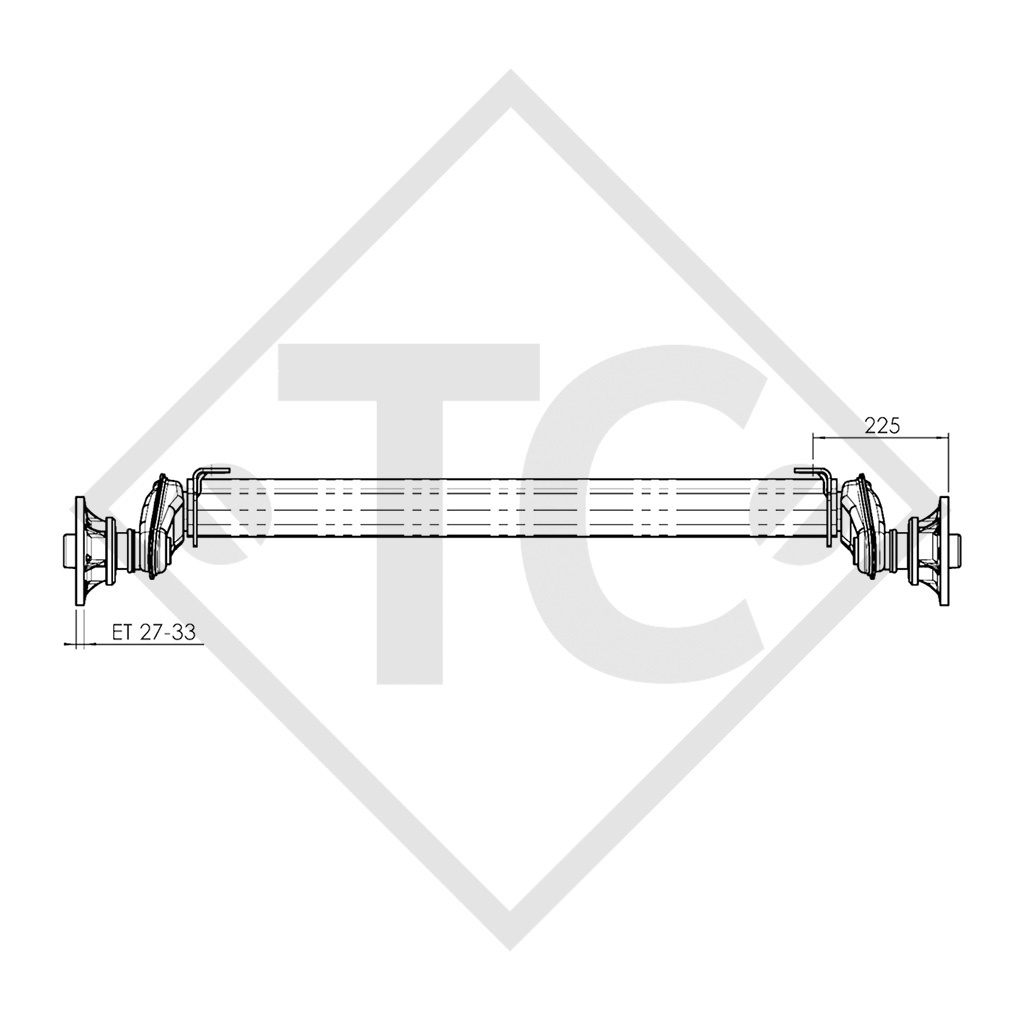

Offset (ET) 27-33mm

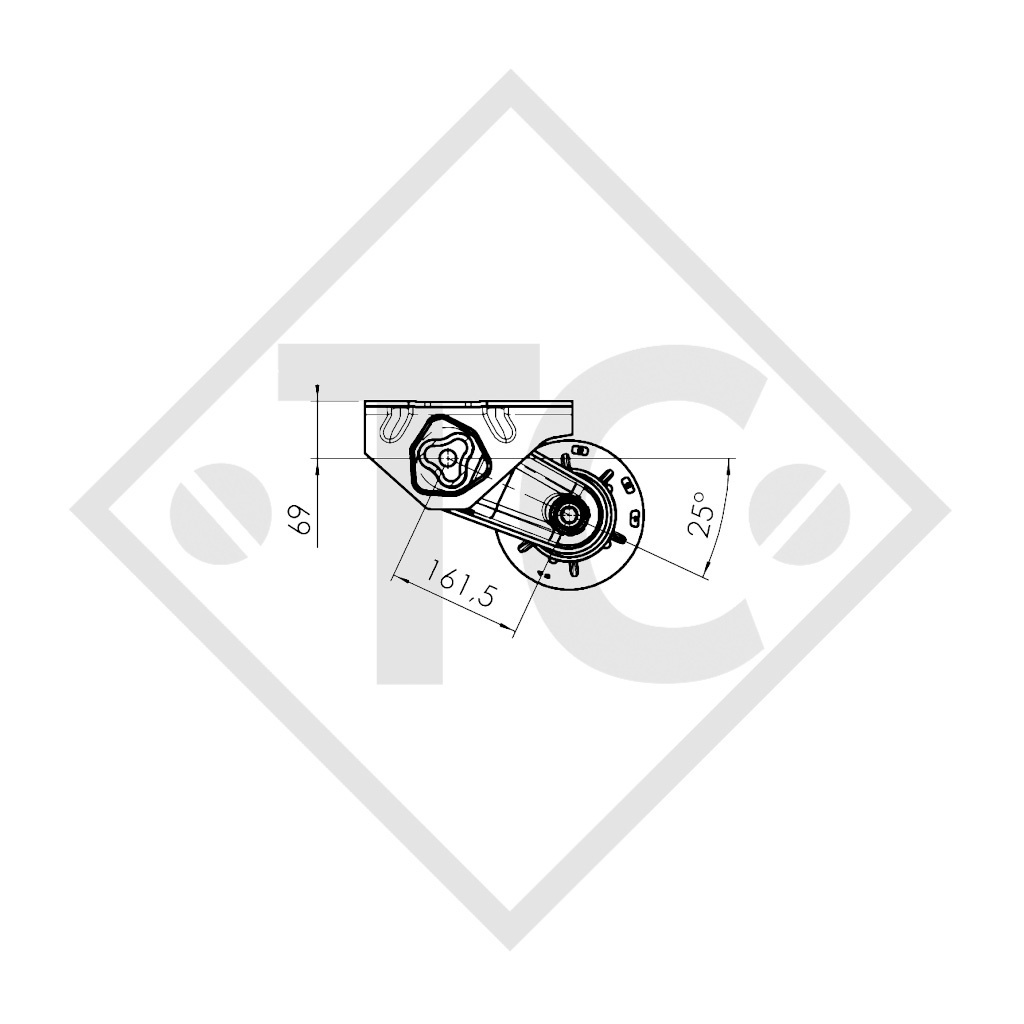

Swing arm position 25°
Axle profile 97mm

Original operating instructions
Replacement part identification number (ETI) 811982

TECHNOLOGY
Model: BASIC
Axle type: 1600-3
Axle load: 1500kg
Suspension: Hexagonal rubber suspension
Swing arm length: 161,5mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose

SURFACE TREATMENT
Axle profile hot-dip galvanised

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

... ...
