BC: dimension A 1070mm, OHF: dimension C 1520mm, wheel connection 112x5, offset (ET) 27-33mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Part no. 20056107

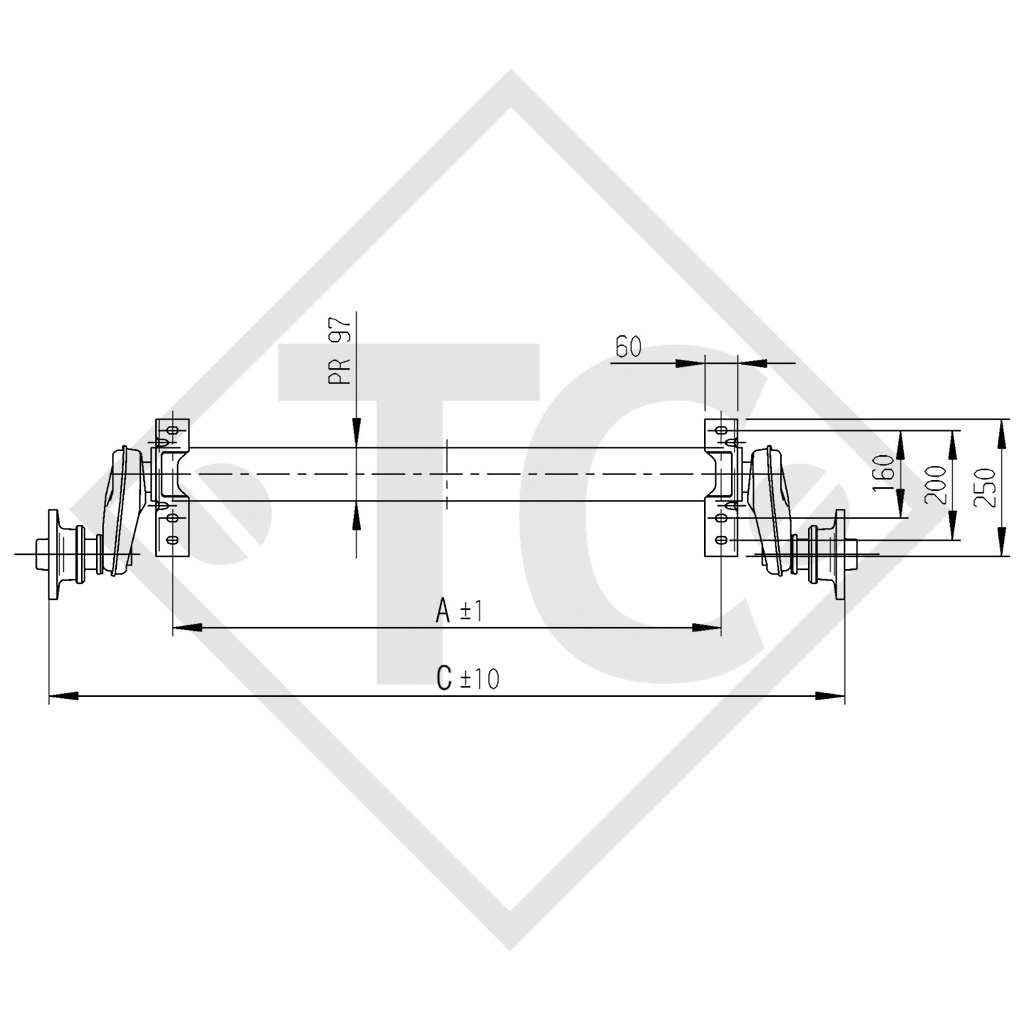

BC: dimension A 1070mm
OHF: dimension C 1520mm
Wheel connection 112x5
Offset (ET) 27-33mm

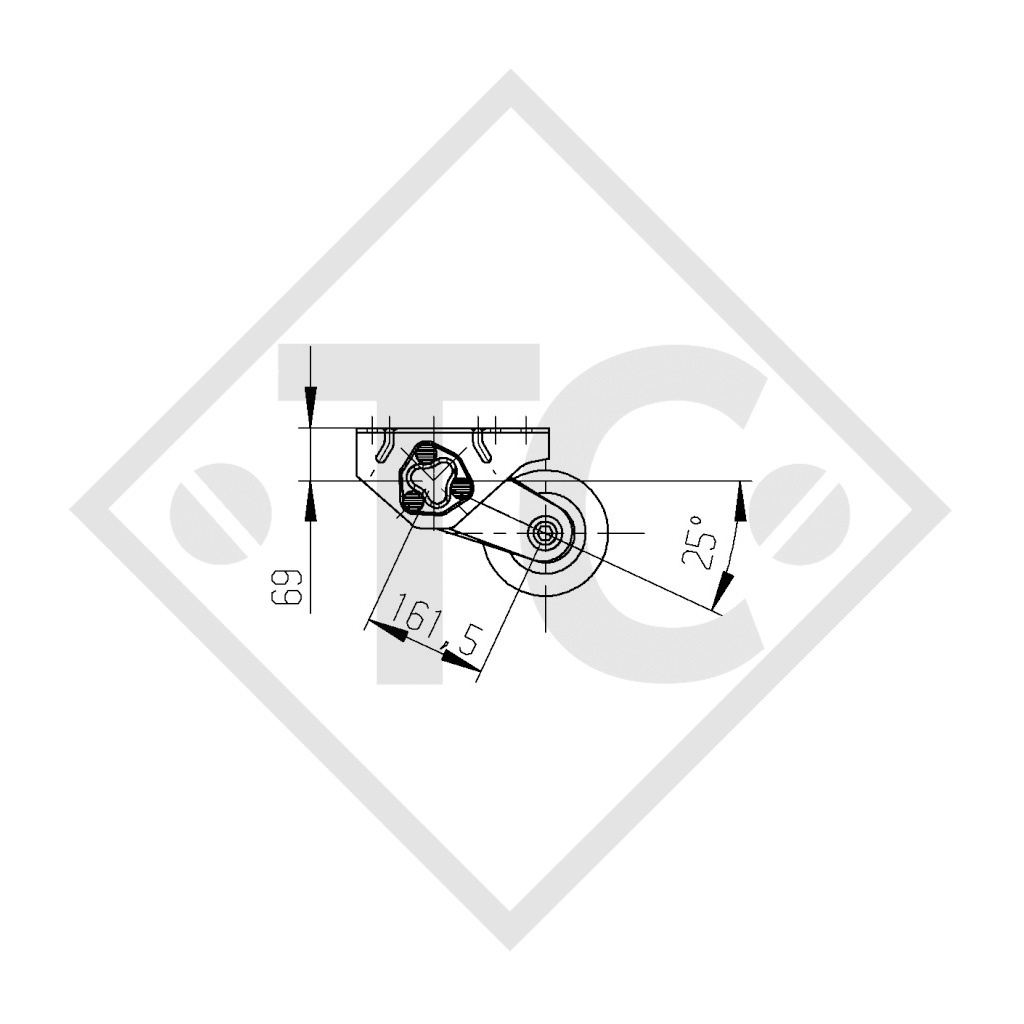

Swing arm position 25°
Axle profile 97mm

Original operating instructions
Replacement part identification number (ETI) 811980

TECHNOLOGY
Model: BASIC
Axle type: UBR 1200-5
Axle load: 1300kg
Suspension: Hexagonal rubber suspension
Swing arm length: 161,5mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
