BC: dimension A 1580mm, OHF: dimension C 2030mm, wheel connection 100x4, offset (ET) 27-33mm, taper-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Part no. 20056221

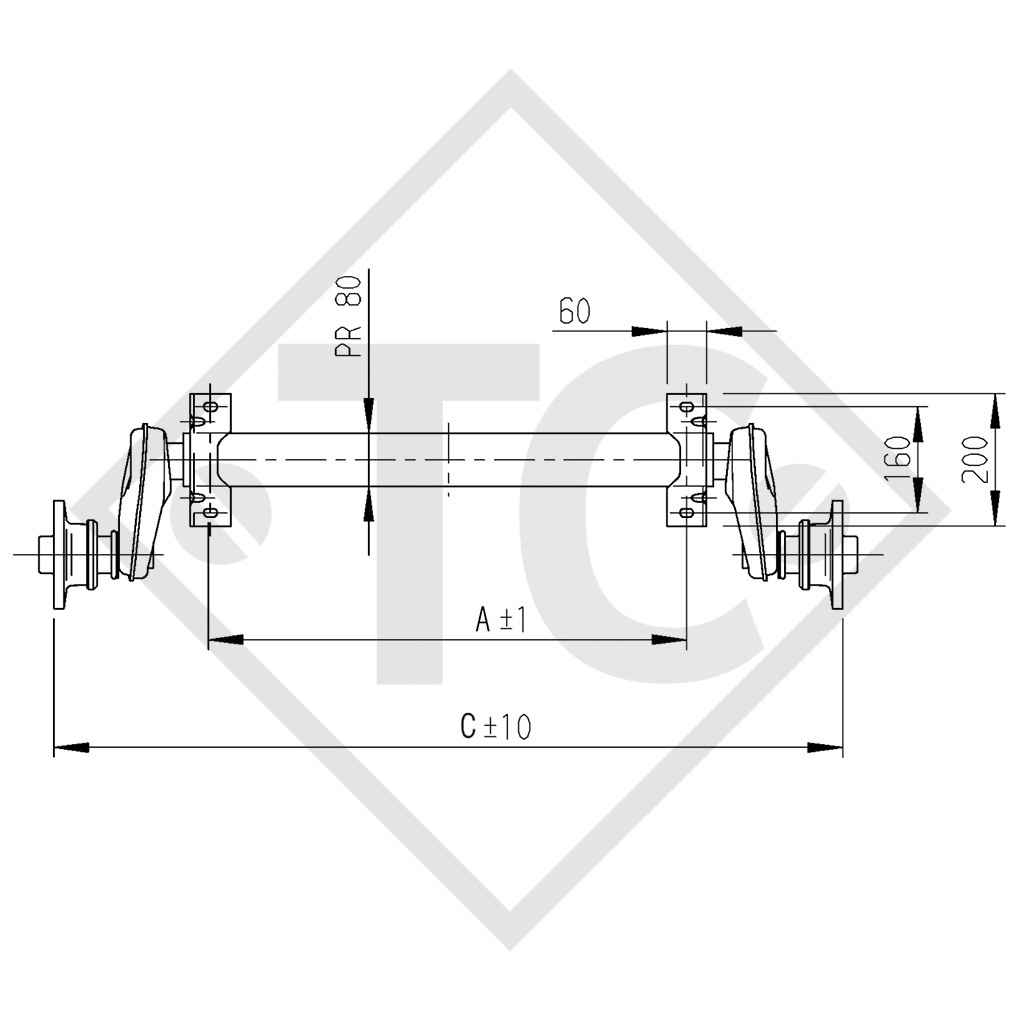

BC: dimension A 1580mm
OHF: dimension C 2030mm
Wheel connection 100x4

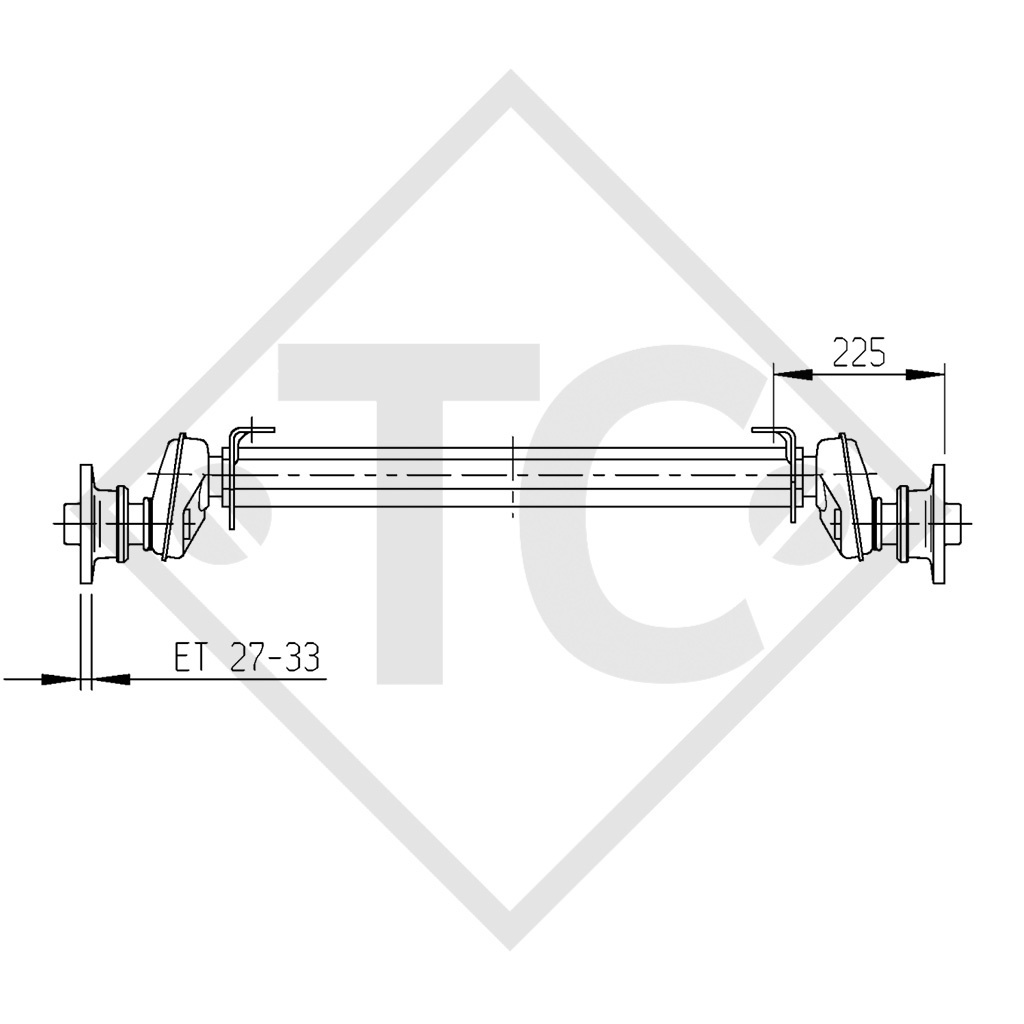

Offset (ET) 27-33mm

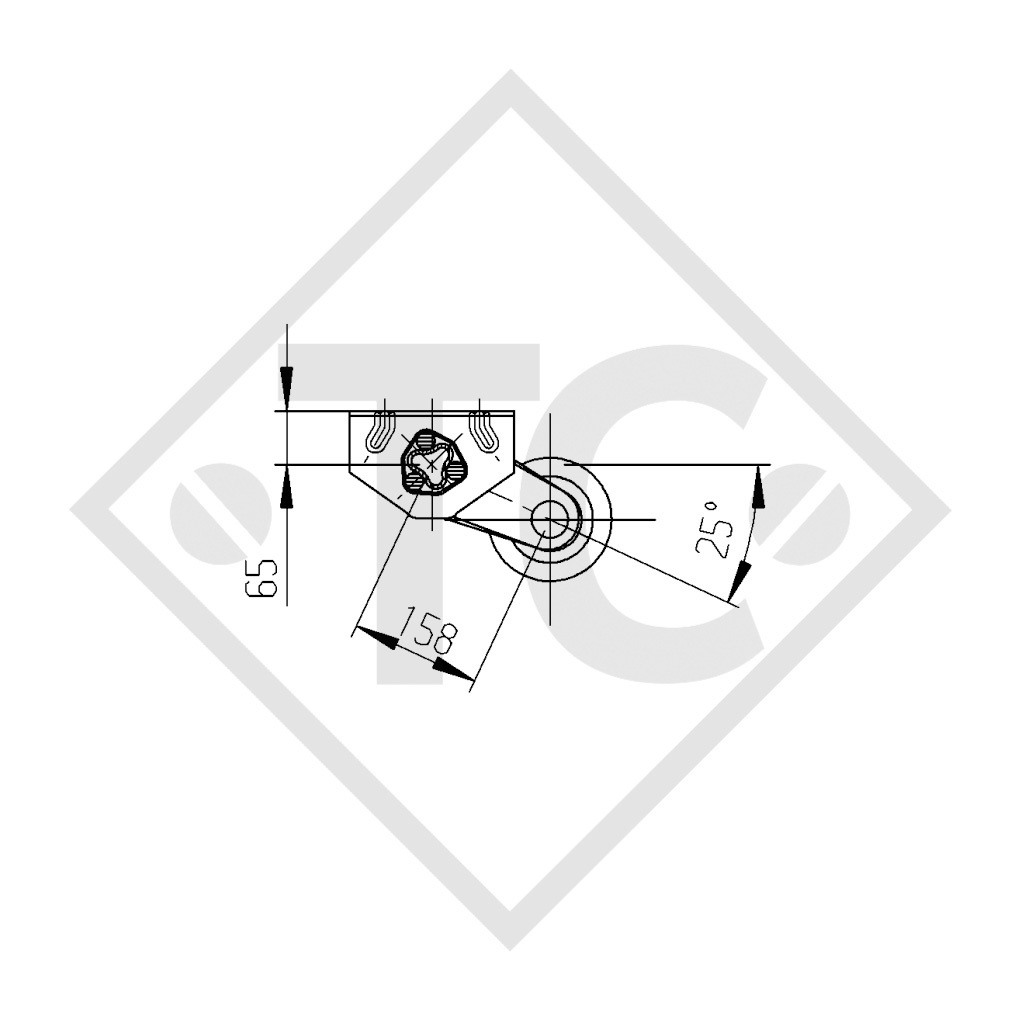

Swing arm position 25°
Axle profile 80mm

Original operating instructions
Replacement part identification number (ETI) 811980

TECHNOLOGY
Model: BASIC

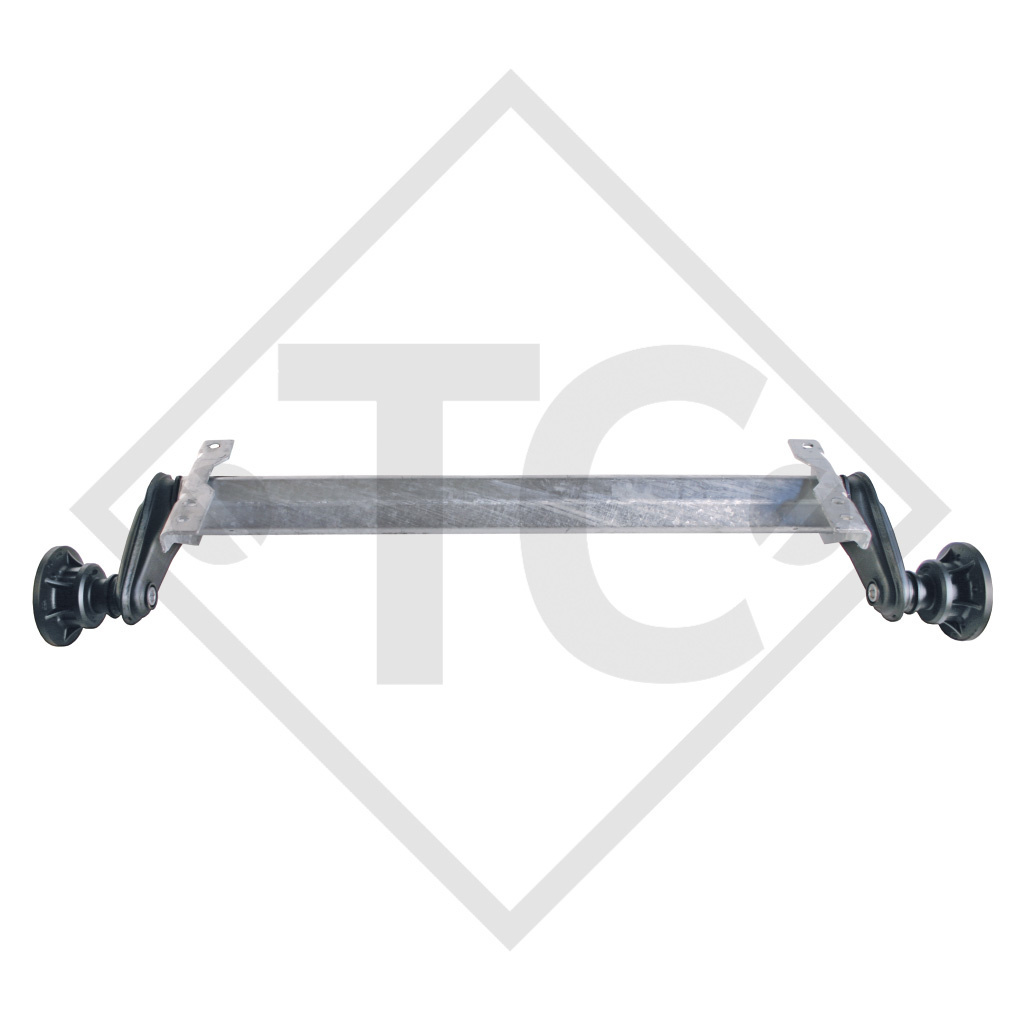

Axle type: UBR 850-10
Axle load: 1000kg
Suspension: Hexagonal rubber suspension
Swing arm length: 158mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
