total length K (at 0°) 2659mm, drawbar length E 1650mm, drawbar section 70x110x4mm, intermediate piece 750mm, perm. nose load 100kg, without hitch components. Read more...

Wishlist: Add to comparison:

Part no. 20057410

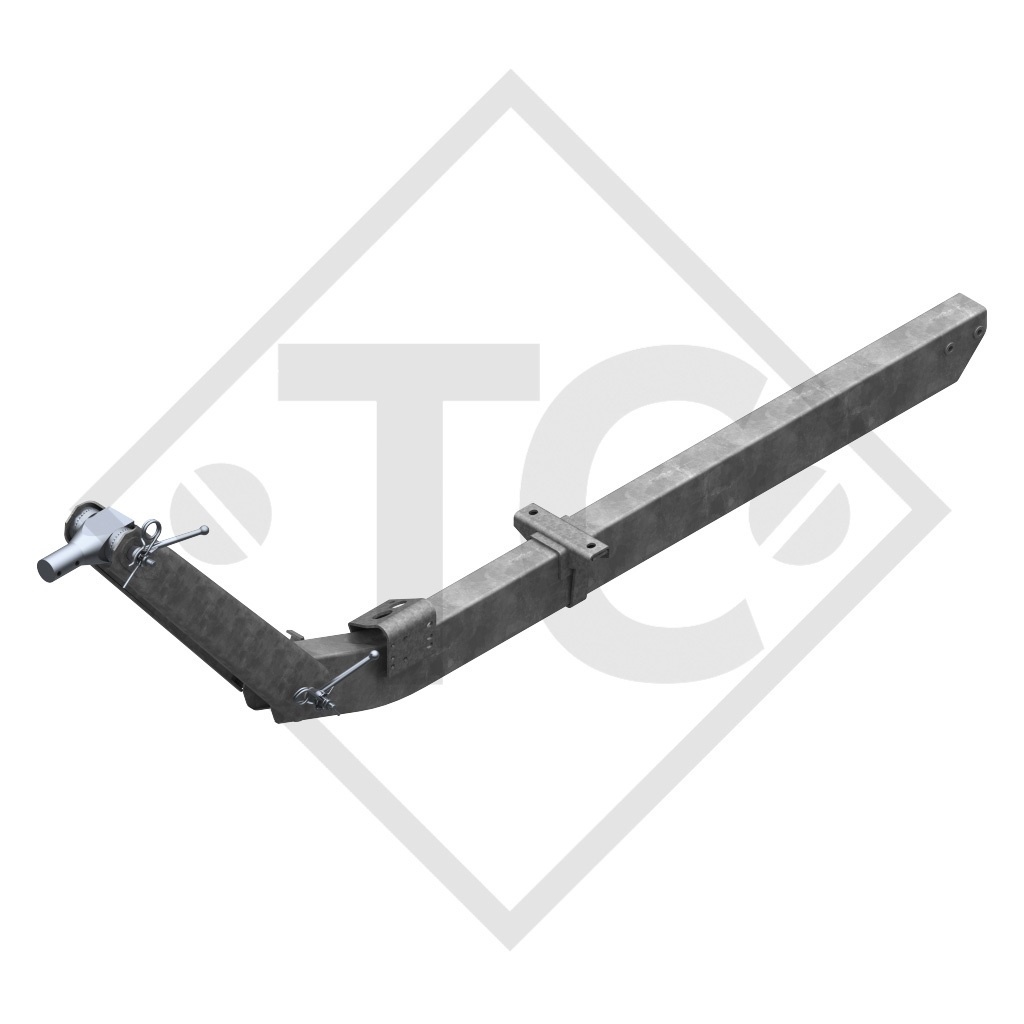

Drawbar cpl. with drawbar section mounted (without hitch components)

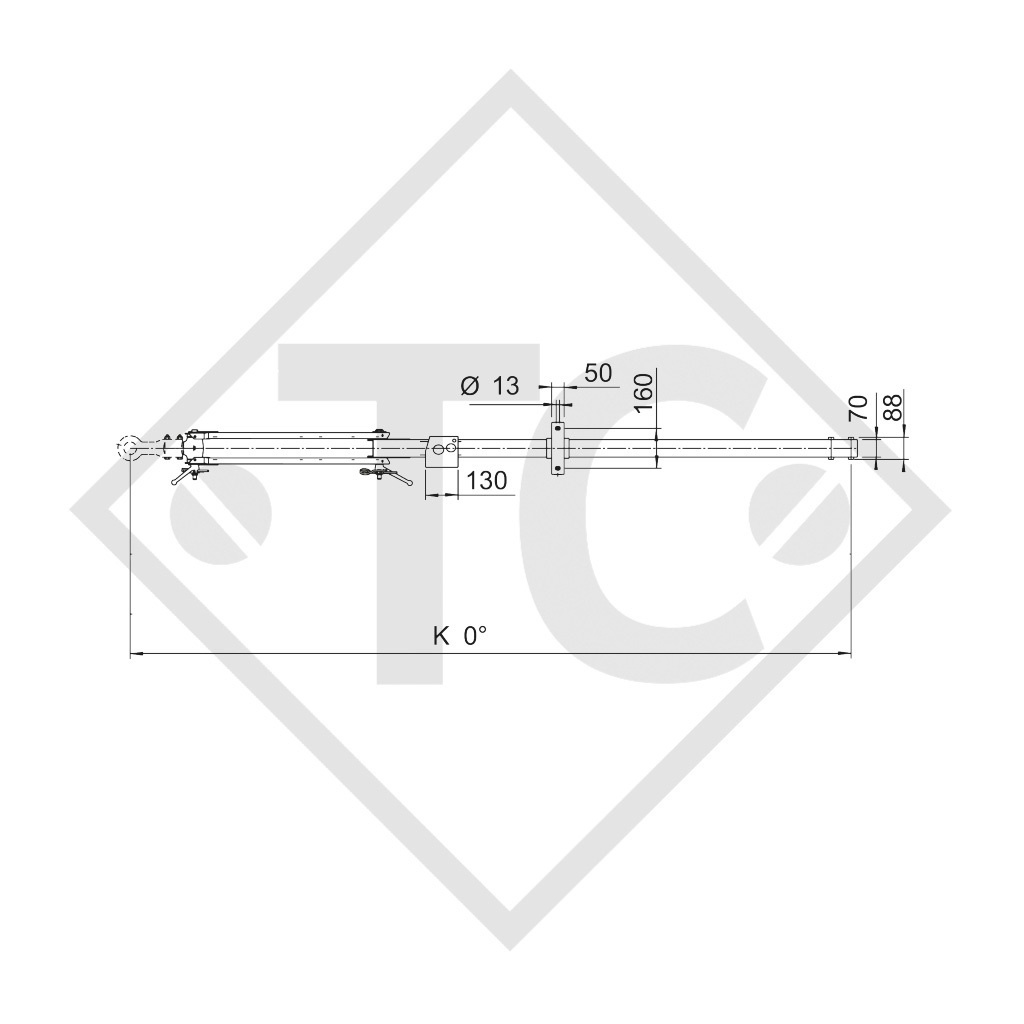

Total length K at 0°: 2659mm with assembly example for drawbar eye DIN D40/F
* = DIN drawbar eye (the dimensions must be recalculated for other hitch components)

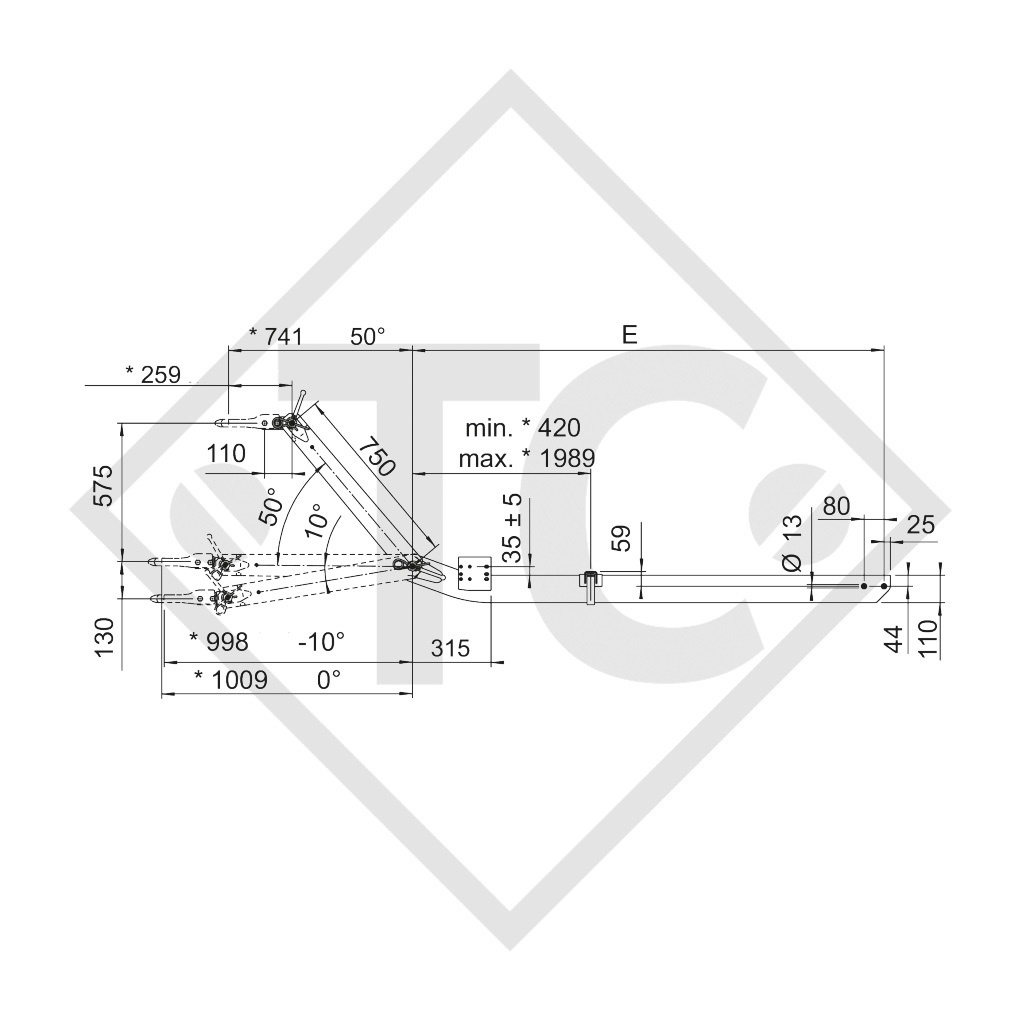

Drawbar length E: 1650mm
Intermediate piece 750mm

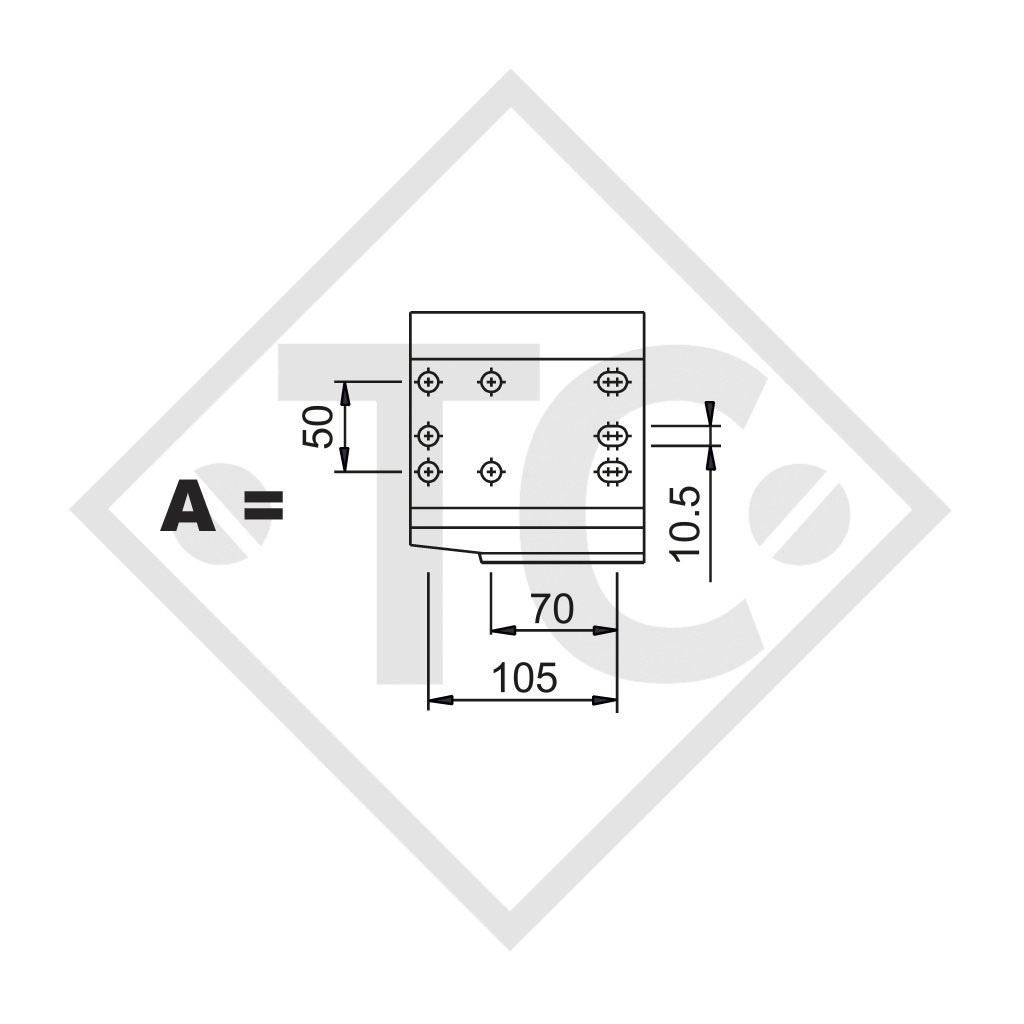

Jockey wheel flange = A

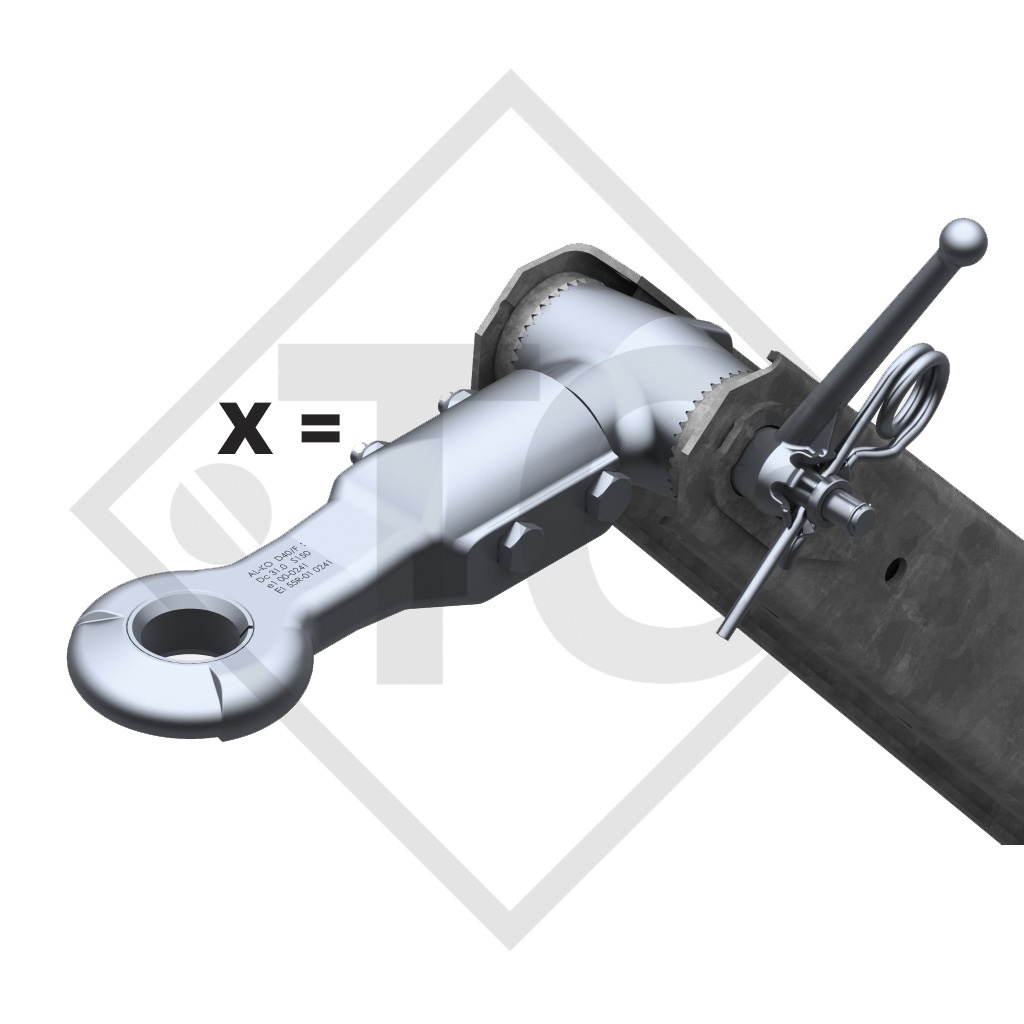

Assembly example = X

INSTRUCTION BOOK
SPARE PART LIST 811672

TECHNOLOGY
Drawbar type 70.1 VO vers. C1
Intermediate piece with drawbar section
Permitted nose load 100 kg
Push-on hitch components

ECE type approval no.: E1 55R-01 1135

SURFACE TREATMENT
Hot-dip galvanised
Hitches, eyes and small parts galvanised (not included in scope of delivery)
