Home / CHASSIS PARTS / CHASSIS PARTS BPW / AXLES / TANDEM AXLE UNIT 2100 TO 3500KG SWING, AXLE TYPE CB 2/1054, CB 2/1055, CB 2/1354, CB 2/1355, CB 2/1505 AND CB 2/1805 / TANDEM AXLE UNIT UP TO 2500KG SWING, AXLE TYPE CB 2/1354 / Towbar connection toothed washer type 102 VB vers. N height-adjustable with drawbar section up to 1100kg
total length K (at 0°) 2259mm, drawbar length E 1250mm, drawbar section 70x140x3mm, intermediate piece 750mm, perm. nose load 100kg, without hitch components. Read more...
Part no. 20057604

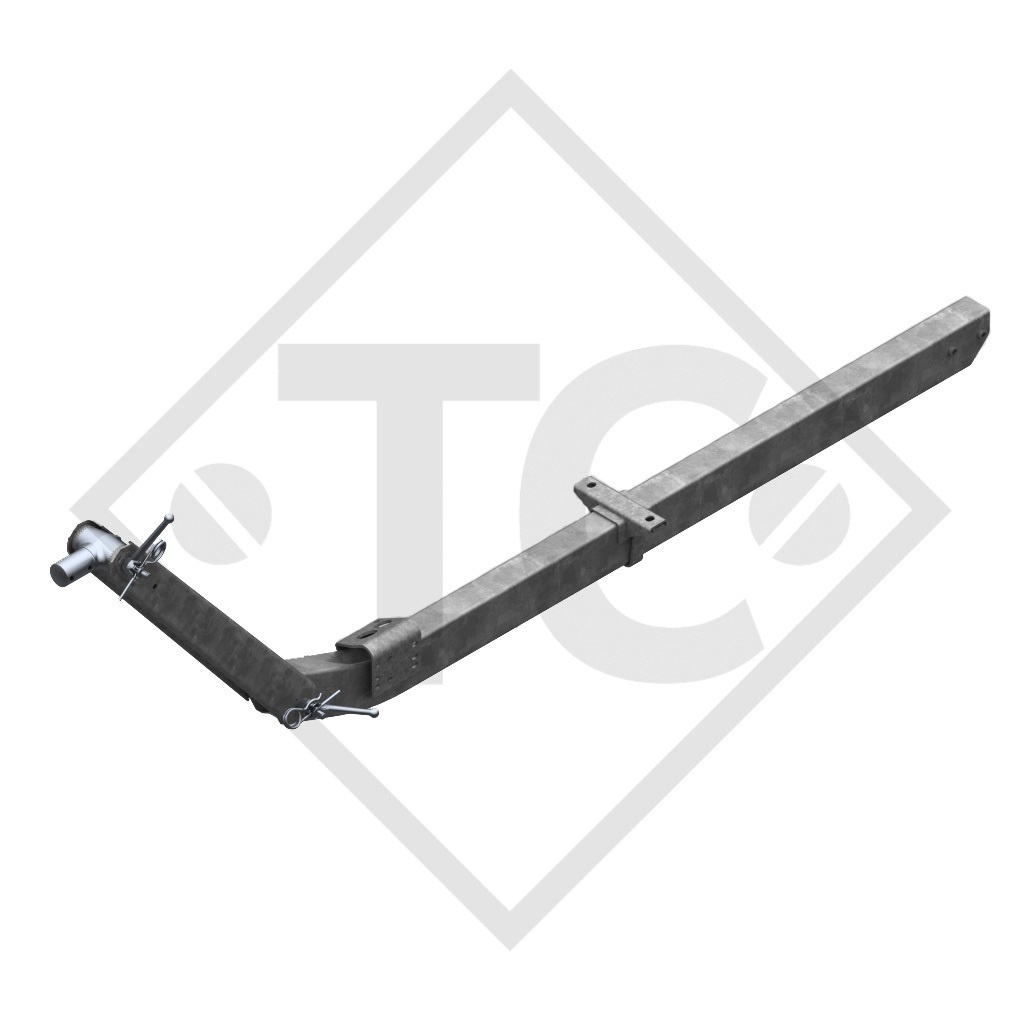

Drawbar cpl. with drawbar section mounted (without hitch components)

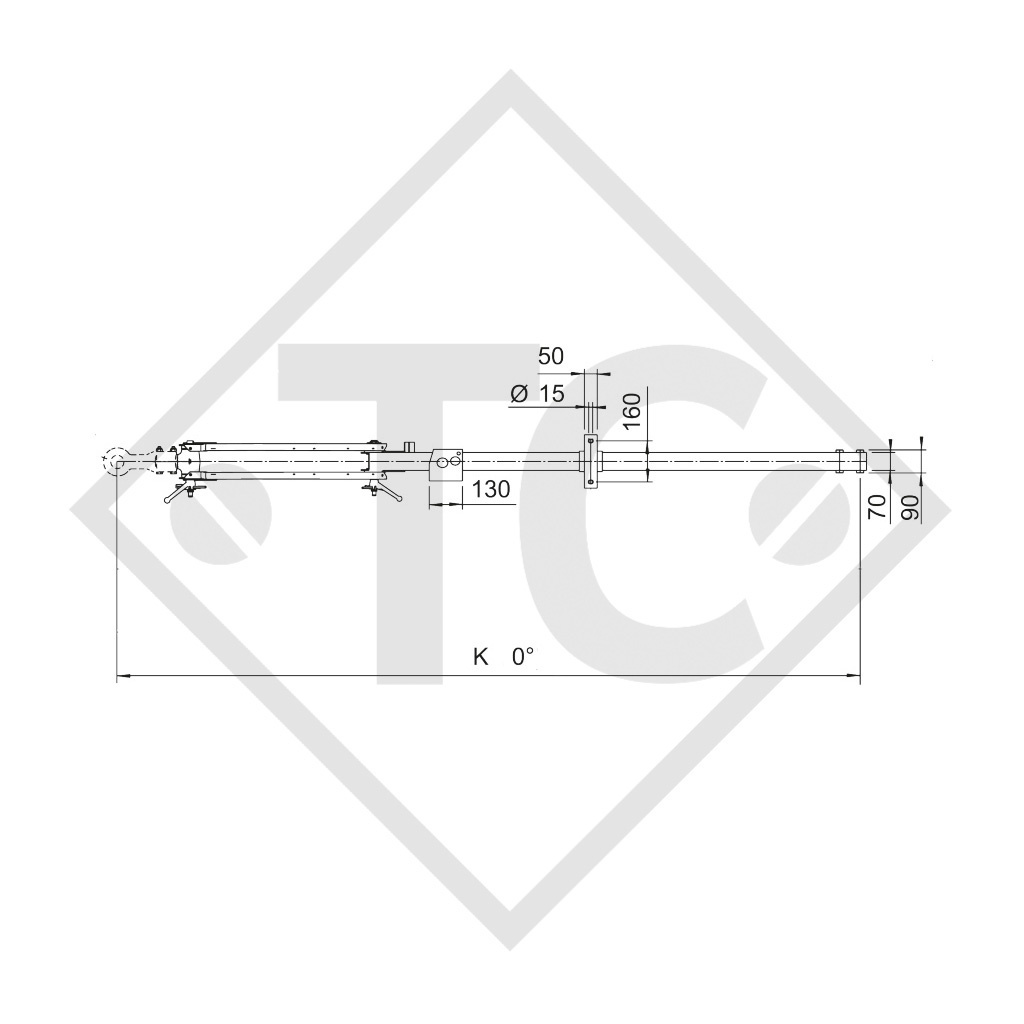

Total length K at 0°: 2259mm with assembly example for drawbar eye DIN D40/F
* = DIN drawbar eye (the dimensions must be recalculated for other hitch components)

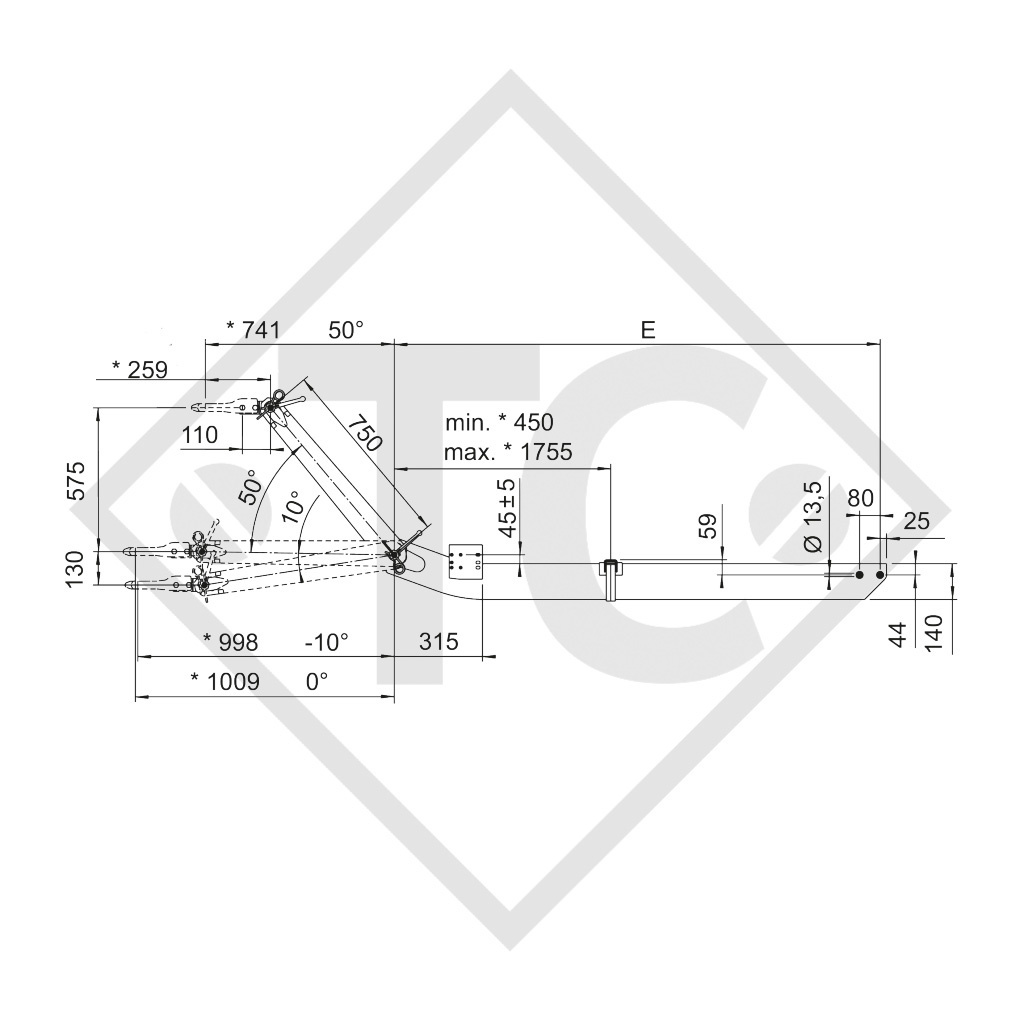

Drawbar length E: 1250mm
Intermediate piece 750mm
Jockey wheel flange = A
Assembly example = X
INSTRUCTION BOOK
SPARE PART LIST 811674
TECHNOLOGY
Drawbar type 102 VB vers. N
Intermediate piece with drawbar section
Permitted nose load 100 kg
Push-on hitch components
ECE type approval no.: E1 55R-01 0211
SURFACE TREATMENT
Hot-dip galvanised
Hitches, eyes and small parts galvanised (not included in scope of delivery)
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
