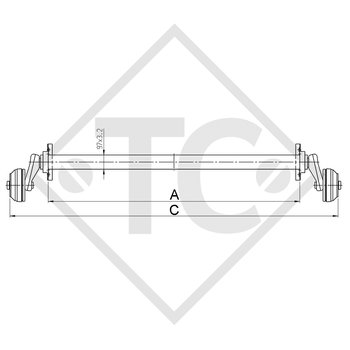

BC: dimension A 830mm, OHF: dimension C 1235mm, wheel connection 112x5, wheel brake type 2051 vers. A, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm.
BC: dimension A 1485mm, OHF: dimension C 1905mm, wheel connection 100x4, wheel brake type 2051 A, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm, taper-head wheel bolts M12x1.5.
BC: dimension A 1800mm, OHF: dimension C 2250mm, wheel connection 140x5, wheel brake type 2051 vers. A, offset (ET), swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5.
BC: dimension A 1425mm, OHF: dimension C 1852mm, wheel connection 112x5, wheel brake type 2051 A, offset (ET) 26-30mm, swing arm position 5°, axle profile 97mm.
BC: dimension A 1520mm, OHF: dimension C 2145mm, wheel connection 112x5, wheel brake type 2051 vers. A, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm.
