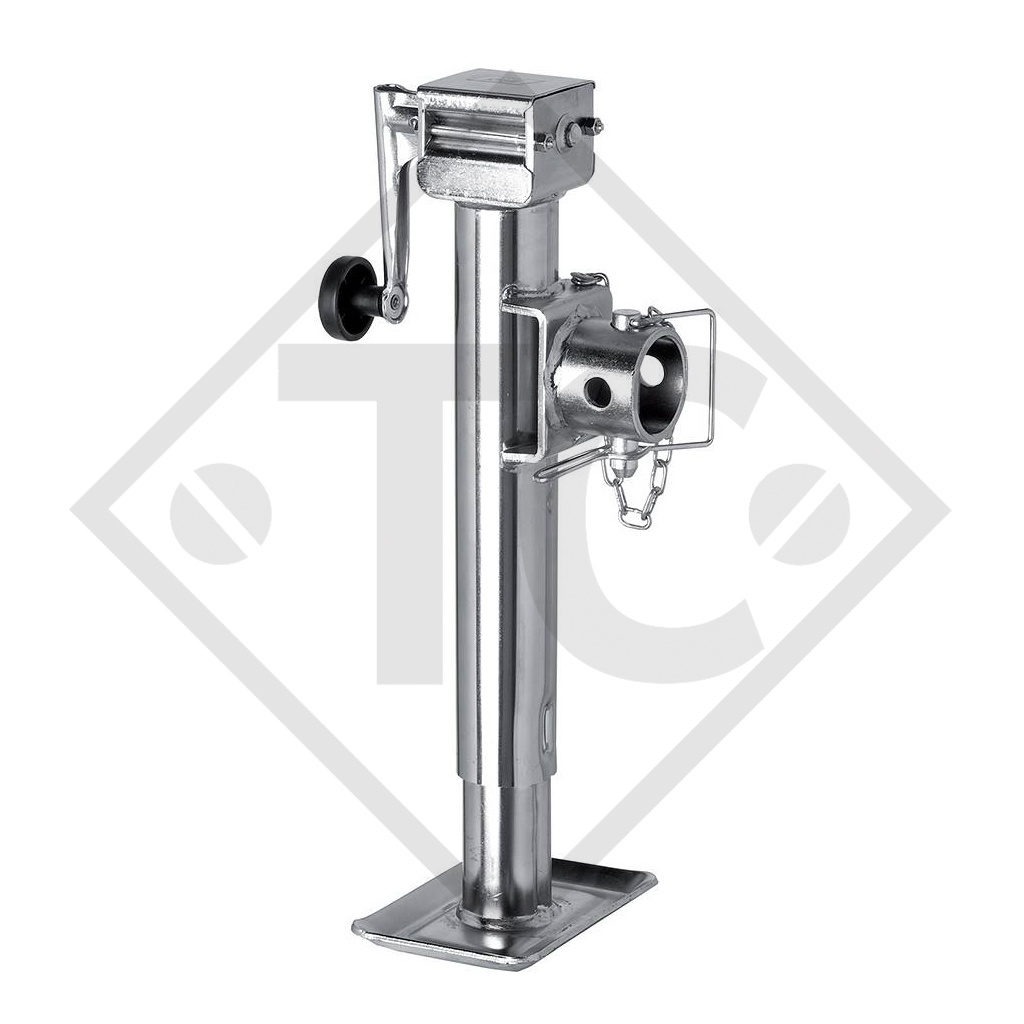

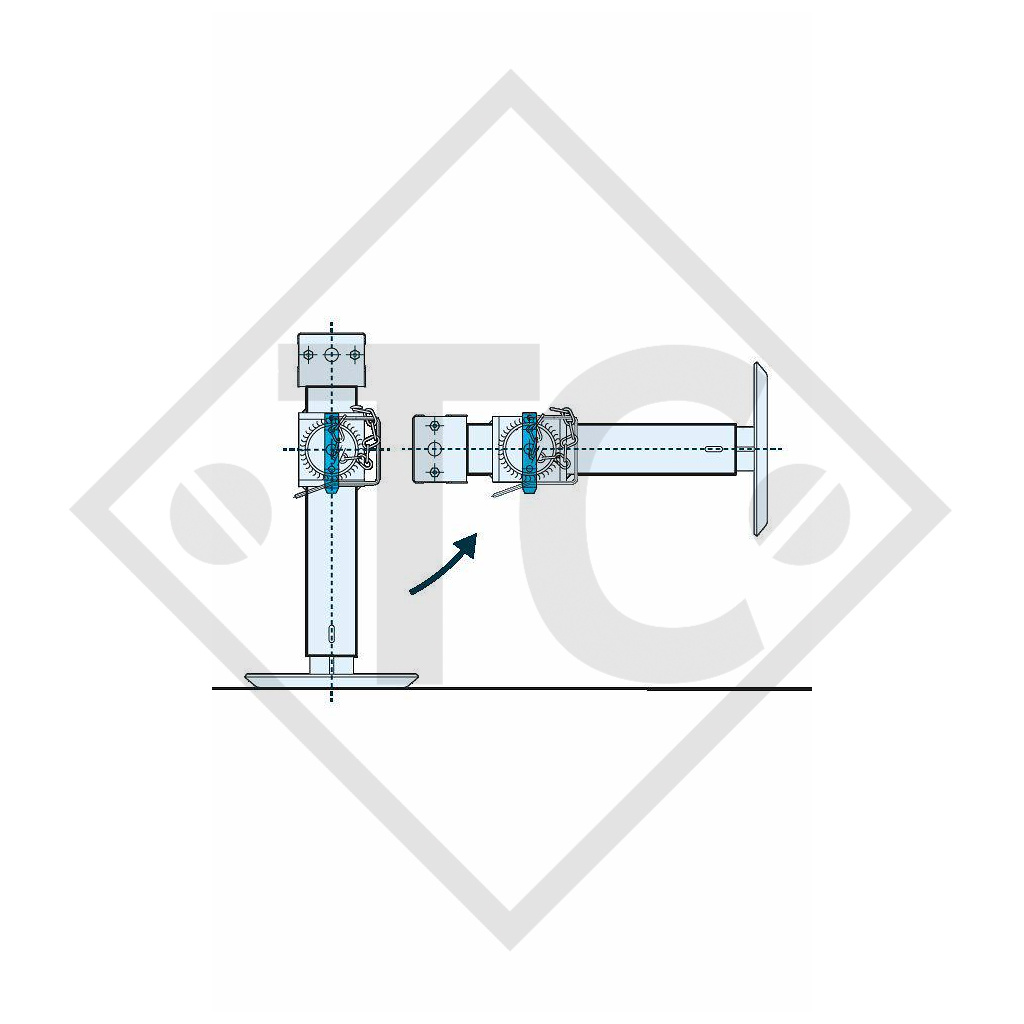

Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / OVERRUN DEVICES / OVERRUN DEVICES V / TOWBAR CONNECTIONS V, TOWBAR CONNECTION, JOCKEY WHEEL CROSSMEMBER, BRAKE ROD / TOWBAR CONNECTIONS V 1000KG TO 3500KG / Steday leg pivoting ø57mm round, type LR 3152

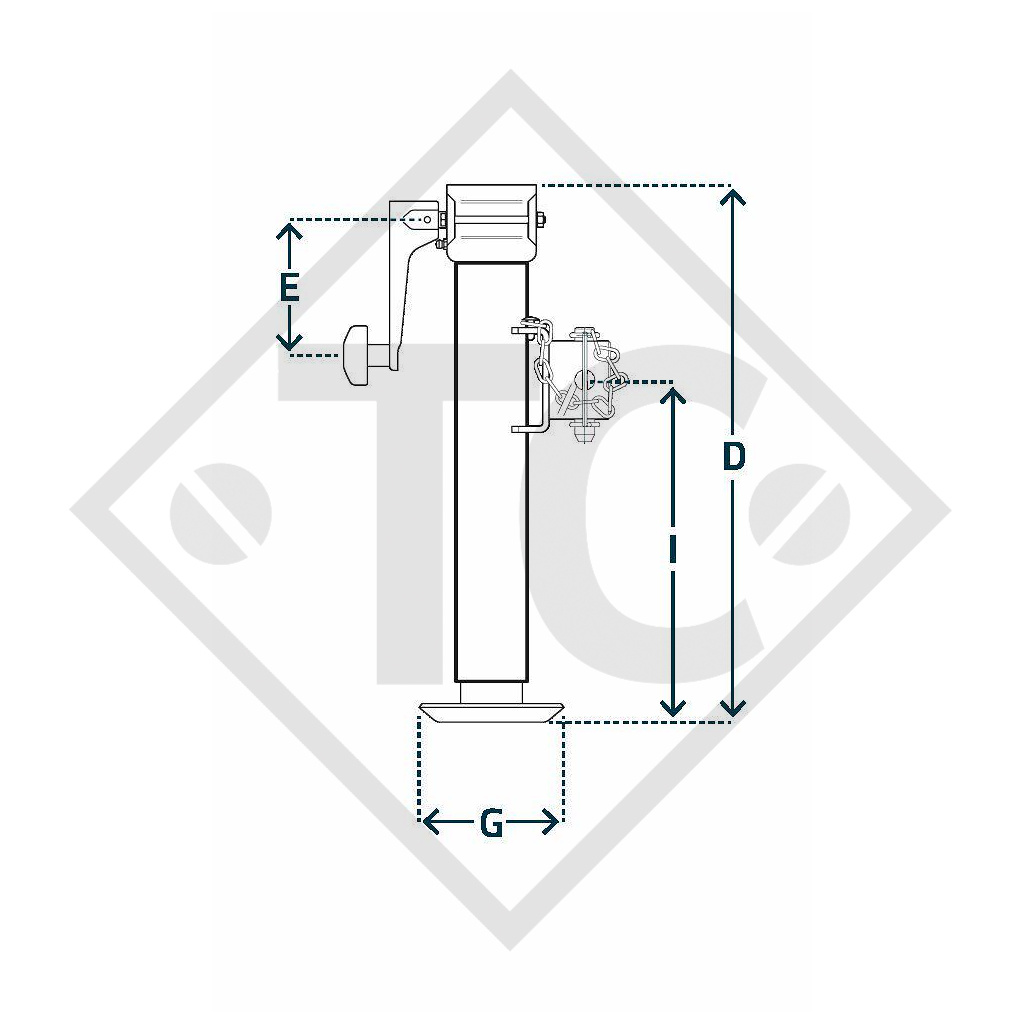

screw stroke (extended length) 365mm, maxi. static load 1300kg, dimension D 550mm, dimension E 110mm, dimension G 120x165mm, dimension I 390mm. Read more...
| Outer tube |
ø57mm |
| Screw stroke (extended length) | 365mm |
| Maxi. static load | 1300kg |
| Dimension I |
390mm |
| Dimension D |
550mm |
| Dimension E |
110mm |
| Dimension G |
120x165mm |
Here, you can find the catalogue page(s) as a convenient PDF download.
