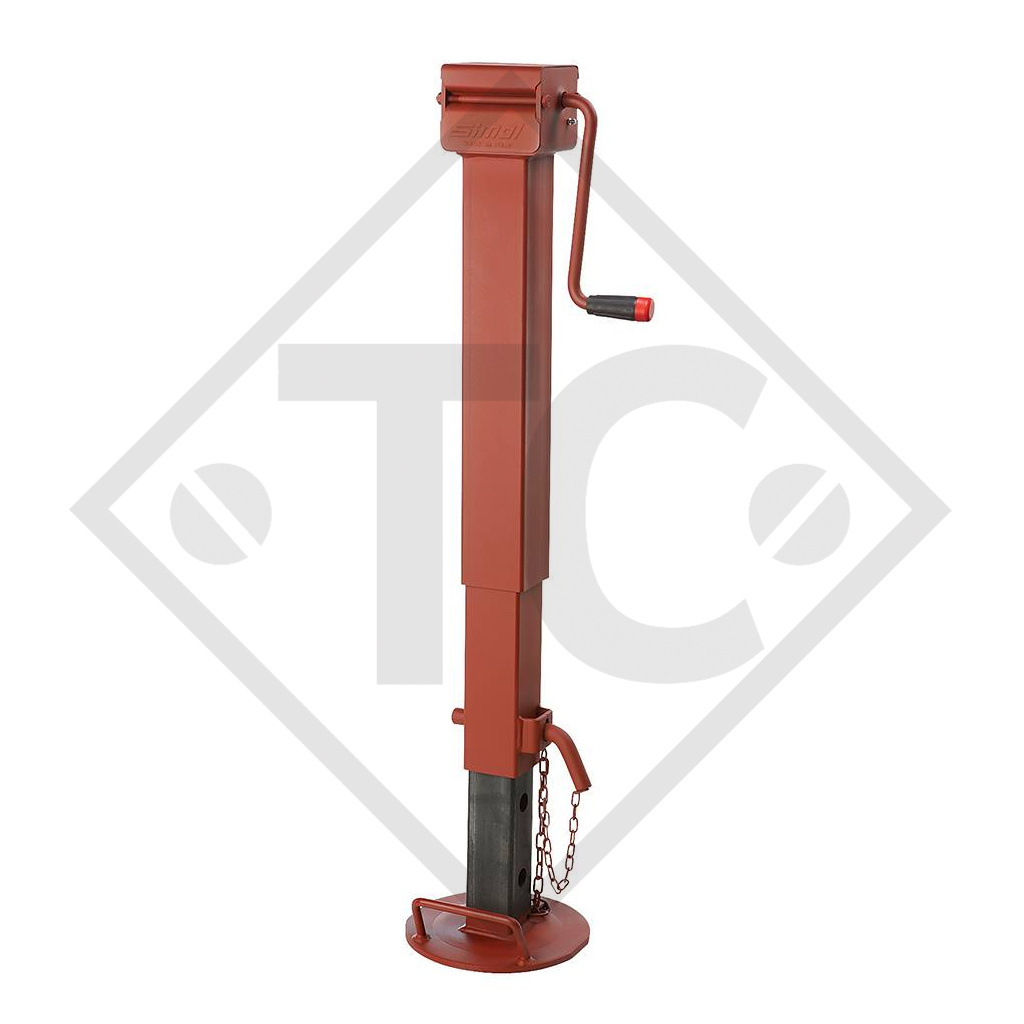

Home / Steday leg □80mm square with side crank, with reduction unit, three-stage, type DG 706/3SF, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow
screw stroke (extended length) 300mm, maxi. static load 2500kg, dimension B 500mm, dimension C 380mm, dimension D 685mm, dimension E 225mm, dimension G 220mm, dimension H 276mm. Read more...
| Outer tube |
□80mm square |
| Screw stroke (extended length) | 300mm |
| Maxi. static load | 2500kg |

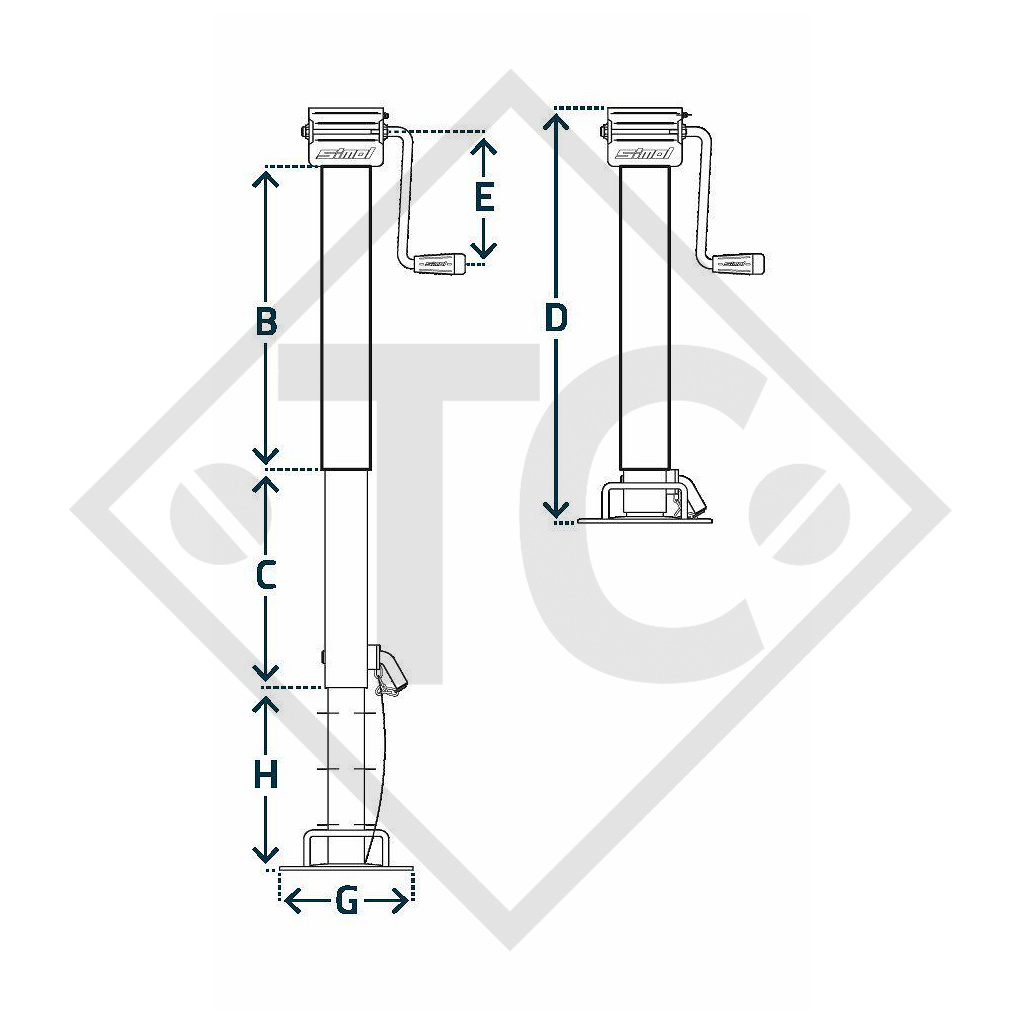

| Dimension B |
500mm |
| Dimension C | 380mm |
| Dimension D |
685mm |
| Dimension E |
225mm |
| Dimension G |
220mm |
| Dimension H | 276mm |
Here, you can find the catalogue page(s) as a convenient PDF download.
