Home / Steday leg □70mm square with tipping connection, type DN 513L, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow
screw stroke (extended length) 260mm, maxi. static load 4000kg, dimension B 530mm, dimension C 185mm, dimension D 735mm, dimension E 220mm, dimension G 220mm, dimension I 660mm. Read more...
| Outer tube |
□70mm square |
| Screw stroke (extended length) | 260mm |
| Maxi. static load | 4000kg |

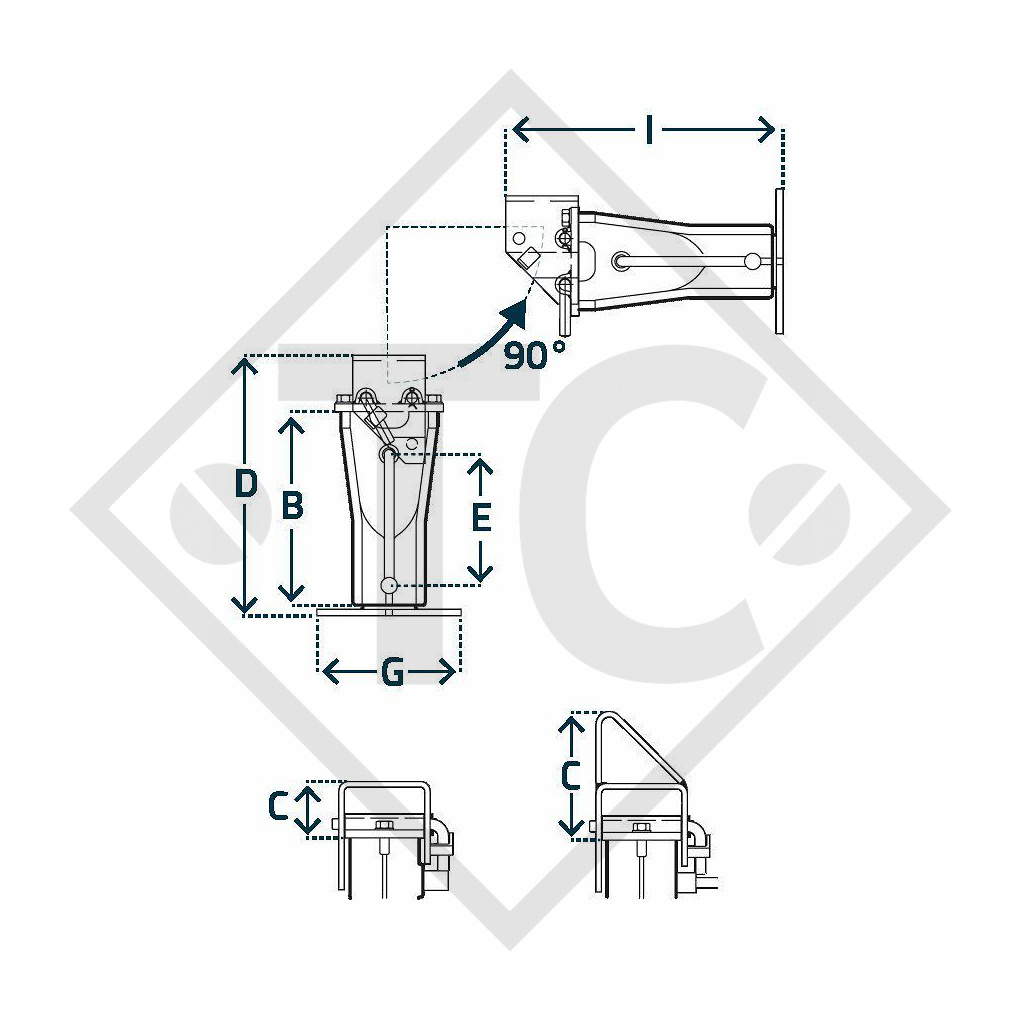

| Dimension B |
530mm |
| Dimension C | 185mm |
| Dimension D |
735mm |
| Dimension E |
220mm |
| Dimension G |
220mm |
| Dimension I | 660mm |
Here, you can find the catalogue page(s) as a convenient PDF download.
